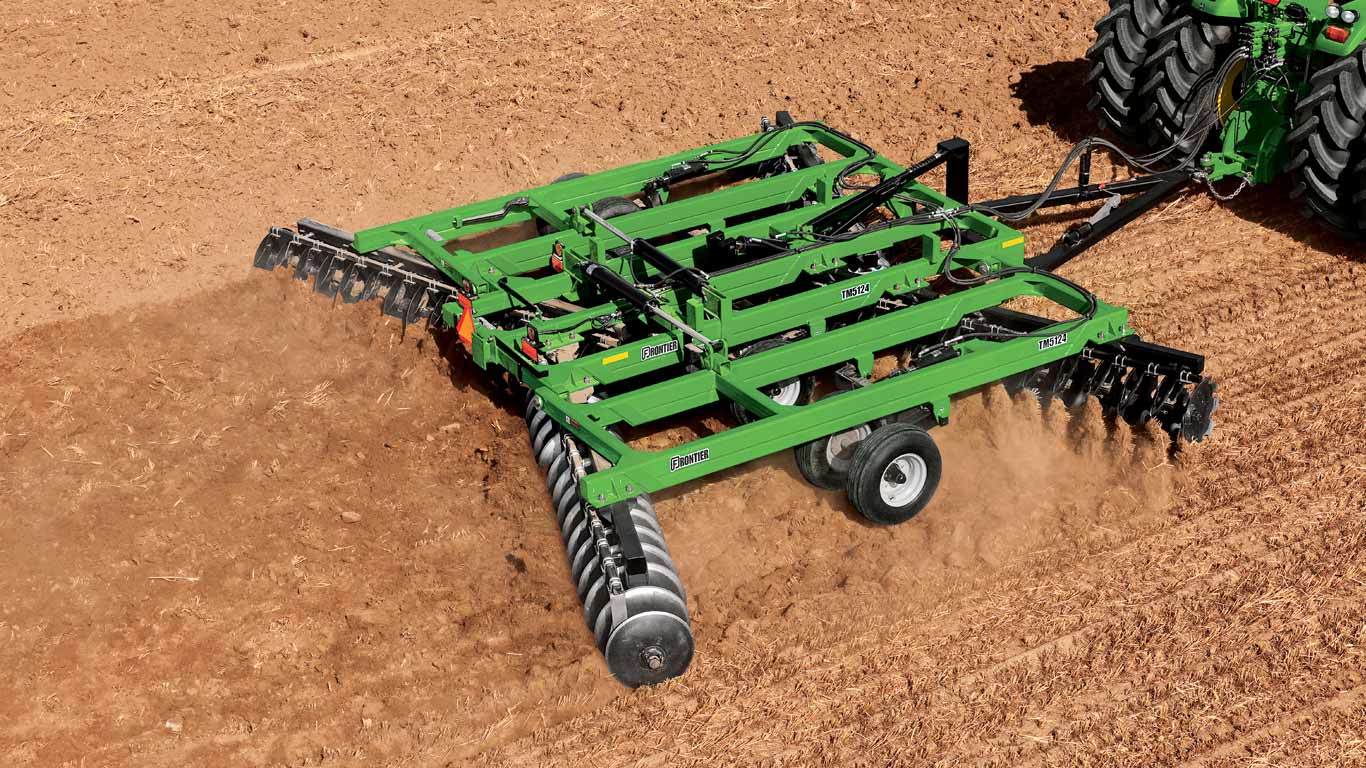

TM51 Series Tandem Disk Harrows
- John Deere
- Disks
Find a location to get your local store information and inventory.
Find Location
Key Features & Specs
- Dual wheels provide consistent disking depth
- Hydraulic wing control
- Two-blade taper creates level soil surface
- Transport locks provide secure transport
- Hitch Cast link
- Drawbar HP 160 – 180 hp (119.3 – 134.2 kW)
- Working Width 18 ft. (5.5 m) folding

- + Expand All
- - Close All
-
Standard pintle hitch ensures a solid pull of disk
Pintle hitch
Safely transport the TM51 Series Tandem Disk Harrow from the farm to the field easily with the standard pintle hitch.
-
Overlapping front gangs eliminate need for middle breaker
Provides more level soil profile
The front gangs overlap, eliminating the need for a middle breaker.
This provides a more-level soil profile, ensuring complete coverage on each pass.
-
End washers and wrenches keep gang shaft end nut tight
Keeping gangs tightened increases wear life
Gang nut wrenches are always there when needed
End washers help keep the gang shaft end nut tightened during operation, increasing gang wear life.
Two gang nut wrenches are supplied with each unit and securely attached to the unit, ready to use when the gangs need tightening.
-
Two separate control arms create consistent performance
Controls arms level in ground and during transport
Two separate control arms are standard, one for transport leveling and one for leveling while the disk is in the ground.
Once set for a given soil condition, the disk will continue to perform with consistency.
-
Transport locks provide secure transport
Secure locking when transporting
Transport locks secure the unit for transport mode.
-
Two-blade taper creates level soil surface
Two-blade taper
A two-blade taper, including the furrow filler on the outside rear wing, reduces outside ridges and smooths out the soil to create a level soil surface.
-
Hydraulic wing control
Hydraulic wing control and gauge
Hydraulic wing control is standard equipment on all Frontier™ TM51 Series Tandem Disk Harrows. A control valve allows varying hydraulic pressure to the wing-fold cylinders. It transfers weight from the mainframe to the wings to improve penetration in hard ground and/or heavy soils. Increasing pressure to the rod end of the cylinder holds the wing level to prevent gouging in soft or moist soils.
The pressure relief feature allows wings to flex over obstacles to help prevent damage to the cylinder rod. Convenient knob adjustment can be easily reached from the front of the disk. The indicator gauge provides the operator with a quick visual indication of the results of the adjustment.
NOTE: Requires a tractor with closed-center hydraulics. Operators must follow special operating instructions per the operator's manual.
-
Transport width
null
-
Oil-bath disk gang bearings provide extended wear life
Consistent lubrication and longer life
Oil-bath disk gang bearings with a standard wear plate allow consistent lubrication and prolong bearing life with minimal maintenance.
This feature ultimately saves both time and money.
-
Dual wheels provide consistent disking depth
Distributes weight evenly during transport
The TM51 Series Tandem Disk Harrow comes standard equipped with dual wheels for consistent disking depth.
The dual wheels provide additional stability for even weight distribution during transport.
NOTE: TMD5129 and TM5132 have 12 wheels total; six on the center section and three on each of the wing sections.
Available blade sizes
Blade option one | 660x7.9 mm 26x0.312 in. |
Blade option two | 711x7.9 mm 28x0.312 in. |
Disk blades
Spacing | 26.7 cm 10.5 in. |
Quantity | 58 |
Blade concavity | Standard: high Optional: low |
Type | Notched (front) Notched (rear) StandardSmooth (front) Smooth (rear) OptionalNotched (front) Smooth (rear) Optional |
Disk gangs
Scrapers | Adjustable |
Rear angle | 3 Positions |
Axle size | 4.1 cm 1.625 in. or 5.4 cm 2.125 in. |
Bearing standards | Welded, reinforced |
Axle material | Round heat treated alloy steel, threaded on both ends |
Front angle | 3 Positions |
Bearing wear plates | Standard |
Bearing type | Oil bath tapered roller |
Frame
Duty | General Purpose |
Type | Tandem double offset |
Tube size | 15.2x10.2x0.95 cm 6x4x0.375 in. |
Hitch
Front hitch type | Spade |
Lighting and safety
Safety tow chain | Yes |
Markings | SMV |
Lights | Yes |
Set-up time
Labor hours | 4 - 6 for two people |
Tires
Type | Eight implement |
Size | 11L x 15 in. 8 ply |
Wheel hub type | 8 Bolt |
Tractor requirements
Recommended drawbar hp range | 164.1+ kW 220+ hp |
Transport
Ground clearance with base blades | 20.3 cm 8 in. |
Height | 4 m 13.2 ft |
Wheel hub bearings | Dual Tapered Roller Bearings |
Length | 8.5 m 28 ft |
Width | 4.2 m 13.67 ft, in. |
Warranty
Time period | 1 year |
Weight
Weight per disk blade | 145.1 kg 320 lb |
Net | 7842.6 kg 17290 lb |
Working
Maximum penetration | 22.9 cm 9 in. |
Approximate working width | 7.2 m 23.5 ft, in. |
