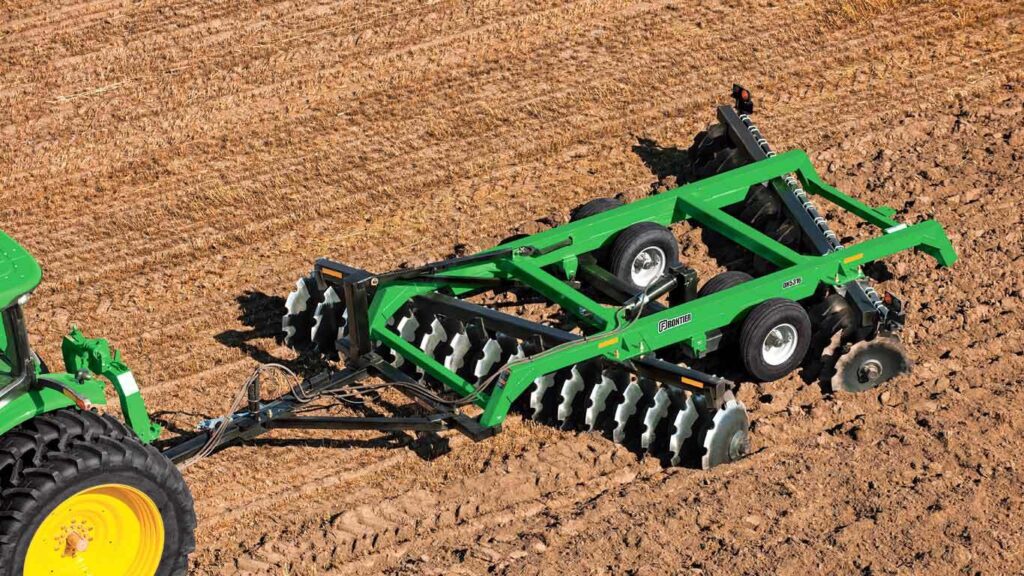

John Deere DH53 Series Offset Disks
Agriculture
- Adjustable disk blade scrapers
- Rear hitch for attaching additional implement
- Transport locks secure disk wings
- Oil bath tapered roller bearings minimize maintenance
| Tires - Type | Implement - Quantity of 4 |
|---|---|
| Working - Approximate working width | 3 m 10 ft |
| Disk gangs - Front angle | 2 Positions |
| Working - Maximum penetration | 22.9 cm 9 in. |
| Weight - Net | 3866.9 kg 8525 lb |
| Transport - Ground clearance with base blades | 22.9 cm 9 in. |
| Weight - Weight per disk blade | 203.7 kg 449 lb |
| Lighting and safety - Safety tow chain | Yes |
| Disk gangs - Axle size | 6.4 cm 2.5 in. |
| Tractor requirements - Recommended PTO hp range | 105-132 kW 141-176 hp |
| Disk gangs - Scrapers | Adjustable |
| Available blade sizes - Blade option two | 762x9.5 mm 30x0.375 in. |
| Tractor requirements - Recommended drawbar hp range | 89.5-111.9 kW 120-150 hp |
| Hitch - Front hitch type | Spade |
| Available blade sizes - Blade option three | 813x9.5 mm 32x0.375 in. |
| Frame - Duty | Heavy |
| Disk gangs - Rear angle | 2 Positions |
| Disk gangs - Axle material | Round Heat Treated Alloy Steel Threaded on Both Ends |
| Warranty - Time period | 1 year |
| Disk blades - Blade concavity | Standard: high Optional: low |
| Tires - Size | 12.5L x 15 10 ply in. |
| Lighting and safety - Markings | SMV |
| Lighting and safety - Lights | Yes |
| Transport - Wheel hub bearings | Dual Tapered Roller Bearings |
| Frame - Tube size | 15.2x15.2x0.95 cm 6 x 6 x 3/8 in. |
| Disk blades - Spacing | 30.5 cm 12 in. |
| Available blade sizes - Blade option one | 711x9.5 mm 28x0.375 in. |
| Disk gangs - Bearing standards | Welded, Reinforced |
| Disk blades - Quantity | 21 |
| Disk gangs - Bearing wear plates | Standard |
| Disk gangs - Bearing type | Oil Bath Tapered Roller |
| Set-up time - Labor hours | 2-3 for two people |
| Frame - Type | Single Offset Rigid |
| Transport - Width | 3.4 m 11 ft |
| Tires - Wheel hub type | 8 Bolt |
| Disk blades - Type | Notched (front) Notched (rear) Standard |
Featured Content
Allows operator to pull an additional implement
A rear hitch is available for operators wanting to pull an additional implement such as a harrow or drag.
Transport locks secure disk wings cylinder
Transport locks are standard, ensuring disk wings are in secure transport mode.
Available in notched disk blades for front and rear
Notched disk blades available in three sizes
Disk blades on the DH53 Series Offset Disks are available in 71.1-cm, 76.2-cm, or 81.3-cm (28-in., 30-in, or 32-in.) diameter. The weight per blade on these disks ranges from 152.9 kg to 241.8 kg (337 lb to 533 lb) for superior penetration in tough soil conditions.
Only notched disk blades for front and rear are available on the DH53 Series models.
Minimal maintenance increases work hours
Sealed with industrial-grade seals
Oil bath tapered roller bearings, sealed with industrial-grade seals, keep maintenance to a minimum and profitable working hours at a maximum. The bearings come complete with a wear plate.
Keeping gangs tightened increases wear life
Gang nut wrenches are always there when needed
End washers help keep the gang shaft end nut tightened during operation, increasing gang wear life.
Two gang nut wrenches are supplied with each unit and securely attached to the unit, ready to use when the gangs need tightening.
Clevis hitch makes hookup easy
Clevis hitch is built strong for tough jobs
The clevis hitch has a durable design and is designed for ease of use, long life, and tough working conditions.
Control arms level in ground and during transport
Easy to set for desired soil condition
Two separate control arms are standard, one for transport leveling and one for leveling while the disk is in the ground. Once set for a given soil condition, the disk will continue to perform with consistency.
Scrapers clean disk blades
Scrapers work great in wet and sticky soils
Adjustable disk blade scrapers keep disk blades clean and performing in wet and sticky soils for increased productivity.
