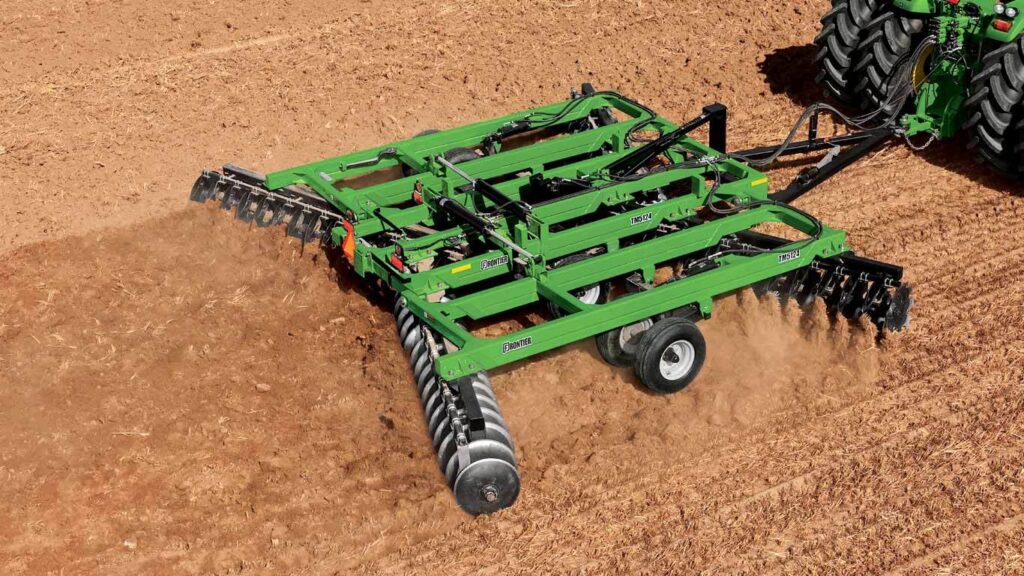

John Deere TM51 Series Tandem Disk Harrows
Agriculture
- Dual wheels provide consistent disking depth
- Hydraulic wing control
- Two-blade taper creates level soil surface
- Transport locks provide secure transport
| Working - Maximum penetration | 22.9 cm 9 in. |
|---|---|
| Available blade sizes - Blade option one | 660x7.9 mm 26x0.312 in. |
| Disk blades - Spacing | 26.7 cm 10.5 in. |
| Tractor requirements - Recommended drawbar hp range | 164.1+ kW 220+ hp |
| Lighting and safety - Safety tow chain | Yes |
| Available blade sizes - Blade option two | 711x7.9 mm 28x0.312 in. |
| Transport - Ground clearance with base blades | 20.3 cm 8 in. |
| Transport - Height | 4 m 13.2 ft |
| Disk gangs - Scrapers | Adjustable |
| Hitch - Front hitch type | Spade |
| Disk blades - Quantity | 58 |
| Warranty - Time period | 1 year |
| Disk blades - Blade concavity | Standard: high Optional: low |
| Disk gangs - Rear angle | 3 Positions |
| Set-up time - Labor hours | 4 - 6 for two people |
| Disk gangs - Axle size | 4.1 cm 1.625 in. or 5.4 cm 2.125 in. |
| Disk gangs - Bearing standards | Welded, reinforced |
| Frame - Duty | General Purpose |
| Lighting and safety - Markings | SMV |
| Lighting and safety - Lights | Yes |
| Working - Approximate working width | 7.2 m 23.5 ft, in. |
| Disk gangs - Axle material | Round heat treated alloy steel, threaded on both ends |
| Transport - Wheel hub bearings | Dual Tapered Roller Bearings |
| Disk gangs - Front angle | 3 Positions |
| Frame - Type | Tandem double offset |
| Tires - Type | Eight implement |
| Disk gangs - Bearing wear plates | Standard |
| Tires - Size | 11L x 15 in. 8 ply |
| Disk gangs - Bearing type | Oil bath tapered roller |
| Weight - Weight per disk blade | 145.1 kg 320 lb |
| Transport - Length | 8.5 m 28 ft |
| Transport - Width | 4.2 m 13.67 ft, in. |
| Frame - Tube size | 15.2x10.2x0.95 cm 6x4x0.375 in. |
| Tires - Wheel hub type | 8 Bolt |
| Weight - Net | 7842.6 kg 17290 lb |
| Disk blades - Type | Notched (front) Notched (rear) Standard Smooth (front) Smooth (rear) Optional Notched (front) Smooth (rear) Optional |
Featured List
- Hitch: Cast link
- Drawbar HP: 160 – 180 hp (119.3 – 134.2 kW)
- Working Width: 18 ft. (5.5 m) folding
