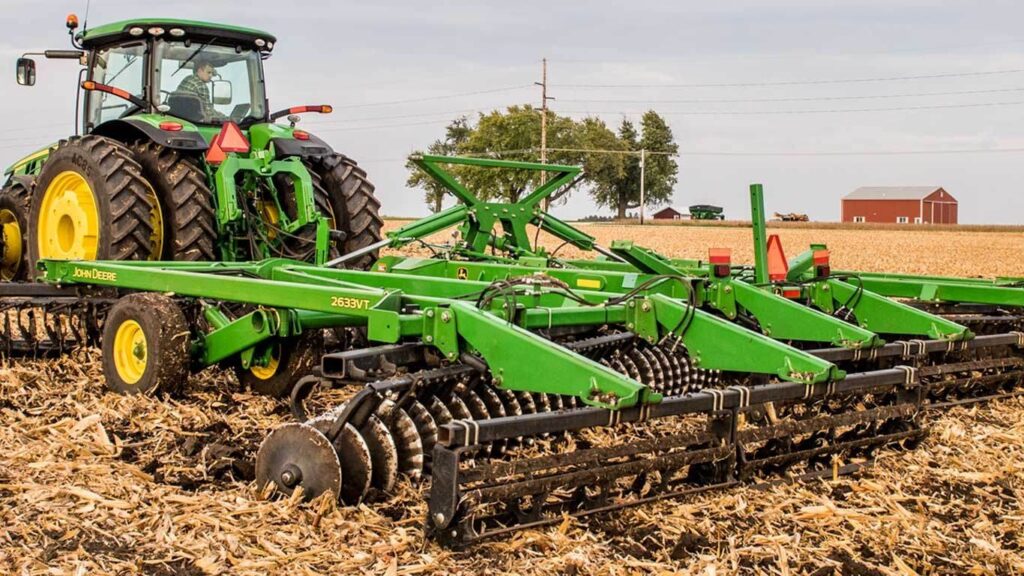

2633VT Vertical Tillage
- John Deere
- Disks & Vertical Tillage
Find Your Nearest Location
Key Features & Specs
- Gang angle 21° Front/19° Rear
- Working Widths from 20'9" to 40'8"
- Operating Speeds 7-10 mph
- Working Speed 7 to 10 mph (11.4-16 km/h)
- Required HP (Engine)/FT 8.5 to 11 (20.8-26.95 kw/m)
- Residue Conditions light/medium/heavy
- Working Depth up to 3 in (76 mm)
- Depth Control TruSet/Single point
- Weight /blade 197 lbs to 227 lbs (89.4-103 kg)
- + Expand All
- - Close All
-
Easily tension gang bolts
The John Deere 2633VT Vertical Tillage tool provides an innovative approach to tension gang bolts.
-
Versatile design of gang angle manages residue in fall and spring conditions
Whether the plan is to use the 2633VT in the spring or fall, this machine was designed to handle any residue management situation. With a 21-degree angle on the front gang and 19-degree gang angle on the rear gang, this tool was created to have aggressive sizing and chopping ability in tough residue in the fall and to have finishing characteristics to build an ideal seedbed in the spring.
Shallow gang angle vertical tillage tools can leave a wavy, washboard effect unsuitable for a proper seedbed. The 2633VT implement has an aggressive gang angle to help anchor residue, manage weeds and root balls, and create an even, smooth seedbed under the topsoil.
As crop yields increase, so does the amount of residue after harvest. The John Deere 2633VT allows producers to prepare soil for planting in the spring and residue management in the fall.
-
Multiple enhancements made to 2630 Series Disks
The 2630 Series Disks offer multiple upgrades and additional items as options versus the 2620 Series Disks to enhance the machine. Check out the following video to see more about the 2630 Series Disks.
Extended-life bearings
John Deere 2630 Series Disks and Vertical Tillage Implements feature extended-life bearings. These more durable and reliable bearings allow producers to customize bearing maintenance for specific growing conditions and soil type.
TruSet™ side-to-side feature
John Deere TruSet system is featured in base equipment for the 2630 Series Disks and Vertical Tillage Implements. TruSet side-to-side is also available and features individual section leveling.
Knife-edge hydraulic rolling basket
The hydraulic rolling basket is offered with a round bar, flat bar, or knife-edge. The knife-edge is best for heavier, wet soil, and can be used in rocky conditions.
Radial tires
The 2630 Series Disks and Vertical Tillage Implements feature radial tires for the mainframes in base equipment. Radial tires are available as an option on the wing frame and stabilizer wheels. These tires are designed to offer longer wear life and help minimize compaction with a wider plate and lower inflation pressures.
Stabilizer wheels
Producers can choose either mechanical stabilizer wheels or TruSet hydraulic stabilizer wheels as an option. Stabilizer wheels help to maintain a consistent, level depth and are recommended for operation on rolling ground. The mechanical stabilizer wheels can be manually adjusted with a turnbuckle. TruSet with side-to-side leveling capabilities also enables operators to control the TruSet hydraulic stabilizer wheels from the cab while on the go.
-
Six sizes available to fit right machine to any size operation
The John Deere 2633VT offers six different sizes to fit any size operation, big or small.
Model 2633VT Purpose Vertical tillage Working depth Up to 75 mm (3 in.) Standards C-spring Gang angle 21 degrees front
19 degrees rearFront gang blades - 560 mm x 5 mm (22 in. x 0.197 in.) solid shallow concavity spherical
- Optional 560 mm x 6.5 mm (22 in. x 0.256 in.) solid shallow concavity spherical
Rear gang blades 560 mm x 5 mm (22 in. x 0.197 in.) solid shallow concavity 13 wave Blade spacing 185 mm (7.25 in.) Gang bolt 50 mm (2 in.) Horsepower 27 to 36 hp/m (8.5 to 11 hp/ft) Working widths 6.3 m to 12.4 m (20 ft, 9 in. to 40 ft, 8 in.) Operating speed 11 to 16 km/h (7 to 10 mph) Size
6.3 m
(20 ft, 9 in.)8 m
(26 ft, 5 in.)8.9 m
(29 ft, 3 in.)9.3 m
(30 ft, 8 in.)10.2 m
(33 ft, 7 in.)12.4 m
(40 ft, 8 in.)Weight
6796 kg
(14,983 lb)9060 kg
(19,976 lb)9230 kg
(20,343 lb)9920 kg
(21,871 lb)10025 kg
(22,100 lb)12991 kg
(28,641 lb)Number of blades
68
88
96
104
112
136
Weight per blade
100 kg
(220 lb)103 kg
(227 lb)96 kg
(211 lb)95 kg
(210 lb)90 kg
(197 lb)95 kg
(210 lb)Horsepower requirement
(power take-off [PTO])131.2-170 kW
(176-228 hp)164.8-213.3 kW
(221-286 hp)184.2-237.9 kW
(247-319 hp)196.1-254.3 kW
(263-341 hp)208.8-270.7 kW
(280-363 hp)259.5-335.6 kW
(348-450 hp)Transport height
3.05 m
(10 ft)3.90 m
(12 ft, 10 in.)4.30 m
(14 ft, 1 in.)4.21 m
(13 ft, 10 in.)4.62 m
(15 ft, 2 in.)3.75 m
(12 ft, 4 in.)Transport width
4.11 m
(13 ft, 6 in.)4.11 m
(13 ft, 6 in.)4.11 m
(13 ft, 6 in.)4.77 m
(15 ft, 8 in.)4.77 m
(15 ft, 8 in.)4.95 m
(16 ft, 3 in.) -
TruSet™ features, packages, and documentation
Overview
With short windows of time to perform tillage operations, TruSet provides significant productivity improvements as operators can adjust the tool with just the push of a button, maximizing acres covered per day. By responding to conditions as they change throughout the field, TruSet Active enables operators to generate a higher-quality tillage performance within the first pass.
Using a GreenStar™ display, an operator sees real-time data for a variety of feature settings, ensuring confidence in desired tillage outcomes. Four customizable presets enable operators to save and name different combinations of settings for their most common field conditions, which allows for even quicker implement adjustments.
Single-point depth control is included with the TruSet Tillage system, giving operators the choice of automated or manual adjustments. Hydraulic routings on the tool are designed to allow each implement to feature both TruSet and standard single-point depth control for system redundancy, operator preference, and flexibility at resale.
John Deere has expanded TruSet features to bring even more functionality into the cab:
- Active depth, and basket pressure and raise
- Gang angle
- Hydraulic active stabilizer wheels
- Hydraulic wing control
- Hydraulic fore-aft control
TruSet features and packages
TruSet Tillage features a variety of technology features and packages. With either the Select or Premium package, you can elevate your experience with some or full control of your tillage tool from the cab at your fingertips. The following table outlines each TruSet offering specific to the implement model. For additional information on each feature, see the details after the table.
TruSet offerings Control of: Set-point depth Active depth Basket pressure Side-to-side leveling Gang angle Fore-aft Wing down pressure Stabilizer wheels 2230 Floating Hitch Field Cultivator --- Select** Select Premium --- --- --- --- 2230 Level-Lift™ Field Cultivator --- Select** Select --- --- --- --- --- 2330 Mulch Finisher --- Select** Select Premium** --- Premium** --- --- 2630 Series Disks --- Select** Select Premium --- Premium** --- Option 2633VT Vertical Tillage --- Select** Select Premium --- Premium** --- --- 2660VT Vertical Tillage --- Select** Select Premium Premium Premium Premium Option 2680H High-Speed Disk* In base --- --- --- --- --- --- --- *Currently not available in feature packaging
**New feature
NOTE: All Select package features are also included in the Premium package.
Active depth (Select and Premium package)
- With TruSet Active, the tillage tool automatically adjusts and keeps the desired depth even through changing field conditions, such as tire sink in soft soils or mud buildup in damp and sticky conditions.
- This is possible using an ultrasonic sensor that measures the distance from the mainframe to the soil as the implement travels through the field.
Basket pressure and raise (Select and Premium package)
- Integrated TruSet Tillage technology enables the operator to adjust their down pressure on the hydraulic rolling baskets while on the go to respond to changing field conditions such as varying soils, heavier residue, and moisture.
- Easily raise your baskets with one touch to avoid certain areas of the field, whether you are wanting to check the tillage tool with the baskets up or avoid going through a wet spot in the field. Once you’re through the area and ready to lower the baskets, simply press the basket lower to resume your desired basket pressure.
Side-to-side leveling (Premium package)
- Operators have the option to enhance the TruSet Tillage system with individual section leveling functionality. TruSet side-to-side is available as a field-installed option that can be ordered with the tillage tool or through aftermarket parts. The base TruSet Tillage system can also be upgraded to TruSet side-to-side with a conversion kit.
Gang angle (Premium package)
- With TruSet gang angle control, operators can adjust the gang angle on the go right from the cab. Adjusting the gang angle from 0 to 12 degrees provides more horizontal soil movement. The more aggressive the gang angle, the more soil mixing and burying of residue. Operators can also remove light ruts, tracks, and weeds at the most aggressive gang angle.
Fore-aft (Premium package)
- TruSet hydraulic fore-aft control enables operators to level the implement from the comfort of the tractor cab.
Wing down pressure (Premium package)
- TruSet hydraulic wing control transfers the weight from the mainframe to the wings to improve penetration in hard or heavy soils. In high-speed, shallow-depth tillage operations, maintaining a consistent depth across the tillage tool is critical to the consistency of the seedbed.
NOTE: TruSet hydraulic wing control pressure is only offered on three-section models.
Stabilizer wheels (additional factory option)
- Getting the best field performance is easier with TruSet Active hydraulic stabilizer wheels. Choose the option to easily adjust the depth of the stabilizer wheels from the cab to match the overall depth as changes are made. This feature replaces the mechanical linkage on stabilizer wheels with a hydraulic cylinder.
NOTE: Stabilizer wheels are not offered on one-section models.
TruSet documentation
With integrated TruSet Tillage technology, operators can incorporate documentation and prescription functionality into their tillage operations. The tillage documentation feature allows producers to capture and analyze the tillage pass for additional coverage of the crop production cycle. Prescription functionality provides producers the capability to ensure their tillage operations are executed correctly, optimizing their investment in preparing for the next crop.
Operators can document data for the depth of their tillage tool along with rolling basket down pressure. By creating an as-applied map based off global positioning system (GPS) data for the job performed by each functional area on the implement, TruSet enables producers to document their tillage passes then later review and analyze the data for future agronomic decisions.
Additionally, the Prescription Creator by Agrian® company, a connected partner tool through the John Deere Operations Center, enables producers to create prescriptions for each functional area on the tillage tools. Data from previous yields, soil surveys, or freehand drawing tools can be used to create prescriptions that command the implement to the desired depth and pressure settings for optimum agronomic results.
Agrian is a trademark of Agrian, Inc.
-
Extended-life bearings improve productivity
John Deere 2630 Series Disks and Vertical Tillage Implements feature extended-life bearings. These more durable and reliable bearings allow producers to customize bearing maintenance for specific growing conditions and soil types.
The flange-mounted bearing and sealing system features improved contamination resistance. The advanced seal material is highly resistant to wear and damage caused by abrasive soils and other crop materials. The design of these is more durable and reliable than previous bearings.
The design of this bearing system allows for dynamic self-alignment to the gang bolt, as opposed to trunnion-mounted bearings that have limited alignment capability. This system features additional freedom of movement, accommodating a wider variety of field conditions. The bearing system has been designed to decrease stress and fatigue on the inner rolling surfaces, supporting extended bearing life.
The bearing and seal design allows for a limited, seasonal maintenance interval to minimize downtime. They also allow producers to customize the maintenance for specific growing conditions and soil types. The multi-lipped sealing system cannot be damaged by frequent greasing. It allows bearings to accept grease within the bearing as well as provide grease to the outer bearing surface to eliminate wear between the bearing and housing. With this design, the bearings can accept grease even if misaligned to the housing. -
Active hydraulic rolling baskets create ideal seedbed
The 2633VT offers active hydraulic rolling baskets that give the operator wide-ranging adjustability for a variety of conditions. The drawbars and rolling basket on the rear harrow are built with strength in mind for demanding vertical tillage conditions.
The system was designed to run the rolling baskets in three different positions:- Raised
- Allows the operator to raise the rolling baskets in harsh, muddy conditions
- Float
- Allows the operator to float the rolling baskets to lightly fluff soil
- Apply down pressure
- Allows the operator to adjust the basket pressure to provide consistent contact with the ground
- Provides a firm seedbed
- Shatters root balls
The hydraulic rolling basket is offered with a round bar, flat bar, or knife-edge. The flat bar is not recommended for rocky conditions. The knife-edge is best for heavier, wet soil.
With these rolling baskets, a cast frame was designed to encase the bearing in a high-density polymer liner to allow dynamic movement and maintenance-free characteristics. Similar to the gangs on the 2633VT, the active hydraulic rolling baskets feature maintenance-free bearings to minimize non-productive activities.
To change the rolling basket down pressure, simply rotate the down pressure valve dial clockwise to increase pressure and counterclockwise to decrease pressure.
- Raised
-
Unique blade configuration on 185-mm (7.25-in.) spacing optimizes one pass sizing and mixing
John Deere's 2633VT comes equipped on 185-mm (7.25-in.) spacing with solid shallow concavity spherical blades on the front gang and solid shallow concavity wavy blades on the rear gang to size residue and mix soil.
Most of the sizing is going to be done by the front gang, and the rear gang is going to do the mixing. John Deere designed its vertical tillage tool to chop stalks to an acceptable size and begin soil mixing for breakdown yet leave a considerable amount of residue on the cover.
The 2633VT comes equipped with 185-mm (7.25-in.) spacing on the front and rear gang. Both blade sizes on front and rear gang are 560 mm x 5 mm (22 in. x 0.197 in.). Optional 560-mm x 6.5-mm (22-in. x 0.256-in.) blades are available on front gang only.Front solid shallow concavity spherical blade
- Chops and sizes residue
- Manages weeds
- Manages root balls
- Removes field ruts
Rear solid shallow concavity wavy blade
- Mix soil and residue
- Aerates soil
- Anchors residue
Front and rear 185-mm (7.25-in.) spacing
- Ideal for seedbed preparation
- Maximizes chemical incorporation
Blade type Solid spherical blade Solid wavy blade Thickness - 5 mm (0.197 in.)
- Optional 6.5 mm (0.256 in.)
5 mm (0.197 in.) Concavity Shallow Shallow Diameter 560 mm (22 in.) 560 mm (22 in.) Recommended soil types All soil types All soil types
Key Specs
Operating speed | 11.4-16.1 km/h 7-10 mph |
Transport width | 4.2 m 13.67 ft |
Working depth | Up to 7.6 cm 3 in. |
Horsepower requirement | 193.5-236.8 kW 263-322 hp |
Blade spacing | 18.4 cm 7.25 in. |
Transport height | 4.3 m 14.1 ft |
Machine
Note | Flat bar is not recommended for rocky soil conditions. |
Standards | C-spring |
Rolling basket | Round bar or flat bar (see note below) |
Number of blades | 96 |
Transport width | 4.2 m 13.67 ft |
Weight | 9,227 kg 20,343 lb |
Gang angle | Front: 21 degree (angle) Rear: 19 degree (angle) |
Weight per blade | 95.7 kg 211 lb |
Operating speed | 11.4-16.1 km/h 7-10 mph |
Working depth | Up to 7.6 cm 3 in. |
Horsepower requirement | 193.5-236.8 kW 263-322 hp |
Transport height | 4.3 m 14.1 ft |
Front gang blades | Solid shallow concavity spherical: 559x4.5 mm 22x0.197 in. |
Rear gang blades | Solid shallow concavity 13 wave: 559x4.5 mm 22x0.197 in. |
Blade spacing | 18.4 cm 7.25 in. |
