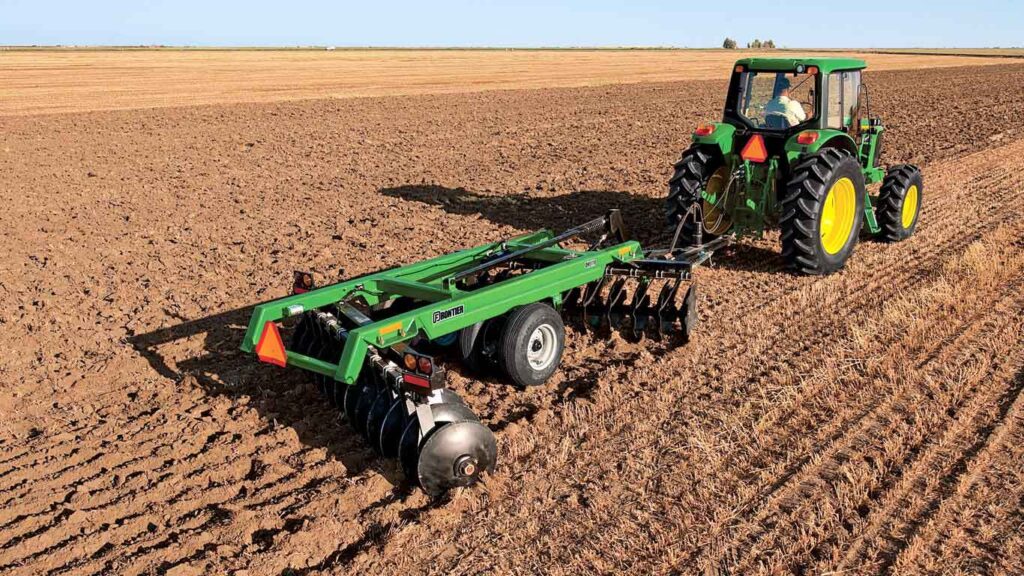

John Deere DH51 Series Offset Disks
Agriculture
- Adjustable disk blade scrapers increase productivity
- Notched or smooth disk blades available in two sizes
- Durable clevis hitch
- Oil bath tapered roller bearings minimize maintenance
| Tires - Type | Implement - Quantity of 4 |
|---|---|
| Weight - Net | 2,887.1 kg 6,365 lb |
| Disk gangs - Front angle | 2 Positions |
| Working - Maximum penetration | 22.9 cm 9 in. |
| Tractor requirements - Recommended PTO hp range | 96-118 kW 129-159 hp |
| Tires - Wheel hub type | 6 Bolt |
| Disk blades - Blade concavity | Standard high, Optional low |
| Available blade sizes - Blade option one | 660x7.9 mm 26x0.312 in. |
| Disk blades - Spacing | 26.7 cm 10.5 in. |
| Transport - Width | 4 m 13 ft |
| Lighting and safety - Safety tow chain | Yes |
| Available blade sizes - Blade option two | 711x7.9 mm 28x0.312 in. |
| Working - Approximate working width | 3.7 m 12 ft |
| Transport - Ground clearance with base blades | 20.3 cm 8 in. |
| Disk gangs - Scrapers | Adjustable |
| Hitch - Front hitch type | Spade |
| Tractor requirements - Recommended drawbar hp range | 82-100.7 kW 110-135 hp |
| Disk gangs - Rear angle | 2 Positions |
| Disk gangs - Axle material | Round Heat Treated Alloy Steel Threaded on Both Ends |
| Warranty - Time period | 1 year |
| Weight - Weight per disk blade | 115.7 kg 235 lb |
| Disk gangs - Axle size | 4.1 cm 1.625 in. or 5.4 cm 2.125 in. |
| Frame - Duty | General Purpose |
| Lighting and safety - Markings | SMV |
| Lighting and safety - Lights | Yes |
| Frame - Tube size | 12.7x12.7x0.95 cm 5x5x0.375 in. |
| Transport - Wheel hub bearings | Dual Tapered Roller Bearings |
| Disk gangs - Bearing standards | Welded, Reinforced |
| Disk gangs - Bearing wear plates | Standard |
| Disk blades - Quantity | 27 |
| Tires - Size | 9.5L x 15-in. 8 ply |
| Disk gangs - Bearing type | Oil Bath Tapered Roller |
| Set-up time - Labor hours | 2-3 for two people |
| Frame - Type | Single Offset Rigid |
| Disk blades - Type | Notched (front) Notched (rear) Standard Smooth (front) Smooth (rear) Optional Notched (front) Smooth (rear) Optional |
Featured Content
Control arms level in ground and during transport
Easy to set for desired soil condition
Two separate control arms are standard, one for transport leveling and one for leveling while the disk is in the ground. Once set for a given soil condition, the disk will continue to perform with consistency.
Clevis hitch makes hookup easy
Clevis hitch is built strong for tough jobs
The clevis hitch has a durable design and is designed for ease of use, long life, and tough working conditions.
Allows operator to pull an additional implement
A rear hitch is available for operators wanting to pull an additional implement such as a harrow or drag.
Transport locks secure disk wings cylinder
Transport locks are standard, ensuring disk wings are in secure transport mode.
Scrapers clean disk blades
Scrapers work great in wet and sticky soils
Adjustable disk blade scrapers keep disk blades clean and performing in wet and sticky soils for increased productivity.
Minimal maintenance increases work hours
Sealed with industrial-grade seals
Oil bath tapered roller bearings, sealed with industrial-grade seals, keep maintenance to a minimum and profitable working hours at a maximum. The bearings come complete with a wear plate.
Notched disk blades
Smooth disk blades
Disk blades are available in 66-cm or 71-cm (26-in. or 28-in.) diameters. Disk blades are available in smooth blades, notched blades, or a combination of front notched blades and rear smooth blades to meet a variety of needs.
For superior penetration in tough soil conditions, weight per blade ranges from 108.9 kg to 154.7 kg (240 lb to 341 lb) depending on the offset disk series and model.
Keeping gangs tightened increases wear life
Gang nut wrenches are always there when needed
End washers help keep the gang shaft end nut tightened during operation, increasing gang wear life.
Two gang nut wrenches are supplied with each unit and securely attached to the unit, ready to use when the gangs need tightening.
