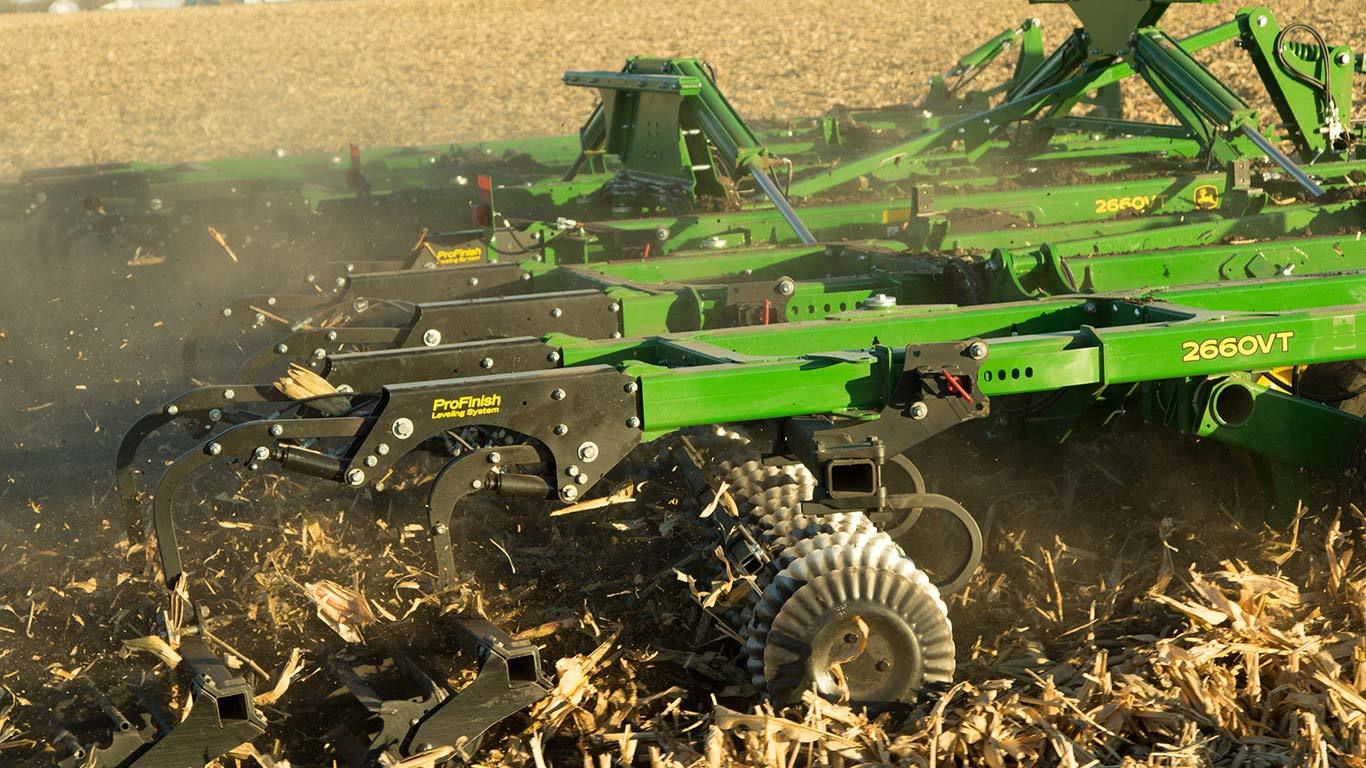

Integrated TruSet Tillage technology enables 2660VT operators to adjust depth and down pressure on the active hydraulic rolling baskets while on the go to respond to changing field conditions such as varying soils, heavier residue, and moisture.
TruSet depth and pressure control
With short windows of time to perform tillage operations, TruSet can provide significant productivity improvements as operators are able to adjust the 2660VT while covering acres with the push of a button. By responding to conditions as they change throughout the field, TruSet enables operators to generate better-quality tillage performance with the first pass.
Using a GreenStar™ display, an operator sees real-time data for depth and basket down pressure for assurance of desired tillage outcomes. Operators are able to make independent adjustments as small as 2.54 mm (1/10 in.). Four customizable presets enable operators to save and name different combinations of settings for their most common field conditions, which allows for even quicker implement adjustments.
Single-point depth control is included with the TruSet Tillage system, giving operators the choice of automated or manual adjustments. Hydraulic routings on the 2660VT are designed to allow each implement to feature both TruSet and standard single-point depth control for system redundancy, operator preference, and flexibility at resale.
With the 2660VT, John Deere has expanded TruSet to bring even more functionality into the cab:
- Depth and rolling basket down pressure
- Gang angle
- Hydraulic active stabilizer wheels
- Hydraulic wing control
- Hydraulic fore/aft control
TruSet gang angle control
With TruSet gang angle control, operators are able to adjust the gang angle on the go right from the cab.
Adjusting the gang angle from 1 to 12 degrees will provide more horizontal soil movement. The more aggressive the gang angle, the more soil mixing and burying of residue. Operators can also remove light ruts, tracks, and weeds at the most aggressive gang angle.
TruSet Side-to-Side leveling
2660VT operators have the option to enhance the TruSet Tillage system with individual section leveling functionality. TruSet Side-to-Side gives operators individual section control to independently adjust the depth of the centerframe and wing frames for even more accurate depth control.
TruSet Side-to-Side is available from the factory or as an upgrade with a field conversion kit.
TruSet active hydraulic stabilizer wheels
Getting the best field performance is easier with TruSet active hydraulic stabilizer wheels. Choose TruSet stabilizer wheels as an option on the 2660VT to easily adjust the depth of the stabilizer wheels from the cab to match the overall depth as changes are made on the 2660VT. This feature replaces the mechanical linkage on stabilizers wheels with a hydraulic cylinder.
TruSet hydraulic wing control
TruSet hydraulic wing control is available as optional equipment on all three-section 2660VT implements. This feature transfers the weight from the mainframe to the wings to improve penetration in hard or heavy soils. In high-speed, shallow-depth tillage operations, maintaining a consistent depth across the tillage tool is critical to the consistency of the seedbed.
TruSet fore/aft control
The TruSet hydraulic fore/aft control option enables operators to level the 2660VT from the comfort of the tractor cab.
