John Deere 2633VT
  • + Expand All
  • - Close All
  • Extended-life bearings improve productivity

    John Deere’s 2630 Series Disks and Vertical Tillage Implements feature extended-life bearings. These more durable and reliable bearings allow producers to customize bearing maintenance for specific growing conditions and soil types.

    The flange-mounted bearing and sealing system features improved contamination resistance. The advanced seal material is highly resistant to wear and damage caused by abrasive soils and other crop materials. The design of these are more durable and reliable than previous bearings.

    The design of this bearing system allows for dynamic self-alignment to the gang bolt, as opposed to trunnion-mounted bearings that have limited alignment capability. This system features additional freedom of movement, accommodating a wider variety of field conditions. The bearing system has been designed to decrease stress and fatigue on the inner rolling surfaces, supporting extended bearing life.

    The bearing and seal design allows for a limited, seasonal maintenance interval to minimize downtime. They also allow producers to customize the maintenance for specific growing conditions and soil types. The multi-lipped sealing system cannot be damaged by frequent greasing. It allows bearings to accept grease within the bearing as well as provide grease to the outer bearing surface to eliminate wear between the bearing and housing. With this design, the bearings can accept grease even if misaligned to the housing.

  • Versatile design of gang angle manages residue in fall and spring conditions
    Residue managementResidue management

    Whether the plan is to use the 2633VT in the spring or fall, this machine was designed to handle any residue management situation. With a 21-degree angle on the front gang and 19-degree gang angle on the rear gang, this tool was created to have aggressive sizing and chopping ability in tough residue in the fall and to have finishing characteristics to build an ideal seedbed in the spring.

    Shallow gang angleShallow gang angle
    Aggressive gang angleAggressive gang angle

    Shallow gang angle vertical tillage tools can leave a wavy, washboard effect unsuitable for a proper seedbed. The 2633VT implement has an aggressive gang angle to help anchor residue, manage weeds and root balls, and create an even, smooth seedbed under the topsoil.

    As crop yields increase, so does the amount of residue after harvest. The John Deere 2633VT allows producers to prepare soil for planting in the spring and residue management in the fall.

    Utilize the residue calculator to identify the optimal residue management solution to meet the producer’s needs.

  • Easily tension gang bolts
    51-mm (2-in.) gang bolts51-mm (2-in.) gang bolts
    Gang tension systemGang tension system

    John Deere's 2633VT Vertical Tillage tool provides an innovative approach to tension gang bolts.

  • Six sizes available to fit right machine to any size operation
    Ground-engaging components on 2633VTGround-engaging components on 2633VT

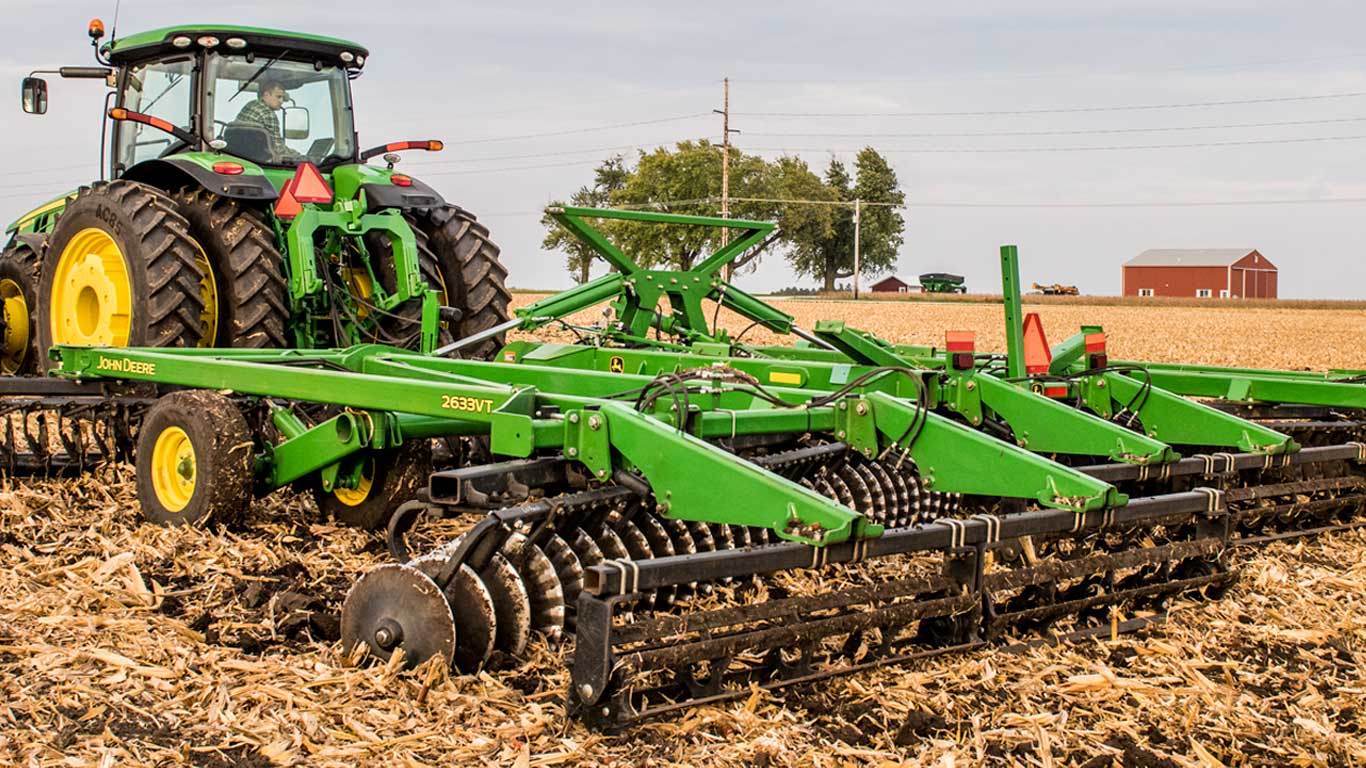

    2633VT pulled by 8370RT2633VT pulled by 8370RT

    The John Deere 2633VT offers six different sizes to fit any size operation, big or small.

    Model2633VT
    PurposeVertical tillage
    Working depthUp to 75 mm (3 in.)
    StandardsC-spring
    Gang angle21 degrees front
    19 degrees rear
    Front gang blades
    • 560 mm x 5 mm (22 in. x 0.197 in.) solid shallow concavity spherical
    • Optional 560 mm x 6.5 mm (22 in. x 0.256 in.) solid shallow concavity spherical
    Rear gang blades560 mm x 5 mm (22 in. x 0.197 in.) solid shallow concavity 13 wave
    Blade spacing185 mm (7.25 in.)
    Gang bolt50 mm (2 in.)
    Horsepower27-36 hp/m (8.5-11 hp/ft) working width
    Working widths6.3 m to 12.4 m (20 ft, 9 in. to 40 ft, 8 in.)
    Operating speed11-16 km/h (7-10 mph)

    Size

    6.3 m
    (20 ft, 9 in.)

    8 m
    (26 ft, 5 in.)

    8.9 m
    (29 ft, 3 in.)

    9.3 m
    (30 ft, 8 in.)

    10.2 m
    (33 ft, 7 in.)

    12.4 m
    (40 ft, 8 in.)

    Weight

    6796 kg
    (14,983 lb)

    9060 kg
    (19,976 lb)

    9230 kg
    (20,343 lb)

    9920 kg
    (21,871 lb)

    10025 kg
    (22,100 lb)

    12991 kg
    (28,641 lb)

    Number of blades

    68

    88

    96

    104

    112

    136

    Weight per blade

    100 kg
    (220 lb)

    103 kg
    (227 lb)

    96 kg
    (211 lb)

    95 kg
    (210 lb)

    90 kg
    (197 lb)

    95 kg
    (210 lb)

    Horsepower requirement
    (power take-off [PTO])

    131.2-170 kW
    (176-228 hp)

    164.8-213.3 kW
    (221-286 hp)

    184.2-237.9 kW
    (247-319 hp)

    196.1-254.3 kW
    (263-341 hp)

    208.8-270.7 kW
    (280-363 hp)

    259.5-335.6 kW
    (348-450 hp)

    Transport height

    3.05 m
    (10 ft)

    3.90 m
    (12 ft, 10 in.)

    4.30 m
    (14 ft, 1 in.)

    4.21 m
    (13 ft, 10 in.)

    4.62 m
    (15 ft, 2 in.)

    3.75 m
    (12 ft, 4 in.)

    Transport width

    4.11 m
    (13 ft, 6 in.)

    4.11 m
    (13 ft, 6 in.)

    4.11 m
    (13 ft, 6 in.)

    4.77 m
    (15 ft, 8 in.)

    4.77 m
    (15 ft, 8 in.)

    4.95 m
    (16 ft, 3 in.)

  • Multiple enhancements made to 2630 Series Disks
    #
    #

    The 2630 Series Disks offer multiple upgrades and new items as options versus the 2620 Series Disks to enhance the machine. Check out the following video sharing more about the new 2630 Series Disks.

    Extended-life bearings

    John Deere’s 2630 Series Disks and Vertical Tillage Implements feature extended-life bearings. These more durable and reliable bearings allow producers to customize bearing maintenance for specific growing conditions and soil type.

    TruSet™ side-to-side feature

    John Deere TruSet system is featured in base equipment for the 2630 Series Disks and Vertical Tillage Implements. TruSet side-to-side is also available and features individual section leveling.

    Knife-edge hydraulic rolling basket

    The hydraulic rolling basket is now offered with a round bar, flat bar, or knife-edge. The knife-edge is best for heavier, wet soil, and can be used in rocky conditions.

    Radial tires

    The 2630 Series Disks and Vertical Tillage Implements feature radial tires for the mainframes in base equipment. Radial tires are available as an option on the wing frame and stabilizer wheels. These tires are designed to offer longer wear life and help minimize compaction with a wider plate and lower inflation pressures.

    Stabilizer wheels

    Producers can choose either mechanical stabilizer wheels or TruSet hydraulic stabilizer wheels as an option. Stabilizer wheels help to maintain a consistent, level depth and are recommended for operation on rolling ground. The mechanical stabilizer wheels can be manually adjusted with a turnbuckle. TruSet with side-to-side leveling capabilities also enables operators to control the TruSet hydraulic stabilizer wheels from the cab while on the go.

  • Unique blade configuration on 185-mm (7.25-in.) spacing optimizes one pass sizing and mixing

    John Deere's 2633VT comes equipped on 185-mm (7.25-in.) spacing with solid shallow concavity spherical blades on the front gang and solid shallow concavity wavy blades on the rear gang to size residue and mix soil.

    A majority of the sizing is going to be done by the front gang, and the rear gang is going to do the mixing. John Deere designed its vertical tillage tool to chop stalks to an acceptable size and begin soil mixing for breakdown, yet leave a considerable amount of residue on the cover.

    The 2633VT comes equipped with 185-mm (7.25-in.) spacing on the front and rear gang. Both blade sizes on front and rear gang are 560 mm x 5 mm (22 in. x 0.197 in.). Optional 560-mm x 6.5-mm (22-in. x 0.256-in.) blades are available on front gang only.

    Front solid shallow concavity spherical blade
    Solid shallow concavity spherical bladeSolid shallow concavity spherical blade
    • Chops and sizes residue
    • Manages weeds
    • Manages root balls
    • Removes field ruts
    Rear solid shallow concavity wavy blade
    Solid shallow concavity wavy bladeSolid shallow concavity wavy blade
    • Mix soil and residue
    • Aerates soil
    • Anchors residue
    Front and rear 185-mm (7.25-in.) spacing
    185-mm (7.25-in.) blade spacing185-mm (7.25-in.) blade spacing
    #
    • Ideal for seedbed preparation
    • Maximizes chemical incorporation
     Blade type Solid spherical blade Solid wavy blade
    Thickness
    • 5 mm (0.197 in.)
    • Optional 6.5 mm (0.256 in.)
     5 mm (0.197 in.)
    Concavity Shallow Shallow
    Diameter 560 mm (22 in.) 560 mm (22 in.)
    Recommended soil types All soil types All soil types
  • Hydraulic fore-aft leveling enables operators to level machine from tractor cab
    Hydraulic fore-aft levelingHydraulic fore-aft leveling

    Hydraulic fore-aft leveling comes as standard equipment with John Deere's 2633VT Vertical Tillage tool. Operators can level the machine from the comfort of the tractor cab.
