  • Implement compounding improves efficiency

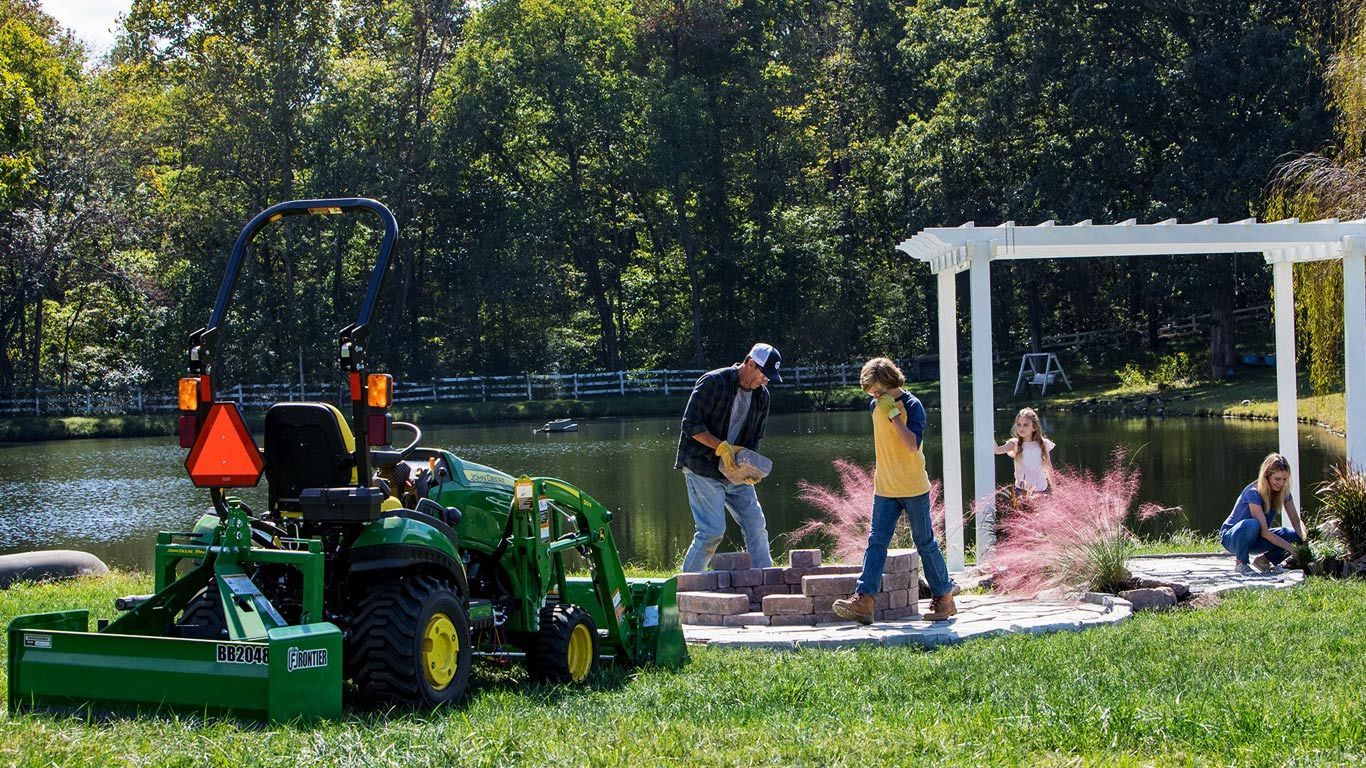

    Implement compounding (1025R Tractor shown)Implement compounding (1025R Tractor shown)
    • Allows mounting more than one implement at a time, eliminating implement changeover
    • Loader, mid mower, backhoe, and a variety of 3-point hitch implements can be attached to the tractor at the same time
  • Powerful Tier 4-compliant diesel engine and standard dual mid-selective control valve (SCV)
    Powerful engine
    • Tier 4-compliant isolated Yanmar® TNM clean and silent diesel engine
    • 22.4 gross hp (PS) - 16.5 power take-off (PTO) hp
    • 3200 rpm rated speed
    Strong hydraulics
    • Standard dual mid-selective control valve (SCV) with integrated loader joystick
    • Third SCV kit
    • Power beyond kit
    • Independent hydraulic-lift kit
    • Rear-hydraulic coupler kit
    Comfortable operator station and controls
    • Ag tractor family styling with sloping hood design
    • Folding rollover protective structure (ROPS)
    • Spring suspension seat
    • Cup holder and additional storage
    Versatile implements
    • D120 and H120 Loaders
    • 54D AutoConnect™ and 60D AutoConnect 7-Iron™ mower decks
    • Material-collection system
    • 260 Backhoe
    • iMatch™ AutoHitch™ system
    • Rotary brooms 132.1 cm and 152.4 cm (52 in. and 60 in.)
    • Front blade 137.2 cm (54 in.)
    • Snow blowers 119.4 cm and 137.2 cm (47 in. and 54 in.)
    • Rotary tillers (647 and 655)



    Yanmar is a trademark of Yanmar Company limited.

  • Compact, high-performance, 3-cylinder isolated diesel engine with low vibration
    3-cylinder Yanmar TNM Series diesel engine3-cylinder Yanmar TNM Series diesel engine

    Power is provided by a compact and high-performance 3-cylinder Yanmar® TNM Series diesel engine.



    This series of engines was developed to meet Tier 4 environmental protection agency (EPA) environmental requirements by featuring low levels of both exhaust and emissions.

     Model

    Number of cylinders

    Engine displacement

     Gross engine hp (PS)

    power take-off (PTO) hp

    1023E

     3

     0.993 L

    22.4

     16.5

    Yanmar TNM Series engine offers these features:
    • Economical for good cooling and long life
    • Isolated engine provides reduced vibration and noise for the operator; indirect fuel injection uses a pre-combustion chamber to give the engine a smooth and quiet operation; aluminum alloy piston with built-in steel struts are lightweight to reduce connection rod bearing loads and provide good heat transfer characteristics
      • Design permits tighter tolerances and neutralizes expansion of the piston, thereby reducing blow-by gas and less noise from the piston slap
      • Higher top rings on the piston and a thinner-head gasket greatly reduces the volume of unburned waste gases and increases combustion efficiency
    • Timing-gear teeth have a designed roll-off profile giving almost no clash, no noise, and no backlash
    • High-torque reserve provides plenty of power under heavy load, yet retains excellent fuel economy
    • Fuel filter with replaceable element
    • Full-pressure lubrication system provides filtered oil under pressure to all vital engine parts
    • Glow plugs provide quick starts in temperatures down to 18°C (0°F). (Optional engine coolant heater attachment will assist starting under more extreme conditions.)
    • Auto-bleed fuel system means there is no special bleeding required if the tractor runs out of fuel; this system will self-prime the injection pump, lines, and injectors, providing fast fuel recovery
    • Key start and shut off eliminates fuel shut-off knob
    • Electric solenoid shuts fuel supply off immediately when key is turned off
    • See-through coolant recovery tank permits operator to check coolant level without removing radiator cap
    • Dry-type air cleaner with safety element keeps dirt and other contaminants out of the engine

      • Safety element (second filter) will protect engine if primary filter would develop a leak
      • Protects engine when servicing primary filter
    • Side-screen panels and front-grille screen provide excellent flow of air to the engine compartment
    • Sealed-radiator compartment keeps trash and debris on outside of hood
    • Single-piece side panels can be removed for easy and quick access to the engine
    • Horizontal exhaust discharges fumes away from the operator station, reducing noise and improving operator visibility and comfort

    Yanmar is a trademark of Yanmar Company Limited.

  • Hydrostatic transmission (HST) with Twin Touch™ foot controls

    The 1023E and 1025R Tractors feature a HST.

    • Fluid under pressure transmits engine power to the drive wheels through a hydraulic pump and motor
    • The hydrostatic-drive unit functions both as a clutch and transmission
    Twin Touch foot controls Twin Touch foot controls

    Twin Touch foot controls allow selecting both speed and direction of travel with a touch of the toe. Ideally suited for jobs where productivity is a must, such as loader or mower applications.

    • Infinite ground speeds, even at full throttle, to match the job
    • No clutching for fast direction changes
    • Faster, easier, and more precise to operate than competitive tractors with treadle pedal design (toe-heel)
    • Provides high torque for start up
    • Reduces power train shock loads
    • Large foot pedals were designed for operator comfort and allow for convenient operation of the tractor
    Two-speed transmissionTwo-speed transmission

    Transmission has two speeds - Hi and Lo range.

    • The range lever is located next to the seat, conveniently within reach of the operator
    • Lo range allows performing tougher tasks at higher speeds than competitive tractors equipped with a three-range transmission (that is, lo range on three-speed transaxle is slower than lo range on a two-speed transaxle)



    Durability features include:

    1. Large forged one-piece trunnion shaft with larger support bearings that reduce vibration and noise.
    2. Innovative transaxle combines an HST, gear reduction axle, and clutch.
    3. Pressure side filtration allows using a finer-mesh filter (10 micron) than suction filtration systems use on many competitive tractors.
    4. One pump to supply charge pressure and implement flow. A flow divider splits the flow to various circuits throughout the tractor.
    5. The transaxle has an oil cooler which provides improved hydraulic cooling performance.
  • Optional iMatch™ Quick-Hitch feature allows for easy implement hookup
    iMatch Quick-HitchiMatch Quick-Hitch
    iMatch Quick-Hitch with rotary cutter hookupiMatch Quick-Hitch with rotary cutter hookup
    iMatch Quick-Hitch (LVB25976)iMatch Quick-Hitch (LVB25976)
    iMatch Quick-Hitch with rotary cutter hookup (LVB25976)iMatch Quick-Hitch with rotary cutter hookup (LVB25976)

    One of the greatest operator concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch.

    The iMatch Quick-Hitch provides easy hookup and a guaranteed fit for all Category 1 implements that are designed to meet the American Society of Agricultural and Biological Engineers (ASABE) Category 1 Standard S278.6 for quick-attach hitches.

    • All implements require a set of bushings in order for the attachment to fit and work properly with the iMatch Quick-Hitch. One set of bushings comes with the iMatch Quick-Hitch.

    NOTE: The bushing set can be seen in the picture above. These bushings allow the hooks on the iMatch and the pins on the implement to fit together properly. All other implements (box blades, tillers, rear blades, etc.) will require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier (see dimensions below).

    • Upper bushing
      • Inside diameter: 1.93-1.95 cm (0.76-0.77 in.)
      • Outside diameter: 3.15-3.18 cm (1.24-1.25 in.)
    • Lower bushings
      • Inside diameter: 2.24-2.26 cm (0.88 to 0.89 in.)
      • Outside diameter: 3.63-3.66 cm (1.43 to 1.44 in.)
  • Easy-open, gas-lift hood
    Gas-lift springGas-lift spring
    • The under-hood gas-lift support provides easy one-finger access to the engine compartment and eliminates the need for a mechanical prop rod.
    • This design of the support structure provides excellent rigidity for the hood.
  • Mower deck lift components
    1025R Tractor1025R Tractor
    • The 1 Family tractors includes factory-installed mechanical deck lift components.
    • The addition of these components from the factory significantly reduces the time required to do the initial mower deck installation at the time of purchase.
    • Refer to the mowers and material collection page for more details on mower deck installation and compatibility.
  • Open operator's station is comfortable and convenient
    Open operator's station (1025R shown)Open operator's station (1025R shown)

    The 1023E operator's station has been designed to allow for greater operator comfort and increased visibility. Large and easy-to-grab handrails are located on each fender for an easier on and off of the tractor from either side.

    • Sloping hood design provides improved visibility
    • Operator station provides plenty of room for comfortable operation
    • Step-through textured flat operator station makes getting on and off the tractor easy from either side of the tractor
    • Fender-mounted handrails are large and easy to grab; located on each fender, they assist the operator in getting on and off the tractor
    • Controls are located next to the fenders for operator convenience
    • Operator controls are color-coded for easy identification of operation
    • Front-horizontal exhaust for increased operator visibility

    *Features shown are available on current model year tractors.

    Operator presence systemOperator presence system
    • If the operator leaves the tractor seat when the transmission, mid- or rear-power take-off (PTO) is engaged, the engine will shut down
    Foldable Roll-Gard ROPS Foldable Roll-Gard ROPS

    Foldable Roll-Gard™ rollover protective structure (ROPS) and retractable seat belt are standard equipment to protect the operator in the event of a tractor tip over, as well as improve the ability to store tractor in a garage.



    Seat belt is within easy reach of the operator, to encourage the use of it whenever operating the tractor.

    *Features shown are available on current model year tractors.

    Lighting
    Standard lighting shownStandard lighting shown

    Standard equipment lighting includes:

    • Two front-mounted sealed-beam halogen headlights
    • Two amber flashing warning/hazard lights mounted on the side of the ROPS with reflectors
    • Built-in tail light on one warning/hazardous light
    • Additional front- and rear-light kits are available

    *Features shown are available on current model year tractors.

  • Fast and easy implement changeover
    • Front Quik-Tatch™ hitch makes changing front implements quick and easy
    • All front implements (blade, brooms, and snow blowers) use a common hitch
    • AutoConnect™ mid-mount mower decks, D120 and H120 Loaders, and 260 Backhoe can be taken on or off within 5 minutes, and no tools are necessary
    • Changing rear implements is a snap with the iMatchTM Quick-Hitch, which has three fixed points to back in and pick up a rear implement that is iMatch compatible

    *Features shown are available with all current model year tractors.

  • Easy operation four-wheel drive (4WD) and power steering

    Both 4WD and power steering are standard equipment on the 1023E. This combination allows for excellent maneuverability and ease of operation of the tractor.

    • Narrow overall width allows the 1023E to work in tight areas where most compact tractors just can't fit, yet the 144.8 cm (57-in.) wheel base and 119.4 cm (47-in.) overall width gives great stability for all type of terrains.
    • Power steering requires less effort than manual steering; especially valuable when mowing around obstacles or when the tractor is used with a front loader.
    • High horsepower-to-weight ratio makes the 1023E a good choice for a variety of tasks; overall tractor weight reduces ground compaction and makes the 1023E an excellent mowing tractor.
    • The power take-off (PTO) on the 1023E is fully independent PTO, allowing engaging and disengaging of the PTO without stopping tractor movement. This is important when driving across obstacles such as driveways while mowing.

3-point hitch

Lift capacity, 24-in. behind link arms 309 kg
681 lb
Type Limited Category 1
