QuikTrak™ Mower mowing (652R shown)

Control console (652E shown)

 Controls are color coded and logically placed to make them easy for the operator to find and use:

• Ground speed and direction are easily controlled by moving the two hand-lever hydrostatic drive controls forward or reverse.
  • Speeds are infinitely variable up to 9.5 mph (15.3 km/h) forward and 5.5 mph (8.9 km/h) reverse.
  • A positive neutral-lock position for the levers provides added safety.
• Two stationary reference bars are provided for operator convenience and security.
  • Front reference bar is included to control speed and reduce fatigue from control lever operation.
  • Rear reference bar is included to make reverse operation easy while maintaining operator confidence.
• Control levers return to neutral automatically for safety and convenience.

• Separate choke is easy to locate and use.

  • Less adjustment is needed with the separate choke.

Brake lever (engaged position)

Brake bar

A tire brake is provided to give stability for parking the vehicle on hillsides and for transport; it should be engaged whenever the machine is not being used:

• Brake must be engaged to start the machine, for added safety.
• The tire brake is easily adjusted, if necessary, to maintain effective operation.

Mower deck height-of-cut adjustment (648R, 652R, 661R)

Mower deck lift handle (648R, 652R, 661R)

Mower deck height-of-cut adjustment (648R, 652R, 661R)

On the 648R, 652R, 652R EFI, 661R, and 661R EFI QuikTrak Mowers, an easy-to-use cutting height adjustment system allows the operator to adjust the mower deck cutting height with no tools and minimal effort:

• Pull the lift lever back to the fully-raised position.
• Remove the tethered pin and place it at the desired cutting height.
• Lower the lift lever; the lift lever and mower will stop at the desired cutting height.

NOTE: Additional information on mower cutting height adjustment can be found in the mower deck section.

652R QuikTrak™ mower deck

652R QuikTrak mower deck reinforcement

A well-designed mower deck can make the difference between just getting the job done and getting eye-catching results. The 7-gauge, 0.179-in. (4.6-mm) fabricated mower deck delivers an even higher quality of cut in even more diverse conditions to enhance mowing performance.

Key features of the fabricated mower deck include:

• The mower deck is manufactured from 7-gauge, 0.179-in. (4.6-mm) steel to minimize the number of welds and provide a smooth underside, with fewer sharp corners, for reduced material buildup.
• A compact footprint delivers greater maneuverability when working in tight quarters.
• A deep-deck design delivers excellent airflow so material is processed quickly and efficiently.
• A powerful vacuum effect is created by the deck's unique air-flow design, which pulls more grass upright so that the blades can cut more evenly.
• 48-in. to 61-in. (122-cm to 155-cm) decks come standard with an adjustable striping flap to enhance the after-cut appearance.

Flexible mower-discharge deflector

Large, inset caster wheels

The wide-discharge opening and raised deflector provide even clipping dispersal for an excellent finished appearance in all conditions.

Caster wheels with flat-free tires contribute to a smooth, even cutting job:

• Large, flat-free caster wheels carry the mower deck smoothly over the lawn.
• Caster wheels are recessed to reduce the vehicle footprint and turning radius.
  • With the wheels less exposed, there is less chance they will get snagged by immovable obstacles, thus improving maneuverability and reducing damage.

Anti-scalp rollers are double-captured for durability. They enable the deck to float over the ground and provide a smooth, level cut on even the most challenging terrain.

Mower lift lever

Mower lift spring and lever (minimum cut-height position)

The QuikTrak is equipped with a floating mower deck that offers several advantages over a fixed mower deck:

• The lift lever allows the operator to raise the mower to the fully-up position from the operator's station.
  • Convenient when transporting from one mowing area to another and when loading/unloading.
  • Allows the operator to raise the mower over roots or other obstructions in the lawn on the fly.
• Lift-assist springs reduce the effort required to raise the mower deck.

Cutting-height adjustment

Easy-to-remove mower deck shields

Mower cutting height can be set from 1.5 in. (3.8 cm) to 5 in. (12.7 cm) in 0.25-in. (0.64-cm) increments:

• Pull the lift lever back to the full-raised position.
• Remove the tethered pin and place it at the desired cutting height.
• Lower the lift lever; the lift lever and mower will stop at the desired cutting height.

Mower deck shields are easy to remove for access to the drive belt and other service points.

Optional mulching attachment

Optional mulching attachment and blades (similar design shown)

Optional mulching attachment and special mulching blades are available:

• This is a high-performance mulching attachment that includes formed steel baffles to control the material for superior performance.
• The special mulching blades can also be used for side discharging, though overall cutting performance may be slightly less than with the standard blades.

Engine equipped with electronic fuel injection

Heavy-duty dual stage air cleaner

A commercial-quality, 24.6-hp (18.3-kW) at 3600 rpm, air-cooled engine with EFI powers the QuikTrak™ Mower:

• Overhead valve design
  • More horsepower and torque per cubic inch of displacement
  • Better fuel efficiency
• EFI
  • Closed loop system for improved control of air/fuel mixture
  • Immediate starting in hot or cold ambient temperatures or after long periods of seasonal storage
  • No choke linkage for the user to operate
  • Greater horsepower and torque responsiveness
  • Higher reliability with the elimination of vapor locking, misfiring, run-on, and after-bang
  • Automatic altitude compensation
  • Delivers fuel precisely
  • Reduces the potential for plug fouling
  • Standard dual-element, canister-type, dry replaceable, heavy-duty air cleaner with secondary safety element
• V-twin design
  • Fast starts
  • Smooth operation
• Vertical shaft for efficient transfer of power to the transmission

Large, replaceable fuel filter

Engine oil cooler

• Fuel pump for consistent and reliable fuel supply to the carburetor
• 50-state compliant engine, which complies with strict U.S. Environmental Protection Agency and California Air Resources Board emission standards without loss of horsepower or torque

• Full-pressure lubrication with full-flow filter

  • Reduces engine wear by ensuring proper lubrication, even when operating on hillsides or uneven terrain
  • Filtered oil reduces risk of contamination for increased engine life for increased engine life
  • Oil cooler helps keep engine at optimum temperature
• Air-cooled engine design for minimum maintenance and maximum reliability
• Standard cleanout ports for easy access to remove debris collecting in cooling fins
• Aluminum cylinder block
  • Effectively dissipates heat
  • Lightweight and strong construction
  • Extends engine life due to elimination of debilitating engine temperatures

Easy-to-access engine oil filter and drain

Engine is equipped with a replaceable oil filter for longer engine life.

Engine oil filter and oil drain are located close together for easy and convenient service.

652R QuikTrak™ Mower mowing

Hydrostatic pumps

QuikTrak Mowers use a heavy-duty hydrostatic pump and wheel-motor drive system that gives reliable and consistent performance and long life:

• Heavy-duty components stand up to the rigors of commercial use.
• Individual pump and wheel motor design allows placement of these heavy components low in the vehicle for a low center of gravity and excellent hillside stability.

Two Hydro-Gear™, 0.73 cu in. (12-cc), axial piston, variable-displacement pumps provide hydraulic power to the wheel motors:

• Rugged construction is ideal for high-performance commercial use.
• Piston design gives efficient and consistent performance.
• A replaceable hydraulic filter helps ensure long life of the pumps and wheel motors.

Two individual, 15-cu in. (245.8-cc), piston wheel motors power the QuikTrak drive wheels. Their heavy-duty construction and super-efficient axial-piston design provides superior performance and seamless power to the wheels:

• Integrated high-pressure shaft seal gives greater reliability.
• Large bearings are designed with the capacity to carry heavier loads and give long life.

Transmission oil filter

Transmission fluid oil reservoir

A spin-on type replaceable hydraulic oil filter is conveniently located:

• Extends life of transmission components by keeping oil clean
• Easy-to-reach for easy and fast service

A hydraulic fluid oil reservoir is located behind the leaning pad:

• Located in a cleaner environment
• Easy to access for inspection and service
• Sight glass built into the tank reduces risk of contamination when checking fluid level.

Transmission bypass valve

Transmission bypass valves are provided on each hydrostatic pump to permit moving the QuikTrak without the engine running.

Hydro-Gear is a trademark of Hydro-Gear Limited Partnership AF Holding Company.

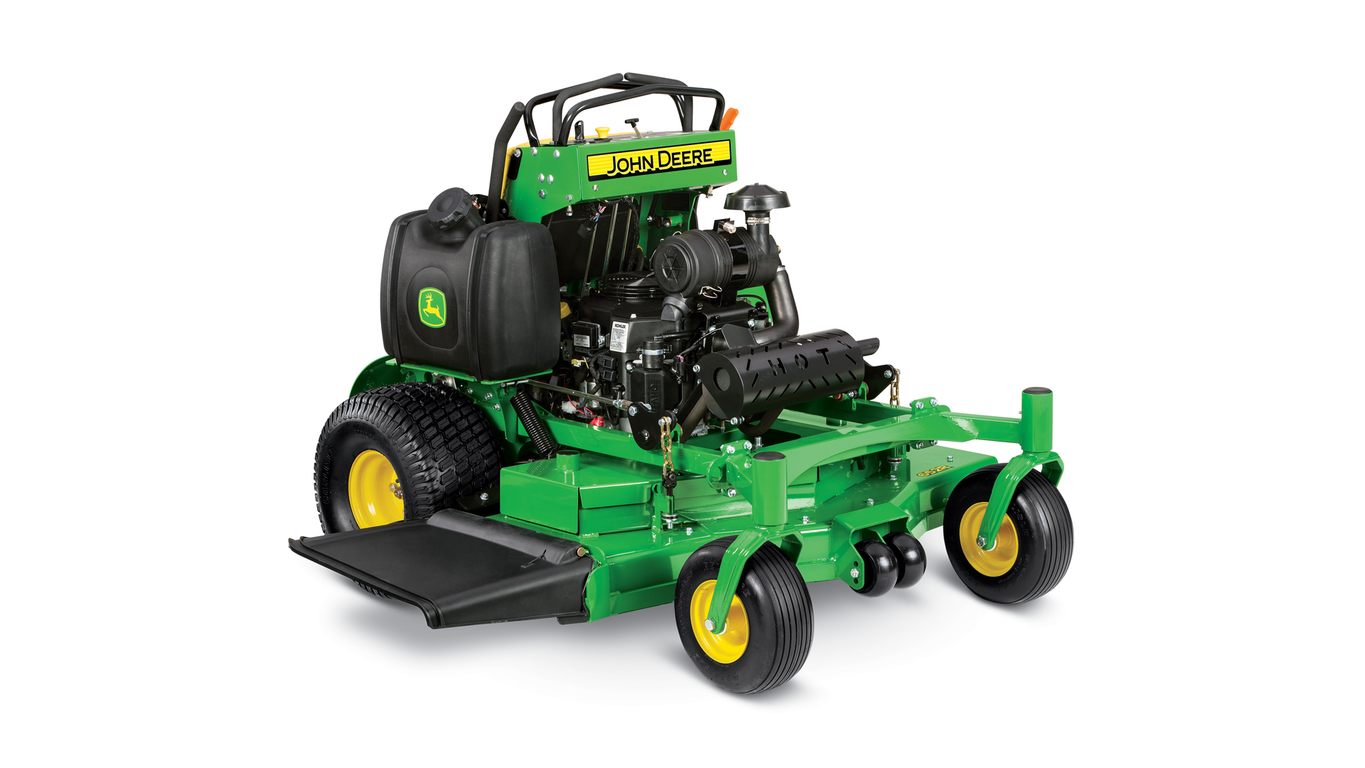

652R QuikTrak™ Mower

Mower discharge deflector

Curb wheels

Key safety features of QuikTrak Mowers include:

• Start circuit requirements
  • Park brake engaged
  • Power take-off (PTO) disengaged
  • Control levers in neutral
  • Ignition key used to start the engine
• A high-quality polyethylene mower-discharge deflector
  • Deflects if it strikes a solid obstruction, causing less damage
  • Returns to its original shape and function
• Operator station designed to allow fast exit
• Two large curb wheels
• Easy to remove and replace shields
• Stationary handles on either side of the traction controls for operator security
• Control levers return to neutral when released

Mower deck safety certification

QuikTrak mower decks are evaluated by the manufacturer (John Deere Turf Care) and conform to American National Standards Institute (ANSI) B71.4 2004 safety certification specifications for commercial turf care equipment.

Tweel rear tire on QuikTrak Mower

NOTE: 18x8.5N10 Tweel turf tires are available as an ordering option for QuikTrak 648R, 652R, 652R EFI, 661R, and 661R EFI Mowers. Tweels for QuikTrak Mowers are not available as base code equipment.

John Deere leads the commercial zero-turn mower industry with use of the Michelin X Tweel Turf technology for the QuikTrak Mowers.

Michelin is a world leader in tire manufacturing and technology. This airless radial tire solution is an industry first for John Deere, which provides an additional advantage to John Deere operators.

Advantages of the Michelin X Tweel Turf include:

• Mowing performance is improved.
  • Unique energy transfer within the poly-resin spokes reduces the bounce associated with pneumatic tires.
  • Excellent curb climbing due to the Michelin X Tweel Turf construction and flexibility.
  • More consistent cut quality because inconsistent tire pressure is eliminated.
• Uptime is improved.
  • The exclusive technology eliminates downtime and associated cost due to flat or damaged tires.
  • Punctures and sidewall damage no longer result in downtime.
• Cost of operation is reduced.
  • Cost of repairs and maintenance is reduced. One single unit replaces the current tire, wheel, and valve assembly. There is no need for complex tire-mounting equipment.
  • No need to spend time checking and optimizing tire pressure.
  • The need to purchase and stock plug kits and spare tires is eliminated, particularly for professional landscape contractors and government agencies who normally stock them.
  • The tire tread will last up to three times longer than current pneumatic tires because automotive-grade rubber is used for the tread.

Michelin X Tweel Turf

Michelin X Tweel Turf

Heavy-duty construction provides the ultimate in performance and reliable operation:

• High-strength, poly-resin spokes carry the load.
• Four-hole, heavy-duty steel hub easily bolts onto any R Series QuikTrak Mower.
• Zero degree, high-tensile, proprietary carcass provides great lateral stiffness while resisting damage from impact and penetration.

Michelin, X, and Tweel are trademarks of Michelin North America, Inc.

Overhead view of 652E showing compact design

Side view of 652E showing compact design

From the operator's platform to the mower deck, John Deere QuikTrak™ Mowers have a compact and functional design:

• The compact design allows the QuikTrak to operate in tighter areas that a larger machine cannot. Often, this means the area can be mowed with a QuikTrak so it is not necessary to switch to a walk-behind mower, reducing the time on site.
• With the compact design of QuikTrak Mowers, less space is required on a truck or trailer - which can mean there is room for an extra mower, resulting in less time on property, saving time and money.

Mowing a tight area with 652R QuikTrak

652R QuikTrak

Whether mowing hills or on level terrain, trimming or mowing straight-away, the operator of a John Deere QuikTrak is able to affect the performance of the machine with their body:

• The compact design of the QuikTrak allows the operator to use their body to help control the machine.
• The innovative QuikTrak design puts the operator in line with the rear axle to keep traction when mowing across slopes, providing greater control.
• Faster ground speeds get work done quicker.
• Better traction on slopes gives more control and increased productivity.
• Superior stability gives more control and confidence when mowing hillsides.
• Better visibility allows more-timely operator reaction to the terrain and obstructions.
• Standing area is designed for improved range of motion to allow the operator more room to move and avoid obstacles.
• Minimal operator-station obstruction allows safe and fast exits for clearing mower-path obstacles.
• Operator area is designed for more comfort and less fatigue.

Inset caster wheels (652E shown)

Inset caster wheels (652R shown)

John Deere QuikTrak Mowers are designed, tested, and manufactured to provide the best commercial mowing machines available:

• Bull-nosed shape of the front edge of the mower deck allows caster wheels to be set back further, closer to the blades, for more effective ground following capability.
• Compact design takes less space for mowing tighter areas and may allow room for an extra machine when hauling to the worksite.

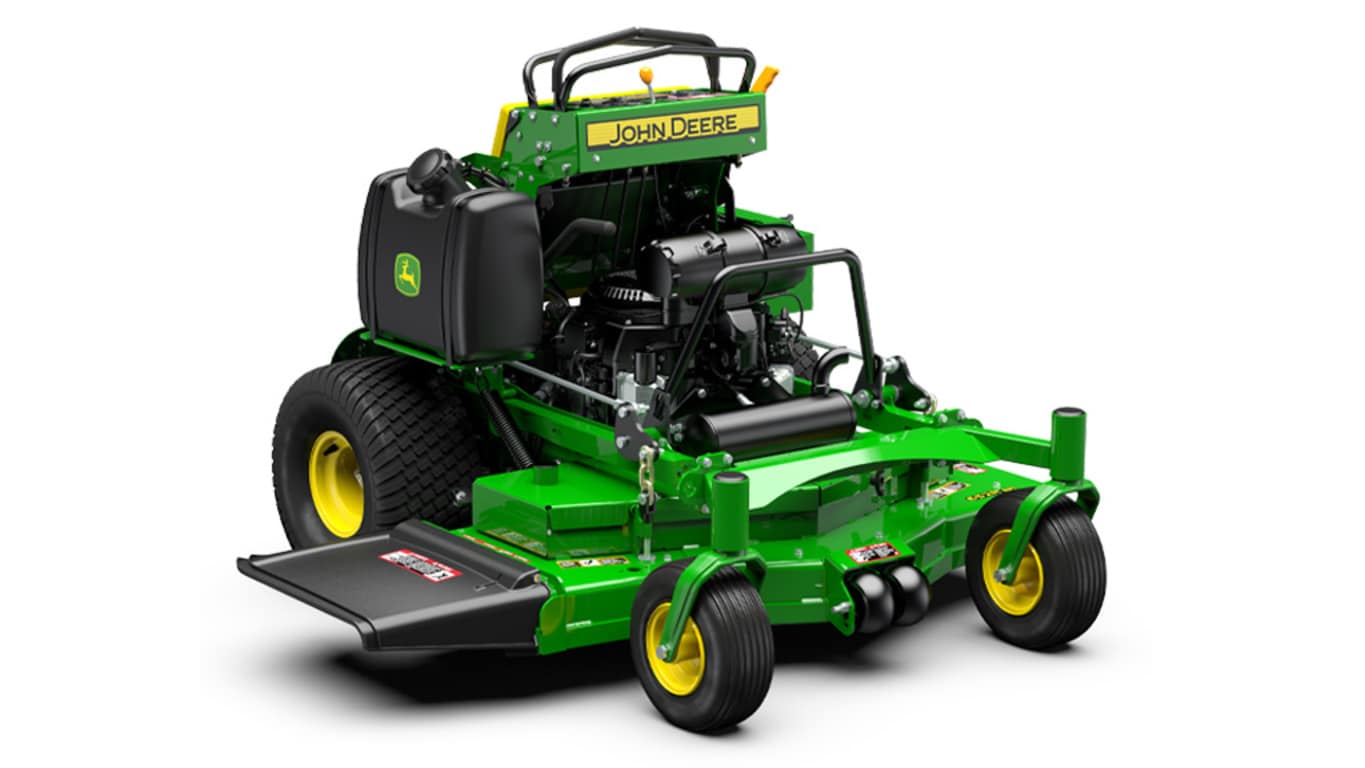

652E QuikTrak™ Mower

Open engine compartment

All service components are easy to access:

• Servicing is simplified because of the open engine compartment.
• All service and maintenance points are within easy reach.

Heavy-duty canister-type air cleaner

Engine oil fill/check tube and oil filter

Canister-type heavy-duty air cleaner is easy to reach and easy to service:

• Air cleaner has two filter elements; a large outer filter and a smaller inner safety filter.
• Both filters are easy to access and easy to change.

Engine oil service points are grouped together in easy-to-reach locations:

• Reduces the time required to check and/or change the oil and filter.

Leaning pad raised for service access

Periodic service chart

Simply raising the leaning pad exposes the hydrostatic oil reservoir, control linkage and other service areas.

A periodic service chart is provided for convenience in keeping up on required service.

Easy-to-remove access panel

Hydrostatic transmission control linkage

Remove service access shields on the mower deck, battery box, etc. to service the machine:

• Panels are easy to remove and install

Threaded ball and socket rod ends are used throughout the QuikTrak Mowers:

• Provide precise control over a long period of time
• Easily replaced when necessary

Hydrostatic pump maintenance access

Transmission bypass valve

Access to check and service the hydrostatic pumps and motors is readily available at the rear of the machine.

Transmission bypass valves are located on the hydrostatic pumps to enable moving the vehicle without the engine running.

Battery box

Battery cover removed for service access

A secure battery box is provided to protect the battery, for reliable operation:

• Cover is easily removed for servicing the battery.

Front tie down

Rear tie down

Four tie-down locations, two at the front and two at the rear, are provided for safely towing or anchoring the vehicle.
