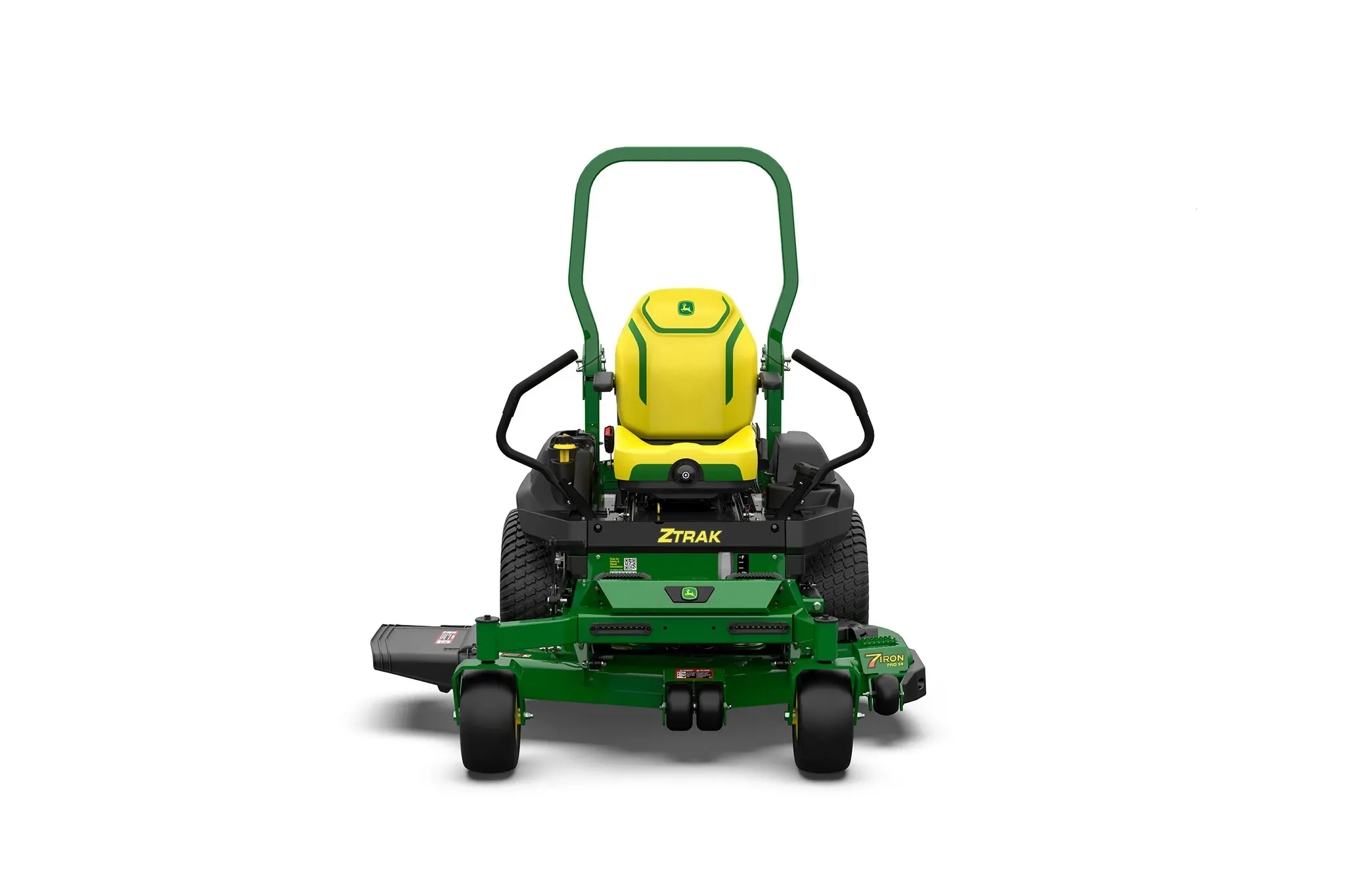

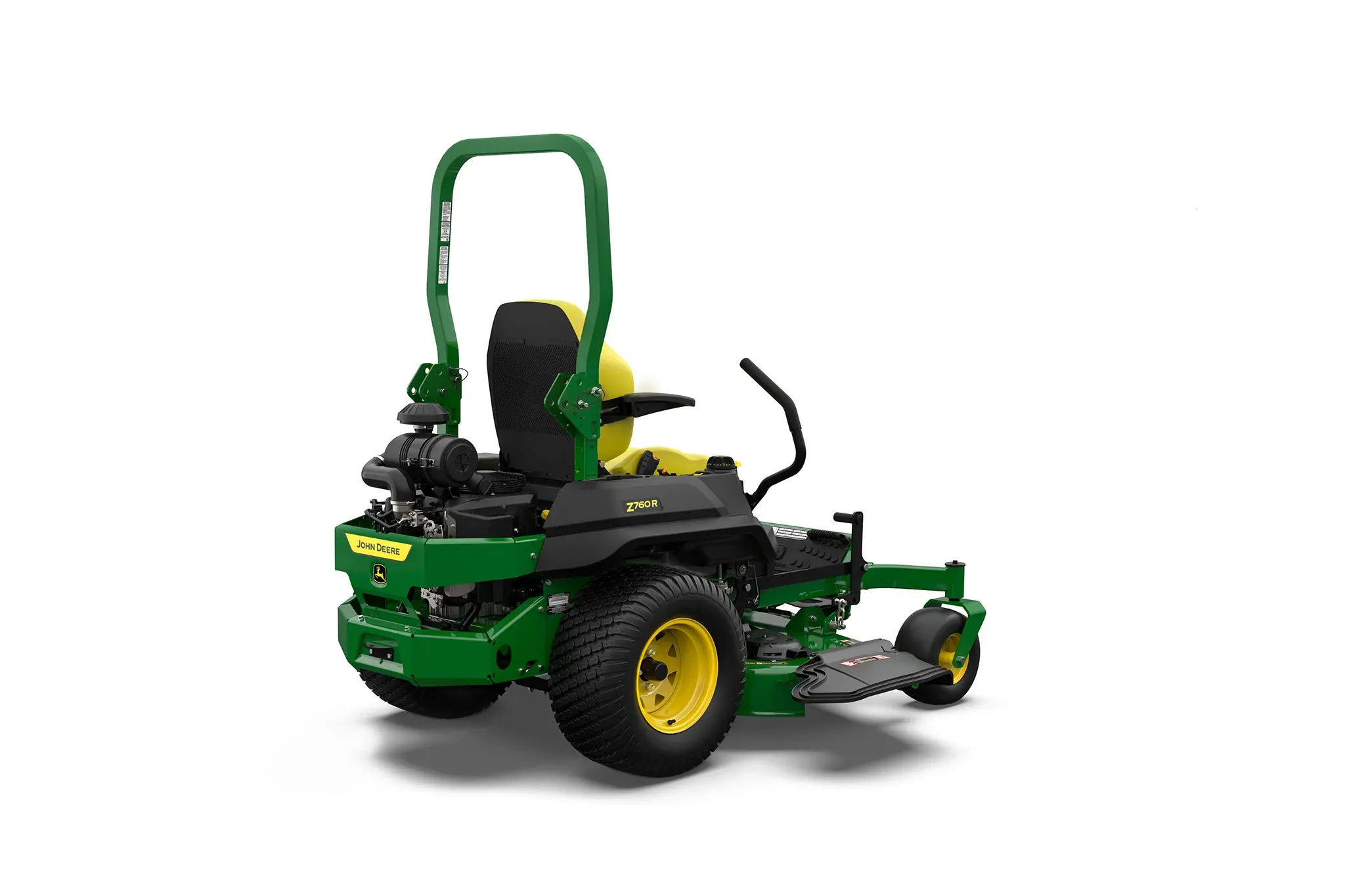

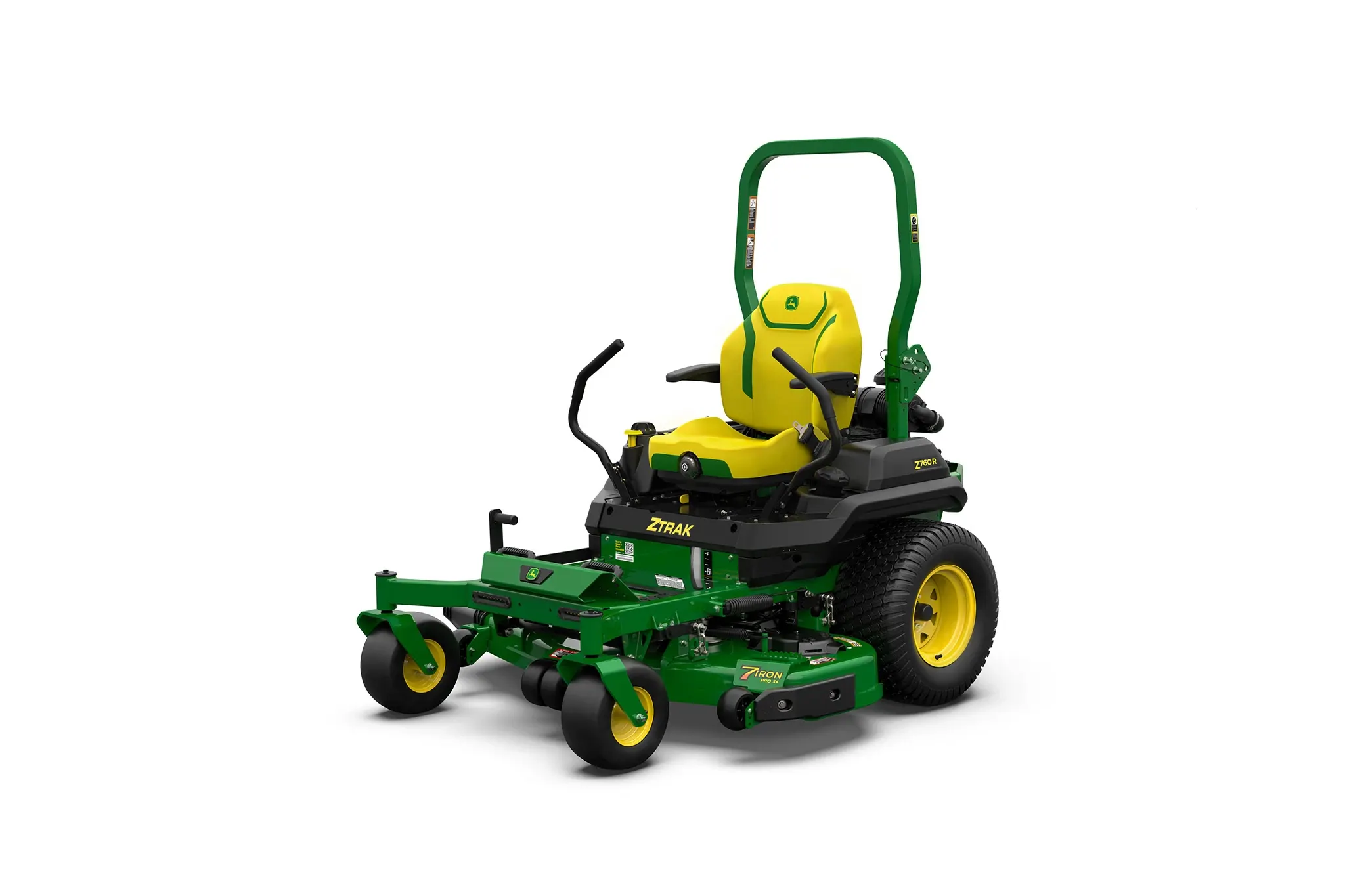

John Deere Z760R ZTrak™ Zero-Turn Mower
Lawn & Garden Equipment

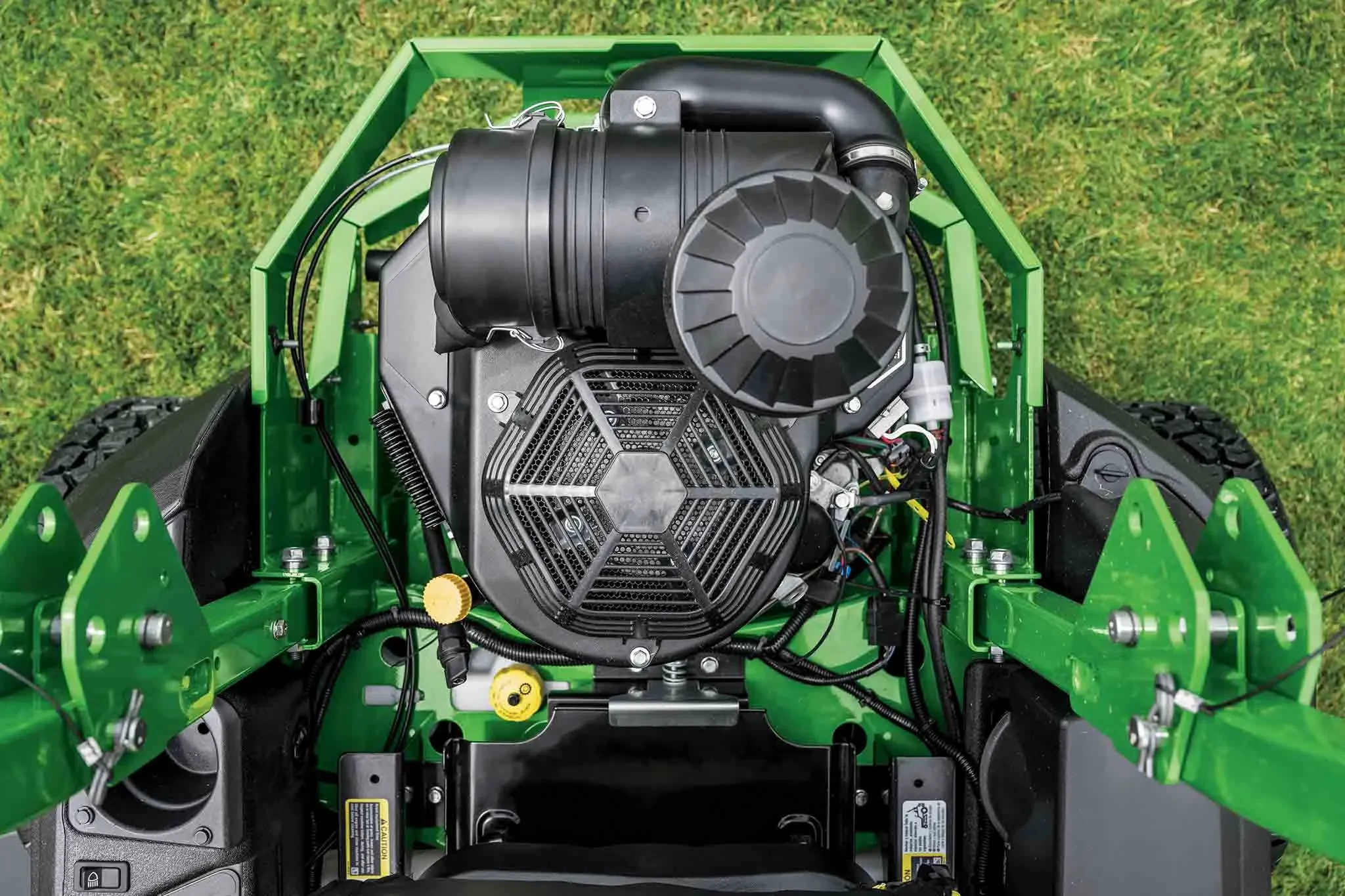

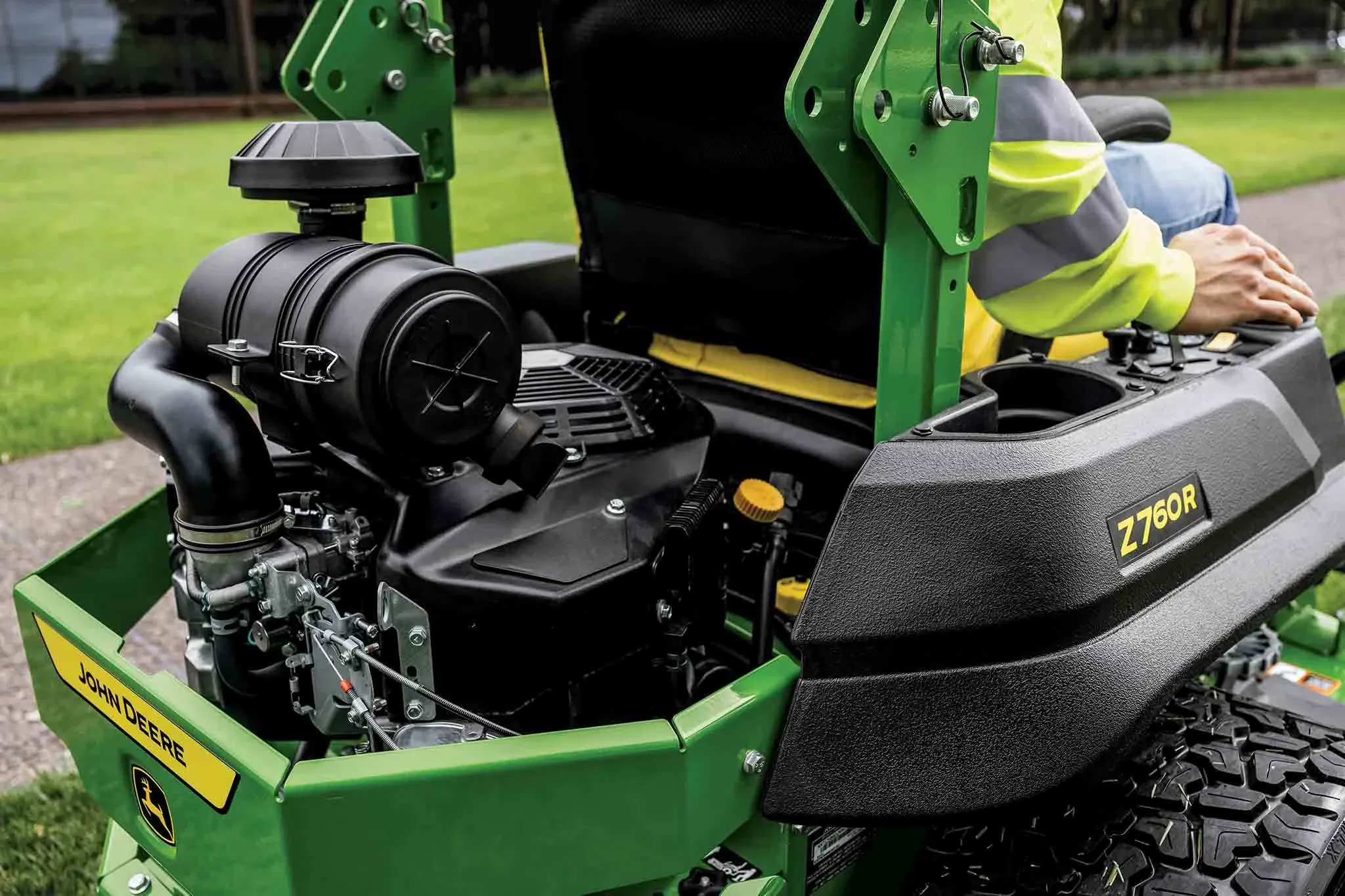

- Powerful 27-hp (20.1 kW) FX Series engine with dual-stage air cleaner
- 54-in. (137 cm) or 60-in. (152 cm) 7Iron™ PRO side-discharge decks with reinforced spindles
- Adjustable, 24-in. (61 cm) high-back mechanical suspension seat with armrests and ComfortGlide™ fore-and-aft suspension
- 4-year or 1,200-hour Bumper-to-Bumper Warranty
Featured List
- Seat - Seat Back Height: 24.0 in.
- Optional Attachments - Mulching System: Optional mulch kit
- Engine - Engine Model Number: FX850V
- Engine - Engine Power: 27.0 hp
- Chassis - Drive Tires: 24X12-12; Optional - 24X12N12 Michelin® Tweel® X Turf Airless Radial
- Travel Speed - Forward Speed: 16.1 km/h
- Buyer's Notes - Warranty: 4 year/1200 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
- Seat - Seat Back Height: 61.0 cm
- Engine - Engine Power: 20.1 kW
- Chassis - Front Caster Tires: 13x6.5-6
- Mower Deck - Cutting Width: 54/60 in.
- Travel Speed - Forward Speed: 10.0 mph
- Mower Deck - Cutting Width: 137/152 cm
Featured Content

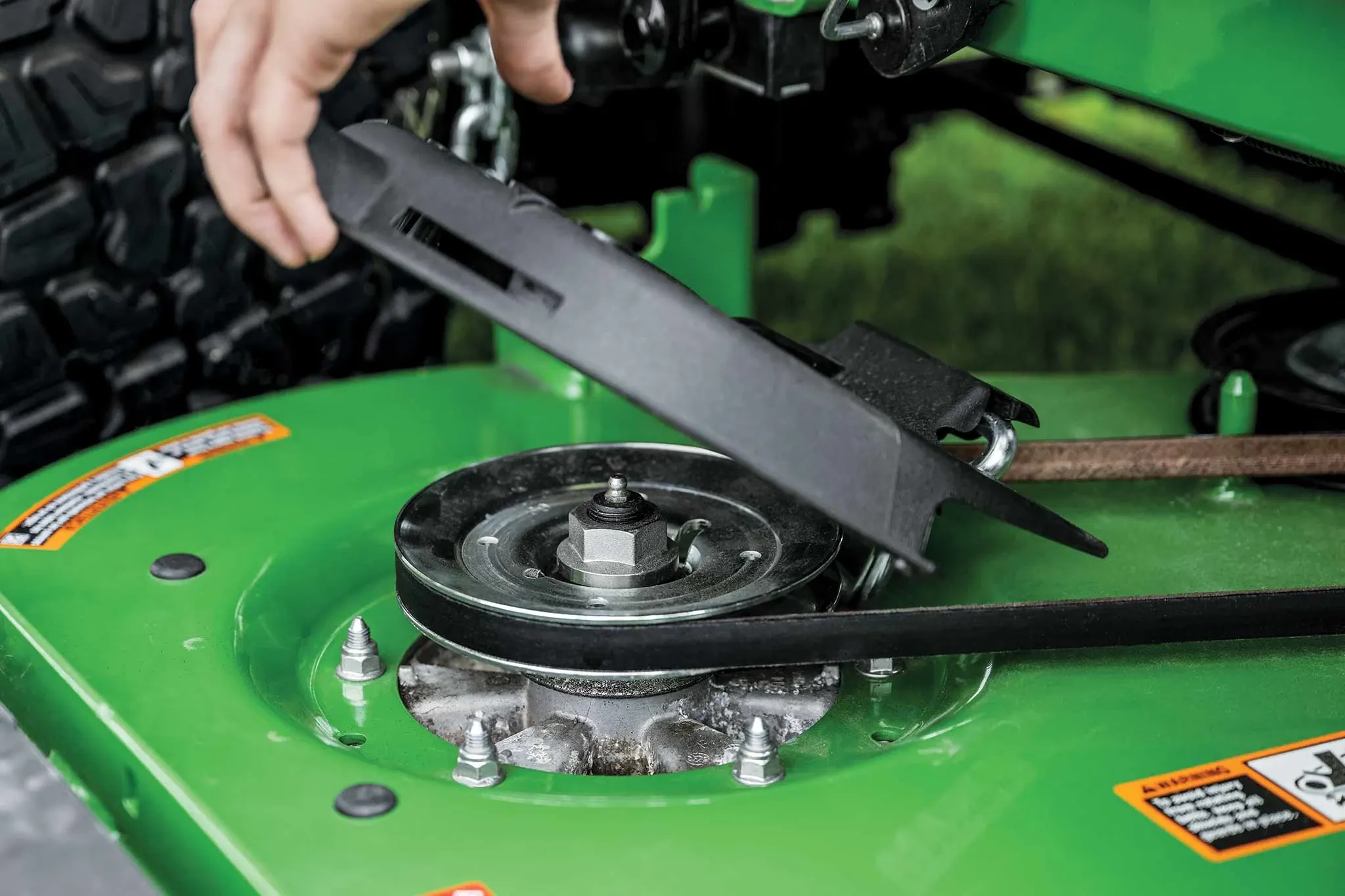

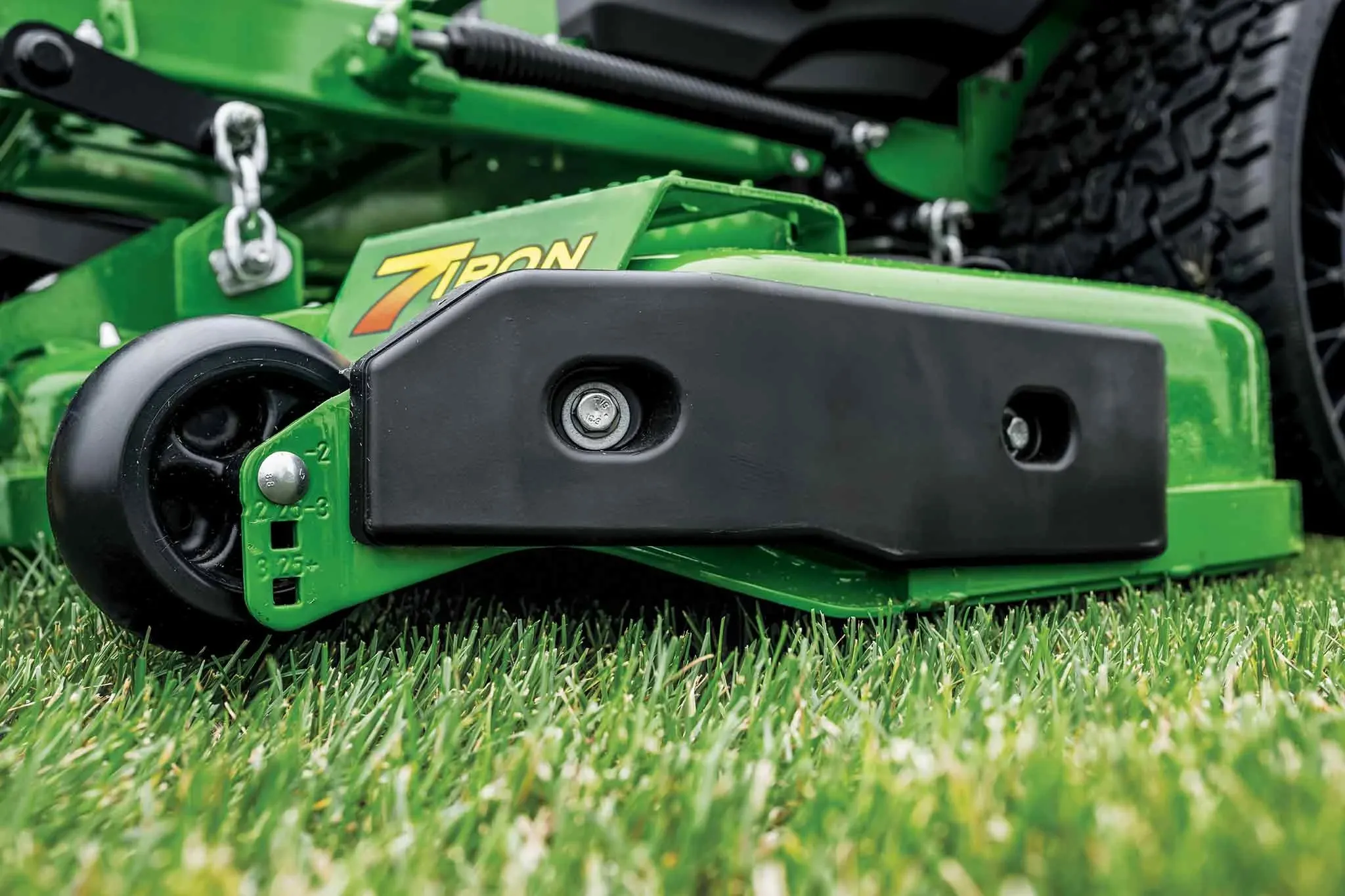

Each 7Iron™ PRO deck is forged from a single sheet of 7-gauge steel for commercial-grade durability. A smooth underside and 5.5-inch (140 mm) depth helps prevent material buildup while providing excellent airflow for efficient grass processing. Thoughtfully placed anti-scalp wheels help maintain consistent cutting over uneven terrain while making it easier to climb curbs. Includes aircraft-grade cast aluminum spindle housings with reinforced ribbing for durability that stands up to daily use.

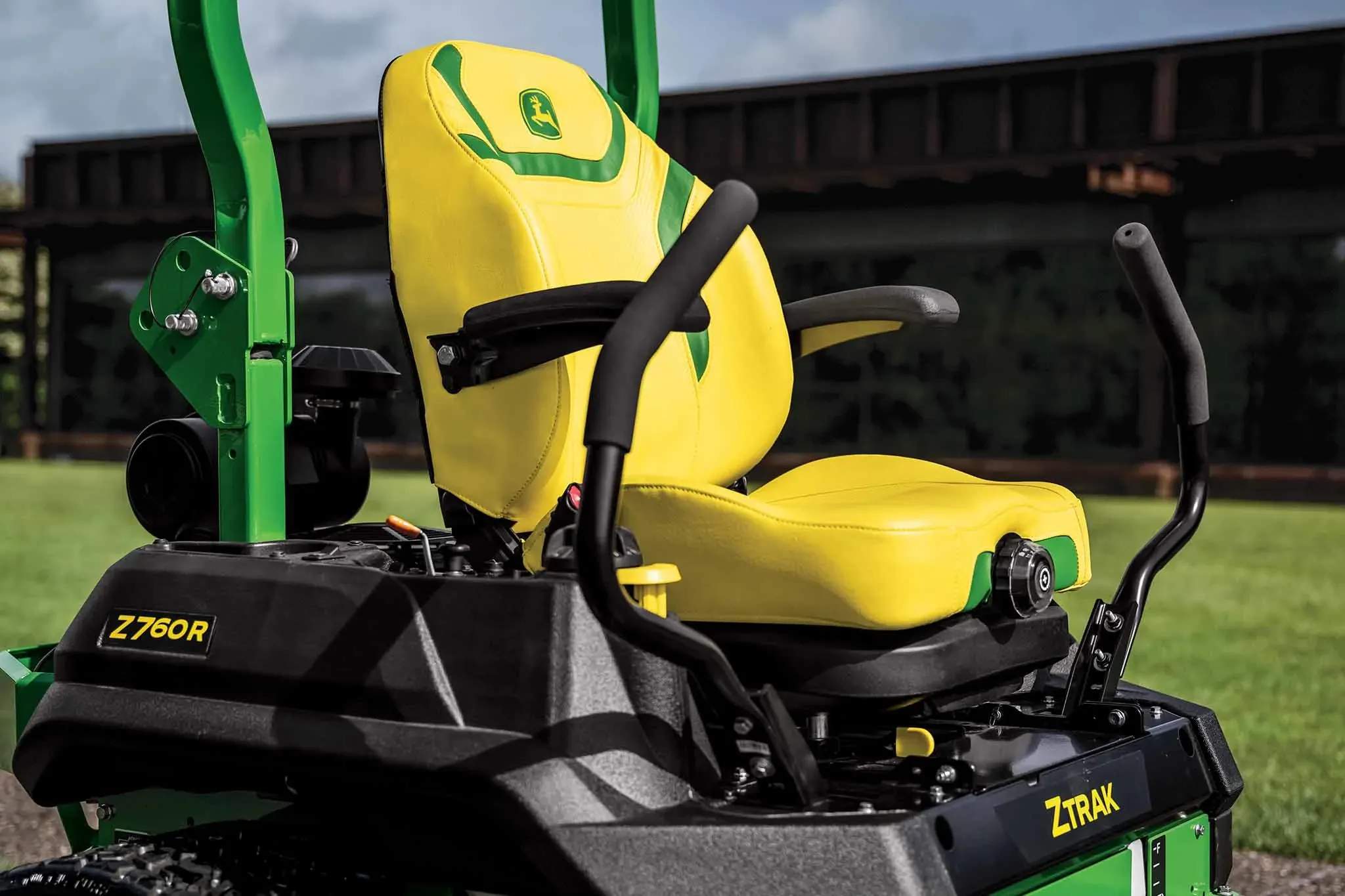

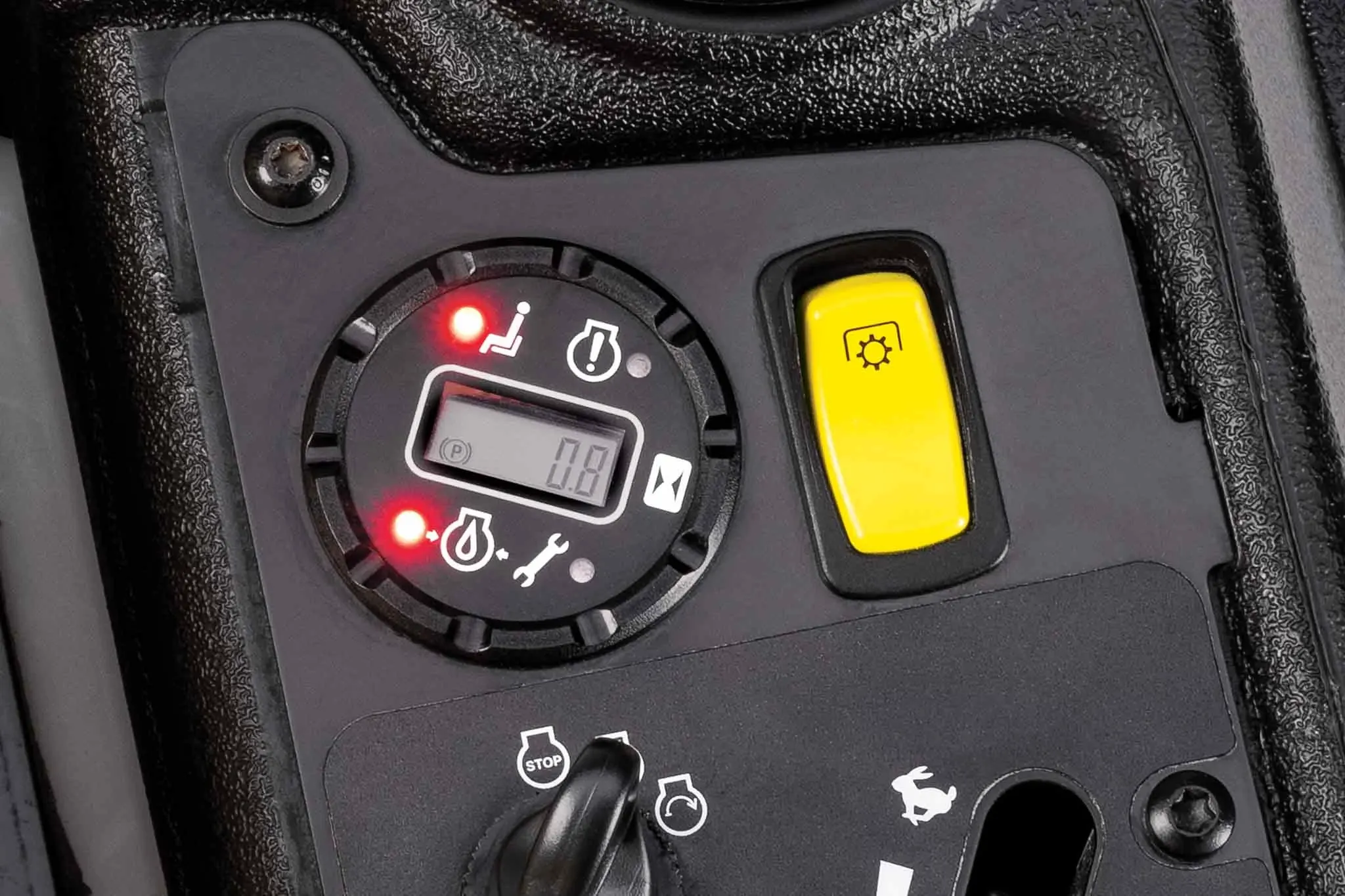

Find your ideal operating position with an adjustable seat, steering levers, and foot platform. The seat features our ComfortGlide™ fore-and-aft suspension for exceptional ride comfort on uneven ground. Easy-to-use controls are conveniently located next to the seat, and a digital display helps you track of machine hours and system alerts. For convenient sit-and-go operation, the parking brake is built into the steering levers, so you can simply pull the levers in to start mowing and push them out to park.

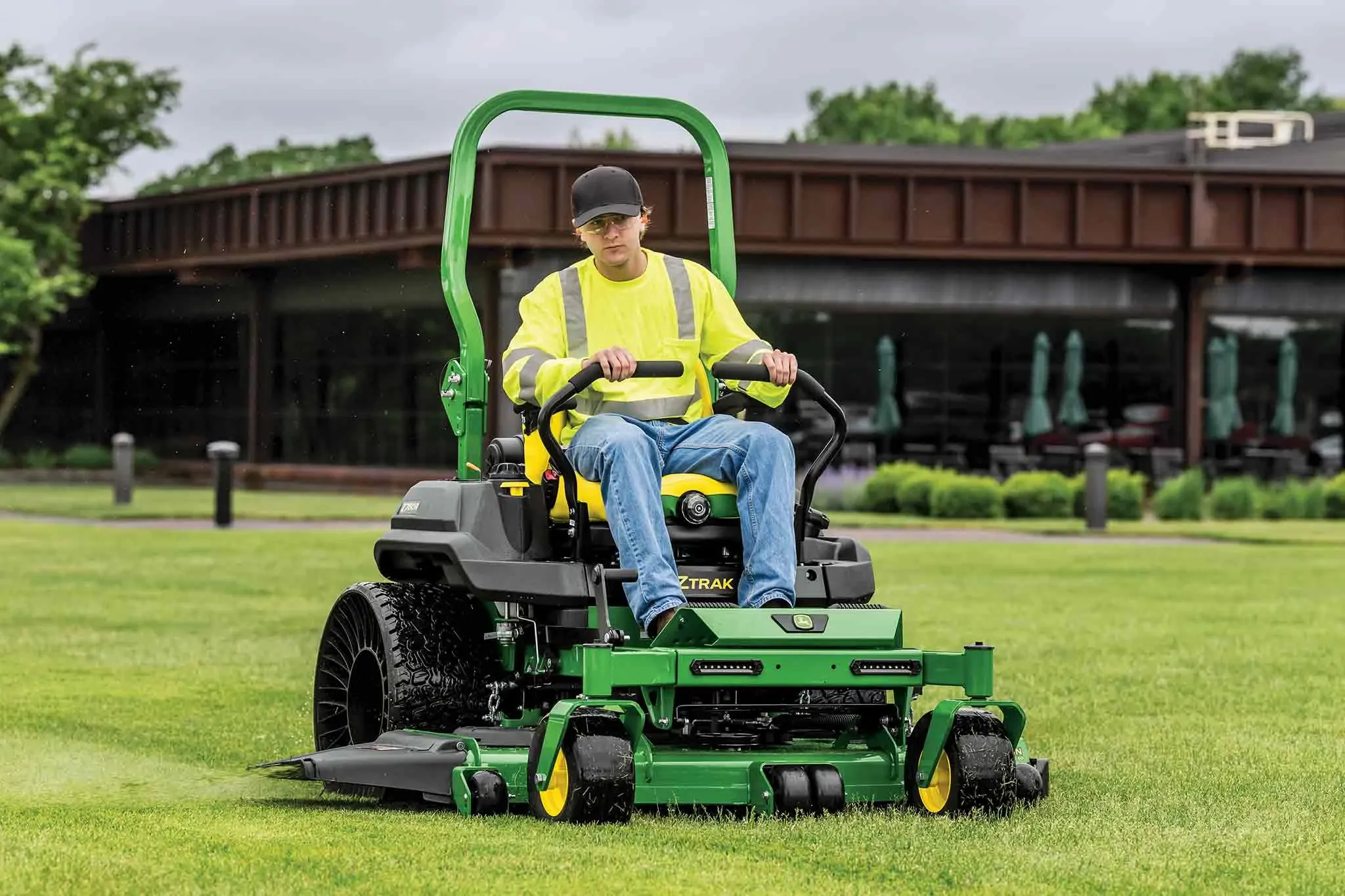

The ZT-3400 unitized hydrostatic transmission provides forward mowing speeds up to 10 mph (16.1 km/h). The transmission features heavy-duty wheel motors, charge pumps, exceptional cooling, and convenient access to check and fill hydraulic oil. Large, 24-inch (61 cm) rear tires feature a premium tread and contoured shoulder to help reduce turf compaction. Optional Michelin X® TWEEL™ Turf Airless radial tires eliminate flats, so you can stay running.
| Travel Speed - Reverse Speed | 7.2 km/h |
|---|---|
| Optional Attachments - Mulching System | Optional mulch kit |

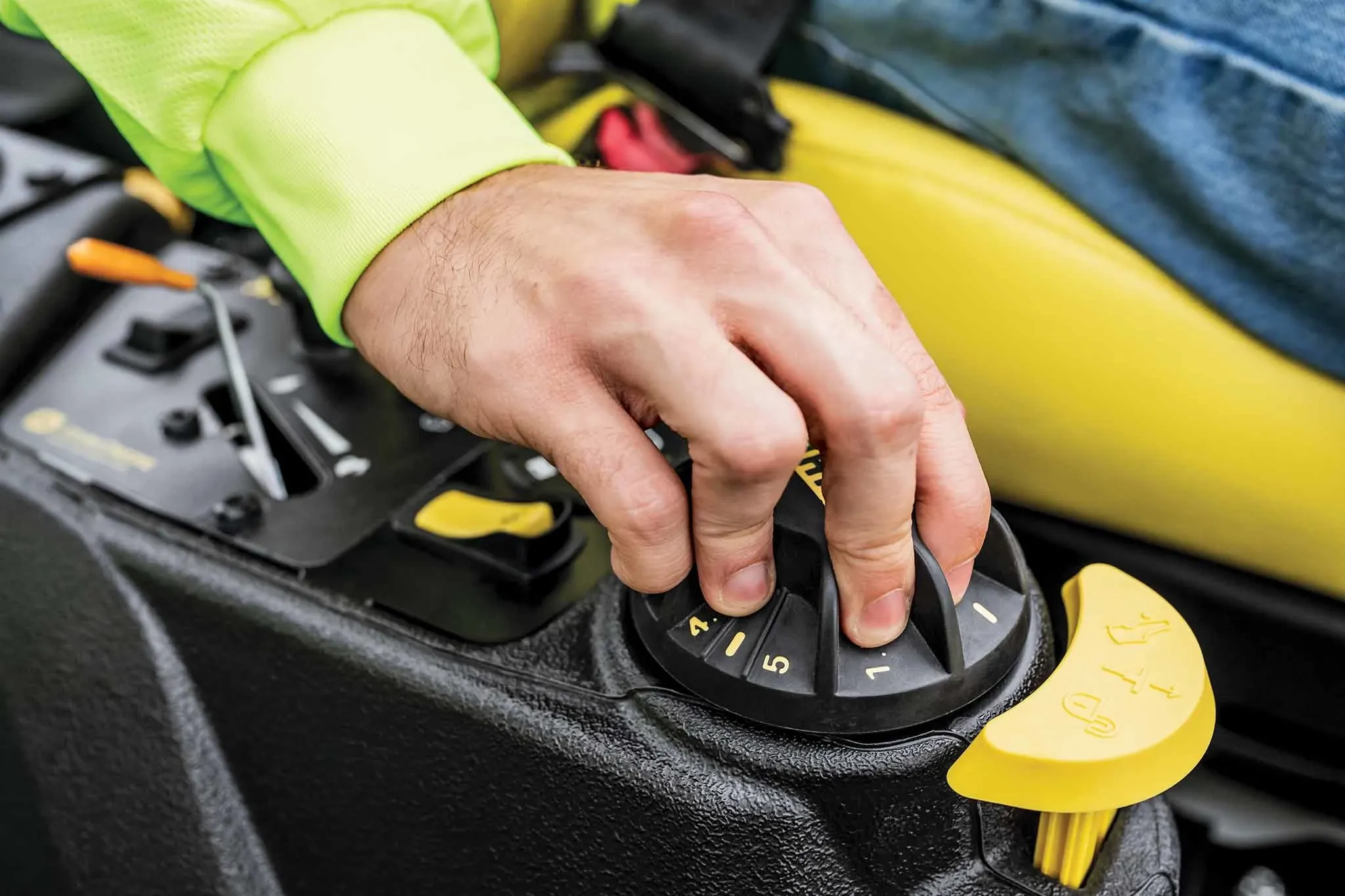

| Lift System - Cut Height Increments | 0.25 in. |
| Engine - Engine Power | 27.0 hp |
| Engine - Lubrication | 2.3 L |
| Optional Attachments - Light Kit | Standard LED work and optional beacon lights |

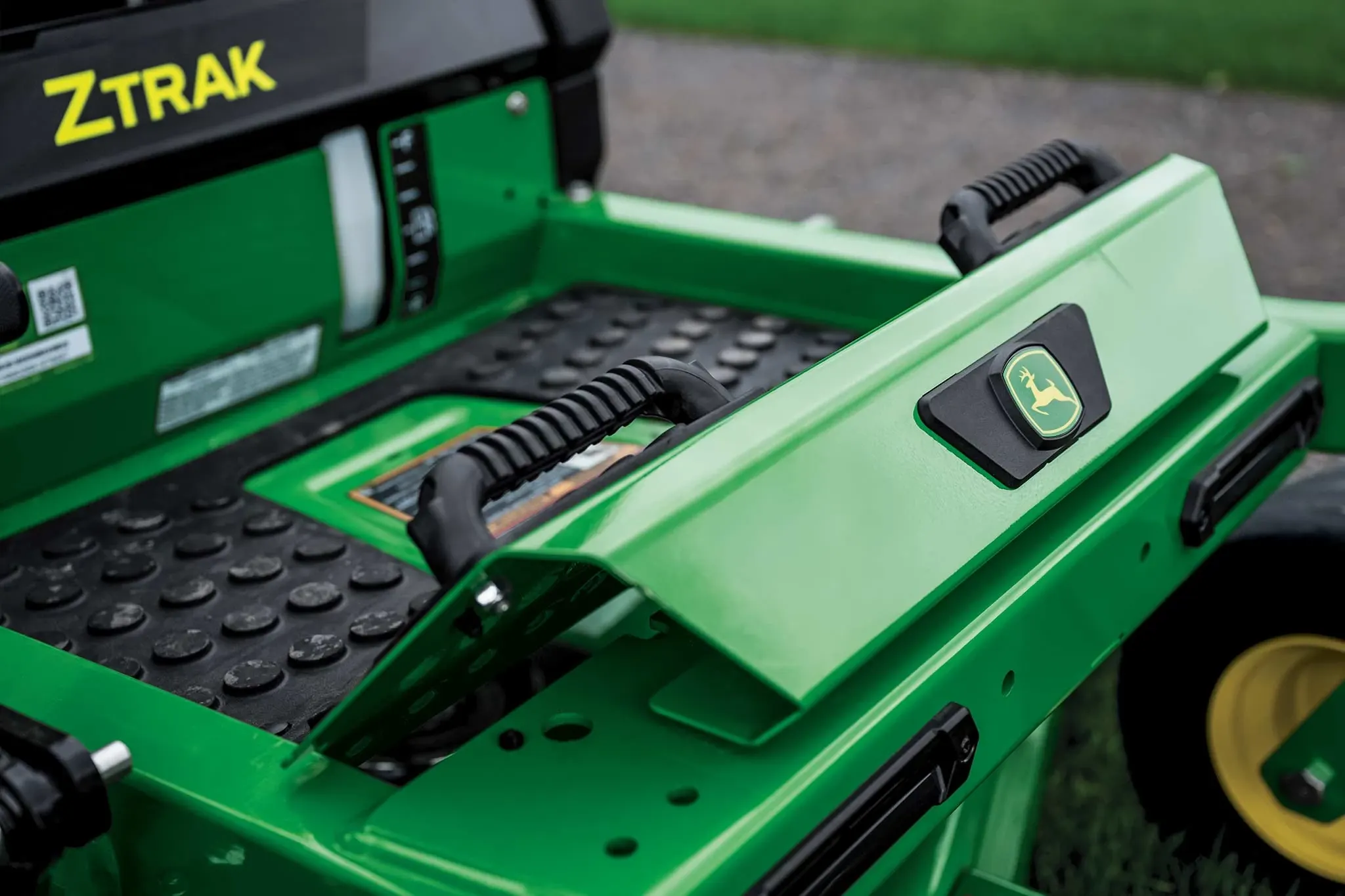

| Buyer's Notes - Note 1 | Flip-up and adjustable foot platform for easy service access |
| Engine - Fuel Gauge | Fuel level sight line |
| Seat - Seat Back Height | 61.0 cm |
| Dimensions - Width With Mower (Deflector Raised For Storage) | 61.3 in. |
| Power Take-Off (PTO) - Drive | V-belt |
| Dimensions - Overall Length | 80.6 in. |
| Engine - Fuel Tank Capacity | 30.2 L |
| Dimensions - Overall Length | 204.6 cm |
| Dimensions - Wheelbase | 126.7 cm |
| Dimensions - Weight | 1070.0 lb. |
| Chassis - Hour Meter | Yes, with low oil pressure, warning, service maintenance, and operator presence indicators |
| Lift System - Mower Cut Height - Minimum | 1.5 in. |
| Dimensions - Width With Mower (Deflector Raised For Storage) | 155.8 cm |
| Chassis - Front Caster Tires | 13x6.5-6 |
| Seat - Fore-Aft Adjustment | 4.0 in. |
| Engine - Engine Model Number | FX850V |
| Lift System - Mower Cut Height - Minimum | 3.8 cm |
| Dimensions - Width With Mower | 73.3 in. |
| Chassis - Frame | Heavy-duty frame tubing |
| Power Take-Off (PTO) - Type | 125.0 lb-ft |
| Buyer's Notes - Warranty | 4 year/1200 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Engine - Type | Overhead valve |
| Operation - Operator Presence System | Yes |
| Chassis - Storage Compartment | Yes |
| Travel Speed - Speed And Direction Control | Twin premium levers |
| Mower Deck - Mower Deck Material | 4.6 mm |
| Dimensions - Width With Mower | 186.1 cm |
| Lift System - Mower Cut Height - Maximum | 12.7 cm |
| Dimensions - Width Without Mower | 47.8 in. |
| Engine - Lubrication | Full pressure with replaceable filter |
| Lift System - Type | Spring assisted foot lift |
| Engine - Battery Voltage | 12.0 V |
| Engine - Fuel Tank Capacity | 8.0 U.S. gal. |
| Engine - Displacement | 852.0 cc |
| Mower Deck - Cutting Width | 137/152 cm |
| Mower Deck - Mower Deck Material | 7.0 gauge |
| Dimensions - Weight | 485.0 kg |
| Optional Attachments - Material Collection System | 229.0 L |
| Engine - Battery Cold Crank Amps | 300.0 CCA |
| Operation - Slope 0perating Limit | 15 degrees (material collection systems, weather enclosures, or other attachments increase the risk of a rollover) degree (angle) |
| Engine - Lubrication | 2.4 U.S. qt |
| Chassis - Drive Tires | 24X12-12; Optional - 24X12N12 Michelin® Tweel® X Turf Airless Radial |
| Power Take-Off (PTO) - Type | Electric |
| Lift System - Mower Cut Height - Maximum | 5.0 in. |
| Engine - Cylinders | V-twin |
| Chassis - Primer/Paint | E-coat/powder |
| Lift System - Preset Cut Height | Yes |
| Dimensions - Wheelbase | 49.9 in. |
| Travel Speed - Forward Speed | 16.1 km/h |
| Chassis - Service Interval Decal | Yes |
| Travel Speed - Reverse Speed | 4.5 mph |
| Lift System - Cut Height Increments | 0.64 cm |
| Optional Attachments - Rubber Floor Mat | Standard |
| Mower Deck - Mower Drive System | V-belt |
| Mower Deck - Type | 7Iron™ PRO side discharge |
| Seat - Seat Back Height | 24.0 in. |
| Dimensions - Height | 71.7 in. |
| Operation - Park Brake Interlock | Yes |
| Engine - Choke/Speed Control | Separate control levers |
| Engine - Cooling Method | Air |
| Mower Deck - Cutting Width | 54/60 in. |
| Engine - Engine Power | 20.1 kW |
| Engine - Displacement | 52.0 cu in. |
| Chassis - Front Caster Bearings | Sealed ball bearings |
| Drivetrain - Dual Hydros | Hydro-Gear ZT3400™ with 1.125-in. (28.6-mm) axles |
| Operation - Rollover Protective Structure (ROPS) | Yes |
| Seat - Seat Suspension | Mechanical; adjustable for weight with ComfortGlide™ fore-and-aft suspension |
| Dimensions - Width Without Mower | 121.0 cm |
| Optional Attachments - Material Collection System | 6.5 bu |
| Chassis - Cup Holder | Yes |
| Dimensions - Height | 182.2 cm |
| Seat - Fore-Aft Adjustment | 10.2 cm |
| Mower Deck - Mower Deck Material | 0.179 in. |
| Travel Speed - Control Adjustment | 2-height/18 positions |
| Power Take-Off (PTO) - Type | 169.0 Nm |
| Optional Attachments - Material Collection System | Power Flow™ rear bagger; Not compatible with Tweel® Turf airless radial tires |
| Travel Speed - Forward Speed | 10.0 mph |
