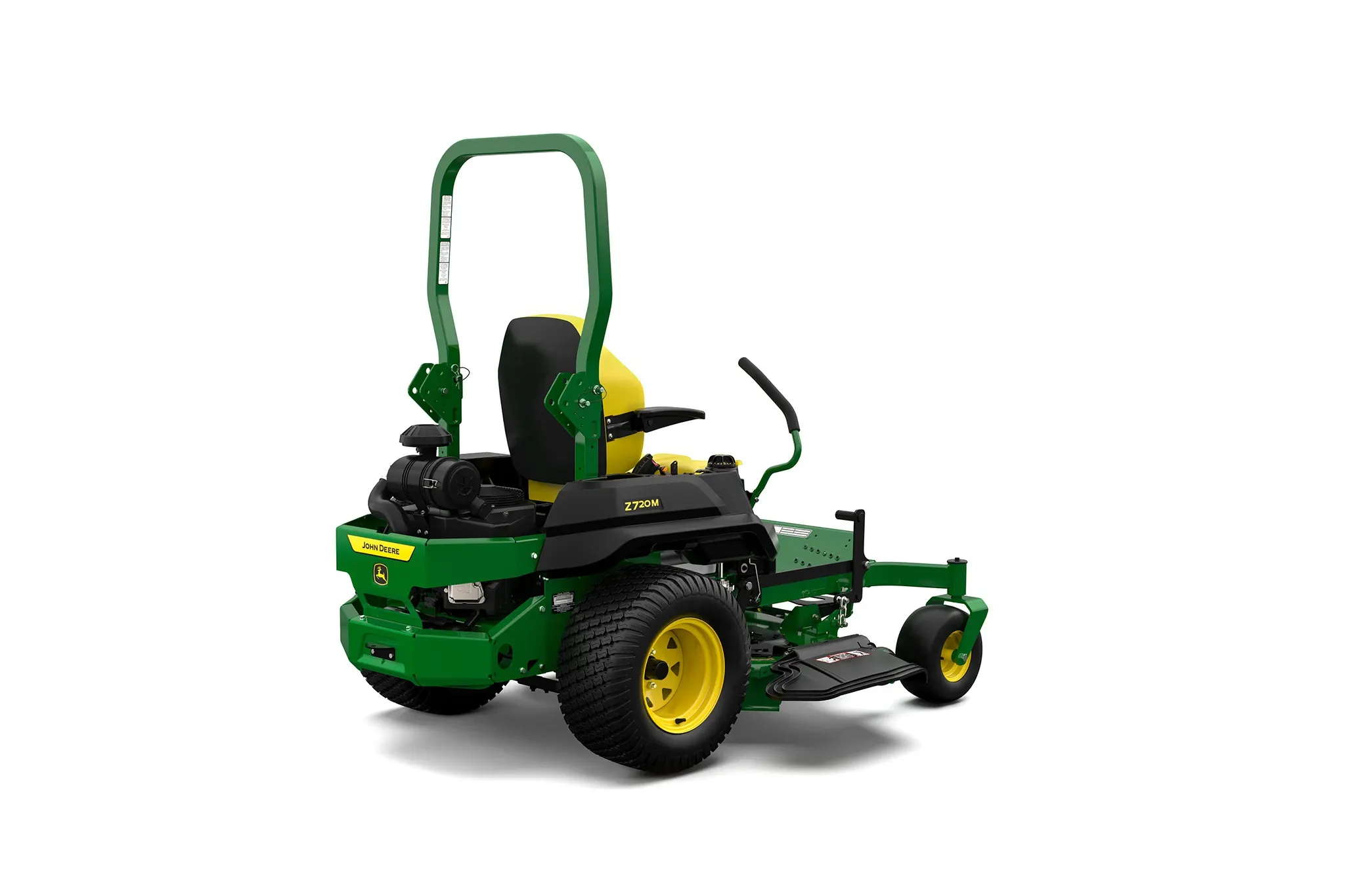

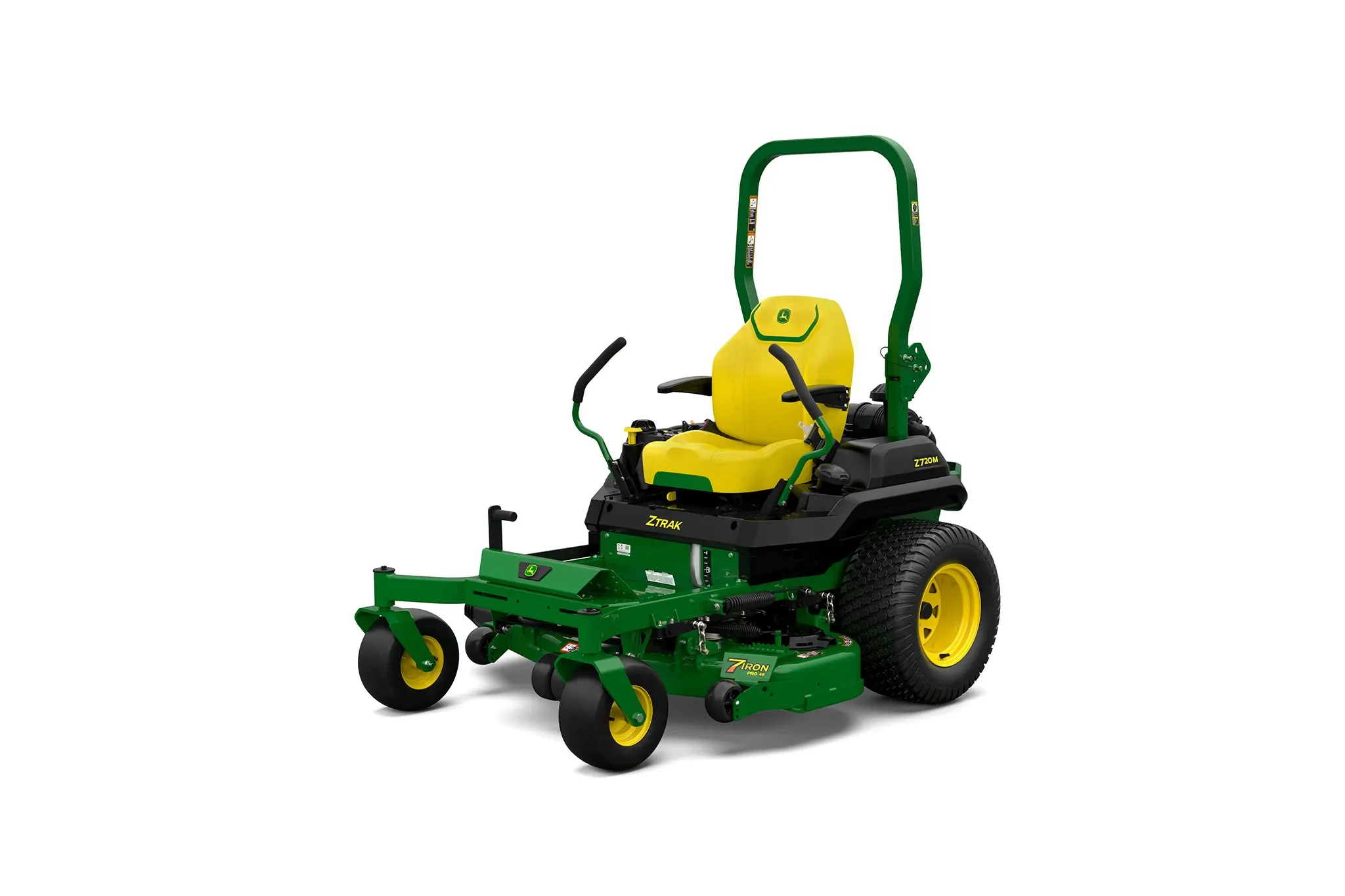

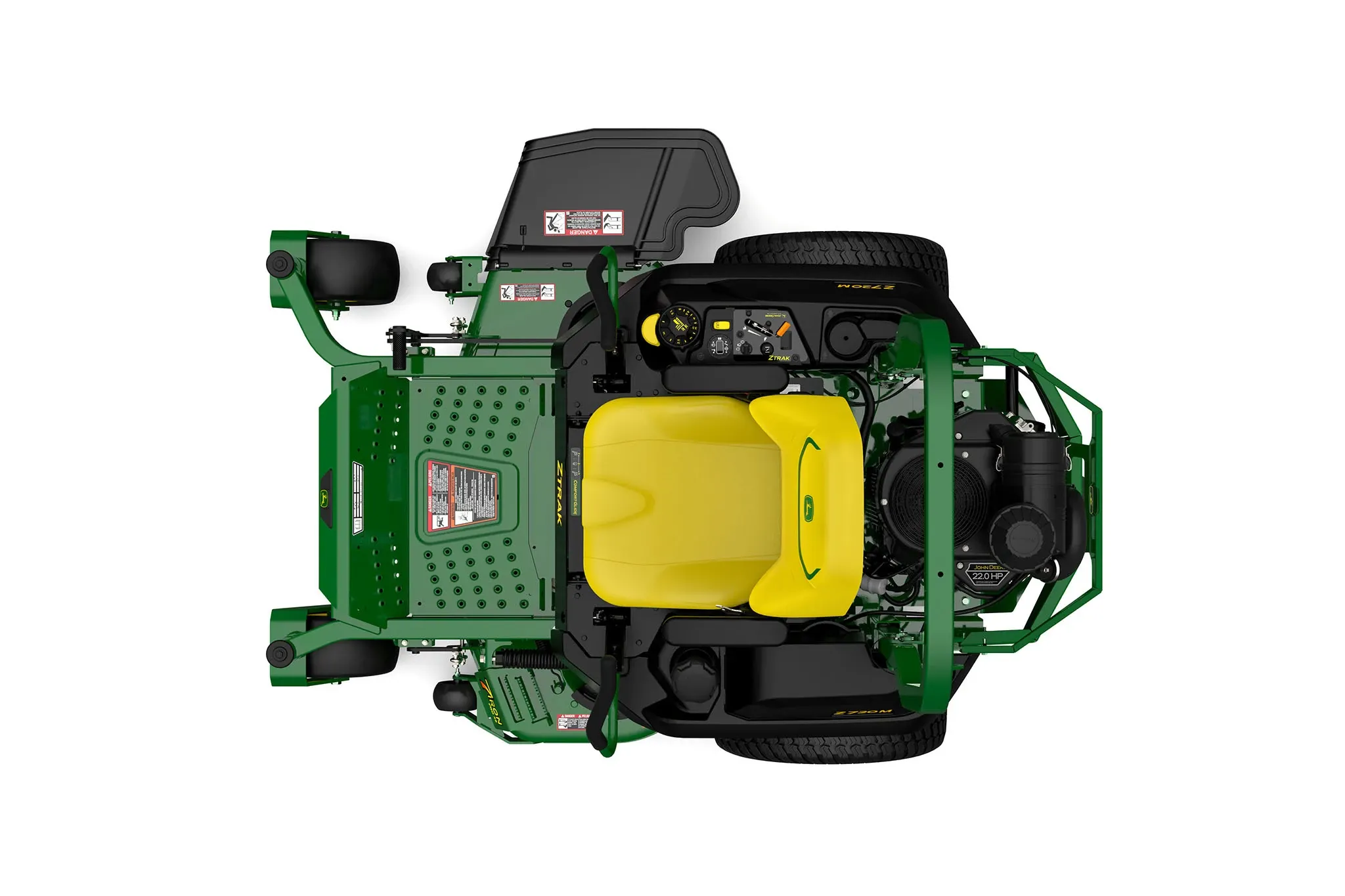

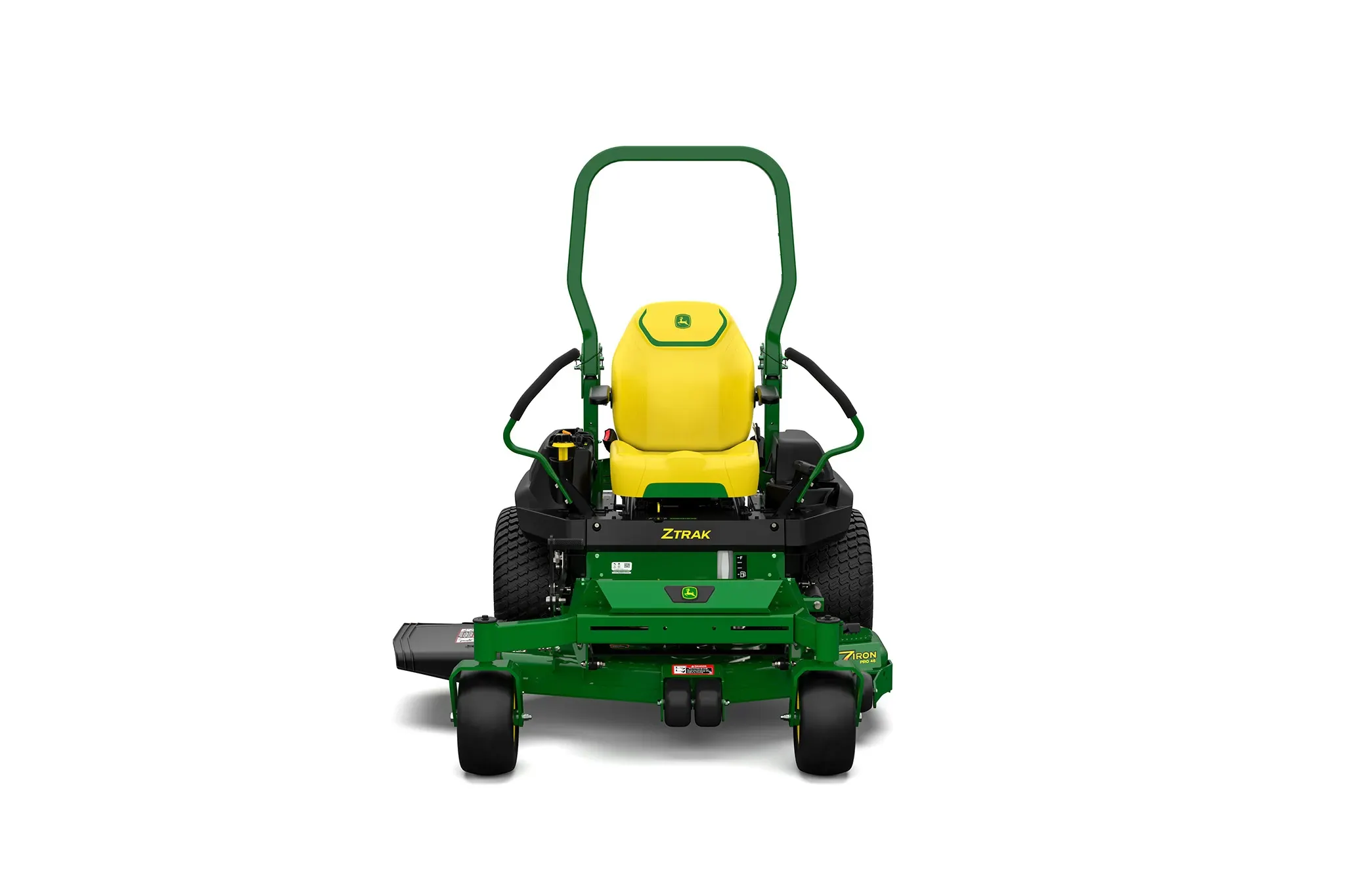

John Deere Z720M ZTrak™ Zero-Turn Mower
Lawn & Garden Equipment

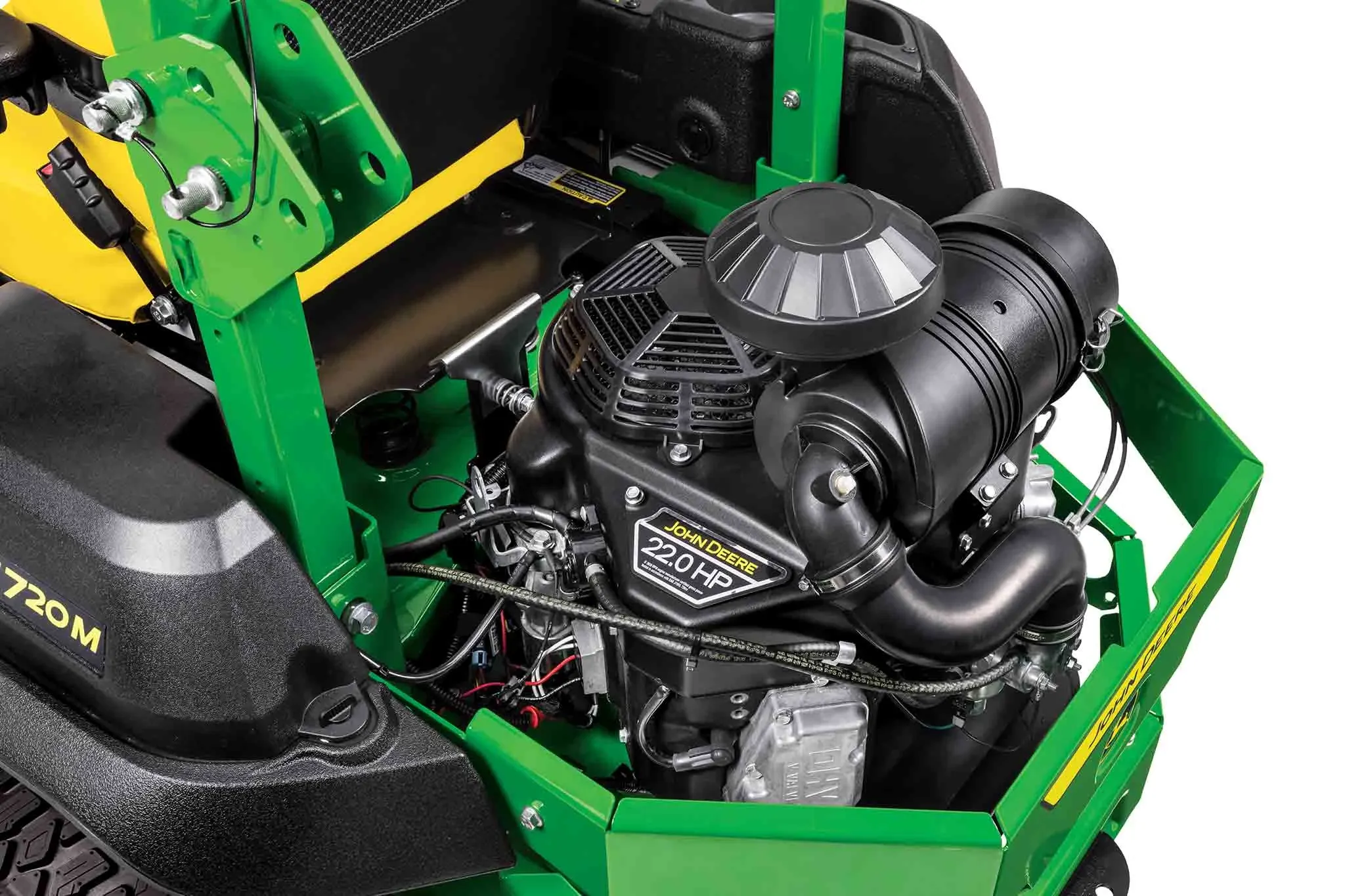

- Powerful 22-hp (16.4 kW) FX Series engine with dual-stage air cleaner
- 48-in. (122 cm) or 54-in. (137 cm) 7Iron™ PRO side-discharge decks with reinforced spindles, chute, and trim edge
- 22.5-in. (57-cm) seat with arm rests, adjustable seat springs, and ComfortGlide™ fore-and-aft suspension
- 4-year or 750-hour Bumper-to-Bumper Warranty
Featured List
- Mower Deck - Cutting Width: 54 in.
- Seat - Seat Back Height: 57.0 cm
- Chassis - Front Caster Tires: 13x6.5-6
- Travel Speed - Forward Speed: 15.3 km/h
- Buyer's Notes - Warranty: 4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
- Seat - Seat Back Height: 22.5 in.
- Engine - Engine Power: 22.0 hp
- Optional Attachments - Mulching System: Optional mulch kit
- Chassis - Drive Tires: 23X9.5-12 (48-in. deck); 23X10.5-12 (54-in. deck)
- Travel Speed - Forward Speed: 9.5 mph
- Engine - Engine Model Number: FX691V
- Mower Deck - Cutting Width: 137 cm
- Engine - Engine Power: 16.4 kW
Featured Content

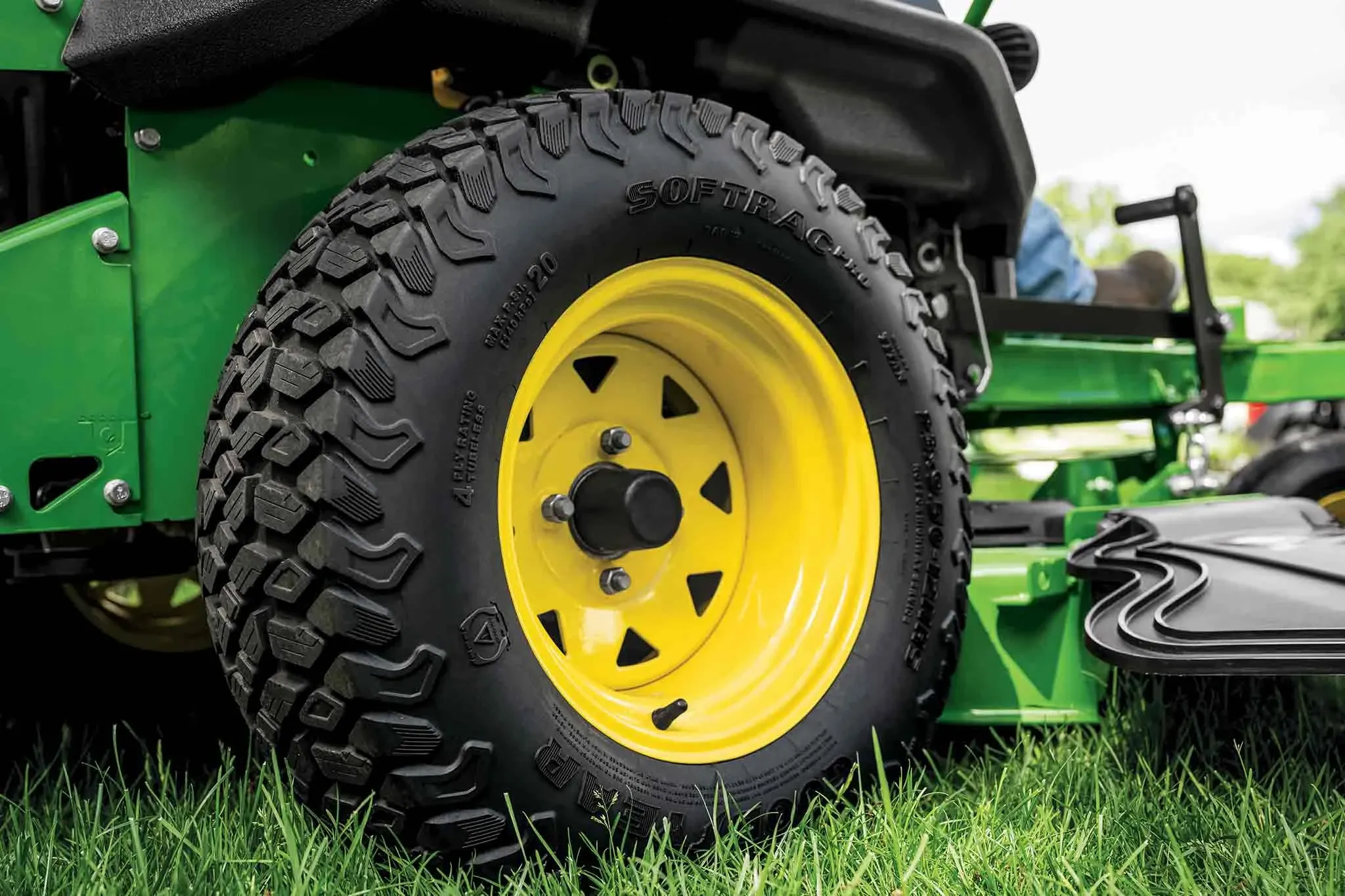

The ZT-3200 unitized hydrostatic transmission provides forward mowing speeds up to 9.5 mph (15.3 km/h). The transmission features heavy-duty wheel motors, charge pumps, exceptional cooling, and convenient access to check and fill hydraulic oil. The 23-inch-tall (58 cm) rear tires feature a bold tread design that helps improve traction while minimizing turf damage.

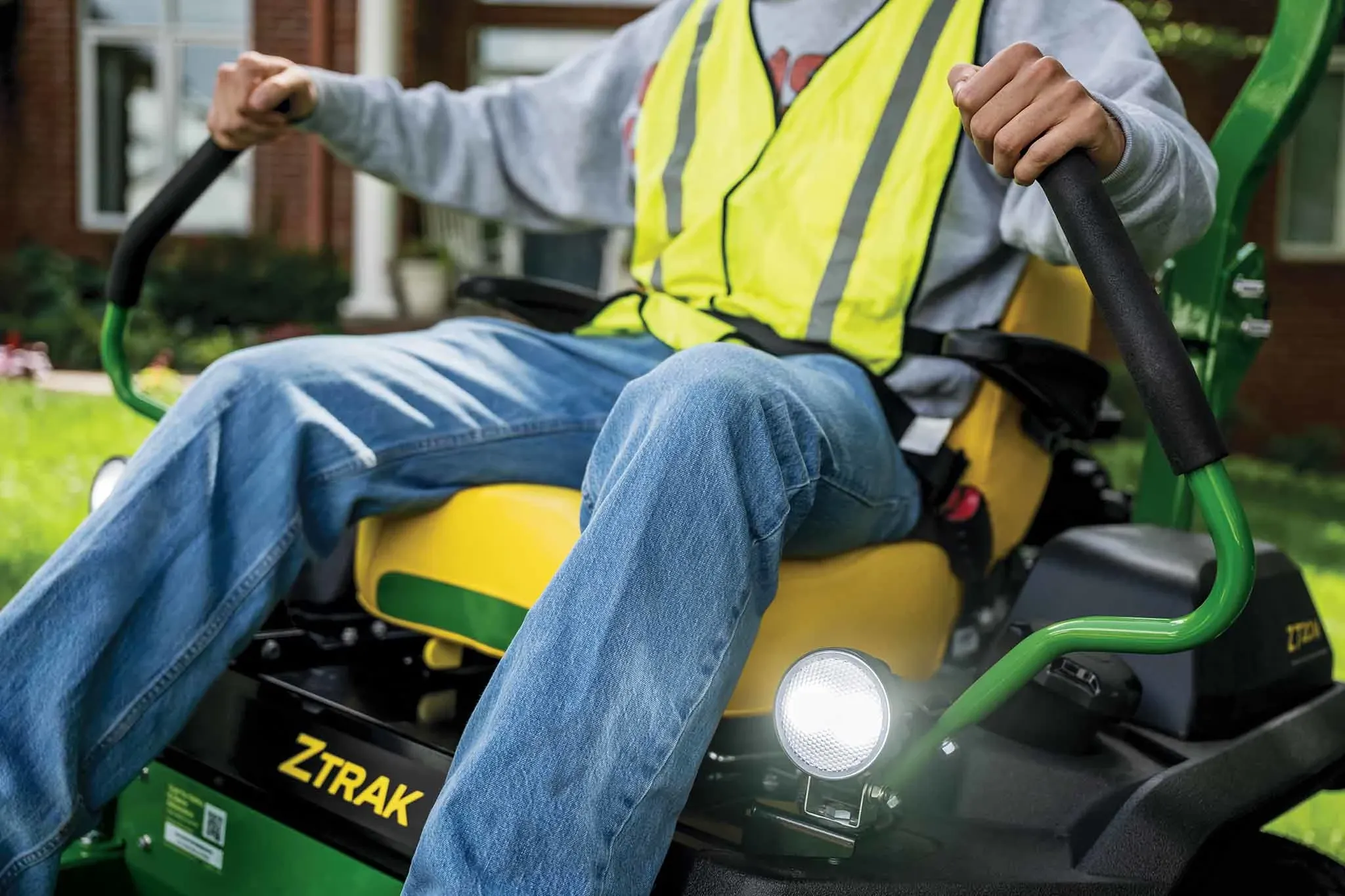

Find your ideal operating position with an adjustable seat, steering levers, and foot platform. The seat features our ComfortGlide fore-and-aft suspension for exceptional ride comfort on uneven ground. Easy-to-use controls are conveniently located next to the seat, and a digital display helps you keep track of machine hours and system alerts. For convenient stand-go operation, the parking brake is built into the steering levers, so you can simply pull the levers in to start mowing and push them out to park.

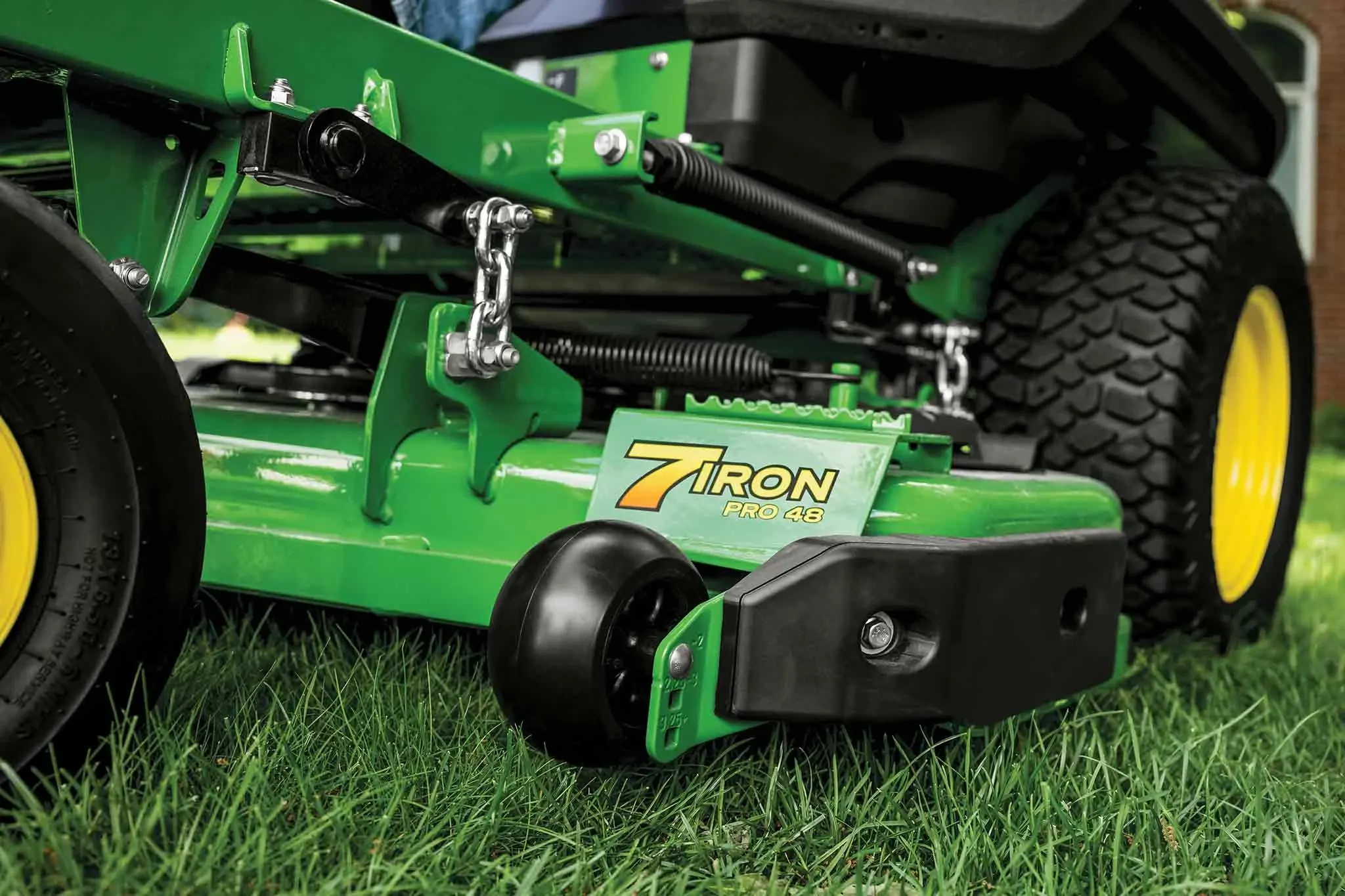

Each 7Iron™ PRO deck is forged from a single sheet of 7-gauge steel for commercial-grade durability. A smooth underside and 5.5-inch (140 mm) depth helps prevent material buildup while providing excellent airflow for efficient grass processing. Thoughtfully placed anti-scalp wheels help maintain consistent cutting over uneven terrain while making it easier to climb curbs. Includes aircraft-grade cast aluminum spindle housings with reinforced ribbing for durability that stands up to daily use.
| Optional Attachments - Material Collection System | 229.0 L |
|---|---|
| Engine - Cylinders | V-twin |
| Engine - Lubrication | 2.2 U.S. qt |
| Power Take-Off (PTO) - Type | 169.0 Nm |
| Engine - Fuel Tank Capacity | 30.2 L |
| Lift System - Preset Cut Height | Yes |
| Mower Deck - Mower Drive System | V-belt |
| Travel Speed - Forward Speed | 15.3 km/h |
| Lift System - Mower Cut Height - Minimum | 3.8 cm |
| Chassis - Drive Tires | 23X9.5-12 (48-in. deck); 23X10.5-12 (54-in. deck) |
| Chassis - Storage Compartment | Yes |
| Operation - Operator Presence System | Yes |
| Dimensions - Overall Length | 204.6 cm |
| Engine - Battery Cold Crank Amps | 300.0 CCA |
| Operation - Slope 0perating Limit | 15 degrees (material collection systems, weather enclosures, or other attachments increase the risk of a rollover) degree (angle) |
| Chassis - Primer/Paint | E-coat/powder |
| Travel Speed - Reverse Speed | 4.5 mph |
| Seat - Seat Back Height | 57.0 cm |
| Dimensions - Width Without Mower | 47.4 in. |
| Engine - Engine Power | 22.0 hp |
| Travel Speed - Reverse Speed | 6.4 km/h |
| Optional Attachments - Rubber Floor Mat | Optional |
| Buyer's Notes - Note 1 | Flip-up and adjustable foot platform for easy service access |
| Optional Attachments - Mulching System | Optional mulch kit |
| Engine - Type | Overhead valve |
| Lift System - Cut Height Increments | 0.25 in. |
| Optional Attachments - Light Kit | Optional LED work and beacon lights |
| Seat - Seat Suspension | Two four-position springs with ComfortGlide™ fore-and-aft suspension |
| Dimensions - Height | 71.7 in. |
| Operation - Park Brake Interlock | Yes |
| Power Take-Off (PTO) - Type | 125.0 lb-ft |
| Engine - Engine Model Number | FX691V |
| Engine - Battery Voltage | 12.0 V |
| Mower Deck - Cutting Width | 137 cm |
| Dimensions - Weight | 438.0 kg |
| Chassis - Frame | Heavy-duty frame tubing |
| Engine - Cooling Method | Air |
| Chassis - Service Interval Decal | Yes |
| Engine - Lubrication | 2.1 L |
| Chassis - Hour Meter | Yes, with low oil pressure, warning, service maintenance, and operator presence indicators |
| Dimensions - Width With Mower | 68.2 in. |
| Chassis - Front Caster Tires | 13x6.5-6 |
| Dimensions - Height | 182.2 cm |
| Dimensions - Weight | 965.0 lb. |
| Drivetrain - Dual Hydros | Hydro-Gear ZT3200™ with 1.125-in. (28.6-mm) axles |
| Engine - Choke/Speed Control | Separate control levers |
| Engine - Displacement | 726.0 cc |
| Engine - Engine Power | 16.4 kW |
| Travel Speed - Forward Speed | 9.5 mph |
| Dimensions - Overall Length | 80.6 in. |
| Lift System - Cut Height Increments | 0.64 cm |
| Dimensions - Wheelbase | 126.7 cm |
| Lift System - Mower Cut Height - Maximum | 5.0 in. |
| Mower Deck - Type | 7Iron™ PRO side discharge |
| Power Take-Off (PTO) - Drive | V-belt |
| Lift System - Mower Cut Height - Minimum | 1.5 in. |
| Dimensions - Width Without Mower | 120.0 cm |
| Mower Deck - Mower Deck Material | 4.6 mm |
| Mower Deck - Mower Deck Material | 0.179 in. |
| Operation - Rollover Protective Structure (ROPS) | Yes |
| Engine - Displacement | 44.2 cu in. |
| Seat - Fore-Aft Adjustment | 10.2 cm |
| Dimensions - Width With Mower | 173.2 cm |
| Seat - Seat Back Height | 22.5 in. |
| Lift System - Type | Spring assisted foot lift |
| Travel Speed - Speed And Direction Control | Twin premium levers |
| Buyer's Notes - Warranty | 4 year/750 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Seat - Fore-Aft Adjustment | 4.0 in. |
| Optional Attachments - Material Collection System | Power Flow™ rear bagger |
| Dimensions - Width With Mower (Deflector Raised For Storage) | 142.7 cm |
| Engine - Fuel Tank Capacity | 8.0 U.S. gal. |
| Dimensions - Wheelbase | 49.9 in. |
| Optional Attachments - Material Collection System | 6.5 bu |
| Power Take-Off (PTO) - Type | Electric |

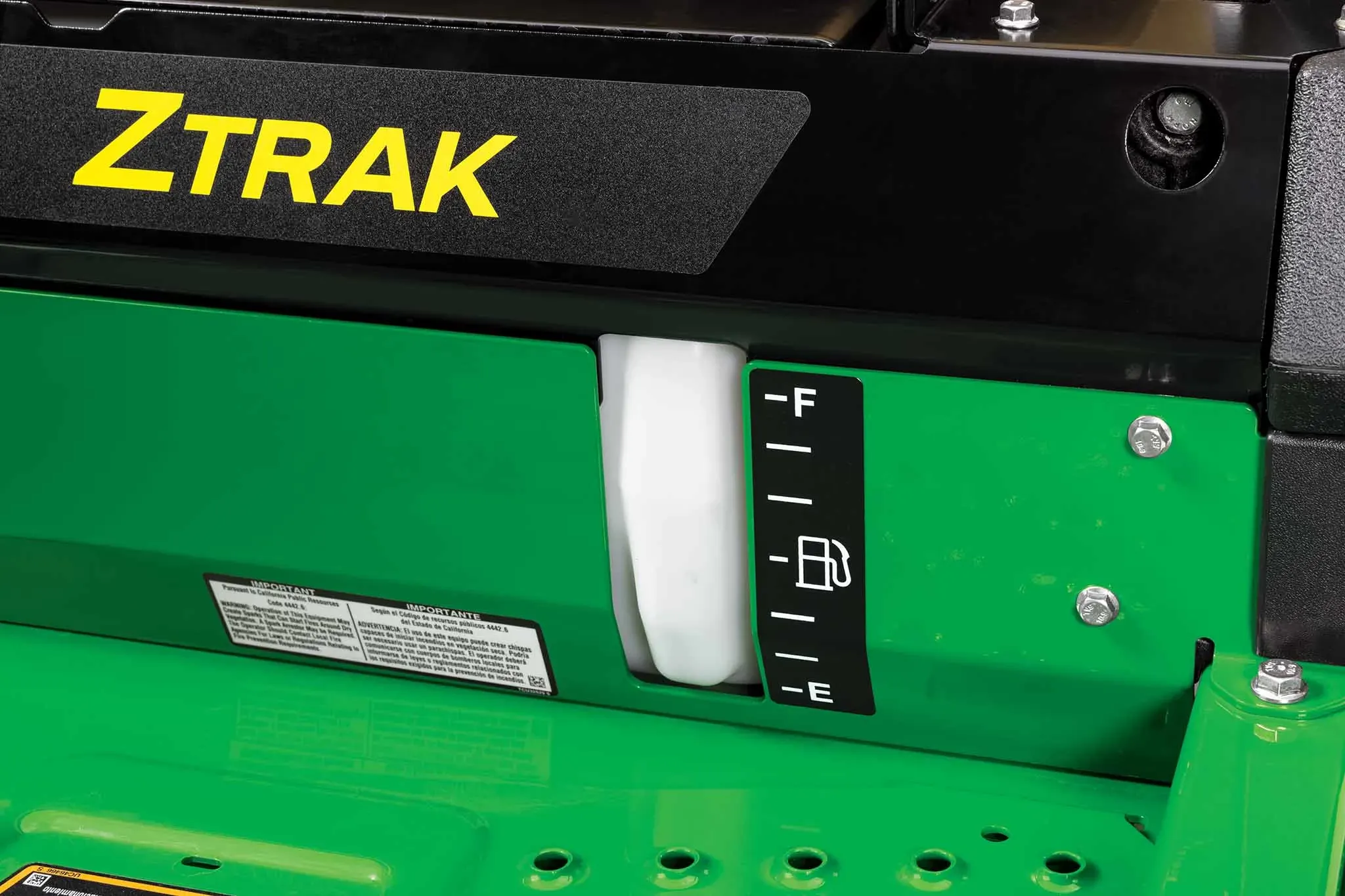

| Engine - Fuel Gauge | Fuel level sight line |
| Chassis - Front Caster Bearings | Sealed ball bearings |
| Travel Speed - Control Adjustment | 2-height/18 positions |
| Mower Deck - Mower Deck Material | 7.0 gauge |
| Chassis - Cup Holder | Yes |
| Engine - Lubrication | Full pressure with replaceable filter |
| Lift System - Mower Cut Height - Maximum | 12.7 cm |
| Dimensions - Width With Mower (Deflector Raised For Storage) | 56.1 in. |
| Mower Deck - Cutting Width | 54 in. |
