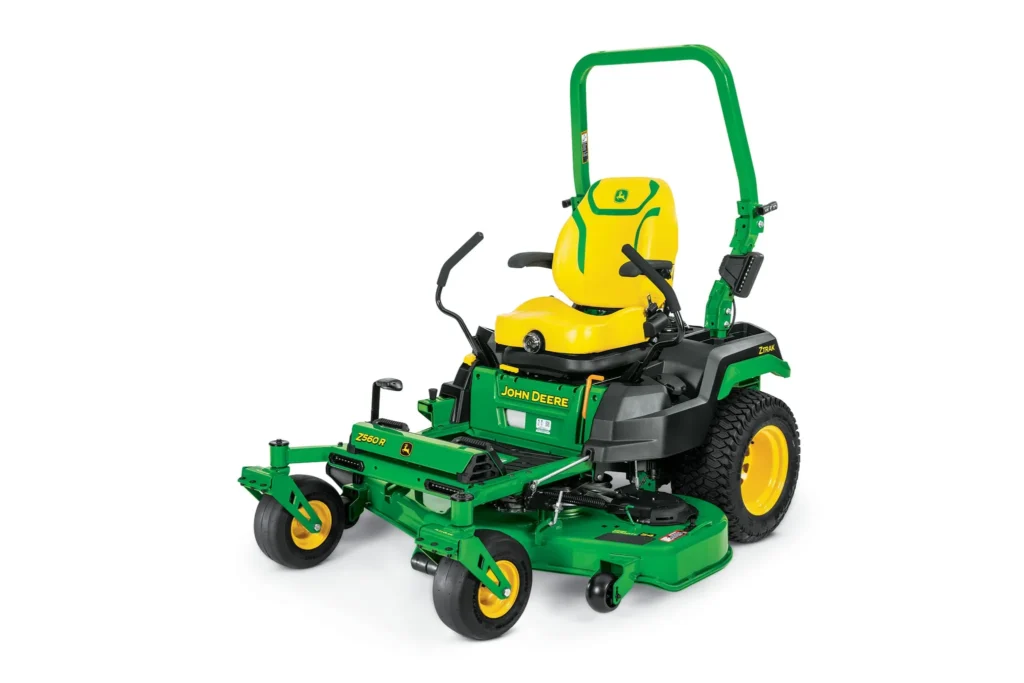

John Deere Z560R ZTrak™ Mower
Lawn & Garden Equipment
- 24-hp (17.9 kW) V-Twin Engine
- 54-in. (137-cm) or 60-in. (152-cm) High-Capacity Mower Decks
- Adjustable 24-in. (61-cm) Mechanical Suspension Seat With Armrests
- 4-Year/500-Hour Bumper-to-Bumper Warranty
Featured List
- Engine - Engine Model Number: FR730V
- Seat - Seat Back Height: 24.0 in.
- Seat - Seat Back Height: 61.0 cm
- Chassis - Drive Tires: 23x10.5-12
- Engine - Engine Power: 17.9 kW
- Travel Speed - Forward Speed: 9.0 mph
- Chassis - Front Caster Tires: 13x6.5-6 with FlexGlide™ caster suspension
- Buyer's Notes - Warranty: 4 year or 500 hour bumper-to-bumper
- Optional Attachments - Mulching System: Optional MulchControl™ attachment, Optional MulchControl™ kit
- Travel Speed - Forward Speed: 14.5 km/h
- Engine - Engine Power: 24.0 hp
- Mower Deck - Cutting Width: 137/152 cm
- Mower Deck - Cutting Width: 54/60 in.
Featured Content
The High-Capacity mower deck features heavy-duty 9-gauge steel construction, a 5.5-in. (14-cm) deep deck design, and upgraded commercial-grade spindles for exceptional strength and durability. Engineered to withstand seasons of hard use, it also features an optimized discharge system that helps power through tall, dense, and fast-growing grass for a professional finish across large properties and challenging mower conditions.
With flexing arms in the caster assemblies, FlexGlide™ helps the front wheels absorb impacts over uneven terrain, providing a much smoother, more enjoyable ride. This also helps stabilize the mower deck, reduce bouncing, and prevent scalping for a more consistent cut height on varying ground.
The adjustable 24-in. (61-cm) mechanical suspension seat can be fine-tuned to match your weight and preferred seating position for a more personalized ride and perfectly cushioned support. The suspension seat has 3 in. (7.6 cm) of vertical travel to absorb bumps and impacts, and allows you to enjoy your mow, not endure it. A large foot platform with a rubber floor and toe mat adds extra traction while helping further reduce vibration underfoot.
Select a category to view specifications (or view all).
| Dimensions - Wheelbase | 50.2 in. |
|---|---|
| Optional Attachments - Material Collection System | Power Flow™ rear bagger / Not available on 60HC |
| Optional Attachments - Light Kit | Front and ROPS-mounted side LED lights are standard |
| Optional Attachments - Material Collection System | 230.0 L |
| Chassis - Storage Compartment | Yes and covered |
| Chassis - Hour Meter | Yes |
| Dimensions - Overall Length | 84.6 in. |
| Chassis - Drive Tires | 23x10.5-12 |
| Dimensions - Wheelbase | 127.5 cm |
| Engine - Battery Cold Crank Amps | 300.0 CCA |
| Travel Speed - Reverse Speed | 4.5 mph |
| Optional Attachments - Mounted Sprayer | No U.S. gal. |
| Mower Deck - Mower Deck Material | 9.0 gauge |
| Engine - Fuel Tank Capacity | 17.0 L |
| Lift System - Mower Cut Height - Maximum | 11.4 cm |
| Drivetrain - Dual Hydros | Tuff Torq® TZT7-AC with 1-in. (2.5-cm) axles |
| Seat - Seat Back Height | 24.0 in. |
| Travel Speed - Forward Speed | 14.5 km/h |
| Lift System - Cut Height Increments | 0.25 in. |
| Seat - Seat Suspension | Adjustable mechanical |
| Engine - Engine Power | 24.0 hp |
| Seat - Seat Back Height | 61.0 cm |
| Dimensions - Height | 71.1 in. |
| Buyer's Notes - Warranty | 4 year or 500 hour bumper-to-bumper |
| Dimensions - Weight | 395.0 kg |
| Engine - Lubrication | 2.0 U.S. qt |
| Travel Speed - Speed And Direction Control | Twin levers |
| Engine - Fuel Gauge | Instrument display with fuel gauge and fuel level sight line |
| Operation - Park Brake Interlock | Yes |
| Lift System - Mower Cut Height - Maximum | 4.5 in. |
| Mower Deck - Cutting Width | 137/152 cm |
| Lift System - Preset Cut Height | Yes |
| Engine - Cylinders | V-twin |
| Dimensions - Width With Mower | 187.0 cm |
| Operation - Rollover Protective Structure (ROPS) | Yes |
| Engine - Lubrication | Full pressure with replaceable filter |
| Engine - Engine Model Number | FR730V |
| Dimensions - Width Without Mower | 122.6 cm |
| Mower Deck - Type | High-capacity side discharge |
| Chassis - Front Caster Bearings | Sealed ball bearings |
| Engine - Lubrication | 1.9 L |
| Power Take-Off (PTO) - Drive | V-belt |
| Optional Attachments - Rubber Floor Mat | Foot platform and toe board |
| Mower Deck - Cutting Width | 54/60 in. |
| Power Take-Off (PTO) - Type | Electric |
| Dimensions - Overall Length | 215.0 cm |
| Optional Attachments - Material Collection System | 6.5 bu |
| Operation - Operator Presence System | Yes |
| Engine - Engine Power | 17.9 kW |
| Chassis - Cup Holder | Yes |
| Power Take-Off (PTO) - Type | 125.0 lb-ft |
| Travel Speed - Control Adjustment | 2-height/9-fore-aft, 18 positions |
| Engine - Displacement | 44.3 cu in. |
| Dimensions - Height | 180.7 cm |
| Lift System - Type | Foot lift |
| Seat - Fore-Aft Adjustment | 3.0 in. |
| Engine - Displacement | 726.0 cc |
| Seat - Fore-Aft Adjustment | 7.6 cm |
| Optional Attachments - Mulching System | Optional MulchControl™ attachment, Optional MulchControl™ kit |
| Dimensions - Width Without Mower | 48.2 in. |
| Mower Deck - Mower Drive System | V-belt |
| Dimensions - Weight | 871.0 lb. |
| Engine - Fuel Tank Capacity | 4.5 U.S. gal. |
| Operation - Operator Video | Yes |
| Lift System - Mower Cut Height - Minimum | 1.5 in. |
| Dimensions - Width With Mower (Deflector Raised For Storage) | 162.0 cm |
| Travel Speed - Forward Speed | 9.0 mph |
| Engine - Type | Overhead valve |
| Chassis - Primer/Paint | E-coat/powder |
| Chassis - Frame | Heavy-duty frame tubing |
| Dimensions - Width With Mower | 73.6 in. |
| Mower Deck - Mower Deck Material | 3.8 mm |
| Engine - Cooling Method | Air |
| Lift System - Cut Height Increments | 0.64 cm |
| Additional Information - Manufacturing Location | Greeneville, Tennessee, USA |
| Dimensions - Width With Mower (Deflector Raised For Storage) | 63.8 in. |
| Engine - Choke/Speed Control | Separate control levers |
| Chassis - Maximum Towing Capacity | 113.0 kg |
| Engine - Battery Voltage | 12.0 V |
| Chassis - Service Interval Decal | Yes |
| Chassis - Maximum Towing Capacity | 250.0 lb. |
| Mower Deck - Mower Deck Material | 0.15 in. |
| Optional Attachments - Mounted Sprayer | No L |
| Power Take-Off (PTO) - Type | 169.5 Nm |
| Chassis - Front Caster Tires | 13x6.5-6 with FlexGlide™ caster suspension |
| Lift System - Mower Cut Height - Minimum | 3.8 cm |
| Optional Attachments - Sun Shade | Optional |
| Travel Speed - Reverse Speed | 7.2 km/h |
| Operation - Slope 0perating Limit | Standard: 15 degrees; With a Material Collection System: 10 degrees degree (angle) |
| Optional Attachments - Protective Cover | Yes |
