John Deere XUV560E
  • + Expand All
  • - Close All
  • Sleek styling exemplifies capable off-road, yet hard-working performance

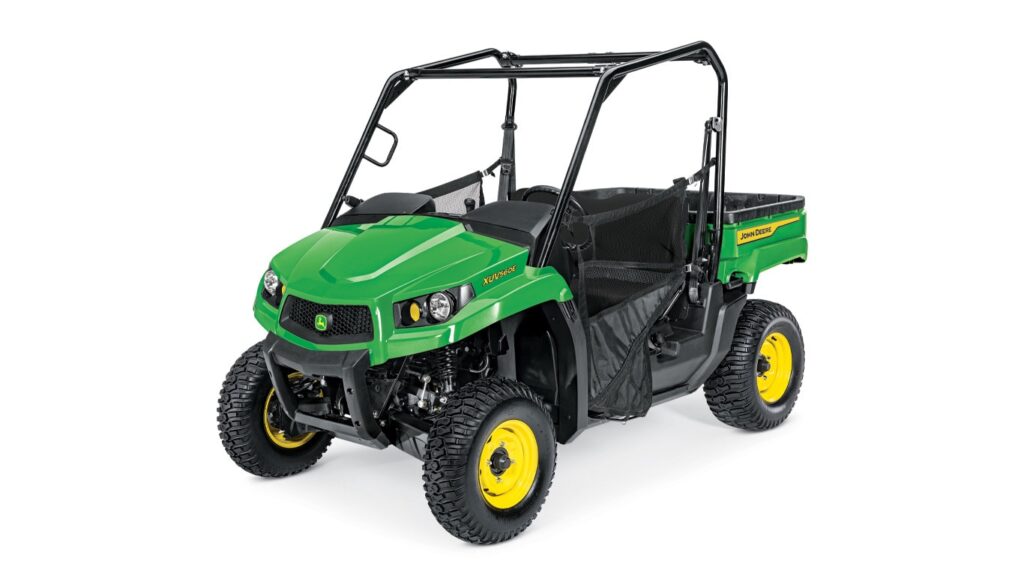

    XUV shown in green and yellow XUV shown in green and yellow

    A modern front fascia, wide front bumper, sweeping hood lines, and high fender lines complete the styling package:

    • Sleek styling exemplifies a capable off-road, yet hard-working vehicle. The Gator™ XUV Series suits the emotional appeal of an operator purchasing a vehicle that is fun and functional.
      • Hard-edged lines
      • Hood bulge
      • Sweeping headlights with mounting locations for a turn signal light kit
      • High front and rear fenders states long wheel travel
      • Well-matched cargo box with truck-style tailgate
    • Steel front bumper supports the styled front composite parts, while the heavy steel skid plate provides protection from rocks and stumps
    • Styled parts are injection-molded TPO, a durable, engineered plastic designed to sustain impacts; the plastic is paintable
    • Accepts the highly integrated optional 50.8-mm (2-in.) front receiver hitch with recovery loops and WARN® 1587.6-kg (3500-lb) winch
    • 75-plus attachments, such as roofs, windshields, lights, protection components, and poly cab highly complement the overall look of a capable crossover vehicle.



    WARN is a trademark of Warn Industries, Inc.

  • Four-wheel independent suspension provides unparalleled ride over challenging terrain and excellent handling through corners
    XUV front suspension detail XUV front suspension detail

    To complement the comfortable operation station, the XUV560 and XUV590 Series are equipped with four-wheel independent suspension. This unique suspension set-up provides an unparalleled ride over challenging terrain and excellent handling through corners.



    The engineering team, in collaboration with engineering firms that consult with Formula 1®, NASCAR®, and INDYCAR® teams, built a capable suspension system for class-leading operator comfort no matter what the terrain.

    Dual A-arm front suspension features include:
    • Dual, wide arch A-arm design provides maximum front-wheel control, precise steering, and maximum ground clearance out to the wheel
    • 203 mm (8 in.) of travel provides ample compression and wheel extension, which keep all four wheels on the ground for superior traction and vehicle control
    • Adjustable coil-over shocks absorb the most demanding terrain
    • Solid anti-roll bar with fully rubber isolated connecting links and pivots is tuned to provide the most agile and predictable handling
    • Camber during compression to compensate for body roll and to maintain an optimal tire contact patch for improved cornering grip
    • Increasing vehicle width during compression for additional stability.
    • High-strength ASTM 80-55-06 ductile cast-iron knuckle and upper A-arm to support the high stresses of the shocks, constant-velocity (CV) shaft, and wheels
    • Automotive-style, fully boxed and welded, high-strength steel, lower A-arms to minimize unsprung mass and maximize strength
    • Maintenance-free, rubber torsional A-arm pivots for long life and quiet operation
    • CV shaft protection from sticks that may puncture the rubber boot
    • Anti-dive front suspension geometry provides a solid platform for confident braking
    • Optimized steering geometry using ADAMS CAR simulation to minimize steering effort and maximize terrain feedback
    XUV rear suspension detail XUV rear suspension detail
    Independent rear suspension features include:
    • 203 mm (8 in.) of travel provides ample compression and wheel extension, which keep all four wheels on the ground for superior traction and vehicle control
    • Unique, independent rear-suspension design ensures a great ride and protection for the CV shafts
    • Adjustable coil-over shocks absorb the most demanding terrain
    • Camber during compression to compensate for body roll and to maintain an optimal tire contact patch for improved cornering grip
    • Increasing vehicle width during compression for additional stability.
    • High-strength ASTM 80-55-06 ductile cast-iron knuckle, lower A-arm, and upper link to support the high stresses of the shocks, CV shaft, and wheels with the toughness to survive impacts from boulders
    • Maintenance-free rubber torsional A-arm pivots for long life and quiet operation
    Optional Fox™ Shocks are available to factory install

    Exclusive aluminum-body, high-pressure monotube FOX racing shocks

    • Fully adjustable spring preload for different driving styles
    • High-pressure nitrogen gas is separated from the damping oil by an internal floating piston (IFP). The separation prevents aeration (frothing) and viscosity degradation of the oil which improves damping consistency and performance fade.
    • Pressure and heat generation in the monotube is less than a traditional twin-tube shock, allowing for better vehicle control in aggressive conditions.
    • The single aluminum shell of the monotube design allows for more efficient heat rejection and lower overall unsprung mass.
    • Mounting the shaft end of the shock to the suspension arm lowers the unsprung mass of the suspension system, leading to improved suspension response.

    NASCAR is a trademark of NASCAR. INDYCAR is a trademark of Brickyard Trademarks Incorporated. Formula 1 is a trademark of Formula One Licensing BV, a Formula One Group Company.

  • Delivers quick acceleration and provides a top speed of 45 km/h (28 mph)
    Powertrain 570-cm<sup>3</sup> (34.8-cu in.) gasoline engine Powertrain 570-cm3 (34.8-cu in.) gasoline engine

    The Gator™ XUV560E Crossover Series Utility Vehicles are powered by a 570-cm3 (34.8-cu in.), V-twin gasoline engine. The carburetor is tuned for rapid throttle response, reliable cold-weather starting, smooth mid-range power delivery and quiet idling.

    The engine offers the following performance and reliability features:

    • 11.9 kW (16 hp*) at 3600 rpm
    • Tuned to deliver 0 to 24.1 km/h (0 to 15 mph) acceleration in 3.5 seconds
    • 45 km/h (28 mph) top speed
    • Dynamically tuned carburetor for rapid throttle response upon demand while allowing the engine to burn clean under light loads.
    • V-twin, 90-degree overhead valve design maximizes power and torque and provides longer valve life
    • Designed for cold-weather starting (tested to [-28.9°C [-20°F])
    • Full-pressure lubrication system
    • Spin-on oil filter with drain bracket and oil drain valve enable easy servicing
    • High air-flow air filter
    • Laminated and contoured engine blower housing cuts noise levels while reducing oil temperatures 25-30 degrees
    • T6 heat-treated aluminum alloy connecting rods and piston ring package
    • 200-W (16 maximum amp) stator charging system for accessory capability
    • Dual-header pipe to muffler maximizes airflow and provides a unique V-twin sound
    • Spark-arresting muffler is United States Forest Service (USFS) approved
    • Low fuel consumption and large 18.9-L (4.9-U.S. gal.) fuel tank
    • Environmental Protection Agency (EPA) and California Air Resources Board (CARB) compliant



    * The engine horsepower information is provided by the engine manufacturer to be used for comparison purposes only. The actual operating horsepower will be less.

  • Large, extra-durable, one-piece cargo box ensures hard-driving performance and longevity

    The cargo box consists of a high-density polyethylene copolymer composite material that eliminates rust, dents, and reduces noise. This large, one-piece design has rounded inside corners to ensure material removal when tilted. The composite box is highly ribbed and supported with a welded, steel-ladder structure to ensure hard-driving performance and longevity. The three highly styled exterior pieces are made of TPO for extra durability.

    Cargo box tailgate
    Tailgate handle Tailgate handle
    Tailgate pivot and removal feature Tailgate pivot and removal feature
    Removable lanyards Removable lanyards

    The tailgate can be opened or removed for easier cleanout and to carry longer items. It features truck-like performance and can be operated with one hand.

    The tailgate’s pivot point is made of hardened steel for durability and designed for tool-free removal. The standard lanyards can also be disconnected without tools to remove the tailgate for convenient loading and unloading tasks.

    Cargo box tilt and removal
    Integrated handle for manual cargo box tilt (both sides) Integrated handle for manual cargo box tilt (both sides)
    Tilted cargo box Tilted cargo box

    The cargo box ease of use is critical to performing tasks quickly and efficiently. Starting with the truck-style tailgate, the removal of content in this cargo box could not be easier. The manual release also functions as the lift lever, done in a smooth, one-step motion. It can even be tilted from both sides of the vehicle. To reduce the overall effort of lift, the pivot point of the cargo box is closer to the center. The combination of easy-to-use attributes makes this cargo box best-in-class.

    For servicing the vehicle’s systems, the cargo box is easily removable. With the removal of two bolts, the cargo box can easily be detached from the vehicle frame.

    Integrated tie-down points
    Integrated tie-down point in cargo box bed Integrated tie-down point in cargo box bed
    Additional tie-down points Additional tie-down points

    The cargo box offers integrated tie-down points for increased versatility. Tie-down points are located in the following areas:

    • Flip-up D-shaped rings in all four corners inside the cargo box bed
    • Multiple points along the edge of the cargo box side walls
    • Tie-down bars on either side of the cargo box with optional cargo box rail kit. This kit also provides a mounting system using accessories that possess the 25.4-mm (1-in.) quick clamp.
    Optional accessories
    Cargo box rail system Cargo box rail system
    Box mat Box mat
    Cargo box wall extensions (shown on RSX) Cargo box wall extensions (shown on RSX)

    Optional accessories for the cargo box include (see price pages or JDConfigurator for complete list):

    • Cargo box rail system
    • Cargo box mat
    • Cargo box wall extensions
    • Spare tire rack
    • Bucket holder
    Specifications
    Length  82 cm (32.3 in.)
    Width 120.9 cm (47.6 in.)
    Depth 29.7 cm (11.7 in.)
    Volume 0.25 m3 (8.9 cu ft)
    Weight capacity 227 kg (500 lb)
    Dump angle
    Bed height (from ground)


    45 degrees

    76.3 cm (30 in.)

    CAUTION: Carrying extra-long cargo that extends beyond the box can adversely affect stability.

  • Precision-engineered drive system optimizes acceleration, hauling, towing, and hill-climbing capabilities

    The Gator™ XUV Mid-Size Crossover Series Utility Vehicles have a precision-engineered drivetrain system that fully utilizes engine power, optimizing acceleration, hauling, towing, and hill-climbing capabilities. Power is transmitted from the engine through a continuously variable clutch system to the transaxle.

    Key elements of the drive system include:

    Variable-speed drive
    Variable-speed drive (shown on XUV590 engine) Variable-speed drive (shown on XUV590 engine)

    The variable-speed drive consists of two clutches and a drive belt:

    • Drive clutch is attached to the engine.
    • Driven clutch is attached to the transaxle.

    Features include:

    • Ability to creep along slowly to maneuver in tight spaces
    • Standard full-clutch enclosure with a high intake and exhaust ensures a dry belt when crossing water
      • High-speed fan on drive clutch provides longer belt and clutch life by keeping components cool
    • TEAM® industry clutches provide high performance and longevity

    How the variable-speed drive works:

    1. As engine speed increases, the spring-loaded drive clutch is closed by weights being forced out by centrifugal force.
    2. As the drive clutch closes, the belt rides up to the largest diameter of the drive clutch and forces open the driven clutch.
    3. With the belt running in the smallest diameter of the driven clutch, the speed being transferred to the transaxle is increased.
    4. The driven clutch is designed to sense varying loads (inclines, mud, etc.) and constantly adjusts drive speed upward or downward so that engine rpm remains optimal.
    Four-wheel drive (4WD), transaxle, mechanical front-wheel drive (MFWD), and constant-velocity (CV) shafts
    XUV590 transaxle XUV590 transaxle
    XUV560/XUV590 MFWD XUV560/XUV590 MFWD

    4WD

    • Selectable 4WD system with a limited slip front differential and dash-mounted electronic rocker switch
      • Provides exceptional traction in challenging conditions
      • Maintains turf-friendly operation in two-wheel drive (2WD) mode
      • Combined with rear traction assist (differential lock), provides excellent traction in challenging conditions
      • More control descending hills with 4WD engaged, as all four wheels help slow the vehicle down
        • Clutch engagement still necessary to prevent free coasting

    Transaxle

    • Low, high, neutral, reverse, and park transaxle
    • Automotive-style, integrated park position in transmission
    • To shift out of park, service brake must be pressed to release the parking solenoid. An audible click will be heard and allows the vehicle to shift out of park into the desired gear.
    • Low range for maximum torque delivered to the wheels for hauling, pushing, and pulling
    • High range for maximum vehicle speed
    • Cast-aluminum design for lower weight
    • Helical forward and reverse gears are used for quiet operation
    • Rear traction assist (differential lock) is controlled with an electronic rocker switch
      • NOTE: Locked differential design may increase scuffing of the turf during turns because the rear wheels are turning at the same speed through a turn.
    • Contains gear-case for transferring power to the MFWD
    • Splined shaft interfaces for maximum torque transfer and durability
    • All drive gears machined from highest grade gear steel
    • Vertically oriented oil drain for easy maintenance
    • Protected by a skid plate

    MFWD

    • Electronically selectable by the operator
      • Offers limited slip functionality for precision steering and great traction while pointing and shooting out of a corner.
    • Near instantaneous torque to the front wheels after engaging switch
    • Vertically oriented oil drain for easy maintenance
    • Protected by a steel skid plate and frame

    Drive shafts

    • Front and rear CV shaft diameter measures 23 mm (0.9 in.) and designed for high engine torque
    • Propshaft (transaxle to MFWD shaft) diameter measures 23.8 mm (0.94 in.) and designed for high engine torque
    • All CV shaft joints are maintenance free and protected by exclusive inboard and outboard thermoplastic elastomer (TPE) boots for durability. TPE material is more puncture resistant than neoprene, which is used by many competitors.

    TEAM is a trademark of TEAM Industries.

  • Designed for all-day comfort with many vehicle conveniences
    Digital instrument display (fuel not on 560E models) Digital instrument display (fuel not on 560E models)
    Sealed under-hood storage Sealed under-hood storage
    In-dash cup holders and sealed glove box In-dash cup holders and sealed glove box
    S4 optional under-seat storage S4 optional under-seat storage
    Spacious operator’s platform (shown on XUV590M S4) Spacious operator’s platform (shown on XUV590M S4)
    • Digital display features:
      • Speed
      • Mechanical front-wheel drive (MFWD)/rear diff-lock
      • Gear position
      • Hour/trip meter
    • Operator-centric design provides class-leading ergonomics and comfortable seats
      • Easy entry/exit and pass through for operator and passenger
      • Optimal seating position provides more legroom
      • Automotive-like ergonomics
      • Excellent comfort while driving
    • Best-in-class sealed storage volume of 12.7 gal. (48 L) with a large in-dash glove box and under hood storage. An additional 9 gal. (34 L) of under-seat storage is available on the S4 models.
    • Hinged hood rotates open without tools for access to storage
    • Side-by-side seating provides ample room for one operator and one passenger
      • Seats tilt forward for ease of service and to keep dry during outdoor storage
    • Two cup holders are located within reach of the operator's station
    • Hour-meter comes standard to assist in maintaining regular service intervals
    • Standard 12-V direct current (VDC) outlet is conveniently located on the instrument panel
    • Seven predrilled dash switch locations with snap out caps for various electrical accessories
    • Fuel gauge that can be viewed from the operator's seat
    • Occupant protective structure (OPS) with three-point seat belts and passenger side grab handles located on front post
    • Start in gear, neutral, or park position for quick starting. The service brake must be engaged to start when in gear or neutral.

Brakes

Park brake Automotive-style foot-actuated mechanical park brake system
Type 196 mm ventilated four-wheel stainless steel disc brakes with hydraulic 1.375 in. (34.93mm) diameter twin-piston calipers
