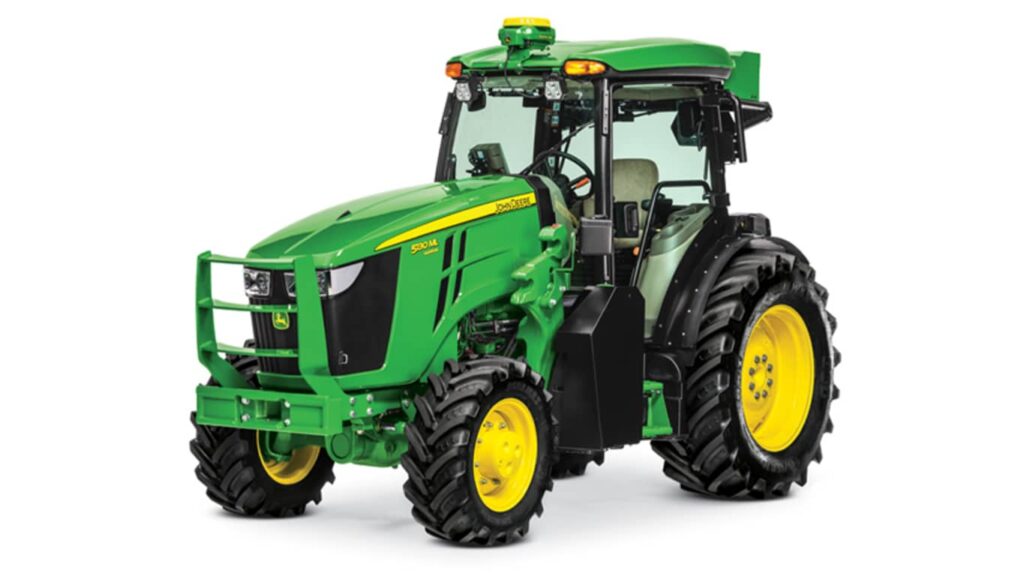

John Deere 5130ML Low-Profile Utility Tractor
Agriculture
- 128 hp John Deere PowerTech™ engine
- PowrQuad transmission offers push-button gear
selection without the foot clutch - Optional high-capacity hitch option provides
nearly four tons of lift - Open Operator’s Station or Cab Option
| Engine performance - PTO torque rise | At 1600 rpm: 30 percent |
|---|---|
| Engine performance - Power boost | At 1900 rpm: 4 percent |
| Key Specs - Rear hitch category (SAE designation) | Category 2 |
| Engine performance - Engine peak torque | At 1600 rpm: 541 Nm 399 lb-ft |
| Engine performance - Rated PTO power (hp SAE) | At 2100 rpm: 84.5 kW 115 hp |
| Dimensions - Overall length | OOS: 4092 mm 161 in. Cab: MFWD Standard: 4000 mm 157.5 in. MFWD Narrow: 3945 mm 155 in. |
| Engine specifications - After treatment type | OOS: ERG/DOC/SCR Cab: EGR/DOC/DPF/SCR |
| Engine specifications - Emission level | Final Tier 4 |
| Hydraulic system - Number of mid selective control valves (SCVs) | Standard: Zero Optional: Up to Three |
| Transmission - Reverser | Yes |
| Front hitch - PTO speed | Cab: 1000 at 2200 rpm |
| Tires - Wheel tread range | Front: 1299-1997 mm 51.1-78.6 in. |
| Key Specs - Engine description | OOS: John Deere PowerTech™ 4045 PWL Cab: John Deere PowerTech™ 4045 PWS |
| Front axle - Type | Mechanical Front Wheel Drive (MFWD) |
| Electrical system - Type of bulb in headlight (Halogen, Zenon, LED) | Standard: Halogen Optional: LED |
| Operator station - dB(A) rating | 80 dBA |
| Capacities - Diesel exhaust fluid (DEF) tank | 12 L 3.17 U.S. gal. |
| Precision AG - Telematic | JDLink™ Modem |
| Engine specifications - Aspiration | Turbocharged |
| Dimensions - Wheelbase | OOS: 2350 mm 92.5 in. Cab: MFWD Standard: 2350 mm MFWD Narrow: 2300 mm 90.5 in. |
| Rear hitch - Sensing type | Top link |
| Capacities - Fuel tank | 144 L 38 U.S. gal. |
| Key Specs - Engine displacement | 4 cylinders: 4.5 L 276 cu in. |
| Miscellaneous - ISOBUS ready | Optional for cab models |
| Rear axle - Differential controls | Electrohydraulic |
| Engine specifications - Engine family | NJDXL06.8309 |
| Drawbar - Drawbar category | Category 2 |
| Drawbar - Maximum vertical load | Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg |
| Operator station - Rollover protective structure, OOS | Rigid - foldable - telescopic Foldable, two-post Platform - flat/straddle Flat Gearshift location - console/floor Floor |
| Tires - Rear | 19.5L-24 in. R4 Bias |
| Miscellaneous - AutoTrac ready | Optional for cab models |
| Rear power take-off (PTO) - Type | Standard: 540/540E/1000 |
| Key Specs - Rated PTO power (hp SAE) | At 2100 rpm: 84.5 kW 115 hp |
| Transmission - Clutch; wet/dry | Wet |
| Rear hitch - Maximum lift capacity behind lift points | OOS: Standard: 3164 kg 6975 lb Optional: 3569 kg 7868 lb Cab: Standard: 2720 kg 5996 lb Optional: 3122 kg 6883 lb |
| Miscellaneous - Country of manufacture | Saltillo, Mexico |
| Operator station - Inner cab volume | 55 cu ft |
| Engine specifications - Engine type | 4045HLV81 |
| Operator station - Instructional seat | Not Available |
| Hydraulic system - Available flow at a single rear SCV | 100 L/min 26.4 gpm |
| Key Specs - Maximum engine power | 99.7 kW 135.5 hp |
| Rear hitch - Hitch draft control load sense type | Electrohydraulic |
| Key Specs - Hydraulic pump rated output | 117 L/min 31 gpm |
| Precision AG - Guidance | Optional: AutoTrac™ with AutoTrac Basic |
| Engine specifications - Rated speed | 2200 rpm |
| Electrical system - Working lights | Standard: Halogen Optional: LED |
| Hydraulic system - Pump rated output | 117 L/min 31 gpm |
| Brakes - Hydraulic trailer brakes | Cab: Optional |
| Rear axle - Type | Flange |
| Precision AG - Remote diagnostics | Yes |
| Tires - Turning radius with brakes | 3.34 m 11.0 ft |
| Transmission - Type | OOS: Standard: PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R Cab: Standard: PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R with creeper |
| Rear axle - Final drive type | Inboard planetary |
| Rear power take-off (PTO) - Engine rpm (at rated PTO speeds) | 540 at 2100 rpm 540E at 1645 rpm 1000 at 2100 rpm |
| Engine specifications - Cylinders liners | Wet sleeved |
| Operator station - Radio | Optional |
| Transmission - Creeper | Cab: Powr8™ 32F/16R with creeper |
| Rear hitch - Rear axle differential lock | Electrohydraulic |
| Rear axle - Brakes, type and control | Hydraulic wet disc |
| Engine performance - Rated power | At 2200 rpm: 95.8 kW 130 hp |
| Front hitch - Standard lift capacity | Cab: 1780 kg (3924 lbs) |
| Hydraulic system - Type | Pressure-and-flow compensated (PFC) system |
| Operator station - Seat | OOS: Low Profile Cab: Air Ride |
| Electrical system - Battery options | 12 V |
| Rear hitch - Hitch category (SAE designation) | Category 2; convertible to 1 |
| Engine specifications - Displacement | 4 cylinders: 4.5 L 276 cu in. |
| Rear hitch - Remote control valves available | Three |
| Rear power take-off (PTO) - PTO actuation | Electrohydraulic |
| Hydraulic system - Number of rear selective control valves (SCVs) | Three |
| Hydraulic system - Joystick SCV control | OOS: Mechanical Cab: Rear SCVs: Mechanical Mid-SCVs: Electrohydraulic |
| Operator station - Safety glass rating | Tempered per SAE J673 and ECE R43-01 requirements |
| Electrical system - Alternator size | OOS: 90 amp Cab: Standard: 120 amp ISOBUS/GreenStar™ Ready: 200 amp |
| Front hitch - Category | Cab: Category 2 |
| Dimensions - Approximate shipping weight, Open;Cab | OOS: 4209 kg 9280 lb Cab: 4826 kg 10640 lb |
| Operator station - Display | OOS: Automotive style light-emitting LED instrument cluster Cab: Digital Dash Display with three liquid crystal displays (LCDs) |
| Engine performance - Maximum engine power | 99.7 kW 135.5 hp |
| Additional information - Date collected | 6-Jan-2023 |
| Engine specifications - Description | OOS: John Deere PowerTech™ 4045 PWL Cab: John Deere PowerTech™ 4045 PWS |
| Brakes - Secondary brake | Cab: Yes, when equipped with Hydraulic trailer brakes |
| Key Specs - Transmission type | OOS: Standard: PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R Cab: Standard: PowrQuad™ PLUS 16F/16R Optional: Powr8™ 32F/16R with creeper |
| Key Specs - Rated engine power | At 2200 rpm: 99.7 kW 130 hp |
| Tires - Turning radius without brakes | 3.8 m 12.5 ft |
| Electrical system - Type of bulb in beacon (Halogen, Zenon, LED) | Kit: LED |
| Front hitch - Front power take-off (PTO) | Cab: 1000 rpm (21 spline) 34.9 mm (1.375 in.) |
Featured List
- Low Clearance Cab: Yes
- Open Station: Yes
- Optional Transmission:
32F/16R Powr8™ with creeper
- Rated PTO HP: 110 hp (82 kW)
- Cab: Yes
- Engine HP: 128 hp (95.4 kW)
- Engine HP: 128 hp (95.4 kW)
- Standard Transmission:
16F/16R PowrQuad™
- Low Profile Open Station: Yes
Featured Content
Utilizing a 1000-gallon air blast sprayer
Increase job performance when using hydraulic implements, such as air blast sprayers, with pressure-flow compensated (PFC) hydraulics. Standard on all 5ML cab tractors, PFC hydraulics provide better hydraulic performance and cooling capacity when running large implements.
- In standby mode, the PFC system is more efficient than a comparable open-center system because the hydraulic power is only provided when needed
- Improved fuel efficiency by reducing engine power when it is not needed
- Enhanced oil cooling when using hydraulically demanding implements
- Reduced hydraulic noise levels
Triple rear SCVs standard
Optional 4th Rear SCV as field install kit
Optional Triple Mid EH SCVs
5ML Cab Tractor
Building off the esteemed reputation of the 5ML tractor series, John Deere is now offering the 5ML with a factory-installed cab. This cab has been specially designed to be used in high value crop operations such as orchards and vineyards. Long, hot harvest days are more comfortable with the ergonomically designed cab featuring ample operator space, sleek right-hand console, air suspension seat, and an adjustable steering wheel. To ensure a comprehensive operator experience, controls are common throughout the 5 Series tractor portfolio. Limit tree canopy interference with the low-profile stance and optional limb lifters. By offering a narrow axle from the factory, the tractor opportunities have been widened.
- John Deere designed and factory-installed cab on 5ML tractor
- Save time by ordering factory installed cab versus adding an aftermarket cab
- Stay on track using AutoTrac™ guidance options
- Reduce operator fatigue with ergonomic right-hand controls
- Minimize crop interference thanks to the low-profile tractor
- Fits a variety of crop types with narrow axle offering
- Reduce training time for new operators by having common controls throughout 5 Series portfolio
- Damage to doors and windows is prevented by shielding around doors, reinforced glass, and integrated door handle
Enhanced shielding and integrated door handle
Easy to reach right hand controls
Charging ports and storage
Utilize StarFire™ receiver and Gen 4 display
Heat and air conditioning controls
Optional Bluetooth® Radio
Bluetooth is a trademark of Bluetooth SIG, Inc.
5EN mowing in vineyard
5ML spraying in orchard
While working in your orchard or vineyard, getting in and out the rows effortlessly is important. Turning radius is a top priority for high value crops growers and was a top priority when designing our high value crops tractors.
- Efficiency gains when making turns in and out of rows
- Worry less about making tight headland turns
Setting up AutoTrac™ Basic on the digital dash display
Government and environmental pressures, including public perception, are increasing the need for technology and data collection. The 5ML Cab tractor has the most technology offered in a John Deere high value crop tractor. Efficiently manage employees, crops, and data by adding a Gen 4 Display, StarFire™ receiver, and activating an AutoTrac™ subscription. Spend less time manually inputting records and more time growing a healthy crop by collecting data during each pass.
- Minimize skipped rows and operator error by equipping the tractor with a Gen 4 Display and a StarFire receiver
- Reduce operator fatigue by engaging AutoTrac guidance
- Streamline repetitive tasks, such as making headland turns or tillage work, by using iTEC™ Basic (Intelligent Total Equipment Control)
- View real time machine location and information utilizing JDLink™ offered in base from the factory
- Enhance job tracking data when working with ISOBUS compatible implements
iTEC Basic with almond conditioning
StarFire Universal Receiver
Right-hand fender shield and low-profile seat
Overview
The standard OOS on 5ML Tractors was designed for low-clearance applications. It features a low-profile seat, a smaller-diameter steering wheel, protected controls, and a low-profile, rear-mounted rollover protective structure (ROPS). Rounding off these standard features and incorporated into each operator platform is a shield which limits heat transfer from the hydraulics to the operator.
Benefits
- Ability to drive under low-clearance areas
- Visibility of the front of the tractor with a sloping hood
- Conveniently located operator controls within arms’ reach on the right-hand console control pod
- Protect control pod from low-hanging crops with the right-hand fender shield
Additional details
All the most crucial operator controls are conveniently located within arms’ reach on the right-hand console control pod. The engine throttle control, selective control valve (SCV) levers, power take-off (PTO) engagement, and hitch-lift control levers are grouped together. On the 5ML, this control pod is positioned on the right-side fender, protected from low-hanging crops by a shield.
Color-coded bands on the SCV levers correspond with the color on the rear SCVs, making it easy for any operator to determine which lever operates which rear SCV.
The 5ML Tractor also offers optional fender extensions to minimize crop disturbance, especially in orchards or tree nut applications. Two fender extension options are available to meet varying tire sizes and coverage preferences.
The foldable ROPS on the 5ML Tractor has a unique design and is 15.2-cm (6-in.) lower at maximum height than the standard 5M Tractors.
The shifter linkages are tighter to offer a more accurate shift pattern, which translates to a crisper throw between gears. Incorporating technology found on standard 5M Tractors, the 5ML now offers a declutch button, enabling the operator to shift gears within a range without the use of the foot clutch.
5ML Tractors also include the following features:
- Retractable seat belts
- Rear certified ROPS for OOS tractors
- Heat shield limiting hydraulic heat passed onto the operator Key-switch interlock prevents bypass starting
- Audible and visual PTO warning alerts when the operator leaves the seat with the PTO engaged
- Positive park position prevents the tractor from moving when the engine is off
- Four amber turn-signal/flashing warning lights for road transport (these are break-away) Slow-moving vehicle (SMV) sign alerts other road users during transport
- Safety decals keep safety in the minds of new and experienced operators
- Left- and right-hand steps provide easy and convenient access from both sides of the tractor Fuel system is fully grounded to meet safety and fuel fill regulation requirements
- For convenience of operation, the fuel and diesel exhaust fluid (DEF) fill are both on the same side with clearly marked and color-coded caps. The DEF tank has a capacity of 12.1-L (3.2-gal.), which is more than enough to sustain proper tractor operation and fuel treatment for more than one full tank of diesel. A field-installed lockable fuel cap is offered for protection and peace of mind.
Transmission controls on PowrReverser™ transmission models:
Gear and range shift levers are located to the right of the operator. The gear lever incorporates a declutch button enabling the operator to shift gears without the use of the foot clutch. Unique knobs also make it easier to distinguish between the two.
Gear lever with declutch button
Transmission controls on PowrQuad™ transmission models:
A single transmission control is located to the right of the operator. This control features the ability to shift through gears within a range using the rabbit button to increase gears and the turtle button to decrease gears. A range change can be completed with this control, as well by moving through A-D ranges similar to a traditional range controller. To aide in ease of operation, operators can use the integrated declutch button rather than the foot clutch to change ranges.
Transmission control on PowrQuad transmission models
A foot throttle with a platform pedal is located on the right side of the operator. The pedal is positioned for ease of use, yet does not clutter the floor. The hand throttle is easily accessible on the right hand console.
Engaged by either foot, the differential lock pedal is placed on the floor.
Differential lock button
When the tractor is used in applications requiring the clutch and brake pedals to be used frequently, the operator will see the benefit of the suspended pedals.
The electrohydraulic forward/reverse direction lever is located on the left-hand side of the instrument console, connected to the steering column. There is also a guard for the reverser lever. Operated with the left-hand finger, the right hand is free to simultaneously run the loader, hitch, or hand throttle.
Left hand reverser with guard
3-point hitch controls
Mechanical hitch controls are available on models equipped with a PowrReverser transmission, while models equipped with a PowrQuad transmission will have an electrohydraulic (EH) hitch. With an EH hitch, operators will have the functionality to raise and lower the hitch from the rear left-hand fender, reducing time when attaching and detaching implements.
Left-hand fender hitch control
PTO controls and speeds
The 5ML features electrohydraulic PTO engagement on all models.
The push/pull knob on open station tractors is conveniently located beside the hand throttle on the right-hand side of the operator. When the PTO is engaged, a light on the instrument panel will illuminate and PTO speed is indicated by target bars. Models equipped with a PowrReverser transmission have a 540/540E rpm shiftable PTO while models equipped with a PowrQuad transmission have a three-speed PTO, 540/540E/1000 rpm.
Enhancing operator safety, the tractor does not start with the PTO engaged. An alarm sounds if the operator attempts to leave the seat with the PTO engaged. The PTO shaft is protected by a hinged shield.
Hydraulics controls
The color-coded bands on the levers, which control triple rear SCVs, correspond to the color of the dust cap and the SCV valve they control.
Mechanical front-wheel drive (MFWD) controls
All four-wheel drive (4WD) axles are equipped with the engage-on-the-go MFWD. This toggle switch is now located on the right-hand console.
Lighting controls – Multi-position dial
The five-position lighting package is straightforward with the lighting control switch on the right side of the steering column. The switch positions are: off, warning, worklight, transport 1 (warning and high-beam headlights), and transport 2 (warning and headlights). A turn-signal lever is located on the left side of the steering column for quick and easy use.
PowrQuad PLUS™ or Powr8™ transmissions
Effortlessly find the right working speed for the job with simple push-button gear shifting. A more productive transmission is found on the PowrQuad PLUS™ and Powr8™ transmissions which use clutchless hydraulic shifting between forward and reverse.
- Ergonomically placed transmission control lever allows the operator to change gears and ranges using one lever
- Enhances operator efficiencies by reducing steps to change gears
- Effortlessly switch directions using the electrohydraulic fingertip directional lever, ideal in applications that require frequent directional changes in tight spaces
- Eliminates wear on the clutch by automating gear shifts at the push of a button
Single lever for gears and ranges
Creeper gear lever
5ML with narrow axle
5ML with standard axle
No matter your row width, the 5ML can be configured to best fit into your operation. While working in orchards, the standard axle provides a powerful stance and presence. Fit into vineyards without compromising on technology or comfort by equipping the tractor with the narrow axle.
- Fit down tight rows by narrowing the tractor width to 5.25 ft (1.6 m)
- Capable of working in most orchards and vineyards
- The narrow axle option unlocks a new customer segment for the 5ML series
Additional Details:
When the tractor is ordered with the narrow axle, a “Narrow” decal will be added to the hood.
5120ML Narrow decal
