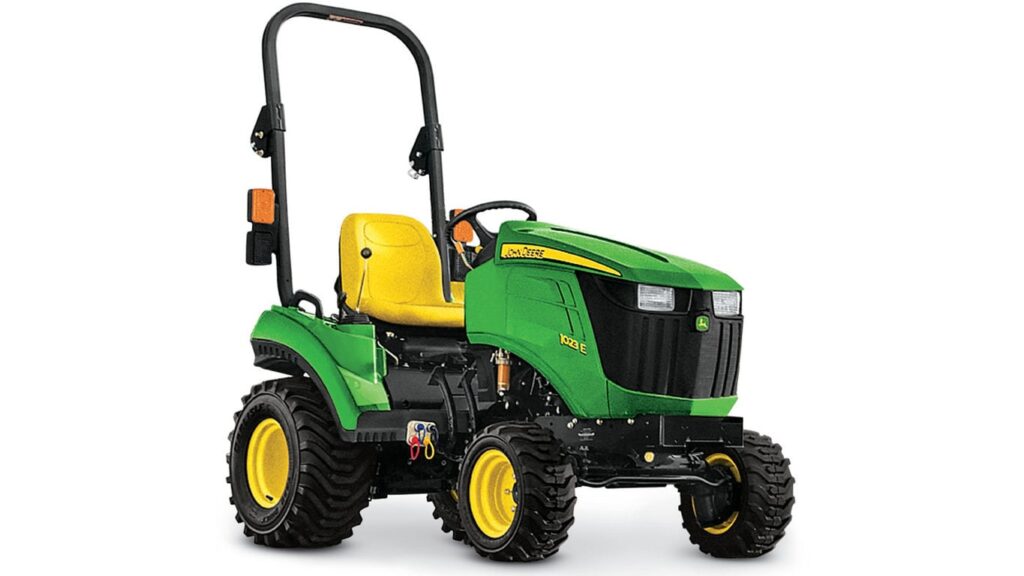

John Deere 1023E Sub-Compact Tractor
1 Series
- Powerful Final Tier 4-compliant diesel engine
- AutoConnect™ mid-mower deck can be installed or removed in less than 5 minutes
| Key Specs - Cruise control | No |
|---|---|
| Transmission - Brakes | Wet disc (left-hand pedal) |
| Miscellaneous - Toolbox | Yes |
| Transmission - Creeper | No |
| Fuel system - Type | Indirect injection |
| Power take-off (PTO) - Brake (for mid and rear PTO) | Wet disk |
| Transmission - Differential lock | Yes |
| Engine - Engine model | 3TNM74F-NCJT |
| Transmission - Final drive | Spur gear |
| Transmission - Left-hand reverser | No |
| Key Specs - Hitch type | Limited Category 1 |
| Engine - Compression ratio | 23.5:1 |
| Hydraulics - Draft control sensing | Select control |
| Final drive - Type | Spur gear |
| Engine - Air cleaner | Dual element |
| Transmission - Steering | Power |
| Engine - Aspiration | Natural |
| Power take-off (PTO) - Control | Independent |
| Electrical - Battery size | 500 CCA |
| Hydraulics - Type | Open center |
| Final drive - Differential lock | Yes |
| Engine - Cooling system | Water pump |
| Power take-off (PTO) - Clutch | Wet disk |
| 3-point hitch - Type | Limited Category 1 |
| Engine - Injection pump type | Indirect injection |
| Engine - Number of cylinders | Three |
| Key Specs - Standard transmission; forward/reverse | Hydrostatic - two range |
| Engine - Cylinder liners | Cast-in-block |
| Operator station - Gear shift location - console/floor | Left-hand side |
| Engine - Lubrication | Pressurized |
| Operator station - Platform - flat/straddle | One-piece semi flat |
| Transmission - Cruise control | No |
| Dimensions - Limited slip differential | No |
| Electrical - Alternator (12-V) | 40 amp |
| Engine - Rated engine speed | 3200 rpm |
| Engine - Emissions compliance | Final Tier 4 |
| Engine - Type | Diesel |
| Hydraulics - Remote control valves available | Three |
| Transmission - Standard transmission; forward/reverse | Hydrostatic - two range |
| Hydraulics - Pump type | Single gear |
| Engine - Engine torque at rated speed | 47.7 Nm 35.2 lb-ft |
| Dimensions - Front axle clearance | 195 mm 7.7 in. |
| Key Specs - Engine power (gross) | SAE J1995 rated power: 16 kW 21.5 hp 21.8 PS at 3200 rpm |
| Fluid capacities - Transmission and hydraulic system | 12.3 L 3.2 gal. |
| Engine - Power take-off (PTO) power | 11.1 kW 14.9 hp |
| Key Specs - Power take-off (PTO) power | 11.1 kW 14.9 hp |
| Transmission - Axle capacity | Front 612 kg 1349 lb Rear 715 kg 1576 lb |
| Engine - Engine power (gross) | SAE J1995 rated power: 16 kW 21.5 hp 21.8 PS at 3200 rpm |
| Hydraulics - Maximum operating pressure | 138 bar 2000 psi |
| Power take-off (PTO) - Standard | Rear: 540 rpm Mid: 2100 rpm |
| Dimensions - Approximate shipping weight (open-station; cab) | Open station: 656 kg 1446 lb Cab: Not applicable |
| Tires - Rear tread spacing | 895 mm 35.2 in. |
| Key Specs - Approximate shipping weight (open-station; cab) | Open station: 656 kg 1446 lb Cab: Not applicable |
| Engine - Fuel tank capacity | 24 L 6.3 U.S. gal. |
| Fluid capacities - Crankcase with filter | 2.7 L 2.9 qt |
| Key Specs - Lift capacity, 24-in. behind link arms | 344 kg 758 lb |
| Key Specs - Steering hydraulics | 13.2 L/min 3.5 gpm |
| Dimensions - Wheelbase | 1450 mm 57.1 in. |
| Key Specs - Implement hydraulics | 13.2 L/min 3.5 gpm |
| Dimensions - Turning radius without brakes | Outside front tire: 2.51 m 8.2 ft |
| Electrical - Starter size | 1.2 kW 1.6 hp |
| Engine - Bore and stroke | 74 x 77 mm 2.91 x 3.03 in. |
| Operator station - Rollover protective structure | Type Foldable Yes |
| Hydraulics - Pump rated output | Steering 13.2 L/min 3.5 gpm Implement 13.2 L/min 3.5 gpm 24 L/min 6.3 gpm |
| Key Specs - Wheelbase | 1450 mm 57.1 in. |
| 3-point hitch - Lift capacity, 24-in. behind link arms | 344 kg 758 lb |
| Tires - Front tread range | 931 mm 36.7 in. |
| Tires - Rear | R3 Turf: 26x12-12 R4: 26x12-12 |
| Engine - Cylinders/displacement | Three cylinders: 0.993 L 60.6 cu in. |
| Tires - Front | R3 Turf: 18x8.50-10 R4: 18x8.5-10 |
| Engine - Manufacturer | Yanmar® |
Featured List
- PTO HP: 15.3
- Transmission Type: Hydrostatic - 2 Range
- HP: 22.4*
- 3PT Hitch: Category 1
- 2WD or 4WD: 4WD
- Cab or Open Station: Open Station
Featured Content
Mid-mower lift system options
Mid-mower lift system options
Standard mechanical mower lift
The standard mechanical mower lift system moves the mower in conjunction with the rear implements and comes factory-installed on 1 Family Tractors.
Optional hydraulic mower lift
The optional hydraulic mower lift system allows the mower to be raised and lowered independently of the rear implements. It uses the loader joystick to lift and lower the mower deck.
Optional independent hydraulic mower lift
The optional independent hydraulic lift system allows the mower to be raised and lowered independently of the rear and front implements. It operates using a rocker switch mounted on the tractor, located at the operator’s left knee.
For more information on this mid mower lift system click here.
Open operator’s station (1025R shown)
The 1023E open operator station is designed for greater comfort and increased visibility.
Comfortable operation
- Thick, textured rubber floor mat reduces vibrations and absorbs shock and noise.
- Step-through flat platform and fender-mounted handrails make it easy to get on and off the tractor from either side.
- Controls are conveniently located next to the fenders and are color-coded for quick identification.
- Easy-lift hood with dual gas-charged lift struts as standard equipment. A simple flip of the latch lets you open the rugged composite hood, providing wide open access to the engine compartment.
- Foldable rollover protective structure (ROPS) keeps you protected during operation and improves the ability to store tractor in a garage.
Foldable Roll-Gard ROPS
Foldable Roll-Gard™ ROPS is standard equipment on 1023E.
Increased visibility
Standard (and optional) lighting shown
- Sloping hood design provides improved visibility especially during front loader work
- Standard lighting equipment allows you to work from early in the morning to late at night:
- Two front-mounted sealed-beam halogen headlights
- Two amber-flashing warning/hazard lights mounted on the side of the ROPS with reflectors
- Built-in tail light on one warning/hazardous light
- Additional front- and rear-light kits are available
Instrumentation
Instrumentation
Updated instrumentation is standard equipment for operating convenience and confidence. Instrumentation includes:
- Tach/hour meter
- Oil-pressure indicator light
- Alternator-indicator light
- Flashing-warning lights
- Coolant-temperature light
Suspension seat
Suspension seat
The spring suspension seat adjusts fore/aft for operator convenience. The seat adjustment lever is located in the center under the seat area. The seat flips forward for protection from the elements.
Mower deck height-adjustment knob
Mower deck height-adjustment knob
- The mower deck height-adjustment knob allows the mower height to be adjusted from 2.5 cm to 10.2 cm (1 in. to 4 in.).
- A spring-loaded detent ensures the height position is locked into place.
- The transport lock position holds the deck 10.2-cm (4-in.) from the ground, so that rear implements can be used separately while the mower is installed.
Beverage holder and additional storage
Beverage holder and additional storage
The beverage holder is contour-molded and seated into the fender for a clean look. It is conveniently located and dual-sized to accommodate many containers. The placement of the cup holder is within arm’s reach.
Additional storage is conveniently placed into the fender for loose items like keys and work gloves.
Fuel fill and fuel gauge locations
Fuel fill and fuel gauge locations
The fuel fill location is conveniently accessible on the left-hand side fender. The fuel gauge is located in close proximity to make the fuel refilling process easier.
Twin Touch™ pedals
The hydrostatic transmission’s infinite ground speeds and direction of travel are both controlled with the Twin Touch foot pedals.
- Ideal for loader or mower applications where frequent direction and speed changes are needed
- No clutching for fast direction changes
- Match the job at hand with infinite ground speeds
Drive-over deck makes connection simple
1 Family Tractors are designed to minimize the time and effort needed to switch-out implements to accommodate different jobs.
- AutoConnect Deck System: Connect a mid-mount mower deck to the tractor in less than 60 seconds without leaving the seat except to lock the gauge wheels.
- Load-N-Go attachment: Easily move your 54D or 60D AutoConnect Deck with your John Deere Loader after it has been disconnected from the tractor with the Load-N-Go ramps.
- Quik-Park™ Loader System: 120R Quik-Park™ Loaders are designed for easy mounting and removal in about a minute, with no tools needed.
- Quik-Tatch™ front hitch: Save time switching front implements like a snow blower, rotary broom, or front blade without tools.
- iMatch™ quick-hitch: Easily hookup Category 1 implements in seconds using three fixed points to back in and pick up rear implements without leaving the seat
- Position control hitch: Set the rear hitch height and then consistently lower the hitch to the exact height every time, which is especially useful in grading and leveling applications.
- Quik-Knect™ system: Connect power take-off (PTO)-driven implements quickly and with low physical effort. The Quik-Knect system utilizes one connector for the tractor’s PTO shaft and a designated connector for each implement which eliminates twisting and forcing splines to align.
1 Family Tractors can have up to three implements mounted simultaneously due to standard dual selective control valves (SCVs), allowing you to switch from using one implement to another without stopping to adjust. When a third SCV kit is added, the number of possible combinations is greatly increased.
Standard 4WD and power steering make 1 Family Tractors excellent for mowing
Both 4WD and power steering are standard equipment on the 1 Family Tractors. This combination allows for excellent maneuverability and ease of operation.
- Narrow overall width allows you to work in tight areas where most compact tractors just cannot fit. The 144.8-cm (57-in.) wheel base and 119.4 cm (47 in.) overall width gives great stability for all types of terrain.
- Power steering means fewer turns of the steering wheel than manual steering, which is especially valuable when mowing around obstacles or during front loader work.
- High horsepower-to-weight ratio makes the 1 Family Tractors a good choice for a variety of tasks. The overall tractor weight reduces ground compaction and makes them excellent for mowing.
- The fully-independent power take-off (PTO) allows engaging and disengaging of the PTO without stopping tractor movement. This is important when driving across obstacles such as driveways while mowing.
