  • Hagie™ STS16 engine
    9.0-L (549-cu in.) Final Tier 4 (FT4) John Deere engine
    PowerTech™ PSS 9.0-L (549-cu in.) John Deere diesel engine PowerTech™ PSS 9.0-L (549-cu in.) John Deere diesel engine

    The Hagie STS16 Sprayer is powered by the PowerTech PSS 9.0-L (549-cu in.) John Deere diesel engine, which is offered in a 279.6-kW (375-hp) FT4 configuration.

    These turbocharged, air-to-air aspirated engines deliver consistent power over a wide range of engine speeds (rpm) with a power bulge rated speed to provide excellent torque in demanding applications.

    Engine location
    Rear-mounted engine Rear-mounted engine

    The rear-mounted engine keeps constant weight to offset the spray boom and leaves space in the center of machine for the varying weight of fuel and rinse tanks. This allows for better coolant airflow and reduction of cab noise.

  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions
    Connected Support technology Connected Support technology

    When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.

    John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.

    With your permission, John Deere Connected Support:

    • Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
    • Saves time by remotely viewing in-cab displays, reducing trips to the machine
    • Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
    • Connects experts with the information needed to respond to downtime faster and prevent it altogether

    With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.

  • Solution tank, pump, and pump switch

    The solution system is a constantly monitored, continuously adjusted, computer-controlled system. The cab-mounted digital spray system console receives information from various inputs to help determine L/ha (gpa) and L/min (gpm).

    Solution tank
    Solution tank Solution tank
    Sprayer model Tank capacity Tank type
    STS10 3785 L (1000 gal.) Stainless-steel tank
    STS12 4542 L (1200 gal.) Stainless-steel tank
    STS14 5299 L (1400 gal.) Stainless-steel tank
    STS16 6056 L (1600 gal.) Stainless-steel tank



    Solution pump
    Solution pump Solution pump

    The Hypro® 9306C-HM1C-BU solution pump (located beneath center of machine) is a centrifugal-type, hydraulically-driven pump that is controlled by the solution pump control valve and the spray system console. It comes with silicon-carbide seals, 7.6-cm (3-in.) inlet plumbing and 5.1-cm (2-in.) outlet plumbing.



    The solution pump draws solution out of the tank at the rate determined during calibration. It dispenses solution through the many valves and hoses that make up the spray system and also dispenses fluids through the agitation and rinse systems.

    Solution pump switch
    Solution pump switch Solution pump switch
    Machine control display - Home Machine control display - Home

    The solution pump switch is located on the side console and is used to turn the solution pump on and off.

    NOTE: When the solution pump is on, a solution pump indicator (located on the machine display home page - field mode) will be illuminated.



    Hypro is a trademark of Pentair Flow Technologies, LLC.

  • Frame and axles
    Chassis mainframe Chassis mainframe
    Horizontal cross-through axle tube Horizontal cross-through axle tube

    The STS Series mainframe design features horizontal cross-through axle tubes, as well as boom and platform mounts on weldment.

    • 144.8-cm (57-in.) mainframe width (from outside of each mainframe tube)
    • 301-cm (118.5-in.) mainframe width (from outside of each boom cradle weldment)
    • 183-cm (72-in.) ground clearance
  • STS Series hybrid spray booms

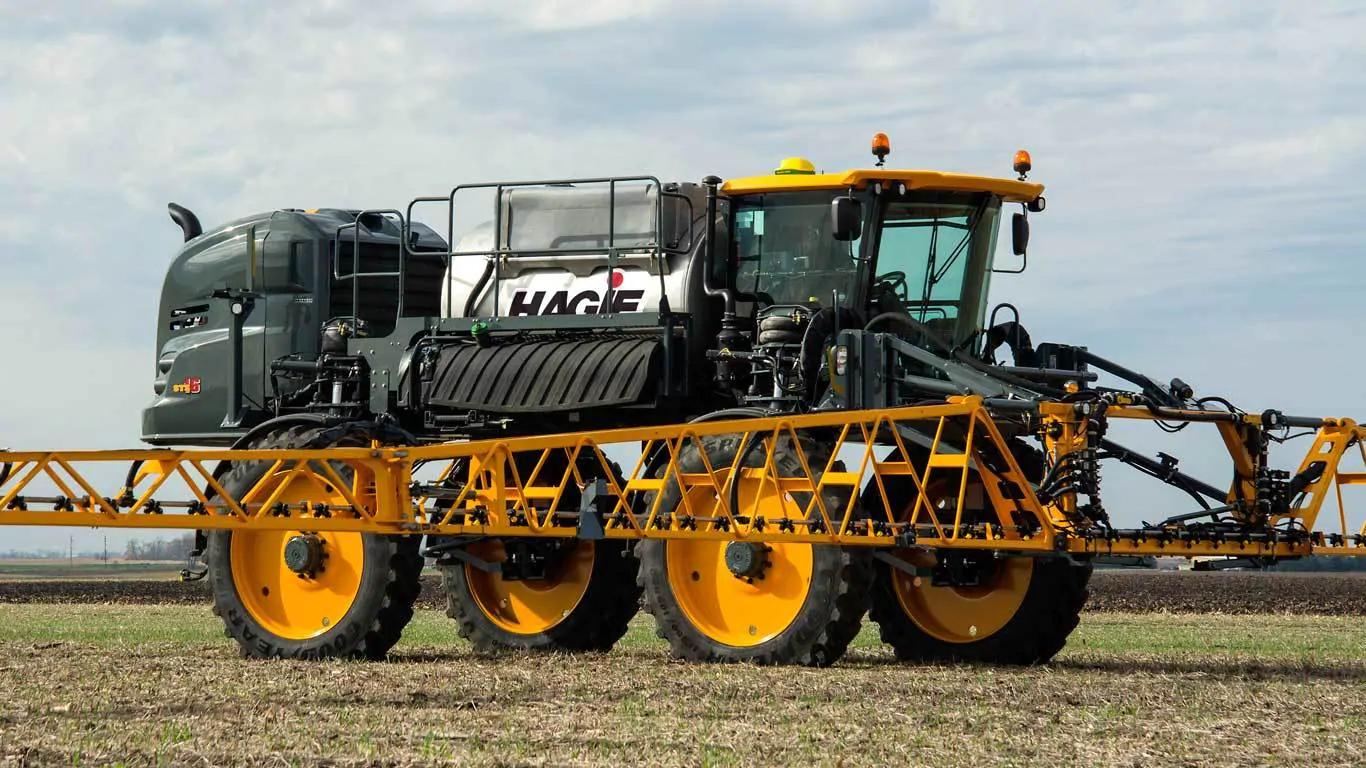

    STS Series Sprayer booms STS Series Sprayer booms

    The spray booms are controlled by an electrohydraulic system. This system consists of operator-manipulated switches (located on the side console and the hydrostatic drive control handle) and hydraulic cylinders (attached to the booms), which provide lift, level, and horizontal extension. Hybrid booms are available in widths of 27.4 m, 30.5 m, 36.6 m, and 40.2 m (90 ft, 100 ft, 120 ft, and 132 ft).

    The spray booms are offered in a variety of configurations depending on the model and the producer's application needs.



    27.4-m (90-ft) boom with 38.1-cm (15-in.) row spacing
    #

    Numerical values key:

    1. Section one
    2. Section two
    3. Section three
    4. Section four
    5. Section five
    6. Section six
    7. Section seven

    Alphabetical values key:

    1. 18.3-m (60-ft) 24-row planter
    2. 9.1-m (30-ft) 12-row planter
    3. 9.1-m (30-ft) 12-row planter
    4. 9.1-m (30-ft) 12-row planter
    30.5-m (100-ft) boom with 38.1-cm (15-in.) row spacing
    #

    Numerical values key:

    1. Section one
    2. Section two
    3. Section three
    4. Section four
    5. Section five
    6. Section six
    7. Section seven
    8. Section eight
    9. Section nine

    Alphabetical values key:

    1. 18.3-m (60-ft) 24-row planter
    2. 3.05 m (10 ft)
    3. 9.1-m (30-ft) 12-row planter
    4. 9.1-m (30-ft) 12-row planter
    5. 9.1-m (30-ft) 12-row planter
    6. 3.05 m (10 ft)
    36.6-m (120-ft) boom with 38.1-cm (15-in.) row spacing
    #

    Numerical values key:

    1. Section one
    2. Section two
    3. Section three
    4. Section four
    5. Section five
    6. Section six
    7. Section seven
    8. Section eight
    9. Section nine

    Alphabetical values key:

    1. 9.1 m (30 ft)
    2. 18.3-m (60-ft) 24-row planter
    3. 9.1 m (30 ft)
    4. 9.1-m (30-ft) 16-row planter
    5. 9.1-m (30-ft) 16-row planter
    6. 9.1-m (30-ft) 16-row planter
    7. 4.6 m (15 ft)
    8. 9.1-m (30-ft) 12-row planter
    9. 9.1-m (30-ft) 12-row planter
    10. 9.1-m (30-ft) 12-row planter
    11. 4.6 m (15 ft)
    Boom configurations
    Hybrid boom width Boom
    location
    Number of sections Wet boom nozzle
    spacing
    27.4 m (90 ft) Front

    Seven

    38 or 51 cm
    (15 or 20 in.)
    30.5 m (100 ft) Front

    Nine

    38 or 51 cm
    (15 or 20 in.)
    36.6 m (120 ft) Front

    Nine

    38 or 51 cm
    (15 or 20 in.)
    40.2 m (132 ft) Front

    Nine

    38, 51, or 56  cm
    (15, 20, or 22 in.)

    Materials used in boom construction:

    • 27.4-m, 30.5-m, 36.6-m, and 40.2-m (90-ft, 100-ft, 120-ft, and 132-ft) booms – steel/aluminum hybrid

Boom

Plumbing material Stainless steel
Ground height adjustment For 18/24/27-m and 18/30-m (60/80/90-ft and 60/100-ft) booms - 56 to 272 cm
22 to 107 in.
For 27/37-m (90/120-ft) booms - 43.2 to 297.2 cm
17 to 117 in.
Boom length options 18/24/27, 18/30, or 27/37 m
60/80/90, 60/100, or 90/120 ft
Boom sections 7 or 9 sections on booms - 27/36 m
90/120 ft
Breakaway width For 27-m (90-ft) booms - 3 m
10 ft
For 30-m (100-ft) booms - 3.8 m
12.5 ft
For 36-m (120-ft) booms - 4.6 m
15 ft
