John Deere 600R
  • + Expand All
  • - Close All
  • John Deere Signature Edition: the ultimate in comfort, visibility, and technology

    NOTE: Not available on sprayers ordered as dry box only.

    John Deere Signature Edition badge John Deere Signature Edition badge

    To make the most powerful John Deere options available in one cost-effective package, 408R through 616R Sprayer models can be ordered as John Deere Signature Edition. Marked with an exclusive badge only available on the Signature Edition, this package includes:



    • Ultimate Comfort and Convenience package
    • Ultimate Visibility package
    • ActiveSeat™ II equipment
    • JDLink™ 5-year subscription
    • Premium 3.0 or Automation 4.0 activation
    • 4G LTE connectivity hardware
    • Automatic Solution Control*
    • BoomTrac™ Pro 2*
    • ExactApply™ system*



    Get all the top-of-the-line comfort features and technology options in one special edition: The John Deere Signature Edition.



    For any additional mounting needs, there are part solutions available through John Deere to resolve unique mounting configuration needs.



    *NOTE: Automatic Solution Control, BoomTrac Pro 2, and ExactApply system are not available on the 400R and 600R.

  • Greater fuel efficiency and lower cab noise with CommandDrive™ powertrain
    Experience fuel saving and noise reduction with CommandDrive Experience fuel saving and noise reduction with CommandDrive

    With the CommandDrive powertrain, save fuel, reduce cab noise, get improved traction in challenging conditions, and cover more acres per day. CommandDrive offers the operator an Auto Mode that automatically directs the engine to run at the lowest rpm necessary to maintain ground speed and hydraulic functions and to meet the demands of the solution system.



    CommandDrive also allows operators to adjust the aggressiveness of acceleration and deceleration and features an Auto Idle system that reduces engine speed to 900 rpm when the machine is in park. It all adds up to:

    • 20 percent or greater fuel savings
    • More acres sprayed per day, thanks to fewer fuel stops and improved traction in rough conditions
    • Reduced in-cab noise levels by 3to 5 decibels
    • Fewer demands on the operator



    CommandDrive is base equipment on all 408R, 410R, 412R, 612R, and 616R Sprayers, as well as 400R and 600R Dry Spinner Spreaders.

  • Keep operators fresh with Comfort and Convenience packages and Visibility packages
    Model year 2022 and newer Ultimate lighting Model year 2022 and newer Ultimate lighting
    Model year 2021 4 Series LED lighting Model year 2021 4 Series LED lighting

    When you’re staring down a string of 2,000-acre days, your equipment isn’t all that needs to be operating at peak – your operators need to be at their best, too. That’s why John Deere put together a range of cab packages to give you just the right features to keep your operators comfortable and efficient.



    For corner-office comfort that can help make short work of the longest days, take a look at the Ultimate Comfort and Convenience package. The heated, ventilated ActiveSeat™ II isolates the operator from up to 90 percent of vertical movement and comes in leather with massage functions. The Ultimate package also gives you a premium XM® ready sound system with subwoofer, a leather-wrapped steering wheel, a refrigerator, and more.



    When the long days turn into long nights, you’ll be glad you ordered the Ultimate Visibility package. A full 360 degrees of powerful light-emitting diode (LED) cab lighting gives you a clear view all around the machine, while eight LED service lights illuminate critical service areas.

    The following table gives a quick reference of what is contained in the Visibility packages.





    Feature

    Premium Visibility package

    Ultimate Visibility package

    Cab

    Halogen work lights (cab roof)

    ---

    ---

    LED work lights (cab roof)

    Six

    Six

    LED beacons (cab roof)

    Two

    Two

    LED convenience lights

    Eight

    Eight

    Front sunshades

    X

    X

    Right-side sunshades

    X

    X

    Rear sunshades

    X

    X

    Front wiper

    X

    X

    Right-side wiper

    X

    X

    Vehicle

    Halogen work lights (vehicle)

    ---

    ---

    Halogen hood work lights

    ---

    ---

    Halogen high beam (hood)

    ---

    ---

    Halogen low beam (hood)

    Two

    Two

    LED high beam (hood)

    Two

    Two

    LED work lights (vehicle)

    Six

    Six (two of these are higher, 4400-lumen output lights)

    LED hood work lights

    Four

    Four

    LED beacons

    One rear

    One rear

    Boom LED lights

    Two

    Two

    Boom halogen lights

    ---

    ---

    Manually adjustable left-hand and right-hand boom mounted with bubble mirror

    X

    X

    Manually adjustable right-hand cab

    ---

    ---

    Electrically adjustable and heated right-hand cab

    X

    X

    Manual underframe mirror

    ---

    ---

    Electrically adjustable and heated underframe mirror

    X

    X

    Additional camera ready

    X

    ---

    Left-hand and right-hand side view camera ready

    ---

    Not available for factory install on model year 2023 machines

    Integrated backup camera

    X

    X



    Ultimate Comfort and Convenience cab Ultimate Comfort and Convenience cab

    In addition to the Visibility packages available, the following table gives a quick reference of what is contained in the Cab Comfort and Convenience packages.



      Select Comfort and Convenience package Ultimate Comfort and Convenience package
    Cloth seat X ---
    Leather seat with carpeted floor mat --- X
    ActiveSeat™ II --- X
    Heated and ventilated leather seat with massage functionality --- X
    Mechanical fore/aft and lumbar support X ---
    Electronic controls and pneumatic lumbar support --- X
    Adjustable right-hand CommandARM™ controls with integrated CommandCenter™ touchscreen display X X
    24-degree right-hand seat swivel and 8-degree left hand seat swivel X ---
    24-degree right-hand seat swivel and 24-degree left-hand seat swivel --- X
    AM/FM Aux and Bluetooth® wireless inputs plus two cab speakers X ---
    16.5-cm (6.5-in.) touchscreen radio, XM ready, and 6.1 speaker system with subwoofer including AM/FM Aux with Bluetooth™ wireless inputs --- X
    Automatic temperature controls with controls located on CommandARM X X
    Footrests --- X
    Business band ready X X
    Refrigerator --- X
    Four USB and one 12-V outlet X X
    Right-hand accessory rail --- X
    120-V outlet --- X
    Leather-wrapped steering wheel --- X



    Some of the features in the chart above are also available as attachments. There are also many options for mounting a variety of monitors, tablets, and phones.



    *NOTE: Bluetooth where certification allows.



    Bluetooth is a trademark of Bluetooth SIG, Inc. XM is a trademark of Sirius XM Radio, Inc.

  • New Leader® Dry Spinner Spreader offers maximum versatility

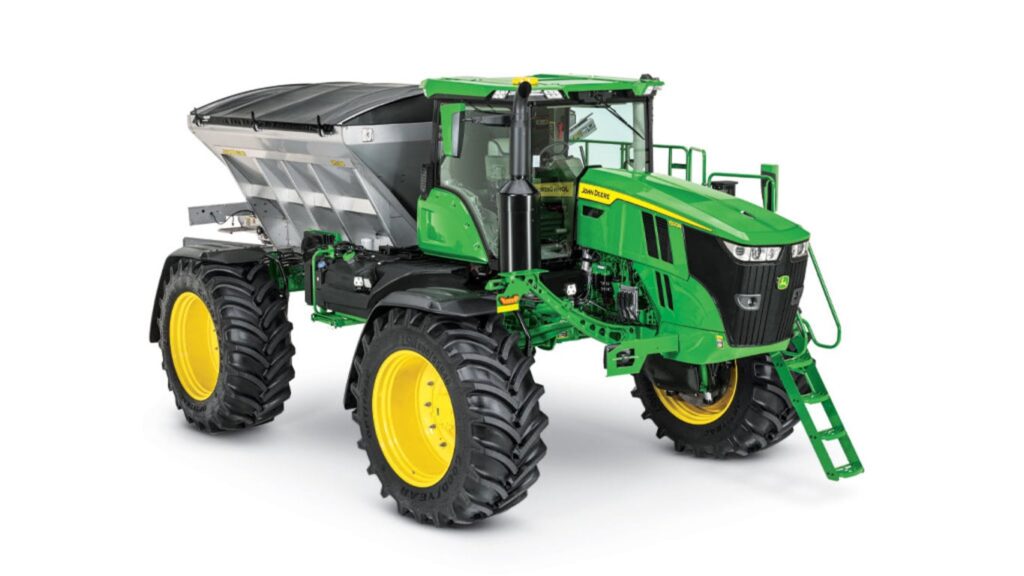

    New Leader Dry Spinner Spreader on a 600R New Leader Dry Spinner Spreader on a 600R

    Get three-season flexibility from your application equipment with the New Leader DS20 or DS30 Dry Spinner Spreader.



    The DS20 offers of up to 5.6-m3 (200 cu ft), or 6.6 tons, of dry fertilizer, while the DS30 bumps capacity to 8.5 m3 (300 cu ft), or 9 tons, of dry fertilizer. Both models feature:



    • Four-hour conversion from a liquid-application setup
    • Variable-rate application ranging from 34 kg/ha (75 lb/acre) to 3 tons/acre
    • Spread width of up to 32 m (105 ft) thanks to the 1.83-m (72-in.) spinner height
    • New Leader G4 spinner technology for a consistent spread pattern and more uniform application
    • Single or dual product bins in 304 stainless or 409 painted spreader construction with #4 belt-over-chain conveyor

    Dry Spinner Spreader compatibility chart





    DS20 with 12.7-cm (5-in.) feedgate (not approved for ag lime)

    DS20 with 28-cm (11-in.) feedgate (ag lime compatible)

    DS30 with 12.7-cm (5-in.) feedgate (not approved for ag lime)

    DN495

    408R

    X

    ---

    ---

    ---

    410R

    X

    ---

    ---

    ---

    412R

    X

    ---

    ---

    ---

    612R

    X

    X

    X

    ---

    616R

    X

    X

    X

    ---

    400R

    X

    ---

    ---

    ---

    600R

    X

    X

    X

    ---

    800R

    ---

    ---

    ---

    X



    New Leader is a trademark of Highway Equipment Company.

  • Precision Ag Technology enables you to monitor performance and maximize productivity
    Connect Mobile actual rate map and pressure map in split screen gives the operator deeper understanding of machine performance Connect Mobile actual rate map and pressure map in split screen gives the operator deeper understanding of machine performance
    Connect Mobile overview

    John Deere Connect Mobile is a solution that utilizes an Apple® iPad® tablet in the cab that provides the operator a better understanding of the sprayer’s performance. Connect Mobile documents and displays several sprayer performance attributes, helping the operator monitor and more easily detect problems that can occur while spraying. Connect Mobile also has a common user interface that makes it easy to use between different pieces of John Deere equipment. Once the job is done, the iPad with the spraying data can be utilized to perform basic crop scouting activities in the field.

    Spraying attributes

    Monitor key performance indicators in map layers and dashboard tiles such as:

    • Actual rate
    • Rate deviation
    • Pressure
    • Ground speed
    • Droplet size
    • Target rate
    • Flow rate
    • Tank volume
    • Productivity
    • Fuel rate
    In base equipment

    Connect Mobile hardware is factory installed on all model year 2022 and newer 408R, 410R, 412R, 612R, 616R, 400 and 600 Series Sprayers and dry machines as well as model year 2017 to 2021 R4030, R4038, R4044, R4045, and R4060 Sprayers, making it easy to get started with Connect Mobile.



    Learn more about Connect Mobile in the Field and Crop Solutions section within the Precision Ag Technology product line and how it can improve the quality of a spraying job.



    iPad and Apple are trademarks of Apple Inc.

  • John Deere Connected Support™ prevents downtime and efficiently resolves issues with revolutionary technology-based solutions
    Connected Support technology Connected Support technology

    When you buy John Deere equipment, you expect reliability. You also know that problems can happen, and a product is only as good as the support behind it. That’s why John Deere equipment is prepared with technology that senses potential issues and can alert you and your dealer promptly—in the cab or anywhere you are.

    John Deere Connected Support is a revolutionary change to support that leverages technology and the connectivity of JDLink™ telematics to prevent downtime and resolve problems faster. These tools decrease downtime by an average of 20 percent, enabling faster responses to unexpected problems and reducing technician trips to your machine. For some issues, unplanned downtime can even be prevented altogether through prediction of the issue.

    With your permission, John Deere Connected Support:

    • Keeps you running by monitoring machine health and promptly alerting you and your dealer of issues
    • Saves time by remotely viewing in-cab displays, reducing trips to the machine
    • Reduces or even eliminates technician trips to a machine through remote diagnostic and remote software reprogramming capabilities
    • Connects experts with the information needed to respond to downtime faster and prevent it altogether

    With more than a decade of experience leveraging connectivity to solve problems, no one else has the experience, tools, and knowledge to keep you running as John Deere and your John Deere dealer can. Connected Support is an in-base feature on all John Deere products with factory- or field-installed JDLink.

  • Simple turnkey experience with the StarFire™ 7000 Integrated Receiver
    StarFire 7000 Integrated Receiver on John Deere 400 and 600 Series Sprayers and 800R Floaters StarFire 7000 Integrated Receiver on John Deere 400 and 600 Series Sprayers and 800R Floaters

    The StarFire 7000 Receiver is the latest addition to the suite of Precision Ag Technology from John Deere. The StarFire 7000 Receiver offers greater accuracy, faster pull-in times, and season-to-season repeatability. This means less hardware, faster times recovering from a shading event, and the confidence that your guidance lines and boundaries do not shift from year to year. The integrated design further enhances the value that you have come to expect from StarFire products.

    Similar to the StarFire 6000 Integrated Receiver, the StarFire 7000 eliminates all setup, installation, and calibrations. There is no need to verify machine and receiver measurements, as this has been done precisely for you at the factory. You will spend 60 minutes less per receiver move each season, which gives you more time to focus on other parts of your operation.

    With updated Ethernet connectivity, software updates are easier and faster. StarFire 7000 Integrated Receiver maintains the speed to update software in under 4 minutes while remaining in the cab. Over-the-air updates are 85 percent faster with the StarFire 7000 Integrated Receiver because of Ethernet connectivity.

    Benefits to the StarFire 7000 with SF-RTK
    • 5-year repeatability
    • 10-minute pull-in time
    • 2.5-cm (1-in.) pass-to-pass accuracy
    • Drop-in replacement for StarFire 6000 Integrated Receivers

    To learn more about the StarFire 7000, visit the StarFire 7000 page.

  • Wide spread widths are available with the New Leader® Dry Spinner Spreader
    Spread width up to 32 m (105 ft) with the DS20 Spread width up to 32 m (105 ft) with the DS20
    DS30 Dry Spinner Spreader DS30 Dry Spinner Spreader

    The DS20 and DS30 provide up to 32-m (105-ft) spread widths and the adjustable spinner assembly allows for quick, accurate settings during variable-rate applications, broadcasting materials farther and wider with consistent spread patterns, and producing industry-leading productivity.



    Depending on product a F4365 with 1.38-m (54-in.) spinner height, can achieve spread widths from 18.92 to 27.43 m (60 to 90 ft), but with the increased clearance of 1.74 m (68 in.) the 400R and 600R Dry Spinner Spreader can achieve spread widths from 21 to 32 m (70 to 105 ft). Added spread width increases the number of acres per day and decreases the number of passes, which also reduces fuel costs and compaction.



    By maintaining spread width, operators can consistently place product throughout the fields and prevent bottlenecking of product at the row end.



    With a full spread pattern and reduced overlap through integrated technologies such as AutoTrac™ automated steering and John Deere Section Control, the 400R and 600R Dry Spinner Spreaders allow for full product coverage while reducing input costs from overlap.



    Additionally, by combining the John Deere 400R or 600R Dry Spinner Spreader chassis and the New Leader dry spinner spreader, operators can maintain spread widths even when rpms are reduced. John Deere's pressure-and-flow-compensated hydraulics allows operators to maintain spinner speed throughout each pass, while maintaining consistent spread width and pattern. This added height allows a greater trajectory at a lower spinner speed and has the ability for later season applications.



    NOTE: With differences in fertilizer density, size, and crush strength a spread pattern test is the only way to measure a product's true spread width and pattern.



    New Leader is a trademark of Highway Equipment Company.

Chassis

Flotation tires 620/70 R46 or 800/55 R46
Rear tires 380/105 R50, 420/95 R50, or 480/80 R50
Hydraulic tread adjust Standard
Ladder raise/lower Automatic
Suspension Dual-strut independent wheel air-ride suspension
Parking brake Spring-engaged, hydraulically disengaged wet disk pack
Front tires 380/105 R50, 420/95 R50, or 480/80 R50
Primary brakes Hydrostatic
Dry compatible Yes: 5.7 or 8.7 m3
200 or 300 cu ft
Turning radius 9.2 m
30.2 ft
Crop clearance with standard tires 147.3 cm
58 in.
Wheelbase 430 cm
169.3 in.
Weight (empty) With DS30: 14,375 kg
31,691 lb
Wheel tread spacing 305 to 406.4 cm
120 to 160 in.
