John Deere STS16 Hagie™ Self-Propelled Sprayer

Agriculture

  • 1,600-gallon (6,057 L) tank
  • Up to 132-foot (40.23 m) boom
  • 400 hp, 9.0 L engine
  • 35 mph (56.3 km/h) transport speed
Engine - EmissionsFinal Tier 4 (FT4)
Engine - Number of cylindersSix
Solution system - Tank materialStainless steel
Solution system - Automatic section controlOptional
Solution system - Chemical eductorOptional
Solution system - Pressure strainer50 mesh
Solution system - Boom strainerStandard 80 mesh
Boom - Plumbing materialStainless steel
Drivetrain - DriveFull-time four-wheel drive (4WD)
Chassis - Dry compatibleNo
Chassis - SuspensionIndependent air-ride
Chassis - Parking brakeIntegrated in final drives
Chassis - Primary brakesDrive system dynamic braking
Chassis - Ladder raise/lowerHydraulic
Options - Air compressorOnboard air
Key Specs - SuspensionIndependent air-ride
Solution system - Chemical injection methodOptional: Raven Sidekick
Chassis - Hydraulic tread adjustStandard
Chassis - Rear tiresVF320/105R54, VF380/90R54, VF380/105R50, VF420/95R50, VF480/80R50
Boom - Ground height adjustment58 to 272 cm 23 to 107 in.
Chassis - Flotation tiresVF480/80R50, VF 620/70R46, IF710/65R46
Chassis - Front tiresVF320/105R54, VF380/90R54, VF380/105R50, VF420/95R50, VF480/80R50
Drivetrain - ShiftingInfinitely variable - Operator programmable
Additional information - Date collected1 March 2021
Engine - Alternator300 amp
Chassis - Wheel base457 cm
180 in.
Key Specs - Solution system - Capacity6056 L
1600 gal.
Key Specs - Boom length options/MaterialHybrid steel and aluminum: 18/27, 18/30, 18/36, or 21/40 m
60/90, 60/100, 60/120, or 70/132 ft
Key Specs - Rinse tank capacity605 L
160 gal.
Solution system - Capacity6056 L
1600 gal.
Engine - Displacement9 L
548 cu in.
Boom - Automatic boom heightNORAC® UC7™ with Active Wing Roll (AWR)
Boom - Boom length optionsHybrid steel and aluminum: 18/27, 18/30, 18/36, or 21/40 m
60/90, 60/100, 60/120, or 70/132 ft
Key Specs - Crop clearance with standard tires188 cm
74 in.
Chassis - Total weight with 90-ft boom14,696.4 kg
32,400 lb
Drivetrain - TypeCommandDrive™
Engine - Diesel exhaust fluid (DEF) tank capacity29 L
7.7 gal.
Engine - Fuel tank capacity492 L
130 gal.
Solution system - Quick fill size7.6 cm
3 in.
Engine - Rated engine power298 kW
400 hp
Drivetrain - Spray speed range0.8 to 40 km/h
0.5 to 25 mph
Drivetrain - Hydraulic reservoir capacity113.5 L
30 gal.
Solution system - Flow meter size5.8 cm
2 in.
Solution system - Chemical eductor capacity (size)19 L
5 gal.
Solution system - Rinse tank capacity378.5 L
160 gal.
Drivetrain - Transport speed, maximum56 km/h
35 mph
Key Specs - Spray speed range0.8 to 40 km/h
0.5 to 25 mph
Chassis - Crop clearance with standard tires188 cm
74 in.
Key Specs - Total weight (empty solution tank)12,205 kg
32,700 lb
Solution system - Fill locationStandard: Side
Optional: Front
Chassis - Turning radiusWith all-wheel steer (AWS) on: 5.8 m 18.9 ft
With AWS off (center of outside tire): 8.9 m 29.2 ft
Key Specs - Transport speed, maximum56 km/h
35 mph
Solution system - Solution system controlPowrSpray™ system
Boom - Breakaway widthFor 27-m (90-ft) booms: 1.5 m 5 ft
For 18/30 or 18/36 (60/100 or 60/120 ft): 3 m 10 ft
For 40-m (132-ft) booms: 3.3 m 11 ft
Boom - Boom sectionsFor 27-m (90-ft) booms: 1.5 m 5 ft
On 30-, 36-, and 40-m (100-, 120-, and 132-ft) booms: 9 sections
Chassis - Total weight with 100-ft boom14,651 kg
32,300 lb
Chassis - Wheel tread spacing305 to 406 cm
120 to 160 in.
Cab with Ultimate Comfort and Convenience package
Cab with Ultimate Comfort and Convenience package

The Ultimate Comfort and Convenience package offers unsurpassed visibility, operator comfort, control placement, and ride and sound quality.

  • Increased comfort from leather seat with massage, heating and cooling, electronic controls and better swivel
  • Easily make adjustments on the go
  • Improved visibility on the left and right with better sight lines to the crop

Vision leather seat
Vision leather seat
Heating, ventilation, and massage controls for Vision seat
Heating, ventilation, and massage controls for Vision seat
Electric position controls for Vision seat
Electric position controls for Vision seat

Vision leather seat

  • Improved swivel seat – 16 degrees to the left and 16 degrees to the right
  • Heated and ventilated cooling
  • Massaging functions to reduce fatigue during long harvesting days
  • Electronic controls that make it easier to adjust the seat to the preferred location
  • Pneumatic lumbar
  • Cushion length adjust
Digital touchscreen radio
Digital touchscreen radio

Apple CarPlay® radio
The 16.5-cm (6.5-in.) state-of-the-art digital touchscreen radio works with Apple CarPlay and provides a multitude of entertainment options. CarPlay is a smarter, safer way to use an iPhone® mobile device when driving.

  • Connect phone via Bluetooth® wireless or USB to play music
  • Check the weather
  • Navigation
  • Phone calls
  • Voice control

Door cinch with remote door opening

  • Door cinch reduces the force needed to close the door
  • Electric motor makes it easier to open and close the door without slamming
  • Remote door opening and door lock-unlock fob
  • Minimize residue exposure from outside surfaces by using the door fob to remotely open the door
CommandARM™ console and controls with display
CommandARM™ console and controls with display

4600 CommandCenter™ Display

  • Improved visibility with 80 degrees of swivel to the right
Refrigerator
Refrigerator

Refrigerator

  • Keep beverages and other items cool

Plenty of storage

  • Three cup holders
  • Easily accessible storage compartments located to the right and behind the seat
Footrest
Footrest

Bluetooth is a trademark of Bluetooth SIG, Inc. Apply CarPlay and iPhone are trademarks of Apple Inc.

The electronically controlled CommandDrive drive system provides an infinite range of field speeds and operator adjustability. The single hydrostatic drive pump provides flow to four variable displacement wheel motors. The system works automatically to continuously adjust they system to match target speed.

  • Real time traction control – CommandDrive monitors for wheel slip and diverts oil flow to send power to the other wheels. This system motors for slip front to rear, side to side, and crossways for maximum control and minimal slippage. Two predefined traction control settings are available (normal and severe) in addition to a custom setting that allows for manual control of both slip and de-stroke percentages.
  • Operator programmable speed ranges – Select the number of speed ranges from 1 to 20 and the first and last range top speed. This allows the drive system to be tuned for operator preference and field conditions.
  • Scroll wheel speed range selection – By scrolling the wheel on the back of the control handle, operators select the desired speed range. In addition to the scrolling feature, the scroll wheel can be pushed to rapidly change between spray and turn speed. Spray and turn speed can be set by the operator within the cornerpost display.

PowrSpray solution keypad
PowrSpray solution keypad

Covering acres is important and doing so with accuracy and precision is essential. The PowrSpray solution control system found on the Hagie™ STS Sprayers makes sure every acre is covered precisely. The predictive pump control ensures target rates are accomplished faster, even in challenging dynamic conditions. Add the optional dedicated pull-on pump for fast and accurate solution tank loading and/or ExactApply™ for nozzle-by-nozzle control.

  • Predictive pump control anticipates changes in flow to maintain target rate
  • Electronic solution tank level indication
  • Fast and accurate loading with the optional dedicated pull-on pump
  • Optional eductor
  • Optional ExactApply nozzle control

The solution keypad found on the cab entry ladder provides control of critical solution functions from the ground, eliminating the need to climb back into the cab during tending.

Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.

Hybrid sprayer boom
Hybrid sprayer boom

Cover acres with confidence and control. The Hagie hybrid front boom lineup offers a lightweight yet durable design by combining both steel and aluminum. Strong steel composes the interior sections of these booms, providing strength and flexibility where you need it. The outer sections are made of aluminum, reducing overall weight and improving control. Special consideration for hose and plumbing routing improves operator visibility and overall boom cleanliness. Spray tips and nozzle bodies are protected from impact as they are positioned within the booms structure.

  • Improved visibility and lighter overall weight than all-aluminum booms on previous-generation models
  • Available in a range of widths and nozzle spacings
  • Large range of application heights from 58.4 to 279.4 cm (23 to 110 in.)
  • Three-direction, spring-applied outer breakaway
  • Hydraulic main boom breakaway
  • 18-m (60-ft) outer wing folded width on 27-, 30-, and 36-m (90-, 100-, and 120-ft) booms
  • 21-m (70-ft) outer wing folded with on 40-m (132-ft)
  • Locking connection between the inner and outer sections of the boom ensures rigidity

Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.

StarFire 7000 Integrated Receiver on Hagie™ STS Sprayers
StarFire 7000 Integrated Receiver on Hagie™ STS Sprayers

The StarFire 7000 Receiver is the latest addition to the suite of Precision Ag Technology from John Deere. The StarFire 7000 Receiver offers greater accuracy, faster pull-in times, and season-to-season repeatability. This means less hardware, faster times recovering from a shading event, and the confidence that your guidance lines and boundaries do not shift from year to year. The integrated design further enhances the value that you have come to expect from StarFire products.

Similar to the StarFire 6000 Integrated Receiver, the StarFire 7000 eliminates all setup, installation, and calibrations. There is no need to verify machine and receiver measurements, as this has been done precisely for you at the factory. You will spend 60 minutes less per receiver move each season, which gives you more time to focus on other parts of your operation.

With updated Ethernet connectivity, software updates are easier and faster. StarFire 7000 Integrated Receiver maintains the speed to update software in under 4 minutes while remaining in the cab. Over-the-air updates are 85 percent faster with the StarFire 7000 Integrated Receiver because of Ethernet connectivity.

Benefits to the StarFire 7000 with SF-RTK
  • 5-year repeatability
  • 10-minute pull-in time
  • 2.5-cm (1-in.) pass-to-pass accuracy
  • Drop-in replacement for StarFire 6000 Integrated Receivers

To learn more about the StarFire 7000, visit the StarFire 7000 page.

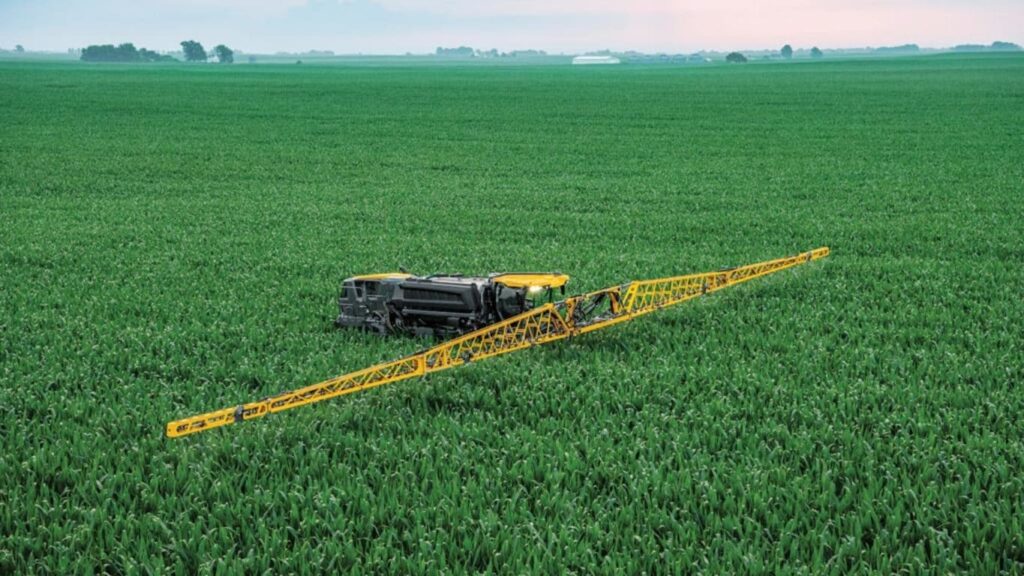

Hagie™ STS Sprayer in corn
Hagie™ STS Sprayer in corn

No matter the field or crop conditions, it is important to be able to feed and protect your crops throughout the entire growing season. The all-season capability and performance of the STS Sprayers enable you to enter the field any day.

  • Gliding over crop with 1.88 m (74 in.) of underframe clearance combined with a narrow in-row crop package and smooth transition shields minimizes impact and crop disturbance.
  • Standard AWS ensures the rear tires follow the front tires, leaving only two tracks while turning.
  • Not only does the STS excel in late-season, tall-crop applications, but its balanced weight distribution with the tank full, empty, or anywhere in between and optional floatation tires enable it to perform in challenging field conditions all year long.

Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.
