John Deere STS20
  • + Expand All
  • - Close All
  • Precise on-target rate with the PowrSpray™ solution control system
    PowrSpray solution keypad PowrSpray solution keypad

    Covering acres is important and doing so with accuracy and precision is essential. The PowrSpray solution control system found on the Hagie™ STS Sprayers makes sure every acre is covered precisely. The predictive pump control ensures target rates are accomplished faster, even in challenging dynamic conditions. Add the optional dedicated pull-on pump for fast and accurate solution tank loading and/or ExactApply™ for nozzle-by-nozzle control.

    • Predictive pump control anticipates changes in flow to maintain target rate
    • Electronic solution tank level indication
    • Fast and accurate loading with the optional dedicated pull-on pump
    • Optional eductor
    • Optional ExactApply nozzle control

    The solution keypad found on the cab entry ladder provides control of critical solution functions from the ground, eliminating the need to climb back into the cab during tending.



    Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.

  • Increased traction and programmable speeds with CommandDrive™ system

    The electronically controlled CommandDrive drive system provides an infinite range of field speeds and operator adjustability. The single hydrostatic drive pump provides flow to four variable displacement wheel motors. The system works automatically to continuously adjust they system to match target speed.



    • Real time traction control – CommandDrive monitors for wheel slip and diverts oil flow to send power to the other wheels. This system motors for slip front to rear, side to side, and crossways for maximum control and minimal slippage. Two predefined traction control settings are available (normal and severe) in addition to a custom setting that allows for manual control of both slip and de-stroke percentages.
    • Operator programmable speed ranges – Select the number of speed ranges from 1 to 20 and the first and last range top speed. This allows the drive system to be tuned for operator preference and field conditions.
    • Scroll wheel speed range selection – By scrolling the wheel on the back of the control handle, operators select the desired speed range. In addition to the scrolling feature, the scroll wheel can be pushed to rapidly change between spray and turn speed. Spray and turn speed can be set by the operator within the cornerpost display.



  • A new level of luxury with the Ultimate Comfort and Convenience package
    Cab with Ultimate Comfort and Convenience package Cab with Ultimate Comfort and Convenience package

    The Ultimate Comfort and Convenience package offers unsurpassed visibility, operator comfort, control placement, and ride and sound quality.

    • Increased comfort from leather seat with massage, heating and cooling, electronic controls and better swivel
    • Easily make adjustments on the go
    • Improved visibility on the left and right with better sight lines to the crop



    Vision leather seat Vision leather seat
    Heating, ventilation, and massage controls for Vision seat Heating, ventilation, and massage controls for Vision seat
    Electric position controls for Vision seat Electric position controls for Vision seat

    Vision leather seat

    • Improved swivel seat – 16 degrees to the left and 16 degrees to the right
    • Heated and ventilated cooling
    • Massaging functions to reduce fatigue during long harvesting days
    • Electronic controls that make it easier to adjust the seat to the preferred location
    • Pneumatic lumbar
    • Cushion length adjust
    Digital touchscreen radio Digital touchscreen radio

    Apple CarPlay® radio
    The 16.5-cm (6.5-in.) state-of-the-art digital touchscreen radio works with Apple CarPlay and provides a multitude of entertainment options. CarPlay is a smarter, safer way to use an iPhone® mobile device when driving.

    • Connect phone via Bluetooth® wireless or USB to play music
    • Check the weather
    • Navigation
    • Phone calls
    • Voice control



    Door cinch with remote door opening

    • Door cinch reduces the force needed to close the door
    • Electric motor makes it easier to open and close the door without slamming
    • Remote door opening and door lock-unlock fob
    • Minimize residue exposure from outside surfaces by using the door fob to remotely open the door
    CommandARM™ console and controls with display CommandARM™ console and controls with display

    4600 CommandCenter™ Display

    • Improved visibility with 80 degrees of swivel to the right
    Refrigerator Refrigerator

    Refrigerator

    • Keep beverages and other items cool



    Plenty of storage

    • Three cup holders
    • Easily accessible storage compartments located to the right and behind the seat
    Footrest Footrest

    Bluetooth is a trademark of Bluetooth SIG, Inc. Apply CarPlay and iPhone are trademarks of Apple Inc.

  • Enter the field any day with high clearance, all-wheel steer (AWS) and balanced machine weight

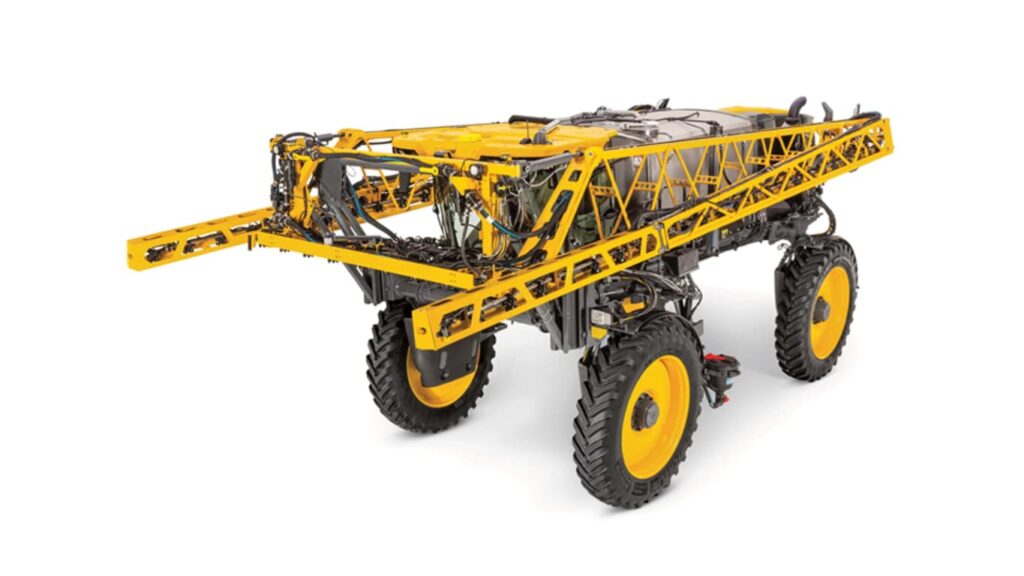

    Hagie™ STS Sprayer in corn Hagie™ STS Sprayer in corn

    No matter the field or crop conditions, it is important to be able to feed and protect your crops throughout the entire growing season. The all-season capability and performance of the STS Sprayers enable you to enter the field any day.



    • Gliding over crop with 1.88 m (74 in.) of underframe clearance combined with a narrow in-row crop package and smooth transition shields minimizes impact and crop disturbance.
    • Standard AWS ensures the rear tires follow the front tires, leaving only two tracks while turning.
    • Not only does the STS excel in late-season, tall-crop applications, but its balanced weight distribution with the tank full, empty, or anywhere in between and optional floatation tires enable it to perform in challenging field conditions all year long.



    Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.

  • Cover more acres with the Hagie™ hybrid front boom
    Hybrid sprayer boom Hybrid sprayer boom

    Cover acres with confidence and control. The Hagie hybrid front boom lineup offers a lightweight yet durable design by combining both steel and aluminum. Strong steel composes the interior sections of these booms, providing strength and flexibility where you need it. The outer sections are made of aluminum, reducing overall weight and improving control. Special consideration for hose and plumbing routing improves operator visibility and overall boom cleanliness. Spray tips and nozzle bodies are protected from impact as they are positioned within the booms structure.



    • Improved visibility and lighter overall weight than all-aluminum booms on previous-generation models
    • Available in a range of widths and nozzle spacings
    • Large range of application heights from 58.4 to 279.4 cm (23 to 110 in.)
    • Three-direction, spring-applied outer breakaway
    • Hydraulic main boom breakaway
    • 18-m (60-ft) outer wing folded width on 27-, 30-, and 36-m (90-, 100-, and 120-ft) booms
    • 21-m (70-ft) outer wing folded with on 40-m (132-ft)
    • Locking connection between the inner and outer sections of the boom ensures rigidity

    Hagie is a trademark of Hagie Manufacturing Company and similar to John Deere branded equipment, John Deere will also support Hagie equipment.

  • Simple turnkey experience with the StarFire™ 7000 Integrated Receiver
    StarFire 7000 Integrated Receiver on Hagie™ STS Sprayers StarFire 7000 Integrated Receiver on Hagie™ STS Sprayers

    The StarFire 7000 Receiver is the latest addition to the suite of Precision Ag Technology from John Deere. The StarFire 7000 Receiver offers greater accuracy, faster pull-in times, and season-to-season repeatability. This means less hardware, faster times recovering from a shading event, and the confidence that your guidance lines and boundaries do not shift from year to year. The integrated design further enhances the value that you have come to expect from StarFire products.

    Similar to the StarFire 6000 Integrated Receiver, the StarFire 7000 eliminates all setup, installation, and calibrations. There is no need to verify machine and receiver measurements, as this has been done precisely for you at the factory. You will spend 60 minutes less per receiver move each season, which gives you more time to focus on other parts of your operation.

    With updated Ethernet connectivity, software updates are easier and faster. StarFire 7000 Integrated Receiver maintains the speed to update software in under 4 minutes while remaining in the cab. Over-the-air updates are 85 percent faster with the StarFire 7000 Integrated Receiver because of Ethernet connectivity.

    Benefits to the StarFire 7000 with SF-RTK
    • 5-year repeatability
    • 10-minute pull-in time
    • 2.5-cm (1-in.) pass-to-pass accuracy
    • Drop-in replacement for StarFire 6000 Integrated Receivers

    To learn more about the StarFire 7000, visit the StarFire 7000 page.

Boom

Ground height adjustment 58 to 272 cm 23 to 107 in.
Plumbing material Stainless steel
Boom sections On 27-m (90-ft) boom: 7 sections
On 30-, 36-, and 40-m (100-, 120-, and 132-ft) booms: 9 sections
Breakaway width For 27-m (90-ft) booms: 1.5 m 5 ft
For 18/30 or 18/36 (60/100 or 60/120 ft): 3 m 10 ft
For 40-m (132-ft) booms: 3.3 m 11 ft
Automatic boom height NORAC® UC7™ with Active Wing Roll (AWR)
Boom length options Hybrid steel and aluminum: 18/27, 18/30, 18/36, or 21/40 m
60/90, 60/100, 60/120, or 70/132 ft
