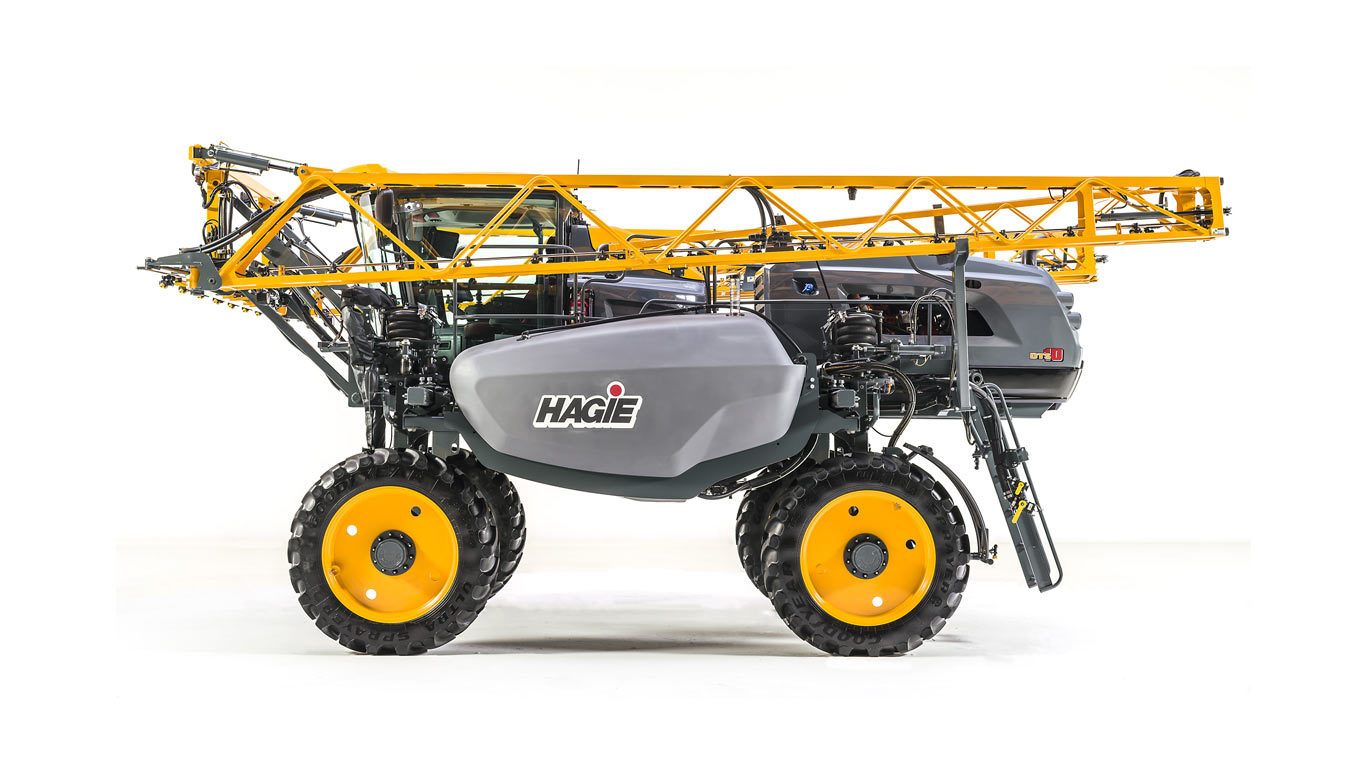

  • DTS10 spray booms
    Wet boomWet boom

    The spray booms are controlled by an electrohydraulic system. This system consists of operator-manipulated switches (located on the side console and the hydrostatic drive control handle) and hydraulic cylinders (attached to the booms), which provide lift, level, and horizontal extension.

    Hydraulically folding the extensions of an 18.3- or 24.4-m (60- or 80-ft) or 18.3- or 27.4-m (60- or 90-ft) spray boom and shutting off the outer sections essentially turns it into an 18.3-m (60-ft) spray boom. The wet boom connections are featured with ARAG® EasyFit fittings with an o-ring seal and are 13-mm (0.5-in.) schedule 5 pipe-fed from one end with a 25-mm (1-in.) hose.


    Boom connectionsBoom connections

    Boom configurations

    Minimum boom
    width (m, ft)
    Maximum boom
    width (m, ft)
    Number of
    boom sections
    Wet boom nozzle
    spacing (cm, in.)
    DTS10Front18.3 or 24.4 m
    (60 or 80 ft)
    18.3 or 27.4 m
    (60 or 90 ft)
    SevenStandard - 38 cm (15 in.)
    Optional - 51 cm (20 in.)


    ARAG is a trademark of ARAG S.r.l.

  • Hagie™ DTS Series engines
    6.7-L (408.9-cu in.) Cummins® QSB engine
    Tier 3 diesel engineTier 3 diesel engine
    Final Tier 4 (FT4) diesel engineFinal Tier 4 (FT4) diesel engine

    The Hagie DTS10 is powered by a 6.7-L (408.9-cu in.) Cummins QSB diesel engine, which is offered in a 158-kW (215-hp) Tier 3 or a 165-kW (225-hp) emissions-compliant Final Tier 4 (FT4) configuration. This 6.7-L (408.9-cu in.) engine is electronic with an air-to-air cooler and turbo charger.

    The Tier 3 engine requires No. 2 diesel fuel, and the FT4 engine requires ultra-low sulfur diesel (ULSD) for export only machines.

    Engine location
    Engine location (FT4 engine shown)Engine location (FT4 engine shown)

    The rear-mounted engine keeps constant weight to offset the spray boom and leaves space in the center of machine for the varying weight of fuel and rinse tanks. This allows for better coolant airflow and reduction of cab noise.

    Engine exhaust
    Engine exhaust stackEngine exhaust stack

    The engine exhaust is located at the rear of the machine. This helps to reduce interior cab and noise vibration.


    Cummins is a trademark of Cummins Incorporated. Hagie is a trademark of Hagie Manufacturing Company, LLC and similar to John Deere branded equipment, Deere will also support Hagie equipment.

  • DTS10 cab and controls overview
    Front console
    Front console steeringFront console steering
    Front console telescopeFront console telescope
    Front console tiltFront console tilt
    Front console foot controlsFront console foot controls
    Location (image)ComponentDescription/notes
    ASteering wheelOptional premium leather-wrapped steering wheel
    BHazard/warning lights switch---
    C Highway/warning lights switch---
    D Turn signal indicatorLeft-hand side
    E Highway running lights indicator---
    FHigh beams indicator---
    GTurn signal indicatorRight-hand side
    HSteering wheel telescope adjust handleAvailable only if equipped with this option
    ISteering column tilt adjust buttonKnee angle
    Available only if equipped with this option
    JSteering column release pedal---
    KOperator foot pegsTwo pegs
    Available only if equipped with this option
    LDeceleration (decel) pedal---
    NWindshield washer---
    OTurn signal lever---
    PWindshield wiper speed---
    QHigh beams (brights)---
    Side console
    Location (image)ComponentDescription/notes
    AEmergency stop (e-stop) switch

    The e-stop switch provides a quick method for stopping the engine in an emergency situation.

    BFoam marker switch (if equipped)The foam marker switch controls foam application on both sides of the machine.
    C Rinse switchThe rinse switch is used to rinse the solution tank and spray booms.
    D Boom solution valve switches

    The boom solution valve switches each control a valve located on the boom or transom. The valves control the flow of the solution through the boom.

    E Fence row switch (left-hand side)

    The fence row switches are used in the selection of either the right or left fence row spray nozzle.

    FRate control switchesThe rate control switches control the rate in which solution is applied through the spray booms by either the rate controller (enable) or operator-controlled spray rate (manual).
    GRear nozzle switch

    The rear nozzle switch controls the two rear nozzles (located behind the rear tires).

    HPump speed and rate switches

    The pump speed/rate switches allow the operator to increase or decrease flow rate through the spray system.

    IFence row switch (right-hand side)---
    JMain tank valve switch (left-hand side)

    The main tank valve switch controls the solution tank valve. This switch must be in the on (open) position for spray application.

    KSolution pump switchThe solution pump switch is used to turn the solution pump on or off.
    LAgitation valve switchThe agitation valve switch controls the rate of flow through the agitation system.
    MMain tank valve switch (right-hand side
    NBoom extension switches (left/right outer fold)The boom extension switches are used to extend or retract the outer boom extensions.
    OTraction valve switch ---
    PIgnition switch---
    QPower mirror switch (if equipped)The power mirror switch allows vertical or horizontal adjustment of the electric side-view mirrors by pressing the switch in the desired position.
    RHydrostatic drive control handleThe hydrostatic drive control handle controls the direction of the machine and the speed in which it travels. It is also used to control the spray booms, master spray, end row management, and shift up/down speeds.
    STransom switch (up/down)The transom switch is used to raise and lower the main lift.
    TRight-hand boom switchThe left- and right-hand boom switches are used to raise, lower, extend, and retract the spray booms.
    ULeft-hand boom switchThe left- and right-hand boom switches are used to raise, lower, extend, and retract the spray booms.
    VMaster spray switchThe master spray switch activates the boom solution valves.
    WEnd row management switchThe end-row management switch is a programmable switch that enables various functions (i.e. all-wheel steer, auto steer, master spray, and NORAC® enable) when the switch is depressed. End-row management settings are programmed through the machine display.
    XShift up switchThe shift up/down switches are used for speed range selection.
    YShift down switchThe shift up/down switches are used for speed range selection.
    ZParking brake switchThe parking brake switch is used to engage and disengage the parking brake, as well as extend and retract the ladder.
    AAThrottle switchThe throttle switch is used to control engine speed (rpm).
    BBRemote stereo controlsThe remote stereo controls are conveniently located to control the stereo (volume, mute, source, and seek).
    CC12-V power portsFour power ports are provided for the connection of additional items (such as radios and computer equipment).
    DDTwo auxiliary audio input connectionsThe auxiliary audio input allows connection of a personal iPod® device or MP3 player.
    Overhead monitors and controls
    Location (image)ComponentDescription/notes
    ACourtesy/interior work light

    The courtesy light comes on automatically when the cab door is opened. The interior work light is activated by manually pressing the interior work light switch (located on the light housing).

    BStereo (if equipped)

    The stereo features with an AM/FM tuner, weatherband broadcasting, CD player, MP3 player, USB/iPod controls, and Bluetooth® wireless system (if equipped).

    C Climate controls

    The climate controls allow the operator to set and maintain desired cab temperature. Vents are placed throughout the cab to keep air circulating and to maintain clear windows throughout the cab.

    D NORAC monitor (if equipped)

    The NORAC monitor controls the automatic boom leveling system.

    E Spray system console

    The spray system is controlled by the spray system console and the solution pump control valve. The system receives data and automatically makes adjustments based on the target rate of application set by the operator.

    FMachine display

    The machine display is the central control center of the machine. It controls many of the machine’s electronically driven functions (i.e. machine drive, AWS, attachment operation, tread adjustment, spray systems, lights, diagnostics, etc.).

    GMachine gauges

    The machine gauge panel on the A-post is conveniently located for viewing engine rpm, fuel level, engine coolant temperature, and engine aftertreatment level (if equipped).

    HSection indicator display

    The section indicator display allows the operator to view the system status for the following:

    • (1) - master spray indicator
    • (2) - fence row indicators
    • (9) - spray section indicators
    • (1) - rear wheel nozzle indicator

    NORAC is a trademark of NORAC Systems International, Inc. iPod is a trademark of Apple, Inc. Bluetooth is a trademark of Bluetooth SIG Incorporated.

  • Solution tank, pump, and pump switch
    Solution tank
    Solution tankSolution tank
    Solution tank drain gradeSolution tank drain grade

    Two 1892-L (500-gal.) polyethylene tanks are mounted on tank cradles on each side of the machine. The solution tank design allows the sump to drain on a 30 percent grade and is equipped with a spinball rinse system. A mechanical sight gauge is located on top of each solution tank to visually check the solution level at all times.

    Solution pump
    Solution pumpSolution pump

    The Hypro® 9306C-HM1C solution pump (located beneath the center of the machine) is a centrifugal-type hydraulically driven pump that is controlled by the solution pump control valve and the spray system console. It comes with silicon-carbide seals.

    The solution pump draws solution out of the tank at the rate determined during calibration. It dispenses solution through the many valves and hoses that make up the spray system and also dispenses fluids through the agitation and rinse systems.

    Hypro is a trademark of Hypro Corporation.

    Solution pump switch
    Solution pump switchSolution pump switch
    Solution pump indicatorSolution pump indicator

    The solution pump switch is located on the side console and is used to turn the solution pump on and off.

    NOTE: When the solution pump is on, a solution pump indicator (located on the machine display home page - field mode) will illuminate.

  • Frame and axles
    Chassis mainframeChassis mainframe
    Horizontal cross-through axle tubeHorizontal cross-through axle tube

    The DTS10 Sprayer mainframe design features horizontal cross-through axle tubes, as well as boom and platform mounts on weldment.

    • 360.7-cm (142-in.) mainframe width
    • 182.9-cm (72-in.) ground clearance


Boom length options 18/24 and 27 m
60/80 and 90 ft
Automatic boom height NORAC
Plumbing material Stainless steel
Ground height adjustment 58 to 257 cm
23 to 101 in.
Breakaway width For 27-m (90-ft) booms - 3 m
10 ft
Boom sections Five sections for booms widths - 18/24 and 27 m
60/80 and 90 ft
