John Deere 2510L
  • + Expand All
  • - Close All
  • Patented compact stealth tank improves machine stability
    2510L Vertical-Fold tank2510L Vertical-Fold tank
    2510L Side-Fold tank2510L Side-Fold tank

    The 2510L offers an industry-exclusive tank design that gives the operator increased productivity and versatility. This patented compact stealth tank offers:

    • Low center of gravity for increased stability
    • Large trough-sloped sump for maximum cleanout
    • Unique design that allows for operating in various row spacing from 60 in. to 144 in. depending on coulter spacing, tires, and wheels selection

    Tank capacity

    The large tank capacities and quick cleanout allows the operator to spend more time in the field and less time rinsing. Tank sizes that are offered for the following sizes of applicators:

    Model

    2510L Vertical-Fold – 9.14 m (30 ft) and 12.19 m (40 ft)

    2510L Side-Fold –
    18.29 m (60 ft)

    Tank sizes

    3974.68 L (1050 gal.)
    5110.31 L (1350 gal.)
    6813.74 L (1800 gal.)

    6813.74 L (1800 gal.)
    9084.99 L (2400 gal.)

    Tank fill
    2-in. tank fill2-in. tank fill
    3-in. tank fill3-in. tank fill

    In order to reduce filling time, the 2510L offers 5.08-cm (2-in.) fill on 3974.68-L and 5110.31-L (1050- and 1350-gal.) tanks and 7.62-cm (3-in.) fill on 6813.74-L and 9084.99-L (1800- and 2400-gal.) tanks.

    Tank size:

    3974.68 L
    (1050 gal.)

    5110.31 L
    (1350 gal.)

    6813.74 L
    (1800 gal.)

    9084.99 L
    (2400 gal.)

    Size of tank fill:

    5.08 cm (2 in.)

    5.08 cm (2 in.)

    7.62 cm (3 in.)

    7.62 cm (3 in.)

  • Utilize hydraulic wing kick and high-clearance toolbar frame to reduce crop damage
    2510L Vertical-Fold using wing kick2510L Vertical-Fold using wing kick
    2510L Side-Fold using wing kick2510L Side-Fold using wing kick

    When using side-dress application, an operator’s ability to minimize crop damage during application is paramount. The 2510L comes in base with features such as hydraulic wing kick, single reach tongue, and higher operating clearances that allow operators to reduce that damage and expand that application window.

    Hydraulic wing kick

    Hydraulic wing kick is a key feature that helps reduce crop damage. No more dipping into the crop and damaging corn when turning. When the operator lifts the toolbar during the turn, the wings will automatically kick up in order to increase its distance from ground to toolbar. This action allows the operator to have increased clearance on the wings, minimizing crop damage.

    Single reach tongue
    2510L tongue2510L tongue
    #

    Unlike some fertilizer applicators with an A-frame tongue, the 2510L features a single reach tongue that is a single tube from the main cart frame to the hitch point. This allows:

    • Sharper turning radius
    • Reduced crop damage
    • Better tractor to implement tracking
    Operating toolbar frame clearance
    2510L frame clearance2510L frame clearance
    #

    A 60.96 cm (24 in.) operating clearance allows the operator to maneuver in the field while minimizing crop damage.

    Model

    2510L Vertical-Fold – 9.14 m (30 ft)

    2510L Vertical-Fold – 12.19 m (40 ft)

    2510L Side-Fold – 18.29 m (60 ft)

    Operating toolbar frame clearance

    60.96 cm (24 in.)

    60.96 cm (24 in.)

    60.96 cm (24 in.)

  • Hydraulic wing down pressure and flex-hinge design ensures accurate fertilizer placement

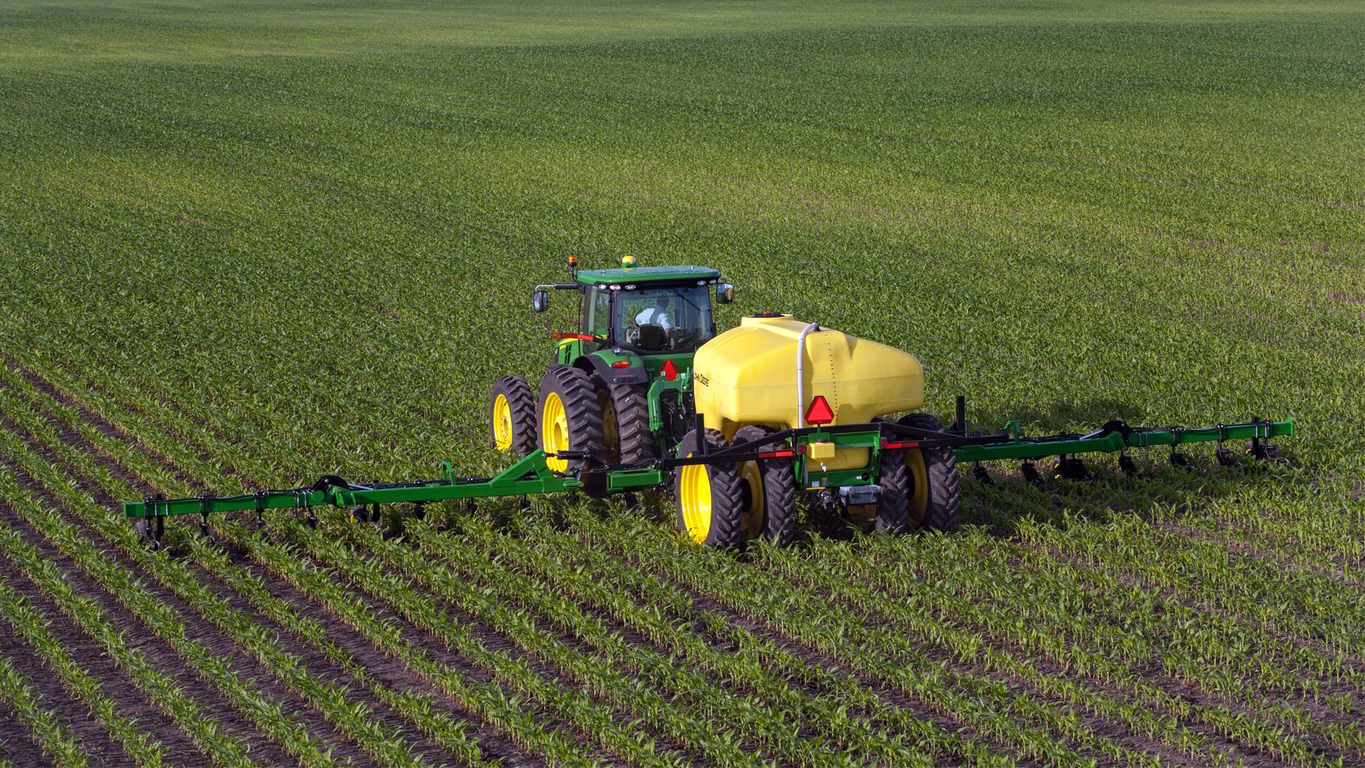

    2510L VF in-field2510L VF in-field
    2510L SF in-field2510L SF in-field

    Accurate fertilizer application is vital to increase fertilizer efficiency and effectiveness which will help a producer reach their yield goals. In addition to mainframe down pressure, the 2510L offers hydraulic wing down pressure and a flex-hinged design that ensures accurate fertilizer placement.

    Hydraulic wing down pressure
    Hydraulic wing down pressure gauge Hydraulic wing down pressure gauge
    #
    The 2510L features hydraulic wing down pressure that applies constant down pressure on the wings to maintain constant depth and application.
    Flex-wing hinge design
    2510L Side-Fold flex-hinge2510L Side-Fold flex-hinge
    #

    The flex hinge allows for 8-degree below-level and 15-degree above-level travel on the side-fold and 5-degree up and down on the vertical-fold:

    • Ensure constant contact with the ground
    • Increase performance in uneven terrain
    • Maintain even working depth across the entire working width
  • John Deere GreenStar™ Rate Controller enables one-step integration
    Rate controller on 2510LRate controller on 2510L
    GreenStar 2630 DisplayGreenStar 2630 Display

    The 2510L comes standard with a GreenStar Rate Controller enabling full one-step integration of your GreenStar Display with the 2510L liquid system. This integration enables:

    • Automatic rate control
    • Field documentation
    • Map-based prescriptions
    • John Deere Section Control*

    System pressure is monitored directly on the GreenStar Display and saves producers from having to monitor a manual gauge or keep it clean while in those dry, dusty fields.



    John Deere Section Control reduces overlap, thus lowering input costs. The John Deere 2510L has up to five sections of control depending on size and configuration of the machine.



    *John Deere Section Control activation required.

    Model

    Description

    Number of Sections

    2510L Vertical-Fold – 9.14 m (30 ft)

    11 coulters on 76.2-cm (30-in.) spacing

    2

    2510L Vertical-Fold – 12.19 m (40 ft)

    11 coulters on 91.44-cm (36-in.) spacing

    2

    2510L Vertical-Fold – 12.19 m (40 ft)

    11 coulters on 96.52-cm (38-in.) spacing

    2

    2510L Vertical-Fold – 12.19 m (40 ft)

    13 coulters on 91.44-cm (36-in.) spacing

    4

    2510L Vertical-Fold – 12.19 m (40 ft)

    13 coulters on 96.52-cm (38-in.) spacing

    4

    2510L Vertical-Fold – 12.19 m (40 ft)

    11 coulters on 101.6-cm (40-in.) spacing

    4

    2510L Vertical-Fold – 9.14 m (30 ft)

    13 coulters on 76.2-cm (30-in.) spacing

    2

    2510L Vertical-Fold 12.19 m (40 ft)

    13 coulters on 101.6-cm (40-in.) spacing

    4

    2510L Vertical-Fold – 12.19 m (40 ft)

    15 coulters on 76.2-cm (30-in.) spacing

    4

    2510L Vertical-Fold – 12.19 m (40 ft)

    17 coulters on 76.2-cm (30-in.) spacing

    4

    2510L Vertical-Fold – 12.19 m (40 ft)

    23 coulters on 50.8-cm (20-in.) spacing

    4

    2510L Vertical-Fold – 12.19 m (40 ft)

    23 coulters on 55.88-cm (22-in.) spacing

    4

    2510L Side-Fold – 18.29 m (60 ft)

    23 coulters on 76.2-cm (30-in.) spacing

    5

    2510L Vertical-Fold – 12.19 m (40 ft)

    25 coulters on 50.8-cm (20-in.) spacing

    5

    2510L Side-Fold – 18.29 m (60 ft)

    25 coulters on 76.2-cm (30-in.) spacing

    4

    2510L Side-Fold – 18.29 m (60 ft)

    35 coulters on 50.8-cm (20-in.) spacing

    5

    2510L Side-Fold – 18.29 m (60 ft)

    35 coulters on 55.88-cm (22-in.) spacing

    5

    2510L Side-Fold – 18.29 m (60 ft)

    37 coulters on 50.8-cm (20-in.) spacing

    5

    2510L Side-Fold – 18.29 m (60 ft)

    37 coulters on 55.88-cm (22-in.) spacing

    5

    2510L Side-Fold – 18.29 m (60 ft)

    17 coulters on 101.6-cm (40-in.) spacing

    5

  • Various sizes and configurations available to fit the right machine to any size operation
    #
    #

    The John Deere 2510L offers several different sizes to fit any size operation, big or small.

    Purpose

    Liquid application

    Model

    2510L Vertical-Fold – 9.14 m (30 ft)

    2510L Vertical-Fold – 12.19 m (40 ft)

    2510L Side-Fold – 18.29 m (60 ft)

    Allows application when outer wing folded

    Yes

    Yes

    Yes

    Toolbar frame

    17.78-cm x 17.78-cm (7-in. X 7-in.) single bar tube

    17.78-cm x 17.78-cm (7-in. X 7-in.) single bar tube

    12.7-cm x 17.78-cm (5-in. X 7-in.) double bar
    (single on outer wings)

    Operating frame clearance

    60.96 cm (24 in.)

    60.96 cm (24 in.)

    60.96 cm (24 in.)

    Spacing options

    (see below)

    76.2 cm (30 in.)
    91.44 cm (36 in.)

    50.8 cm (20 in.)
    55.88 cm (22 in.)
    76.2 cm (30 in.)
    91.44 cm (36 in.)
    96.52 cm (38 in.)
    101.6 cm (40 in.)

    50.8 cm (20 in.)
    55.88 cm (22 in.)
    76.2 cm (30 in.)
    101.6 cm (40 in.)

    Tank sizes

    3974.68 L (1050 gal.)
    5110.31 L (1350 gal.)
    6813.74 L (1800 gal.)

    3974.68 L (1050 gal.)
    5110.31 L (1350 gal.)
    6813.74 L (1800 gal.)

    6813.74 L (1800 gal.)
    9084.99 L (2400 gal.)

    Gauge wheels

    Two

    Two

    Four

    Tank fill

    3974.68 L(1050 gal.) and 5110.31 L (1350 gal.): 5.08-cm (2-in.) bottom fill
    6813.74 L (1800 gal.): 7.62-cm (3-in.) bottom fill

    3974.68 L(1050 gal.) and 5110.31 L (1350 gal.): 5.08-cm (2-in.) bottom fill
    6813.74 L (1800 gal.): 7.62-cm (3-in.) bottom fill

    7.62-cm (3-in.) bottom fill

    Coulters

    Heavy-duty 50.8-cm (20-in.) coulters

    Fertilizer delivery

    Knives or injectors

    Working depth

    Up to 10.16 cm (4 in.)

    Engine horsepower requirement

    140 - 160

    160 – 190

    200 – 220

    Rate Controller

    GreenStar™ Rate Controller

    Number of section shutoffs

    Two or Four

    Two or Four

    Five

    Operating speed

    8-16 kmh (5–8 mph)

    Transport width

    4.27 m (14 ft)

    4.27 m (14 ft)

    5.49 m (18 ft)

    Transport height

    4.06 m (13 ft, 4 in.)

    4.06 m (13 ft, 4 in.)

    3.175 m (10 ft, 5 in.)

    Selective control valves (SCV) required

    Three

    Four

    Three





    Spacing

    50.8 cm (20 in.)

    55.88 cm (22 in.)

    76.2 cm (30 in.)

    91.44 cm (36 in.)

    96.52 cm (38 in.)

    101.6 cm (40 in.)

    Number of coulters

    2510L Vertical-Fold
    9.14 m (30 ft)





    11 or 13







    2510L Vertical-Fold
    12.19 m (40 ft)

    23 or 25

    23

    15 or 17

    13

    11 or 13

    11 or 13

    2510L Side-Fold
    18.29 m (60 ft)

    35 or 37

    35 or 37

    23 or 25





    17



    Code

    Model

    Description

    5280

    2510L Vertical-Fold – 9.14 m (30 ft)

    11 coulters on 76.2-cm (30-in.) spacing

    5281

    2510L Vertical-Fold – 12.19 m (40 ft)

    11 coulters on 91.44-cm (36-in.) spacing

    5299

    2510L Vertical-Fold – 12.19 m (40 ft)

    11 coulters on 96.52-cm (38-in.) spacing

    5282

    2510L Vertical-Fold – 12.19 m (40 ft)

    13 coulters on 91.44-cm (36-in.) spacing

    528A

    2510L Vertical-Fold – 12.19 m (40 ft)

    13 coulters on 96.52-cm (38-in.) spacing

    529B2510L Vertical-Fold – 12.19 m (40 ft)13 coulters on 101.6-cm (40-in.) spacing

    5283

    2510L Vertical-Fold – 12.19 m (40 ft)

    11 coulters on 101.6-cm (40-in.) spacing

    5284

    2510L Vertical-Fold – 9.14 m (30 ft)

    13 coulters on 76.2-cm (30-in.) spacing

    5285

    2510L Vertical-Fold – 12.19 m (40 ft)

    15 coulters on 76.2-cm (30-in.) spacing

    5286

    2510L Vertical-Fold – 12.19 m (40 ft)

    17 coulters on 76.2-cm (30-in.) spacing

    5287

    2510L Vertical-Fold – 12.19 m (40 ft)

    23 coulters on 50.8-cm (20-in.) spacing

    5288

    2510L Vertical-Fold – 12.19 m (40 ft)

    23 coulters on 55.88-cm (22-in.) spacing

    5289

    2510L Side-Fold – 18.29 m (60 ft)

    23 coulters on 76.2-cm (30-in.) spacing

    5290

    2510L Vertical-Fold – 12.19 m (40 ft)

    25 coulters on 50.8-cm (20-in.) spacing

    5291

    2510L Side-Fold – 18.29 m (60 ft)

    25 coulters on 76.2-cm (30-in.) spacing

    5292

    2510L Side-Fold – 18.29 m (60 ft)

    35 coulters on 50.8-cm (20-in.) spacing

    5293

    2510L Side-Fold – 18.29 m (60 ft)

    35 coulters on 55.88-cm (22-in.) spacing

    5294

    2510L Side-Fold – 18.29 m (60 ft)

    37 coulters on 50.8-cm (20-in.) spacing

    5295

    2510L Side-Fold – 18.29 m (60 ft)

    37 coulters on 55.88-cm (22-in.) spacing

    528C2510L Side-Fold – 18.29 m (60 ft)17 coulters on 101.6-cm (40-in.) spacing
