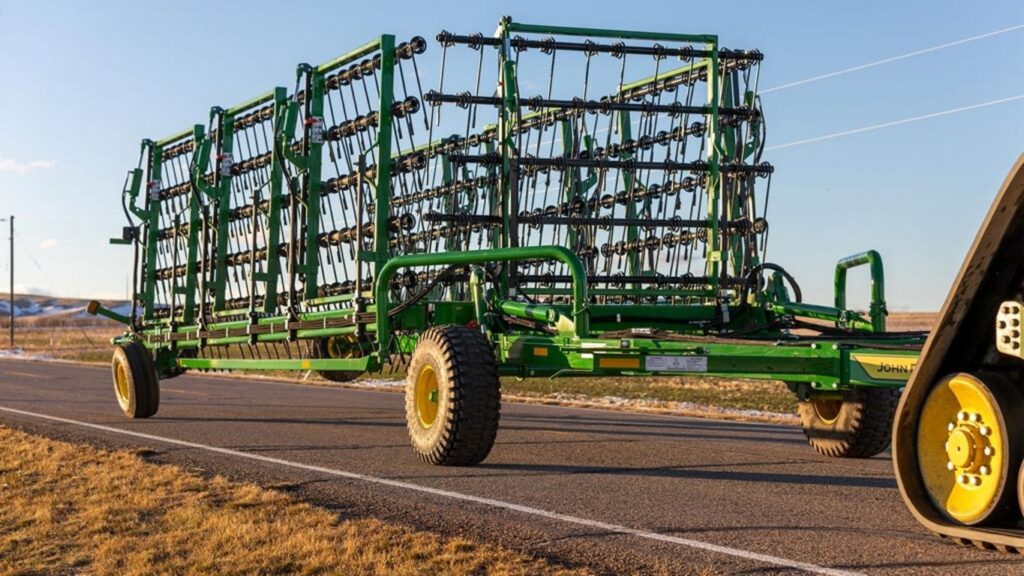

John Deere HH82

HH82 HH82 Heavy Harrow Tillage Tools

  • John Deere
  • Heavy Harrows

Find Your Nearest Location

Your Preferred Store
Change location Change location
Request Quote
Key Features & Specs
  • Break up and evenly spread straw residue
  • Work at speeds up to 12 mph (19.3 km/h)
  • Drop-out tine replacement for easy maintenance
  • Flexible sections maintain even ground contact
  • Harrow Sections 9
  • Working Width 82 ft. (25 m)
  • Tine Size 5 bar: 26-in. (66 cm) by 5/8-in.(1.5 cm)
    7 bar: 26-in. (66 cm) by ½-in.(1.3 cm)
  • Tine Spacing 5 bar: 18-in. (46 cm) centers
    7 bar: 14-in. (36 cm) centers
  • Engine Horsepower 5 bar: 300 - 350
    7 bar: 475 - 525
  • + Expand All
  • - Close All
  • Easy adjustment and maintenance with Heavy Harrow tine configurations
    HH70 Five-Bar model
    HH70 Five-Bar model

    The Heavy Harrow is available in either a five-row configuration with 66-cm x 1.6-cm (26-in. x 5/8-in.) tines or a seven-row configuration with 66-cm x 1.3-cm (26-in. x 1/2-in.) tines. Both configurations have tungsten carbide Endura-Tip tines.



    • Easily replace tines by removing a few bolts and easily dropping out the tine bar.
    • Tine adjustment is simple with either mechanical or hydraulic adjust options.
    • The seven-row configuration offers approximately 68 percent more ground coverage in the field over the five-row configuration.
  • Match acreage and power requirements with a variety of working widths
    HH70 Five-Bar model
    HH70 Five-Bar model

    The Heavy Harrow is available in sizes ranging from 15.2 m to 25 m (50 ft to 82 ft). Power requirements range from 111.9 kW to 354.2 kW (150 hp to 475 hp).



    Model

    Category

    Minimum engine power requirement

    15.2 m (50 ft), five bar

    4

    111.9 kW (150 hp)

    15.2 m (50 ft), seven bar

    4

    223.7 kW (300 hp)

    21.3 m (70 ft), five bar

    4

    149.1 kW (200 hp)

    21.3 m (70 ft, seven bar

    5

    298.3 kW (400 hp)

    25 m (82 ft), five bar

    4

    223.7 kW (300 hp)

    25 m (82 ft), seven bar

    5

    354.2 kW (475 hp)



    NOTE: Power requirement is dependent on field conditions and tine angle.
