A 23-hp (17.2-kW) V-twin engine with 44.3-cu in. (726-cc) displacement provides plenty of power and torque to handle tough mulching, mowing, and bagging conditions:
V-twin cylinder design for greater torque, lower vibration, and improved sound quality
Full-pressure lubrication and cast-iron sleeves to extend engine life
Engine model FR691V
Rear engine guard protects the engine from damage
Engine oil check/fill tube and oil-drain tube
Replaceable oil filter
Air filter
Simplify maintenance with oil-drain tube and easy-to-access air, fuel, and oil filters. Oil drain tube can be opened without tools and used to direct the used oil into a catch pan.
Dual transmissions efficiently power the ZTrak™ mower forward and reverse and give steering capability:
Transmissions are set low in the vehicle for excellent hillside stability.
Hydro-Gear® transmissions are reliable and durable.
Beefed-up 1-in. (2.5-cm) axles for greater strength
Maintenance-free unitized transmissions are sealed and have no hose connections to leak hydraulic fluid.
Hydro-Gear EZT transmission
Tow-valve control (left side shown)
Four-bolt hubs provide a reliable and convenient wheel-mounting system.
Tow-valve controls are provided for each transmission and located above the vehicle frame on either side of the engine:
Easy to reach and use
Allow the vehicle to be moved without the engine running
Hydro-Gear is a trademark of Hydro-Gear Limited Partnership AF Holding Company, a Delaware Corporation and Danfoss Power Solutions (US) Company, a Delaware Corporation.
ZTrak Mowers are designed around a heavy-duty formed and welded steel frame for strength and reliability. Large front caster wheels and large rear drive wheels provide several operator benefits:
Smoother ride
Better slope performance
More operator comfort over uneven ground
Better traction
The operator platform is roomy and uncluttered for maximum comfort, and the controls are convenient to use:
Easy to get on and off the mower
Ample legroom for comfortable operation
Adjustable motion-control levers for height and position, enabling the operator to stay comfortable while using them
Color-coded and logically placed controls
Styling is both functional and attractive

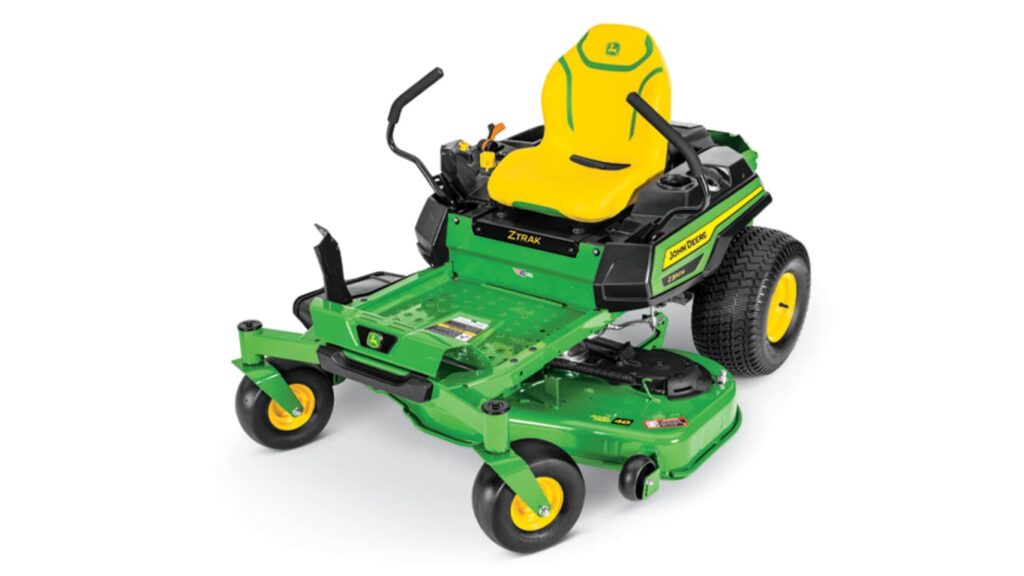

ZTrak Z320R Mower
The styling of ZTrak Mowers is functional and attractive to appeal to residential owners who value product appearance and the easy, comfortable operation that comes with thoughtful control designs:
Color-coded controls are not only attractive, but easy to find and use.
Large foot platform, surrounded by frame rails, has a safe and inviting appearance and provides easy access for the operator.
Contoured shape of the fenders provides improved visibility to the drive tires, minimizes storage space required, and adds to the stylish appearance of the vehicle.
Heavy-duty welded steel frame for reliability and long life
Z325E with foot platform removed to show frame
The ZTrak Mower frame is constructed of heavy-duty steel tubing for long-term durability:
2.5-in. x 2-in. (6-cm x 5-cm) steel tubing in front
1.5-in. x 2-in. (4-cm x 5-cm) steel tubing on sides
Front bumper
Front bumper
A front bumper protects the front of the mower from damage
Standard M- and R-Series models, optional on E-Series models
Rear hitch
Rear hitch
A rear hitch provides towing capability:
Pull a trailer up to 113 kg (250 lb.) of weight
Bolts to tubular frame for solid support
Standard on M- and R-Series models, and optional on E-Series models
A convenient service interval decal provides basic maintenance information. It provides a quick reference for keeping recommended service up to date.
Quick response (QR) codes link to owner information web pages
Example product identification number (PIN) label with QR code
John Deere riding lawn mowers are supported by owner information web pages that include links to:
Safety and how-to videos
Operator’s manuals
Parts catalog
Maintenance reminder sheets
Attachments
Warranty statements
To speed access to owner information web pages, a QR code is printed onto a PIN label located under the seat on the battery cover. Since each vehicle model has its own web page, the links are specific to the owner’s model. The QR code also includes the vehicle’s unique PIN which allows for additional customization of the owner information web page in the future.
Mower deck access
Footrest easily removed for access to mower
The footrest area is hinged and easily raised for service to mower deck:
No tools are needed to lift footrest
Easy to clean grass off the top of the mower
Provides convenient access to the mower drive
Engine service
Replaceable oil filter and fuel filter (shown on Z325E)
The engines are easy to service, including changing the oil and the oil filter and servicing the air filter.
Accel Deep™ Mower Deck
Flip-up cover for easy spindle-pocket access
Accel Deep Mower Decks have several features that make them easy to service:
Flat-top design minimizes places for debris to collect.
Spring-loaded, flip-up belt guards make removing debris easy.
Provision is provided for a standard, 3/8-in. (9.5-mm) ratchet wrench to be used for releasing belt tension when removing the drive belt.
Tie-down locations are provided for convenience and safety when trailering the machine.
Warranty
Limited bumper-to-bumper warranty for new turf and utility equipment (U.S. and Canada only):
The 54-in. (137-cm) Accel Deep Mower Deck is a forged-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:
4.83-in. (12.3-cm) deep throughout the entire deck shell for optimum mowing and mulching performance
Optional MulchControl™ system provides superior mulching performance and versatility.
Forged-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance
Mower deck is suspended from the vehicle for a smooth and level cut
Adjustable mower wheels, positioned just above ground level, help reduce scalping
0.25-in. (6.4-mm) cut-height increments allow the mower to be set at the desired cut height
Excellent cut quality
54A Mower Deck
54A Mower Deck
Deep mower-deck forging gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:
Reducing the amount of recutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
Helps maintain excellent cut quality at faster mowing speeds
Clean flow of material out of discharge area prevents cut material from interfering with cutting the incoming grass, making it possible for the blades to cut incoming material cleanly.
Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal recutting, and an even distribution of clippings.
Productivity - getting the job done fast
Right side of Accel Deep 54A Mower Deck
Deep mower-deck forging gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:
Greatly improves mowers capacity to maintain excellent mowing performance in difficult mowing conditions and at higher speeds
Large discharge opening is both high and wide to handle more material:
Gives a smooth, even discharge of clippings at all mowing speeds
Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass
Cleanliness - for the mower and the operator
Accel Deep 54A Mower Deck
The flat-top shape of the deck forging is optimal for keeping itself and the operator clean:
There are few places to catch and hold material on top and underneath the deck.
Top of deck stays cleaner, reducing time and effort needed for cleaning and service
Underside of deck is self-cleaning to maintain optimum performance without buildup of material to interfere with the flow of air and clippings
Less need to clean and remove buildup of material from underside deck
The depth of the Accel Deep Mower Deck minimizes the amount of material that escapes from the front of the deck
Limited amount of material to drift onto the operator and mower deck
Even for material discharged out the chute, less recutting results in larger pieces that are less likely to end up on the operator
Mulching prevents the discharge of material completely and MulchControl makes mulching a practical solution for most mowing situations.
Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:
The flat-top design reduces places for material to build up and makes material that does collect easy to remove.
Mower wash port
Mower wash port with hose connector
A wash port is provided to make cleaning the underside of the mower deck easy.
Hose connector is included with the mower deck.
Superior durability is designed in
Underside of 54A Mower Deck
Mower wheels are double captured
The 54A Mower Deck has strong spindle pockets, to keep the blades aligned, even after years of tough service:
Forged from strong 10-gauge, 0.135-in. (3.4-mm) steel
Ribs in the deck shell add strength where it is needed.
Mower wheels are double captured:
Provides greater strength and durability for longer, trouble-free life.
Single-bolt adjustment makes setting wheels to the correct height for the cutting height quick and easy.
Low-tension belt-drive design reduces the side load on engine lower bearings and mower deck bearings for longer life.
The 54A Mower Deck features a 5/8-in. (16-mm) diameter solid-steel rod side bumper that provides extra strength and protection.
Dual-stage E-coat and powder-paint coatings provide extra protection from rust.
Versatility - easy to change between side discharge and mulch modes
The 54A Mower Deck is designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another:
With MulchControl, changing from side discharge to mulching or vice versa is done with the simple flip of a lever.
MulchControl option
The MulchControl system for the 54A Mower Deck is an optional field-installed attachment and makes mulching practical for many mowing situations because it not only does an excellent job of mulching, but it also allows the mower to be easily converted for times when it is more desirable to side discharge the lawn material. Advantages of mulching grass clippings include:
A beautiful looking lawn
Grass clippings not blown onto the operator, driveways, or flower beds
Less fertilizer use
Elimination of the effort needed to dispose of clippings
How MulchControl works
MulchControl baffle open
MulchControl baffle closed
MulchControl is an innovative, simple design that is easy to use and maintain:
The MulchControl attachment includes baffles to control the flow of material under the deck.
The MulchControl baffle, or divider, between the left and middle spindles is about halfway down. The height is designed to balance the mulching and side-discharge modes.
When the MulchControl baffle is open, the divider between the left and middle spindles passes a portion of the material to the discharge opening, along with the material from the middle and right spindle areas.
When the MulchControl baffle is closed, the material stays within the deck and gets chopped into mulch and deposited in the turf.
MulchControl handle
The MulchControl handle is located on top of the mower deck and used to open and close the discharge baffle.
The operator is required to get off the machine in order to engage or disengage mulch mode.
Changing from mulching to side discharge or vice versa takes only a few seconds.
MulchControl is well-suited to the following mowing situations:
Usually mulch, but side discharge when grass gets too long
Usually side-discharge, but would like to be able to close the chute to control clippings
Always mulch a main lawn, but often side discharge secondary lawns
MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side discharge when needed.
While in the side-discharge mode, MulchControl still mulches about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
When cutting strong southern grasses, such as Zoysia and Bermuda
When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
When optimum bagging and lawn cleanup is desired
6.5-bu (230-L) Power Flow rear bagger
Z325E equipped with optional Power Flow rear bagger
An optional 6.5-bu (230-L) Power Flow rear bagger material collection system (MCS) is available for use with the 54-in. (137-cm) Accel Deep Mower. It provides an efficient means of collecting grass clippings and leaves.
The bagger design provides modern styling, great bagging performance, cleaner operation, and easy-to-empty bags:
Easy-to-attach Power Flow blower and chute
Power Flow blower swings out for easy cleanout and cleanup
The motion-control levers can be adjusted to three different height settings and eleven different fore-aft settings:
Increased operator comfort
Adjustable for more precise control of the machine
Tracking adjustment
A standard shock absorber for the motion-control levers makes maneuvering ZTrak™ Mowers easy and comfortable:
Shock absorber modulates the movement of control levers for smoother operation.
Operator can smoothly and precisely control the machine.
On-board tracking adjustment from the operator seat is quick and easy. The included 13-mm wrench is used for adjusting tracking and the motion-control lever position.
Control panel
Control panel (shown on Z315E)
The operator control panel is conveniently located and easy to use. The following instruments and controls are included:
Hour meter
Ignition switch
Power take-off (PTO) control
Engine speed/choke control
A choke position is built into the engine speed control (E-Series models).
A separate choke lever is used (M- and R- Series models).
Automatic Park brake
Motion-control levers in operating position disengages park brake
The integrated park brake is automatically applied when steering levers are stowed outward and disengaged when motion control levers are placed into operating position.
Mower deck lift/cut-height adjustment
Mower deck lift/cut-height adjustment
Foot pedal lift and cut-height adjustment
Easily lift the mower deck using the foot lift pedal.
A cut-height preset ensures the deck returns to the correct position.
Mower deck cutting height adjusts from 1.25 to 4.5 in. (3 to 11 cm) in 0.25-in. (0.64-cm) increments for excellent cut quality and performance.
The foot-lift pedal also provides a convenient way to temporarily raise the mower deck over an obstruction while mowing.
Heavy-duty PTO clutch
Electric PTO switch
PTO clutch
A heavy-duty electric PTO clutch is controlled by a convenient, dash-mounted control. The PTO clutch is designed to operate through many on/off cycles.
Steering is easy with large front caster wheels
Motion-control levers
Motion-control levers are designed for comfortable and easy operation.
A shock absorber is included to dampen the movement of the control levers so any operator can make smooth, controlled turns.
Front caster wheel
Pneumatic caster wheels give a smoother ride and easier steering:
Large 11x6-5 front caster wheels provide extra ride comfort and better steering control.
Caster wheels have sealed bearings for long life and easy steering.
Controls are designed to promote safe operation
Motion-control levers in outward position
Motion-control levers must be in the outward position for the engine to crank.
Interlock switch is located under the seat
Seat interlock switch disengages the mower when the operator leaves the seat.
Engine will stall if the operator leaves the seat without the motion-control levers in the outward position and the park brake set.
Light Emitting Diode (LED) lights
LED lights
LED lighting provides additional lighting when needed.
Forward LEDs light the front of vehicle, mid LEDs illuminate the front and side of the mower deck
Standard R-Series model, optional on E- and M-Series models
E- and M-Series models include wiring to speed installation
Keep a mower running its best and know how it mows with the John Deere MowerPlus app. Simply scan the mower’s barcode to get custom information about the mower.
Benefits
Engine hours, fuel level, and battery health (as compatible)
Mowing history with time, distance, area, and speed
Current day and five-day weather forecast based on location
Walk-through setup guides
Expert mowing tips
Useful attachments for future purchase
Periodic maintenance reminders
Safety instructions
To download the free MowerPlus app, visit the Apple® App Store® or Google Play™ store.
Additional details
MowerPlus connectors (sold separately)
MowerPlus Hour Meter Connector
MowerPlus Deluxe Smart Connector, with a phone
Three MowerPlus connectors are available to transmit vehicle information to the MowerPlus app.
BUC10510 MowerPlus Hour Meter Connector is for use with:
Model year 2003 to 2020 100 Series Tractors, including all models with an E, D, LA, or L prefix
Model year 2015 to 2020 S240 Tractors (serial number -880,000)
S100, S110, S140, and S220 Tractors
BUC10929 MowerPlus Deluxe Smart Connector is for use with:
All S120, S130, S160, S170, and S180 Tractors
Model year 2021 and newer S240 Tractors (serial number 880,001-)
Model year 2021 and newer Z515E, Z530M, Z530R, and Z545R (serial number 010,001-)
BUC10537 MowerPlus Smart Connector is for use with:
Model year 2016 and newer Select Series X300 and X500 Tractors
All the MowerPlus connectors transmit engine hour information to the app, making it easy to track maintenance intervals. The MowerPlus Smart Connector and MowerPlus Deluxe Smart Connector also transmit the fuel level.
MowerPlus connectors require the MowerPlus app on a mobile device to use. The John Deere MowerPlus app and operating system requirements can be found in the mobile device’s app store. The MowerPlus app is only available in the English language, and it is not available in all countries. BUC10510 MowerPlus Hour Meter Connector requires iOS® version 10 or higher and is not compatible with Android™ operating systems.
Apple and App Store are trademarks of Apple, Inc. Google Play and Android are trademarks of Google LLC. iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc.
The operator station is designed for operator comfort and convenience when operating all controls:
Excellent visibility forward and to the trim side of the deck makes operation easy and comfortable for the operator.
Controls are color coded for easy identification.
Translucent fuel tank displays fuel level.
Twin-lever controls adjust, using cut-height pin/socket, for convenience and operator comfort.
A shock absorber dampens motion control lever movement to give smooth operation.
Comfortable seat
Comfortable M-Series seat
Comfortable R-Series seat
The M- and R-Series mowers have a cut-and-sewn seat with:
20-in. (51-cm) of height
Thick foam to soften bumps
Side-bolstering to stabilize the operator on uneven terrain
Embroidered John Deere logo and green accents
Standard armrests on R-Series models (armrests are optional on M-Series models)
Seat suspension
Seat suspension springs
Seat fore-aft adjustment
Two steel coil suspension springs under the seat absorb shocks when traveling over rougher areas to provide a smoother ride. The seat fore-aft position can also be changed without tools.
Cup holder and storage compartments
Cup holder
The cup holder is designed to hold common cup sizes securely
M-Series open storage compartment
R-Series covered storage compartment
A storage compartment provides a place for the operator to keep safety equipment, a cell phone, etc.
Operator foot platform
Z320M operator's platform
Z320R operator's platform
Large foot platform helps the operator remain comfortable and secure:
Volcano grips give a secure grip.
Raised footrests at the front of the platform provide a comfortable area for the operator's feet.
An attractive floor mat is standard on R-Series models and optional on M-Series models.
The 48-in. (122-cm) Accel Deep Mower Deck is a forged-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds or in tall grass:
4.83-in. (12.3-cm) deep throughout the entire deck shell for optimum mowing and mulching performance
Optional MulchControl™ system provides superior mulching performance and versatility.
Forged-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance
Mower deck is suspended from the vehicle for a smooth and level cut
Adjustable mower wheels, positioned just above ground level, help reduce scalping
0.25-in. (6.4-mm) cut-height increments allow the mower to be set at the desired cut height
Excellent cut quality
48A Mower Deck top
48A Mower Deck underside
Deep mower-deck forging gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:
Reducing the amount of re-cutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
Helps maintain excellent cut quality at faster mowing speeds
Clean flow of material out of discharge area prevents cut material from interfering with cutting the incoming grass, making it possible for the blades to cut incoming material cleanly.
Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal re-cutting, and an even distribution of clippings.
Productivity - getting the job done fast
Right side of Accel Deep 48A Mower Deck
Deep mower-deck forging gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of recutting so more power is available to process incoming grass:
Greatly improves mowers capacity to maintain excellent mowing performance in difficult mowing conditions and at higher speeds
Large discharge opening is both high and wide to handle more material:
Gives a smooth, even discharge of clippings at all mowing speeds
Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass
Cleanliness - for the mower and the operator
Accel Deep 48A Mower Deck
The flat-top shape of the deck forging is optimal for keeping itself and the operator clean:
There are few places to catch and hold material on top and underneath the deck.
Top of deck stays cleaner, reducing time and effort needed for cleaning and service
Underside of deck is self-cleaning to maintain optimum performance without buildup of material to interfere with the flow of air and clippings
Less need to clean and remove buildup of material from underside deck
The depth of the Accel Deep Mower Deck minimizes the amount of material that escapes from the front of the deck
Limited amount of material to drift onto the operator and mower deck
Even for material discharged out the chute, less recutting results in larger pieces that are less likely to end up on the operator
Mulching prevents the discharge of material completely and MulchControl makes mulching a practical solution for most mowing situations.
Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:
The flat-top design reduces places for material to build up and makes material that does collect easy to remove.
Mower wash port
Mower wash port with hose connector
A wash port is provided to make cleaning the underside of the mower deck easy.
Hose connector is included with the mower deck.
Superior durability is designed in
Underside of 48A Mower Deck
Mower wheels are double captured
The 48A Mower Deck has strong spindle pockets, to keep the blades aligned, even after years of tough service:
Forged from strong 10-gauge, 0.135-in. (3.4-mm) steel
Ribs in the deck shell add strength where it is needed.
The 48A has a 23 percent heavier overall weight than the Edge™ Xtra 48-in. (122-cm) Mower Deck used on previous machines.
Mower wheels are double captured:
Provides greater strength and durability for longer, trouble-free life.
Single-bolt adjustment makes setting wheels to the correct height for the cutting height quick and easy.
Low-tension belt-drive design reduces the side load on engine lower bearings and mower deck bearings for longer life.
The 48A Mower Deck features a 5/8-in. (16-mm) diameter solid-steel rod side bumper that provides extra strength and protection.
Dual-stage E-coat and powder-paint coatings provide extra protection from rust.
Versatility - easy to change between side discharge and mulch modes
The 48A Mower Deck is designed for maximum versatility, providing the greatest ease in changing from one mower discharge mode to another:
With MulchControl, changing from side discharge to mulching or vice versa is done with the simple flip of a lever.
MulchControl option
The MulchControl system for the 48A Mower Deck is an optional field-installed attachment and makes mulching practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge the lawn material. Advantages of mulching grass clippings include:
A beautiful looking lawn
Grass clippings not blown onto the operator, driveways, or flower beds
Less fertilizer use
Elimination of the effort needed to dispose of clippings
How MulchControl works
MulchControl baffle open
MulchControl baffle closed
MulchControl is an innovative, simple design that is easy to use and maintain:
The MulchControl attachment includes baffles to control the flow of material under the deck.
The MulchControl baffle, or divider, between the left and middle spindles is about halfway down. The height is designed to balance the mulching and side-discharge modes.
When the MulchControl baffle is open, the divider between the left and middle spindles passes a portion of the material to the discharge opening, along with the material from the middle and right spindle areas.
When the MulchControl baffle is closed, the material stays within the deck and gets chopped into mulch and deposited in the turf.
MulchControl handle
The MulchControl handle is located on top of the mower deck and used to open and close the discharge baffle.
The operator is required to get off the machine in order to engage or disengage mulch mode.
Changing from mulching to side discharge or vice versa takes only a few seconds.
MulchControl is well-suited to the following mowing situations:
Usually mulch, but side discharge when grass gets too long
Usually side-discharge, but would like to be able to close the chute to control clippings
Always mulch a main lawn, but often side discharge secondary lawns
MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side discharge when needed.
While in the side-discharge mode, MulchControl still mulches about one-third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
When cutting strong southern grasses, such as Zoysia and Bermuda
When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
When optimum bagging and lawn cleanup is desired
6.5-bu (230-L) Power Flow rear bagger
Z325E equipped with optional Power Flow rear bagger
An optional 6.5-bu (230-L) Power Flow rear bagger material collection system (MCS) is available for use with the 48-in. (122-cm) Accel Deep Mower. It provides an efficient means of collecting grass clippings and leaves.
The bagger design provides modern styling, great bagging performance, cleaner operation, and easy-to-empty bags:
Easy-to-attach Power Flow blower and chute
Power Flow blower swings out for easy cleanout and cleanup
Air exhaust duct
Convenient spring-latch
Airflow fill indicator
Quik-Tatch™ mounting
Sealed hopper top
Loose-knit bags available
Buyer's notes
Warranty
3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Note 1
Durable Accel Deep Mower Decks are forged from 10-gauge steel with double captured mower wheels
Note 3
Integrated park brake is automatically applied when steering levers are stowed outward
Note 2
Easily change cut height from 1.25 to 4.5 in. (3 to 11 cm) using the foot lift and cutting height dial
Chassis
Storage compartment
Optional covered
Front caster tires
11x6-5
Maximum towing capacity
250 lb 113 kg
Front caster bearings
Sealed ball bearings
Cup holder
Yes
Frame
Heavy-duty 2.5-in. x 2-in. (6-cm x 5-cm) front, and 1.5-in. x 2-in. (4-cm x 5-cm) side tubing
Drive tires
20x10-8
Service interval decal
Yes
Primer/paint
E-coat/powder
Hour meter
Yes
Dimensions
Width without mower
43.3 in. 1100 mm
Overall length
75.4 in. 1915 mm
Width with mower
48A: 62.6 in. 1590 mm 54A: 68.5 in. 1740 mm
Wheelbase
49.4 in. 1255 mm
Weight
48A: 598 lb 272 kg 54A: 609 lb 277 kg
Height
44.2 in. 1123 mm
Width with mower (deflector raised for storage)
48A: 52.8 in. 1340 mm 54A: 57.1 in. 1450 mm
Drive train
Dual hydros
Hydro-Gear EZT-D with 1-in. (2.5-cm) axles
Engine
Power
23 hp 17.2 kW
Battery
12 V 300 CCA
Type
Overhead valve
Cylinders
V-twin
Model number
FR691V
Fuel gauge
Translucent tank
Lubrication
Full pressure with replaceable filter, capacity, 2.2 U.S. qt 2.1 L
Choke/speed control
Separate levers
Fuel tank capacity
3.0 U.S. gal. 11.4 L
Displacement
44.3 cu in. 726 cc
Cooling method
Air
Key Specs
Warranty
3 year or 200 hour bumper-to bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.)
Mulching system
Optional MulchControl™ attachment
Front caster tires
11x6.5
Engine power
23 hp 17.2 kW
Engine model number
FR691V
Forward speed
0-7 mph 0-11.3 km/h
Width of cut
Accel Deep™ mower deck, 48 in. 122 cm Accel Deep™ mower deck, 54 in. 137 cm
Seat back height
High back with optional armrests, 20 in. 51 cm
Drive tires
20x10-8
Lift system
Type
Foot lift
Preset cut height
Yes
Mower cut height
1.25-4.5 in. 3-11 cm
Cut height increments
0.25 in. 0.64 cm
Mower deck
Mower deck material
10 gauge 0.135 in. 3.4 mm
Width of cut
Accel Deep™ mower deck, 48 in. 122 cm Accel Deep™ mower deck, 54 in. 137 cm
Type
Side discharge
Mower drive system
V-belt
Operation
Slope operating limit
13 degrees; 10 degrees with Material Collection System
Fill out this form to request a quote. A representative will get in touch with you as soon as possible.
Thank you for submitting.
Request Service
Fill out our request form to contact us about service.
Thank you for submitting.
Request Parts
Fill out our request form to contact us about parts.
Thank you for submitting.
Request Used Parts
Fill out our request form to contact us about used parts.
Thank you for submitting.
Request Rental
Fill out our request form to contact us about rentals.
Thank you for submitting.
Contact us about Precision Ag
Fill out our request form to contact us about precision ag technology.
Thank you for submitting.
Contact us
Fill out our contact form and a representative will be back in touch with you soon.
Thank you for submitting.
Learn More About Our Service Programs
Thank you for submitting.
Send us your feedback
We'd love to hear your feedback! Please fill out the form below to share.
Thank you for submitting.
Body Shop
Fill out this form to get in contact with our body shop. A representative will get in touch with you as soon as possible.
Thank you for submitting.
Papé Technician Training Program Interest Application
Thank you for submitting.
Technician Application
Thank you for submitting.
Events, Donations and Sponsorships
Thank you for submitting.
Join The Papé Team
Fill out our career form and a representative will be back in touch with you soon.
Thank you for submitting.
Contact us
Fill out our contact form and a representative will be back in touch with you soon.
Thank you for submitting.
Thank you for coming in, you are important to us! Please fill in your information below and one of our members will help you as soon as we can.
Thank you for submitting.
Thank you for your interest in electrification, you are important to us! Please fill in your information below and one of our members will reach out to you as soon as we can.
Thank you for submitting.
Giveaway Submission
Thank you for submitting.
Vaccination Status Survey
Thank you for submitting.
General Newsletter
Thank you for submitting.
Hawaii Newsletter
Thank you for submitting.
Request Dealer Transfer
Thank you for submitting.
Contact us
Fill out our contact form and a representative will be back in touch with you soon.
Thank you for submitting.
Thank you for your interest in upgrading to a premium John Deere compact utility tractor. Please fill in your information below and a Papé Machinery member will contact you shortly.
