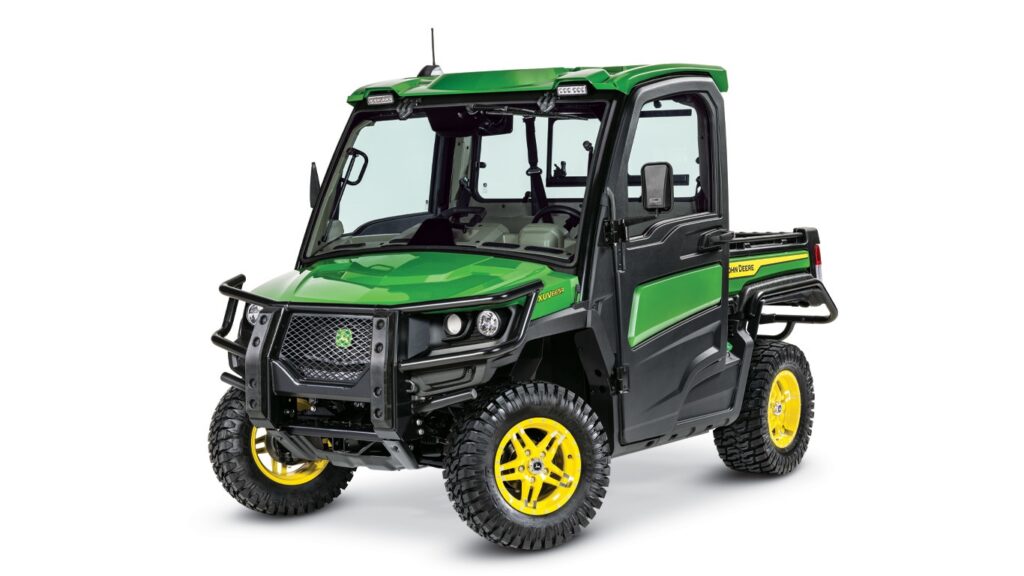

John Deere XUV865R Signature Edition
  • + Expand All
  • - Close All
  • Haul more in fewer trips

    The full-size Gator™ XUV can haul 454 kg (1000 lb), so load it up with confidence. You can also make fewer trips with 1814 kg (4000 lb) of towing capacity and a standard 51-mm (2-in.) receiver hitch.

    Built-tough cargo box
    Cargo box (shown with spray-in liner and optional taillight protectors) Cargo box (shown with spray-in liner and optional taillight protectors)
    Cargo box converted to flatbed Cargo box converted to flatbed

    The cargo box resists dents, scratches, and rust because it is made from a tough composite material. You will have no problem securing loads with integrated tie bars and 14 tie-down points. You can also convert the cargo box to a flatbed when you need to haul big and bulky loads.



    The cargo box measures 1143 mm (45 in.) long, 1320 mm (52 in.) wide, and 305 mm (12 in.) deep.

    One-handed tailgate
    Tailgate handle Tailgate handle

    Since your hands are always full, the tailgate can be opened and closed with one hand. You can also lower the tailgate to carry longer items or remove it for easy cleanout.

    Power lift
    Deluxe cargo box unloading rocks Deluxe cargo box unloading rocks

    To save your back, the optional cargo box power lift empties heavy loads with the push of a button.

  • Store more gear

    One-row full-size Gator XUVs come packed with places to store tools, gear, and beverages.

    Cup holders
    Four cup holders and center tray (shown on XUV835E) Four cup holders and center tray (shown on XUV835E)
    Cab door cup holder and pocket Cab door cup holder and pocket

    The dash has four cup holders, and cab vehicles have a cup holder in each door.

    Dash and under-seat storage
    Under seat storage (shown on XUV835E) Under seat storage (shown on XUV835E)
    Glove box, storage pocket, and two dash bins (shown on XUV835M cab) Glove box, storage pocket, and two dash bins (shown on XUV835M cab)

    The vehicles also feature an enclosed glove box, center tray, dash storage pocket and under-seat storage. Depending on the configuration, vehicles may have up to three additional dash bins and under-hood storage.

  • Built for the long haul

    Full-size Gator™ XUVs are built to work hard and go the extra mile.

    Heavy-duty frame
    Underside view of XUV865M Underside view of XUV865M
    Underside view of XUV825M S4 Underside view of XUV825M S4

    The hefty frame is designed to stand-up to all the bumps and bends of the trail, and the standard front skid plate protects key components from damage.

    Constant velocity boot protection
    Constant velocity boot protection Constant velocity boot protection

    Constant velocity joints are enclosed to keep water and dirt out. A protector shield protects the boot from trail debris.

    Automotive-grade panels and optional protection packages
    TrueTimber® KANATI camo XUV865R with optional Premium Protection Package TrueTimber® KANATI camo XUV865R with optional Premium Protection Package

    The hood and side panels are made of automotive-grade materials that resist scratches and dents, and the cargo box is made of tough composite material that resists dents and rust. Optional protection packages look tough and provide even more protection.



    TrueTimber® is a trademark of True Timber Outdoors Holding Company, LLC.

  • Go further between fill ups
    Large fuel tank fill opening Large fuel tank fill opening

    Full-size Gator™ XUVs have a large 42.8-L (11.3-gal.) fuel tank so you go further between fill ups. A 76-mm (3-in.) diameter fill opening reduce spills.

  • Room for you, plus two, with cab comfort

    When you hop into the seat of a full-size Gator™ Utility Vehicle, you will notice there’s seating for you, plus two.

    Three-passenger seating with room to spare
    40/60 split three-passenger bench seat 40/60 split three-passenger bench seat
    Operator platform Operator platform

    The adjustable operator’s seat and tilt steering lets drivers of all sizes get comfortable, and the passenger grab handles help everyone feel secure. The low step height and generous opening between seat base and fender is even designed to accommodate bulky work boots.

    Climate-controlled comfort
    HVAC controls HVAC controls
    Partially-open door windows and fully-open windshield Partially-open door windows and fully-open windshield

    On cab vehicles, you will enjoy standard heating and air-conditioning that will keep you comfortable in every season, and the tight-closing doors help seal out dust and reduce noise. When you want to let in the breeze, you can also roll down the windows and open the front windshield.

    Upgrade to R-trim refinements
    Stone colored dash with sport steering wheel Stone colored dash with sport steering wheel
    Headliner, sun visors, rearview mirror, and dome light Headliner, sun visors, rearview mirror, and dome light

    R-trim vehicles have an upgraded stone-colored cab interior with headliner and rear panel to reduce noise. Standard LED headlights, sun visor, dome light, rearview mirror, and sport steering wheel round out the package.

    Stone cloth seat
    Stone cloth seat Stone cloth seat

    R-trim vehicles also include a stone cloth seat that keeps cool in the hot sun and warms up quickly in the winter.

  • Conquer tough terrain with confidence

    You will feel confident and comfortable, even on tough terrain, with a full-size Gator™ Utility Vehicle. You will feel stable with a low center of gravity and a wide stance. Engine braking and four-wheel hydraulic disc brakes keep you in control on steep descents, even when fully loaded. The power steering on M- and R-Trim vehicles, is smooth and responsive.

    Standard four-wheel drive with rear differential lock
    Dash mounted four-wheel drive and rear differential lock switches Dash mounted four-wheel drive and rear differential lock switches

    With standard four-wheel drive and rear differential lock, both instantly available with the flip of a switch, you can get where you are going.

    Dual A-arm front and rear independent suspension
    Rear suspension and ground clearance Rear suspension and ground clearance

    The independent suspension provides a smooth ride as 203 mm (8 in.) of front suspension travel and 229 mm (9 in.) of rear suspension travel cushions bumps and glides over ruts. And clearing rocks and roots is no problem with 284 mm (11.2 inches) of ground clearance.

    Tires for any terrain
    Terra Hawk all-terrain tire Terra Hawk all-terrain tire
    Maxxis® Bighorn® 2.0 extreme terrain radial tire Maxxis® Bighorn® 2.0 extreme terrain radial tire
    Predator Heavy-Duty all-terrain radial tire Predator Heavy-Duty all-terrain radial tire

    Full-Size Gator Utility Vehicles are available with three tire options:

    • Terra Hawk all-terrain tires
      • Tread pattern and wide footprint provide excellent traction with minimal impact on terrain
    • Maxxis Bighorn 2.0 extreme terrain radial tires
      • Radial construction provides shock absorption, allowing for a smoother ride
      • Non-directional tread pattern provides predictable cornering and claws up roots and rocks
    • Predator Heavy-Duty all-terrain radial tire
      • Radial construction provides shock absorption, allowing for a smoother ride
      • Flat profile increases footprint area, reducing ground pressure
      • 8-ply rating delivers up to three times the life of Bighorn tires



    Maxxis® Bighorn® is registered trademark of Cheng Shin Rubber Ind. Co., Ltd.

  • Signature Edition Gator™ Utility Vehicles are loaded with exclusive features

    The Signature Edition Gator Utility Vehicles leverage technology to deliver a distinctive experience. Features include:

    • Factory-installed touchscreen infotainment system
    • Bumper Pro Brush Guard, rear fender flares, rear fender guards, and rear bumper
    • Genuine leather 40/60 split three-passenger bench seat
    • Rear-facing camera
    • Easy-access rear-sliding window
    • Leather-wrapped grab handle
    • Signature Edition badges
    • Front roof-mounted light-emitting diode (LED) driving lights
    • Maxxis® Bighorn® 2.0 extreme terrain or Predator Heavy-Duty all-terrain radial tires with alloy wheels
    • Cargo box power lift
    • Deluxe cargo box with spray-in liner, brake lights, and taillights
    • Green and yellow color
    • All existing R-trim cab features including:
      • Integrated heating, ventilation, and air conditioning (HVAC)
      • Stone interior
      • Sport steering wheel
      • Sound dampening headliner and rear panel cover
      • A- and B-post covers
      • Interior rearview mirror, sun visor, and dome light
      • Windshield wiper and washer
    Factory-installed touchscreen infotainment system
    Automotive grade touchscreen entertainment system Automotive grade touchscreen entertainment system
    Rear facing camera view Rear facing camera view

    Signature Edition’s standard 16.3-cm (6.4-in.) touchscreen infotainment system delivers seven speakers, rear-facing camera, Bluetooth® wireless connectivity, AM/FM, and SiriusXM® satellite radio. The infotainment system is designed for use during operation and while parked.



    Android™ smartphones

    When an Android smartphone is connected using an USB cable, or paired using a wireless connection, the operator can access select smartphone functions through the infotainment touchscreen. For example, the touchscreen can be used to place hand-free phone calls, send text messages, and play music.



    Apple® iPhone® smartphones

    An Apple iPhone can be connected using a USB cable or paired using a wireless connection. Similar to an Android wireless connection, the operator can access select iPhone functions through the infotainment touchscreen. Because of voice control limitations, the infotainment system is not compatible with Apple CarPlay® software.



    Seven-speaker infotainment system professionally tuned by Harman:

    • Two headliner and two dash full-range speakers
    • Two A-pillar tweeters and an under-seat subwoofer
    • Water-resistant construction prevents damage in outdoor environments
    • Powerful for listening outside the vehicle

    Rear-facing camera:

    • Is displayed on the infotainment screen with the push of a button
    • Can be used at any time, including spreading and spraying
    • Assists in positioning the vehicle to accurately place material dumped from the cargo box
    • Provides visibility to the hitch ball to precisely align trailer hitches
    • Is mounted to cargo box, and the box can be raised for a hitch-focused perspective

    Sirius XM satellite radio:

    • Provides access to hundreds of channels of music, live sports, world-class news, and entertainment
    • Includes a factory-installed antenna
    • Requires a separate subscription

    USB ports:

    • Can be used to charge phones and USB devices
    • Supports connectivity
    • Are located under the radio

    Auxiliary port:

    • Allows any audio device with a headphone jack to play music through the infotainment system
    • Is located under the radio
    Bumper Pro Brush Guard, rear fender flares, rear fender guards, and rear bumper
    Bumper Pro Brush Guard Bumper Pro Brush Guard
    Rear fender guard, and fender flare Rear fender guard, and fender flare

    Signature Edition vehicles include components to protect the vehicle:



    • Bumper Pro Brush Guard:
      • Protects the front grille, lights, hood, and sides
      • Has eye-catching and assertive appearance
      • Includes full-height rubber bumpers to soften contact with obstructions, including cattle gates
      • Has center screen that keeps trash from entering the radiator, which eases maintenance
      • Reaches around the side, so there is no need for brush guard extensions
      • Tilts forward for hood access
      • Is compatible with BUC10247 front fender guards
      • Is not compatible with BM26215 LED driving lights
    • Rear fender flares:
      • Keeps mud and debris off the vehicle
      • Refined molded construction
      • Includes BUC11375 rear fender flares
    • Rear fender guards and rear bumper:
      • Protects the rear and sides of cargo box
      • Includes BUC11320 rear fender guard and BM22767 rear bumper
    Genuine leather 40/60 split three-passenger bench seat
    Genuine leather 40/60 split three-passenger bench seat Genuine leather 40/60 split three-passenger bench seat

    Signature Edition vehicles feature a genuine leather bench seat that is durable and comfortable. An embroidered John Deere logo adds to the distinctiveness of a Signature Edition vehicle.

    Rear-sliding window
    Rear sliding window Rear sliding window

    Signature Edition vehicles include a rear-sliding window that can provide access to the cargo box and provide additional ventilation.

    Leather-wrapped grab handle
    Leather-wrapped grab handle Leather-wrapped grab handle

    Signature Edition vehicles include a leather-wrapped grab handle. The stitching is eye catching, and a foam base layer gives a soft feel.

    Signature Edition badges
    Signature Edition badge on dash Signature Edition badge on dash
    Upgraded Gator and Signature Edition badges on tailgate Upgraded Gator and Signature Edition badges on tailgate

    Signature Edition vehicles include badges on the dash and tailgate to designate their exclusivity. The tailgate’s Gator badge is also upgraded to complement the Signature Edition badge.

    Front roof-mounted LED driving lights
    Front roof-mounted LED driving lights Front roof-mounted LED driving lights

    Signature Edition vehicles include factory-installed LED driving lights mounted to the front of the cab roof. The LED lights have a driving-focused beam pattern to illuminate directly in front of the vehicle.

    A-post cover A-post cover
    B-post cover B-post cover
    R-trim cab features
    Ultimate dash in stone with sport steering wheel Ultimate dash in stone with sport steering wheel
    Headliner, visors, rearview mirror, and dome light Headliner, visors, rearview mirror, and dome light
    Rear panel cover Rear panel cover

    Signature Edition vehicles include all the R-trim cab features including:

    • Heating and air-conditioning
    • Stone interior
    • Sport steering wheel
    • Sound dampening headliner and rear panel cover
    • A- and B-post covers
    • Interior rearview mirror, sun visor, and dome light
    • Windshield wiper and washer
  • Add precision ag technology to your Gator™ Utility Vehicle
    XUV835R with AutoTrac Ready option XUV835R with AutoTrac Ready option
    Interior of XUV835R with Gen 4 4640 Universal Display Interior of XUV835R with Gen 4 4640 Universal Display

    Precision ag technologies have changed the way we farm, and John Deere has been at the forefront of that change. Adding the AutoTrac™ assisted steering system and JDLink™ Modem options to Gator Utility Vehicles brings precision ag technology to farms of all sizes.



    The AutoTrac Ready option enables hands-free steering through the field decreasing overlap and lowering input costs while reducing operator fatigue. The JDLink Modem option connects your vehicle to the John Deere Operations Center so the vehicle can be managed with the rest of your fleet.

    Simplify field boundaries

    • Check field boundaries and identify hazards as the Gator Utility Vehicle steers itself along established boundary lines.
    • Create new boundary lines, even when the soil is too wet for larger equipment.



    Improve soil mapping

    • The days of picking a tree across the field to navigate are over. Use guidance lines to create a sampling grid and let your Gator Utility Vehicle keep you on track as you pull plugs across the field.



    Connect your Gator Utility Vehicle to the rest of your fleet

    • Leave the USB drives at home as you wirelessly send your data to and from your Gator Utility Vehicle.
    • A planter operator can flag the exact location of a large rock so the Gator UV can be sent to the location to remove the hazard.



    Save time and stop waiting for the perfect day to spray

    • When paired with a tow behind sprayer and rate controller, the Gator Utility Vehicle’s lighter weight allows work to be completed when the ground is too wet for larger equipment.
    • Speed through spraying by allowing the Gator Utility Vehicle to steer a predefined path around buildings and fence rows.



    Track productivity, maintenance, and machine vitals

    • Track the current and past locations of your Gator Utility Vehicle in the John Deere Operations Center, just like the rest of your fleet.
    • Know when your Gator Utility Vehicle is ready for scheduled maintenance



    Share StarFire™ Receiver and Universal Display

    • You can leave precision ag technology components installed year-round or share your StarFire Receiver and Universal Display with another piece of equipment.
  • Automotive-like controls
    Instrument display, shift lever, and switches (shown on XUV835R Signature Edition) Instrument display, shift lever, and switches (shown on XUV835R Signature Edition)

    When you sit behind the wheel of a full-size Gator™ Utility Vehicle, you will be reminded of your favorite pick-up truck. There are controls at your fingertips, an easy-to-read instrument panel, and outlets to recharge your phone.



    Shift from park and into gear with a throw of a single lever. Power steering on M- and R- trim vehicles is smooth and responsive.



    When the going gets tough, you can instantly engage four-wheel drive and rear differential lock with switches. Even at night, the backlit switches are easy to see. If a front wheel starts to slip, the front differential automatically locks to pull you through.

  • Durable, fuel-efficient diesel-powered drivetrain
    854-cc (52.1-cu in.) diesel engine and drivetrain 854-cc (52.1-cu in.) diesel engine and drivetrain

    The XUV865 and XUV825M S4 Gator™ Utility Vehicles are powered by a fuel-efficient and durable diesel engine. The enclosed drivetrain automatically adjusts for fast acceleration, along with powerful hauling and hill-climbing capabilities. With plenty of torque to get the job done, this engine will provide reliable performance for years to come.

  • Color options and styling
    Green and yellow XUV835R Signature Edition with included Ultimate Protection Package Green and yellow XUV835R Signature Edition with included Ultimate Protection Package
    Olive and black XUV865M with cab and optional brush guard Olive and black XUV865M with cab and optional brush guard
    TrueTimber® KANATI camo XUV865R with optional Premium Protection Package TrueTimber® KANATI camo XUV865R with optional Premium Protection Package
    Desert sand, XUV835M Honor Edition with included brush guard Desert sand, XUV835M Honor Edition with included brush guard

    You will get noticed with the distinctive styling of full-size Gator™ XUVs. Available in four colors, with various protection packages, and more than 100 attachments, you can create a custom look that will turn heads.



    TrueTimber is a trademark of True Timber Outdoors Holding Company, LLC.

Brakes

Type Front/rear hydraulic disc with twin piston front calipers
Park brake Park in-transmission, Optional factory-installed secondary foot operated with hand release
