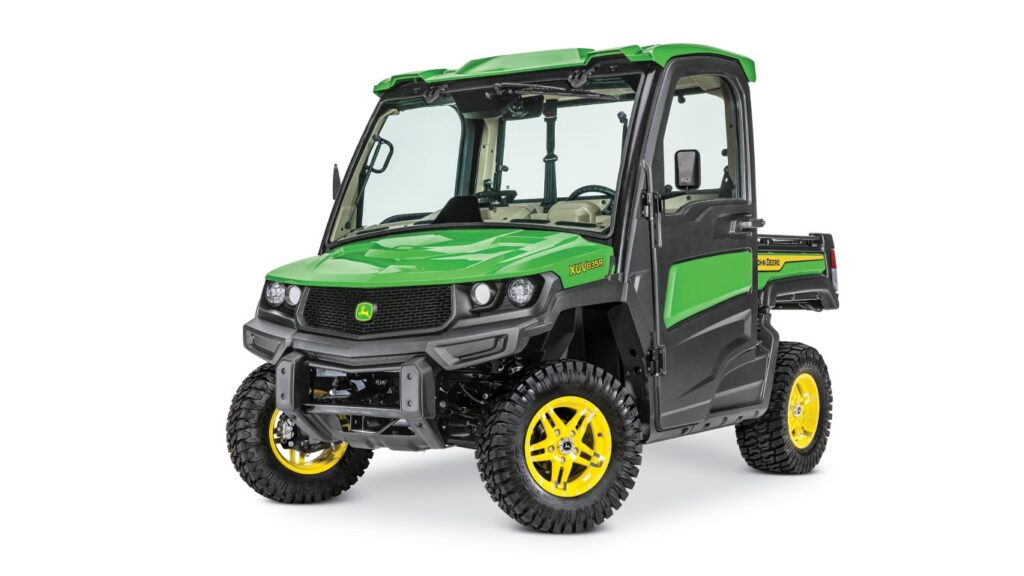

XUV835R with AutoTrac Ready option

Interior of XUV835R with Gen 4 4640 Universal Display

Precision ag technologies have changed the way we farm, and John Deere has been at the forefront of that change. Adding the AutoTrac™ assisted steering system and JDLink™ Modem options to Gator Utility Vehicles brings precision ag technology to farms of all sizes.

The AutoTrac Ready option enables hands-free steering through the field decreasing overlap and lowering input costs while reducing operator fatigue. The JDLink Modem option connects your vehicle to the John Deere Operations Center so the vehicle can be managed with the rest of your fleet.

Simplify field boundaries

• Check field boundaries and identify hazards as the Gator Utility Vehicle steers itself along established boundary lines.
• Create new boundary lines, even when the soil is too wet for larger equipment.

Improve soil mapping

• The days of picking a tree across the field to navigate are over. Use guidance lines to create a sampling grid and let your Gator Utility Vehicle keep you on track as you pull plugs across the field.

Connect your Gator Utility Vehicle to the rest of your fleet

• Leave the USB drives at home as you wirelessly send your data to and from your Gator Utility Vehicle.
• A planter operator can flag the exact location of a large rock so the Gator UV can be sent to the location to remove the hazard.

Save time and stop waiting for the perfect day to spray

• When paired with a tow behind sprayer and rate controller, the Gator Utility Vehicle’s lighter weight allows work to be completed when the ground is too wet for larger equipment.
• Speed through spraying by allowing the Gator Utility Vehicle to steer a predefined path around buildings and fence rows.

Track productivity, maintenance, and machine vitals

• Track the current and past locations of your Gator Utility Vehicle in the John Deere Operations Center, just like the rest of your fleet.
• Know when your Gator Utility Vehicle is ready for scheduled maintenance

Share StarFire™ Receiver and Universal Display

• You can leave precision ag technology components installed year-round or share your StarFire Receiver and Universal Display with another piece of equipment.

The full-size Gator™ XUV can haul 454 kg (1000 lb), so load it up with confidence. You can also make fewer trips with 1814 kg (4000 lb) of towing capacity and a standard 51-mm (2-in.) receiver hitch.

Built-tough cargo box

Cargo box (shown with spray-in liner and optional taillight protectors)

Cargo box converted to flatbed

The cargo box resists dents, scratches, and rust because it is made from a tough composite material. You will have no problem securing loads with integrated tie bars and 14 tie-down points. You can also convert the cargo box to a flatbed when you need to haul big and bulky loads.

The cargo box measures 1143 mm (45 in.) long, 1320 mm (52 in.) wide, and 305 mm (12 in.) deep.

One-handed tailgate

Tailgate handle

Since your hands are always full, the tailgate can be opened and closed with one hand. You can also lower the tailgate to carry longer items or remove it for easy cleanout.

Power lift

Deluxe cargo box unloading rocks

To save your back, the optional cargo box power lift empties heavy loads with the push of a button.

When you hop into the seat of a full-size Gator™ Utility Vehicle, you will notice there’s seating for you, plus two.

Three-passenger seating with room to spare

40/60 split three-passenger bench seat

Operator platform

The adjustable operator’s seat and tilt steering lets drivers of all sizes get comfortable, and the passenger grab handles help everyone feel secure. The low step height and generous opening between seat base and fender is even designed to accommodate bulky work boots.

Climate-controlled comfort

HVAC controls

Partially-open door windows and fully-open windshield

On cab vehicles, you will enjoy standard heating and air-conditioning that will keep you comfortable in every season, and the tight-closing doors help seal out dust and reduce noise. When you want to let in the breeze, you can also roll down the windows and open the front windshield.

Upgrade to R-trim refinements

Stone colored dash with sport steering wheel

Headliner, sun visors, rearview mirror, and dome light

R-trim vehicles have an upgraded stone-colored cab interior with headliner and rear panel to reduce noise. Standard LED headlights, sun visor, dome light, rearview mirror, and sport steering wheel round out the package.

Stone cloth seat

Stone cloth seat

R-trim vehicles also include a stone cloth seat that keeps cool in the hot sun and warms up quickly in the winter.

Green and yellow XUV835R Signature Edition with included Ultimate Protection Package

Olive and black XUV865M with cab and optional brush guard

TrueTimber® KANATI camo XUV865R with optional Premium Protection Package

Desert sand, XUV835M Honor Edition with included brush guard

You will get noticed with the distinctive styling of full-size Gator™ XUVs. Available in four colors, with various protection packages, and more than 100 attachments, you can create a custom look that will turn heads.

TrueTimber is a trademark of True Timber Outdoors Holding Company, LLC.

Large fuel tank fill opening

Full-size Gator™ XUVs have a large 42.8-L (11.3-gal.) fuel tank so you go further between fill ups. A 76-mm (3-in.) diameter fill opening reduce spills.

One-row full-size Gator XUVs come packed with places to store tools, gear, and beverages.

Cup holders

Four cup holders and center tray (shown on XUV835E)

Cab door cup holder and pocket

The dash has four cup holders, and cab vehicles have a cup holder in each door.

Dash and under-seat storage

Under seat storage (shown on XUV835E)

Glove box, storage pocket, and two dash bins (shown on XUV835M cab)

The vehicles also feature an enclosed glove box, center tray, dash storage pocket and under-seat storage. Depending on the configuration, vehicles may have up to three additional dash bins and under-hood storage.

Instrument display, shift lever, and switches (shown on XUV835R Signature Edition)

When you sit behind the wheel of a full-size Gator™ Utility Vehicle, you will be reminded of your favorite pick-up truck. There are controls at your fingertips, an easy-to-read instrument panel, and outlets to recharge your phone.

Shift from park and into gear with a throw of a single lever. Power steering on M- and R- trim vehicles is smooth and responsive.

When the going gets tough, you can instantly engage four-wheel drive and rear differential lock with switches. Even at night, the backlit switches are easy to see. If a front wheel starts to slip, the front differential automatically locks to pull you through.

Full-size Gator™ XUVs are built to work hard and go the extra mile.

Heavy-duty frame

Underside view of XUV865M

Underside view of XUV825M S4

The hefty frame is designed to stand-up to all the bumps and bends of the trail, and the standard front skid plate protects key components from damage.

Constant velocity boot protection

Constant velocity boot protection

Constant velocity joints are enclosed to keep water and dirt out. A protector shield protects the boot from trail debris.

Automotive-grade panels and optional protection packages

TrueTimber® KANATI camo XUV865R with optional Premium Protection Package

The hood and side panels are made of automotive-grade materials that resist scratches and dents, and the cargo box is made of tough composite material that resists dents and rust. Optional protection packages look tough and provide even more protection.

TrueTimber® is a trademark of True Timber Outdoors Holding Company, LLC.

You will feel confident and comfortable, even on tough terrain, with a full-size Gator™ Utility Vehicle. You will feel stable with a low center of gravity and a wide stance. Engine braking and four-wheel hydraulic disc brakes keep you in control on steep descents, even when fully loaded. The power steering on M- and R-Trim vehicles, is smooth and responsive.

Standard four-wheel drive with rear differential lock

Dash mounted four-wheel drive and rear differential lock switches

With standard four-wheel drive and rear differential lock, both instantly available with the flip of a switch, you can get where you are going.

Dual A-arm front and rear independent suspension

Rear suspension and ground clearance

The independent suspension provides a smooth ride as 203 mm (8 in.) of front suspension travel and 229 mm (9 in.) of rear suspension travel cushions bumps and glides over ruts. And clearing rocks and roots is no problem with 284 mm (11.2 inches) of ground clearance.

Tires for any terrain

Terra Hawk all-terrain tire

Maxxis® Bighorn® 2.0 extreme terrain radial tire

Predator Heavy-Duty all-terrain radial tire

Full-Size Gator Utility Vehicles are available with three tire options:

• Terra Hawk all-terrain tires
  • Tread pattern and wide footprint provide excellent traction with minimal impact on terrain
• Maxxis Bighorn 2.0 extreme terrain radial tires
  • Radial construction provides shock absorption, allowing for a smoother ride
  • Non-directional tread pattern provides predictable cornering and claws up roots and rocks
• Predator Heavy-Duty all-terrain radial tire
  • Radial construction provides shock absorption, allowing for a smoother ride
  • Flat profile increases footprint area, reducing ground pressure
  • 8-ply rating delivers up to three times the life of Bighorn tires

Maxxis® Bighorn® is registered trademark of Cheng Shin Rubber Ind. Co., Ltd.

812-cc (49.6-cu in.) gasoline engine and drivetrain

The XUV835 and XUV825M S4 Gator™ Utility Vehicles are powered by an electronic fuel injection (EFI) gasoline engine with liquid-cooled, dual-overhead cams. This engine is designed to provide maximum power and fuel efficiency to muscle through tough jobs.

It also has plenty of torque in low range, and fast speeds in high range. The enclosed drivetrain automatically adjusts for fast acceleration, along with powerful hauling and hill-climbing capabilities.
