Specifications

3-point hitch

Lift capacity, 24-in. behind link arms 309 kg
681 lb
Type Limited Category 1

Cab

Compliance NA
Visibility NA
Air conditioning, temperature differential NA
Doors NA
Noise rating NA
Seat equipment NA

Dimensions

Wheelbase 145 cm
57.1 in.
Front axle clearance 195 mm
7.7 in.
Turning radius without brakes 2.25 m
7.4 ft
Limited slip differential No
Approximate shipping weight (open-station; cab) 655 kg
1444 lb

Electrical

Battery size 500 CCA
Alternator (12-V) 40 amp
Starter size 1.2 kW
1.6 hp

Engine

Family EYDXL1.27NS1
FYDXL1.27NS1
GYDXL1.27NS1
Manufacturer Yanmar
Engine model 3TNV80F-NCJT
Engine power (gross) 17.8 kW
23.9 hp
24.2 PS
SAE J1995 rated power
Power take-off (PTO) power 13.4 kW
18 hp
Rated engine speed 3200 rpm
Type Diesel
Injection pump type Indirect Injection
Aspiration Natural
Emissions compliance Final Tier 4
Cylinders/displacement 3 / 1.267 L
3 / 77.3 cu in.
Number of cylinders Three
Cylinder liners Cast-in-block
Bore and stroke 80x84 mm
3.15x3.31 in.
Compression ratio 23.0:1
Lubrication Pressurized
Cooling system Water pump
Air cleaner Dual element with mechanical restriction indicator
Engine torque at rated speed 55.2 Nm
40.7 lb-ft
Fuel tank capacity 21.2 L
5.6 U.S. gal.

Final drive

Type Bull Gear
Differential lock Yes

Fluid capacities

Crankcase with filter 2.7 L
2.9 qt
Transmission and hydraulic system 3.7 gal.
14 L

Fuel system

Type Indirect Injection
Fuel consumption <br/>5.8 L/hr<br/>1.5 U.S. gal./hr

Hydraulics

Type Open center
Pump type Gear
Maximum operating pressure 137.9 bar
2000 psi
Draft control sensing Position control
Remote control valves available Two
Pump rated output Steering<br/>13.2 L/min<br/>3.5 gpm<br/>Implement<br/>13.2 L/min<br/>3.5 gpm<br/>24 L/min<br/>6.3 gpm

Key Specs

Steering hydraulics 13.2 L/min<br/>3.5 gpm
Implement hydraulics 13.2 L/min<br/>3.5 gpm
Hitch type Limited Category 1
Engine power (gross) 17.8 kW<br/>23.9 hp<br/>24.2 PS<br/>SAE J1995 rated power
Standard transmission; forward/reverse Hydrostatic - 2 range
Approximate shipping weight (open-station; cab) 655 kg<br/>1444 lb
Wheelbase 145 cm<br/>57.1 in.
Cruise control Standard
Lift capacity, 24-in. behind link arms 309 kg<br/>681 lb
Power take-off (PTO) power 13.4 kW<br/>18 hp

Miscellaneous

Toolbox Yes

Operator station

Rollover protective structure Type
Foldable
Yes
Platform - flat/straddle One-piece semi flat
Gear shift location - console/floor Left-hand side

Power take-off (PTO)

Standard Rear - 540 rpm
Mid - 2100 rpm
Control Independent
Clutch Wet disc
Brake (for mid and rear PTO) Wet disc

Tires

Front R4 - 18x8.5-10
Rear R4 - 26x12-12
Front tread range 91.8 cm
36.1 in.

Transmission

Standard transmission; forward/reverse Hydrostatic - 2 range
Left-hand reverser No
Final drive Bull Gear
Brakes Wet disc (left-hand pedal)
Steering Power
Clutch, wet/dry N/A
Creeper No
Cruise control Standard
Differential lock Yes
Axle capacity Front<br/>612 kg<br/>1349 lb<br/>Rear<br/>715 kg<br/>1576 lb<br/>

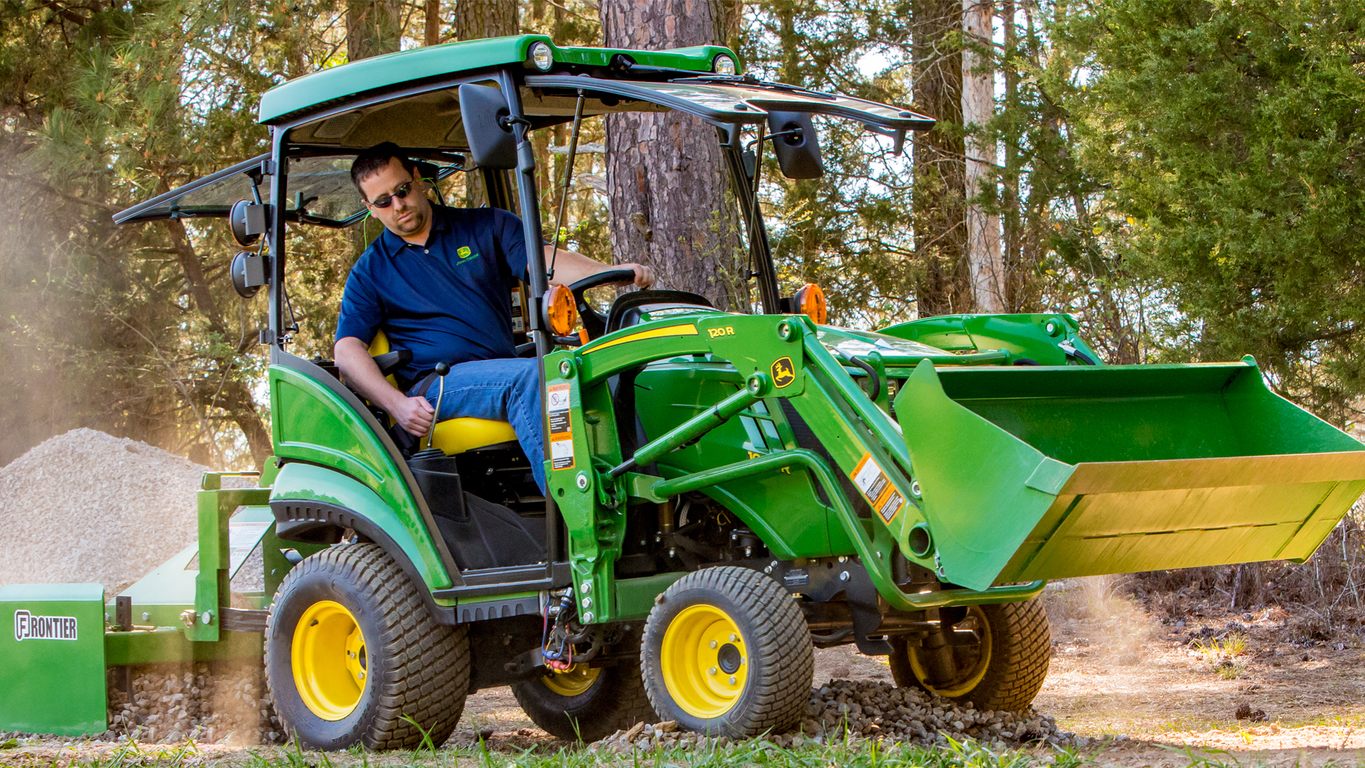

John Deere 1025R Image Gallery
