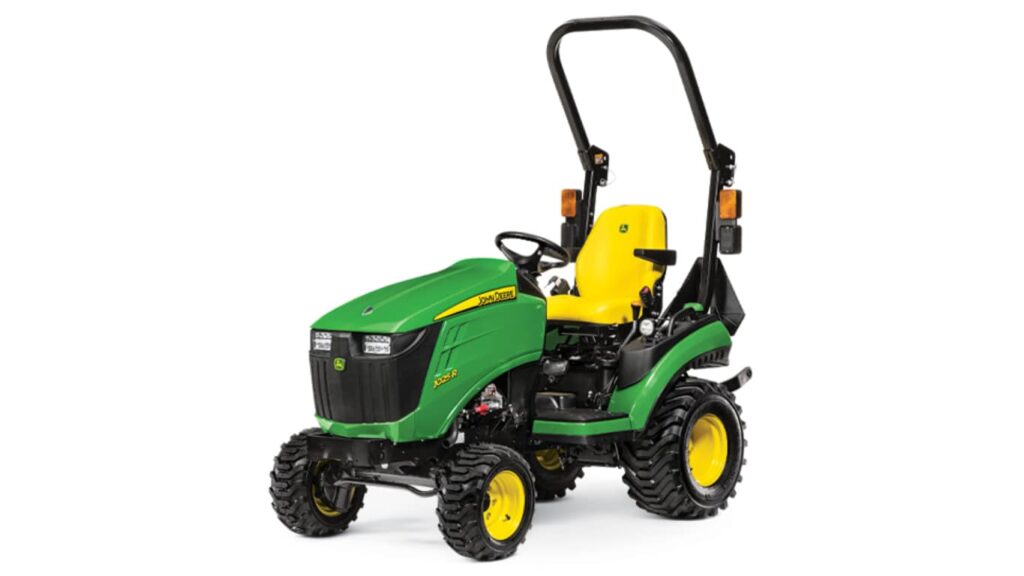

John Deere 1025R Sub-Compact Tractor

1 Series

  • Standard LED headlights and fender lights
  • Premium Operator Station with deluxe seat suspension and armrests
  • AutoConnect™ mid-mower deck can be installed or removed in less than 5 minutes
Cab - DoorsTwo
Power take-off (PTO) - ClutchWet disk
Engine - TypeDiesel
Engine - Compression ratio23.1:1
Power take-off (PTO) - Brake (for mid and rear PTO)Wet disk
3-point hitch - TypeLimited Category 1
Engine - Injection pump typeIndirect injection
Engine - Rated engine speed3200 rpm
Engine - LubricationPressurized
Electrical - Alternator (12-V)40 amp
Key Specs - Standard transmission; forward/reverseHydrostatic - two range
Engine - Cooling systemWater pump
Fuel system - TypeIndirect injection
Engine - AspirationNatural
Transmission - Cruise controlStandard
Miscellaneous - ToolboxYes
Transmission - CreeperNo
Engine - Number of cylindersThree
Engine - Engine model3TNV80F-NCJT
Electrical - Battery size500 CCA
Engine - Emissions complianceFinal Tier 4
Power take-off (PTO) - ControlIndependent
Hydraulics - Pump typeSingle gear
Hydraulics - Remote control valves availableThree
Transmission - SteeringPower
Operator station - Gear shift location - console/floorLeft-hand side
Dimensions - Limited slip differentialNo
Transmission - Left-hand reverserNo
Final drive - Differential lockYes
Transmission - Differential lockYes
Engine - Cylinder linersCast-in-block
Key Specs - Cruise controlStandard
Cab - Seat equipmentPremium seat
Operator station - Platform - flat/straddleOne-piece semi flat
Hydraulics - TypeOpen center
Key Specs - Hitch typeLimited Category 1
Transmission - Final driveSpur gear
Transmission - BrakesWet disc (left-hand pedal)
Engine - Air cleanerDual element with mechanical restriction indicator
Final drive - TypeSpur gear
Cab - Air conditioning, temperature differentialHeat only
Transmission - Standard transmission; forward/reverseHydrostatic - two range
Hydraulics - Draft control sensingPosition control
Engine - Engine torque at rated speed53.1 Nm
39.2 lb-ft
Key Specs - Power take-off (PTO) power12.8 kW
17.2 hp
Dimensions - Turning radius without brakesOutside front tire: 2.51 m
8.2 ft
Dimensions - Approximate shipping weight (open-station; cab)Open station: 706 kg
1556 lb
Cab: 906 kg
1996 lb
Engine - Bore and stroke80 x 84 mm
3.15 x 3.31 in.
Fluid capacities - Transmission and hydraulic system12.3 L
3.2 gal.
Tires - Front tread range931 mm
36.7 in.
Key Specs - Lift capacity, 24-in. behind link arms344 kg
758 lb
Dimensions - Front axle clearance195 mm
7.7 in.
Hydraulics - Maximum operating pressure138 bar
2000 psi
Engine - Fuel tank capacity24 L
6.3 U.S. gal.
Key Specs - Approximate shipping weight (open-station; cab)Open station: 706 kg
1556 lb
Cab: 906 kg
1996 lb
Tires - RearR3 Turf: 26x12-12
R4: 26x12-12
Engine - ManufacturerYanmar®
Engine - Power take-off (PTO) power12.8 kW
17.2 hp
Engine - Cylinders/displacementThree cylinders: 1.267 L
77.3 cu in.
Electrical - Starter size1.2 kW
1.6 hp
Key Specs - Implement hydraulics13.2 L/min
3.5 gpm
Operator station - Rollover protective structureType
Foldable
Yes
Transmission - Axle capacityFront
612 kg
1349 lb
Rear
715 kg
1576 lb
Key Specs - Engine power (gross)SAE J1995 rated power: 17.8 kW
23.9 hp
24.2 PS at 3200 rpm
Key Specs - Wheelbase1450 mm
57.1 in.
Dimensions - Wheelbase1450 mm
57.1 in.
Engine - Engine power (gross)SAE J1995 rated power: 17.8 kW
23.9 hp
24.2 PS at 3200 seconds
Hydraulics - Pump rated outputSteering
13.2 L/min
3.5 gpm
Implement
13.2 L/min
3.5 gpm
24 L/min
6.3 gpm
Tires - Rear tread spacing895 mm
35.2 in.
Key Specs - Steering hydraulics13.2 L/min
3.5 gpm
Fluid capacities - Crankcase with filter2.7 L
2.9 qt
Power take-off (PTO) - StandardRear: 540 rpm
Mid: 2100 rpm
Tires - FrontR3 Turf: 18x8.50-10
R3 Turf Radial: 18x8.50-10
R4: 18x8.5-10
3-point hitch - Lift capacity, 24-in. behind link arms344 kg
758 lb
  • 3PT Hitch: Category 1
  • HP: 23.9*
  • PTO HP: 18
  • Transmission Type: Hydrostatic - 2 Range
  • Cab or Open Station: Open Station or Cab (optional)
  • 2WD or 4WD: 4WD

Mid-mower lift system options
Mid-mower lift system options

Mid-mower lift system options

Standard mechanical mower lift

The standard mechanical mower lift system moves the mower in conjunction with the rear implements and comes factory-installed on 1 Family Tractors.

Optional hydraulic mower lift

The optional hydraulic mower lift system allows the mower to be raised and lowered independently of the rear implements. It uses the loader joystick to lift and lower the mower deck.

Optional independent hydraulic mower lift

The optional independent hydraulic lift system allows the mower to be raised and lowered independently of the rear and front implements. It operates using a rocker switch mounted on the tractor, located at the operator’s left knee.

For more information on this mid mower lift system click here.

Heated cab is ideal for cold weather chores
Heated cab is ideal for cold weather chores

The John Deere 1R cab is about comfort, security, and helping you get year-round performance. The cab offers protection from the elements to expand the versatility of 1025R Tractors to perform in all climates.

  • Sound damping system for quiet, peace-of-mind operation
  • Heated cab keeps you warm in colder months
  • Removable doors and front and rear windows that open nearly 90 degrees provide a cooler work environment in warmer months.
  • Excellent visibility to your surroundings with the full glass doors
  • Compatible with all tractor implements except the 260B Backhoe

Standard 4WD and power steering make 1 Family Tractors excellent for mowing
Standard 4WD and power steering make 1 Family Tractors excellent for mowing

Both 4WD and power steering are standard equipment on the 1 Family Tractors. This combination allows for excellent maneuverability and ease of operation.

  • Narrow overall width allows you to work in tight areas where most compact tractors just cannot fit. The 144.8-cm (57-in.) wheel base and 119.4 cm (47 in.) overall width gives great stability for all types of terrain.
  • Power steering means fewer turns of the steering wheel than manual steering, which is especially valuable when mowing around obstacles or during front loader work.
  • High horsepower-to-weight ratio makes the 1 Family Tractors a good choice for a variety of tasks. The overall tractor weight reduces ground compaction and makes them excellent for mowing.
  • The fully-independent power take-off (PTO) allows engaging and disengaging of the PTO without stopping tractor movement. This is important when driving across obstacles such as driveways while mowing.

Drive-over deck makes connection simple
Drive-over deck makes connection simple

1 Family Tractors are designed to minimize the time and effort needed to switch-out implements to accommodate different jobs.

  • AutoConnect Deck System: Connect a mid-mount mower deck to the tractor in less than 60 seconds without leaving the seat except to lock the gauge wheels.
  • Load-N-Go attachment: Easily move your 54D or 60D AutoConnect Deck with your John Deere Loader after it has been disconnected from the tractor with the Load-N-Go ramps.
  • Quik-Park™ Loader System: 120R Quik-Park™ Loaders are designed for easy mounting and removal in about a minute, with no tools needed.
  • Quik-Tatch™ front hitch: Save time switching front implements like a snow blower, rotary broom, or front blade without tools.
  • iMatch™ quick-hitch: Easily hookup Category 1 implements in seconds using three fixed points to back in and pick up rear implements without leaving the seat
  • Position control hitch: Set the rear hitch height and then consistently lower the hitch to the exact height every time, which is especially useful in grading and leveling applications.
  • Quik-Knect™ system: Connect power take-off (PTO)-driven implements quickly and with low physical effort. The Quik-Knect system utilizes one connector for the tractor’s PTO shaft and a designated connector for each implement which eliminates twisting and forcing splines to align.

1 Family Tractors can have up to three implements mounted simultaneously due to standard dual selective control valves (SCVs), allowing you to switch from using one implement to another without stopping to adjust. When a third SCV kit is added, the number of possible combinations is greatly increased.

1025R open operator station
1025R open operator station

The 1025R open operator station is designed for greater comfort and increased visibility.

Comfortable operation

  • Thick, textured rubber floor mat reduces vibrations and absorbs shock and noise
  • Step-through flat platform and fender-mounted handrails make it easy to get on and off the tractor from either side
  • Controls are conveniently located next to the fenders and are color-coded for quick identification
  • Tilt steering lets you keep your arms in a natural position to reduce fatigue
  • Deluxe suspension seat has moveable armrests and provides great back support
  • Easy access toolbox puts common tools within quick reach
  • Standard 12-V outlet for convenient charging of electronics
  • Easy-lift hood with dual gas-charged lift struts as standard equipment. A simple flip of the latch lets you open the rugged composite hood, providing wide open access to the engine compartment.
  • Foldable rollover protective structure (ROPS) keeps you protected during operation and improve the ability to store tractor in a garage

Foldable Roll-Gard ROPS
Foldable Roll-Gard ROPS

Foldable Roll-Gard™ ROPS is standard equipment on 1025R

Increased visibility
  • Sloping hood design provides improved visibility especially during front loader work
  • Standard lighting equipment allows you to work from early in the morning to late at night:
    • Two front-mounted light-emitting diode (LED) headlights
    • Two amber-flashing warning/hazard lights mounted on the side of the ROPS with reflectors
    • Two LED fender work lights
    • Additional front- and rear-light kits are available
Instrumentation

Instrumentation
Instrumentation

Updated instrumentation is standard equipment for operating convenience and confidence. Instrumentation includes:

  • Tach/hour meter
  • Oil-pressure indicator light
  • Alternator-indicator light
  • Flashing-warning lights
  • Coolant-temperature light
Premium seat

Premium seat
Premium seat
The thick, soft padding on this seat provides a smooth and comfortable ride. A high, scalloped back makes it easier for the operator to turn to view rear implements. The embroidered logo and premium vinyl not only provide an easy-to-clean surface but also a well-polished design.

  • Seat adjusts fore/aft for operator convenience
  • Seat flips forward for protection from the elements
  • High seat back and armrests are in base equipment and allow for a more comfortable operation
  • Retractable seat belt feature prevents the seat belt from becoming tangled in the seat suspension and controls
12-V outlet

12-V outlet
12-V outlet
The 1025R Tractor features a 12-V outlet conveniently located on the right-hand side fender for easy access. The placement of the 12-V outlet is within arm’s reach.

Mower deck height-adjustment knob

Mower deck height-adjustment knob
Mower deck height-adjustment knob

  • The mower deck height-adjustment knob allows the mower height to be adjusted from 2.5 cm to 10.2 cm (1 in. to 4 in.).
  • A spring-loaded detent ensures the height position is locked into place.
  • The transport lock position holds the deck 10.2-cm (4-in.) from the ground, so that rear implements can be used separately while the mower is installed.
Rear installed toolbox

Rear installed toolbox
Rear installed toolbox
The 1 Family Tractor features a rear installed toolbox for easy accessibility and convenience.

Beverage holder

Beverage holder
Beverage holder
The beverage holder is contour-molded and seated into the fender for a clean look. It is conveniently located and dual-sized to accommodate many containers. The placement of the cup holder is within arm’s reach.

Fuel fill and fuel gauge locations

Fuel fill and fuel gauge locations
Fuel fill and fuel gauge locations
The fuel fill location is conveniently accessible on the left-hand side fender. The fuel gauge is located in close proximity to make the fuel refilling process easier.

Tilt steering

Tilt steering
Tilt steering
The 1 Family Tractors feature tilt steering for easy maneuverability and convenience.

Twin Touch™ pedals
Twin Touch™ pedals

The hydrostatic transmission’s infinite ground speeds and direction of travel are both controlled with the Twin Touch foot pedals.

  • Ideal for loader or mower applications where frequent direction and speed changes are needed
  • No clutching for fast direction changes
  • Match the job at hand with infinite ground speeds
