Specifications

3-point hitch

Type Limited Category 1
Lift capacity, 24-in. behind link arms 344 kg
758 lb

Cab

Doors Two
Seat equipment Premium seat
Air conditioning, temperature differential Heat only

Dimensions

Wheelbase 1450 mm
57.1 in.
Approximate shipping weight (open-station; cab) Open station: 706 kg
1556 lb
Cab: 906 kg
1996 lb
Limited slip differential No
Turning radius without brakes Outside front tire: 2.51 m
8.2 ft
Front axle clearance 195 mm
7.7 in.

Electrical

Starter size 1.2 kW
1.6 hp
Alternator (12-V) 40 amp
Battery size 500 CCA

Engine

Type Diesel
Power take-off (PTO) power 12.8 kW
17.2 hp
Bore and stroke 80 x 84 mm
3.15 x 3.31 in.
Compression ratio 23.1:1
Injection pump type Indirect injection
Rated engine speed 3200 rpm
Lubrication Pressurized
Cooling system Water pump
Aspiration Natural
Engine torque at rated speed 53.1 Nm
39.2 lb-ft
Number of cylinders Three
Engine model 3TNV80F-NCJT
Emissions compliance Final Tier 4
Fuel tank capacity 24 L
6.3 U.S. gal.
Cylinder liners Cast-in-block
Cylinders/displacement Three cylinders: 1.267 L
77.3 cu in.
Engine power (gross) SAE J1995 rated power: 17.8 kW
23.9 hp
24.2 PS
Air cleaner Dual element with mechanical restriction indicator
Manufacturer Yanmar®

Final drive

Differential lock Yes
Type Spur gear

Fluid capacities

Transmission and hydraulic system 12.3 L
3.2 gal.
Crankcase with filter 2.7 L
2.9 qt

Fuel system

Fuel consumption
Type Indirect injection

Hydraulics

Pump rated output Steering
13.2 L/min
3.5 gpm
Implement
13.2 L/min
3.5 gpm
24 L/min
6.3 gpm
Pump type Single gear
Maximum operating pressure 138 bar
2000 psi
Remote control valves available Three
Type Open center
Draft control sensing Position control

Key Specs

Steering hydraulics 13.2 L/min
3.5 gpm
Standard transmission; forward/reverse Hydrostatic - two range
Lift capacity, 24-in. behind link arms 344 kg
758 lb
Wheelbase 1450 mm
57.1 in.
Power take-off (PTO) power 12.8 kW
17.2 hp
Approximate shipping weight (open-station; cab) Open station: 706 kg
1556 lb
Cab: 906 kg
1996 lb
Engine power (gross) SAE J1995 rated power: 17.8 kW
23.9 hp
24.2 PS
Implement hydraulics 13.2 L/min
3.5 gpm
Cruise control Standard
Hitch type Limited Category 1

Miscellaneous

Toolbox Yes

Operator station

Gear shift location - console/floor Left-hand side
Platform - flat/straddle One-piece semi flat
Rollover protective structure Type
Foldable
Yes

Power take-off (PTO)

Clutch Wet disk
Brake (for mid and rear PTO) Wet disk
Control Independent
Standard Rear: 540 rpm
Mid: 2100 rpm

Tires

Front tread range 931 mm
36.7 in.
Rear R3 Turf: 26x12-12
R4: 26x12-12
Front R3 Turf: 18x8.50-10
R3 Turf Radial: 18x8.50-10
R4: 18x8.5-10
Rear tread spacing 895 mm
35.2 in.

Transmission

Axle capacity Front
612 kg
1349 lb
Rear
715 kg
1576 lb
Cruise control Standard
Creeper No
Steering Power
Left-hand reverser No
Differential lock Yes
Final drive Spur gear
Brakes Wet disc (left-hand pedal)
Standard transmission; forward/reverse Hydrostatic - two range

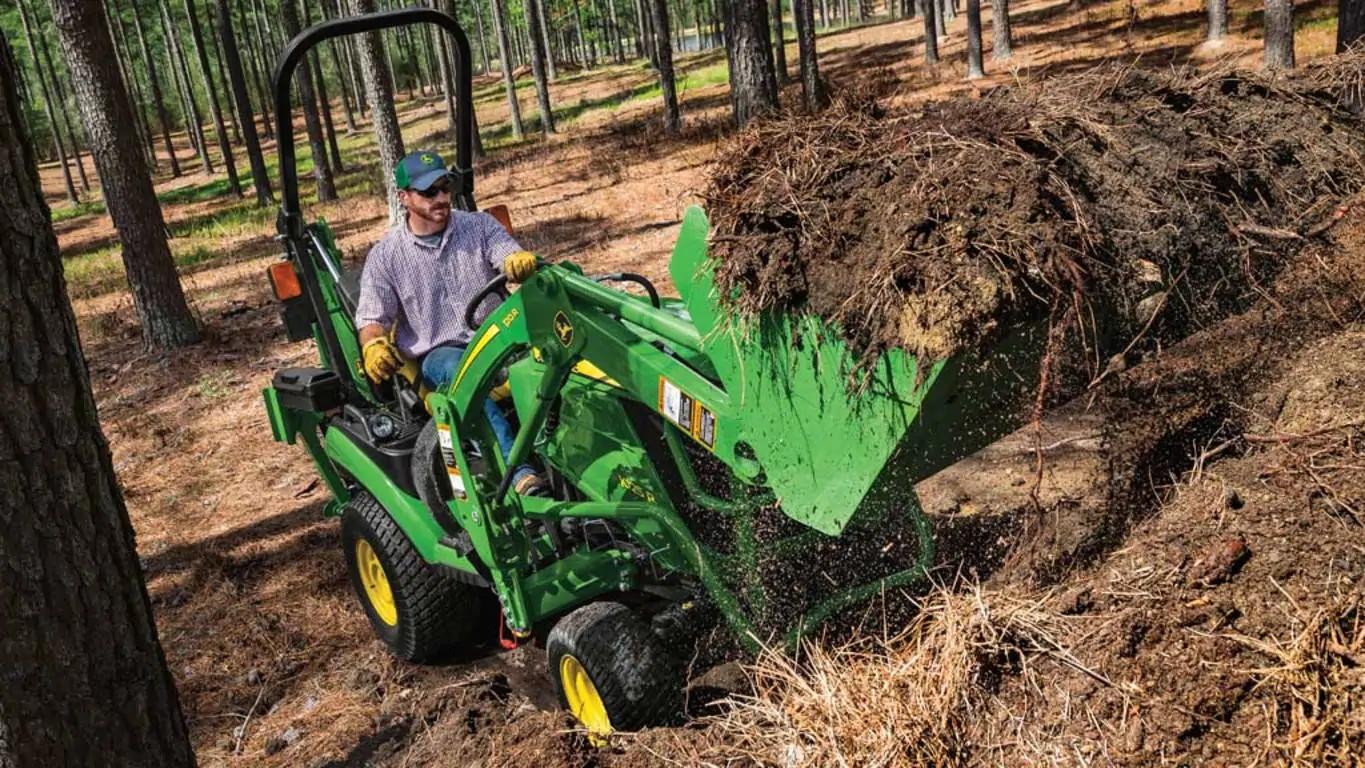

John Deere 1025R Image Gallery
