Specifications

3-point hitch

Type Limited Category 1
Lift capacity, 24-in. behind link arms 344 kg
758 lb

Dimensions

Wheelbase 1450 mm
57.1 in.
Turning radius without brakes Outside front tire: 2.51 m
8.2 ft
Approximate shipping weight (open-station; cab) Open station: 656 kg
1446 lb
Cab: Not applicable
Front axle clearance 195 mm
7.7 in.
Limited slip differential No

Electrical

Battery size 500 CCA
Starter size 1.2 kW
1.6 hp
Alternator (12-V) 40 amp

Engine

Fuel tank capacity 24 L
6.3 U.S. gal.
Bore and stroke 74 x 77 mm
2.91 x 3.03 in.
Engine model 3TNM74F-NCJT
Engine torque at rated speed 47.7 Nm
35.2 lb-ft
Manufacturer Yanmar®
Compression ratio 23.5:1
Air cleaner Dual element
Aspiration Natural
Cylinders/displacement Three cylinders: 0.993 L
60.6 cu in.
Cooling system Water pump
Power take-off (PTO) power 11.1 kW
14.9 hp
Injection pump type Indirect injection
Number of cylinders Three
Cylinder liners Cast-in-block
Lubrication Pressurized
Engine power (gross) SAE J1995 rated power: 16 kW
21.5 hp
21.8 PS
Rated engine speed 3200 rpm
Emissions compliance Final Tier 4
Type Diesel

Final drive

Type Spur gear
Differential lock Yes

Fluid capacities

Crankcase with filter 2.7 L
2.9 qt
Transmission and hydraulic system 12.3 L
3.2 gal.

Fuel system

Type Indirect injection
Fuel consumption

Hydraulics

Pump rated output Steering
13.2 L/min
3.5 gpm
Implement
13.2 L/min
3.5 gpm
24 L/min
6.3 gpm
Draft control sensing Select control
Type Open center
Maximum operating pressure 138 bar
2000 psi
Remote control valves available Three
Pump type Single gear

Key Specs

Cruise control No
Steering hydraulics 13.2 L/min
3.5 gpm
Implement hydraulics 13.2 L/min
3.5 gpm
Wheelbase 1450 mm
57.1 in.
Approximate shipping weight (open-station; cab) Open station: 656 kg
1446 lb
Cab: Not applicable
Hitch type Limited Category 1
Power take-off (PTO) power 11.1 kW
14.9 hp
Lift capacity, 24-in. behind link arms 344 kg
758 lb
Engine power (gross) SAE J1995 rated power: 16 kW
21.5 hp
21.8 PS
Standard transmission; forward/reverse Hydrostatic - two range

Miscellaneous

Toolbox Yes

Operator station

Rollover protective structure Type
Foldable
Yes
Gear shift location - console/floor Left-hand side
Platform - flat/straddle One-piece semi flat

Power take-off (PTO)

Brake (for mid and rear PTO) Wet disk
Control Independent
Clutch Wet disk
Standard Rear: 540 rpm
Mid: 2100 rpm

Tires

Rear R3 Turf: 26x12-12
R4: 26x12-12
Rear tread spacing 895 mm
35.2 in.
Front tread range 931 mm
36.7 in.
Front R3 Turf: 18x8.50-10
R4: 18x8.5-10

Transmission

Brakes Wet disc (left-hand pedal)
Creeper No
Differential lock Yes
Final drive Spur gear
Left-hand reverser No
Steering Power
Cruise control No
Axle capacity Front
612 kg
1349 lb
Rear
715 kg
1576 lb
Standard transmission; forward/reverse Hydrostatic - two range

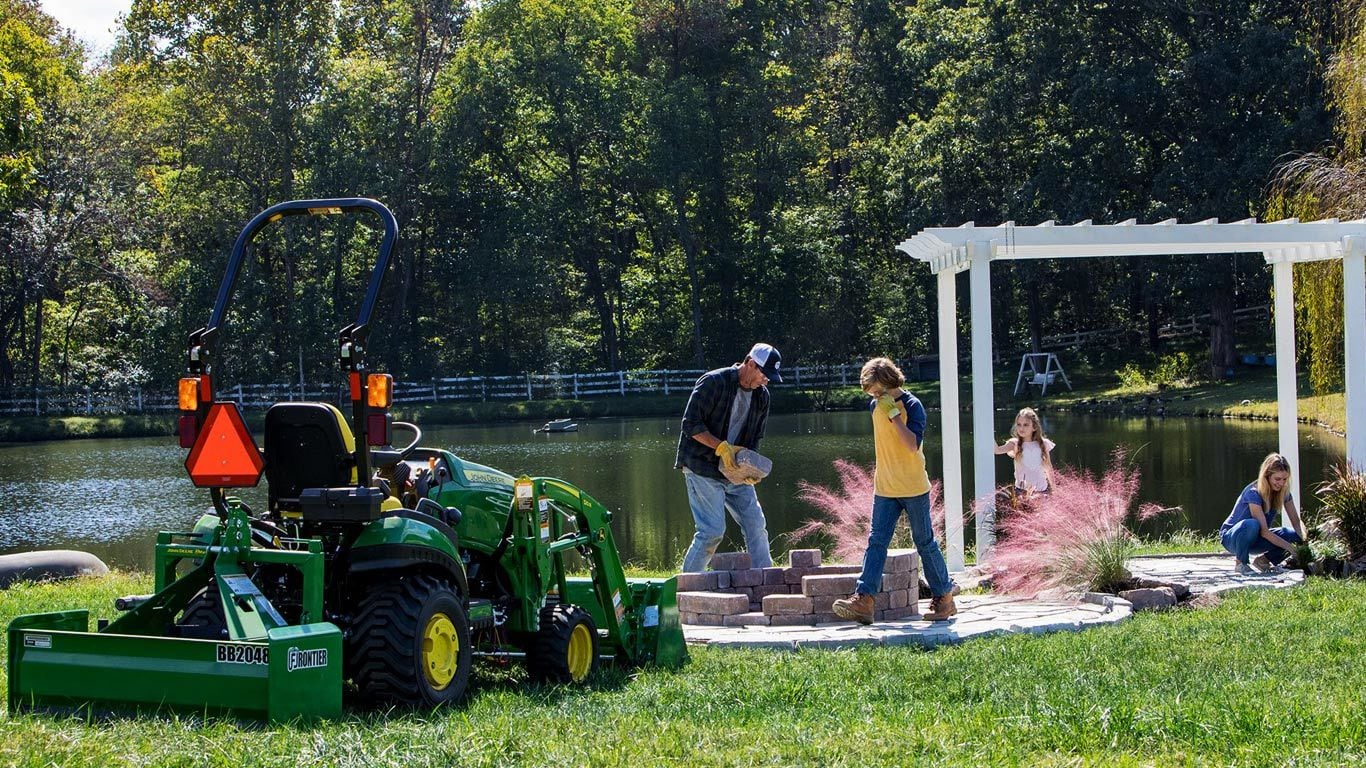

John Deere 1023E Image Gallery
