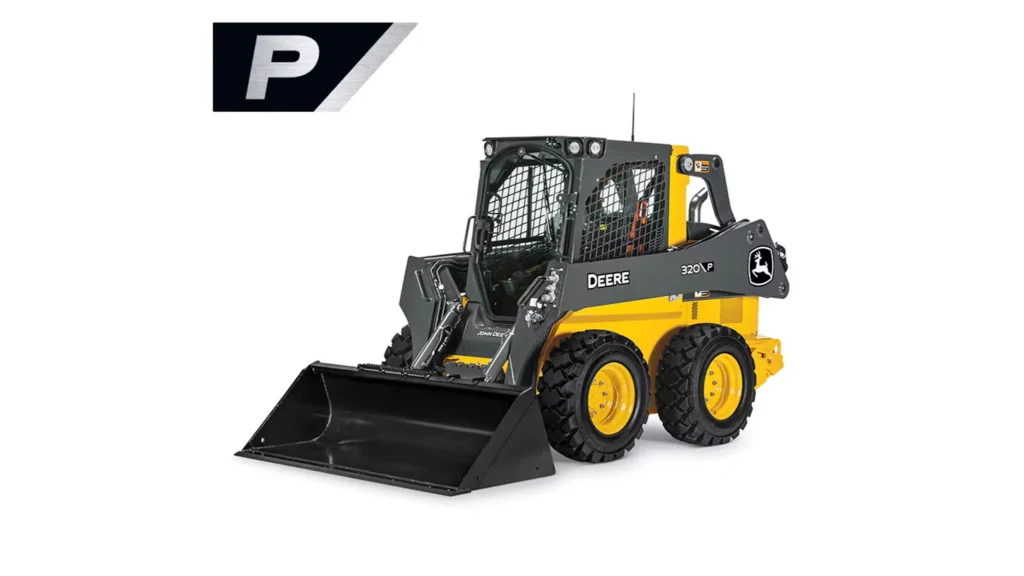

John Deere 320 P-Tier Skid Steer
Compact Construction Equipment
- Gross Power: 51.7 kW (69 hp)
- Net Power: 49.4 kW (66 hp)
- Rated Operating Capacity: 994 kg (2,190 lb.)
- Operating Weight: 3246 kg (7,150 lb.)
Featured Content
Responsive hydraulics and compatibility with a wide range of attachments allow the 300 Series P‑Tier to adapt easily to changing tasks on the jobsite.
A sealed, pressurized cab with increased glass area improves visibility and reduces noise, while optional comfort upgrades help operators stay focused during long workdays.
Easy serviceability minimizes downtime: the hood and side panels provide quick ground-level access to daily checks, and the cab swings up in under 5 minutes for major drivetrain access. JDLink™ alerts also help catch issues early.
Select a category to view specifications (or view all).
| Monitoring - Engine Coolant Temperature | Indicator light, audible warning, gauge, digital |
|---|---|
| Machine Dimensions - Dump Reach, Construction Bucket (in.) | 36.4 in. |
| Machine Dimensions - Dump Height, Foundry Bucket (ft in.) | 8,2 ft, in. |
| Machine Dimensions - Dump Height, Foundry Bucket (in.) | 97.7 in. |
| Engine - Net Power (SAE J1349, ISO 9249) At 2500 RPM (HP) | 66.25 hp |
| Monitoring - Hydraulic Oil Temperature | Indicator light, audible warning, digital |
| Machine Dimensions - Advertised Tipping Load (lb) | 4380.0 lb. |
| Machine Dimensions - Ground Clearance (in.) | 8.1 in. |
| Machine Dimensions - Ground Clearance (ft in.) | 0,8 ft, in. |
| Machine Dimensions - Advertised SAE Rated Operating Capacity (lb) | 2190.0 lb. |
| Engine - Manufacturer | Yanmar® |
| Powertrain - Tractive Effort (lbf) | 7491.0 lbf |
| Engine - Non-Road Emission Standards | Certified EPA final tier 4 emissions |
| Machine Dimensions - Boom Breakout Foundry Bucket (lb) | 3500.0 lb. |
| Machine Dimensions - Front Turn Radius, Foundry Bucket (ft in.) | 6,8 ft, in. |
| Machine Dimensions - Dump Reach, Foundry Bucket (ft in.) | 2,5 ft, in. |
| Engine - Rated Engine Speed (RPM) | 2500.0 rpm |
| Monitoring - Fuel Gauge | Gauge |
| Machine Dimensions - Length With Foundry Bucket (in.) | 136.3 in. |
| Machine Dimensions - Length With Foundry Bucket (ft in.) | 11,4 ft, in. |
| Operating Weight - Base Machine Weight (lb) | 7150.0 lb. |
| Powertrain - Final Drive | chains high strength, adjustment free |
| Cooling - Fan Drive Type | Variable speed hydraulic |
| Monitoring - Diagnostics | Digital |
| Machine Dimensions - Rated Operating Capacity With Counterweight (lb) | 2350.0 lb. |
| Monitoring - Alternator, Low Voltage | Indicator light |
| Monitoring - Warm-Up Indicator | Digital |
| Monitoring - Engine RPM Indicator | Digital |
| Engine - Air Cleaner | Dry dual element |
| Machine Dimensions - Height To Top Of Rollover Protective Structure (ROPS) (in.) | 81.1 in. |
| Machine Dimensions - Dump Reach, Construction Bucket (ft in.) | 3,0 ft, in. |
| Operator Station - Structure | Rollover Protection Structure (ROPS) [ISO3471] Falling Object Protection Structure (FOPS) [ISO3449)] structure with quick pivot |
| Machine Dimensions - Length Without Bucket (in.) | 112.3 in. |
| Monitoring - Hydraulic Oil Filter Restriction | Indicator light |
| Tires and Wheels - Standard Tire Size | 12 x 16.5 12 PR SKS |
| Engine - Aspiration | naturally aspirated (optional turbocharger) |
| Powertrain - Pump Type | Hydrostatic-manual or electrohydraulic |
| Electrical - Battery capacity (CCA) | 750.0 CCA |
| Hydraulics - High Flow Option Total Pump Flow (gpm) | 29.6 gpm |
| Powertrain - Travel Speed Low (mph) | 5.9 mph |
| Electrical - Alternator Rating (amp) | 75.0 amp |
| Electrical - Voltage (V) | 12.0 V |
| Monitoring - Engine Air Filter Restriction Indicator | Indicator light |
| Machine Dimensions - Dump Angle (Full Lift Height) Degree | 43.0 degree (angle) |
| Engine - Rated Gross Power (ISO 14396) At 2500 RPM (HP) | 69.33 hp |
| Machine Dimensions - Front Turn Radius, Foundry Bucket (in.) | 79.6 in. |
| Machine Dimensions - Wheelbase (in.) | 44.2 in. |
| Monitoring - Seat Belt Reminder | Indicator light |
| Powertrain - Travel Speed High (mph) | 11.1 mph |
| Monitoring - Hourmeter | Digital |
| Monitoring - Park Brake Engaged | Indicator light |
| Electrical - Lighting Options | Halogen, two (2) front and one (1) rear |
| Hydraulics - Hydraulic Horsepower High Flow (calculated) (hp) | 56.13 hp |
| Hydraulics - Hydraulic Horsepower Standard Flow (calculated) (hp) | 39.25 hp |
| Machine Dimensions - Height To Hinge Pin (ft in.) | 10,2 ft, in. |
| Machine Dimensions - Length Without Bucket (ft, in.) | 9,4 ft, in. |
| Powertrain - Parking Brake Type | Integral, automatic, spring applied, hydraulically released wet-disk park brake |
| Machine Dimensions - Bucket Breakout Force Foundry Bucket (lb) | 6000.0 lb. |
| Machine Dimensions - Angle Of Departure Degree | 28.0 degree (angle) |
| Monitoring - Engine Oil Pressure | Indicator light, audible warning |
| Serviceability - Fuel Tank (gal.) | 21.0 gal. |
| Machine Dimensions - Width Without Bucket (ft in.) | 5,10 ft, in. |
| Hydraulics - Standard Pump Flow (gpm) | 20.7 gpm |
| Machine Dimensions - Height To Top Of Rollover Protective Structure (ROPS) (ft in.) | 6,9 ft, in. |
| Engine - Model | 4TNV98C |
| Machine Dimensions - Wheelbase (ft in.) | 3,8 ft, in. |
| Machine Dimensions - Height To Hinge Pin (in.) | 122.2 in. |
| Engine - Displacement (cu in.) | 202.54 cu in. |
| Machine Dimensions - Dump Reach, Foundry Bucket (in.) | 29.9 in. |
| Machine Dimensions - Width Without Bucket (in.) | 69.5 in. |
| Hydraulics - System Pressure At Couplers (psi) | 3250.0 psi |
| Monitoring - Battery Voltage | Digital |
| Machine Dimensions - Bucket Rollback (Ground Level) Degree | 32.0 degree (angle) |
| Engine - Peak Torque At 1625 RPM (lb-ft) | 177.75 lb-ft |
| Monitoring - Auxiliary Hydraulics | Digital |
