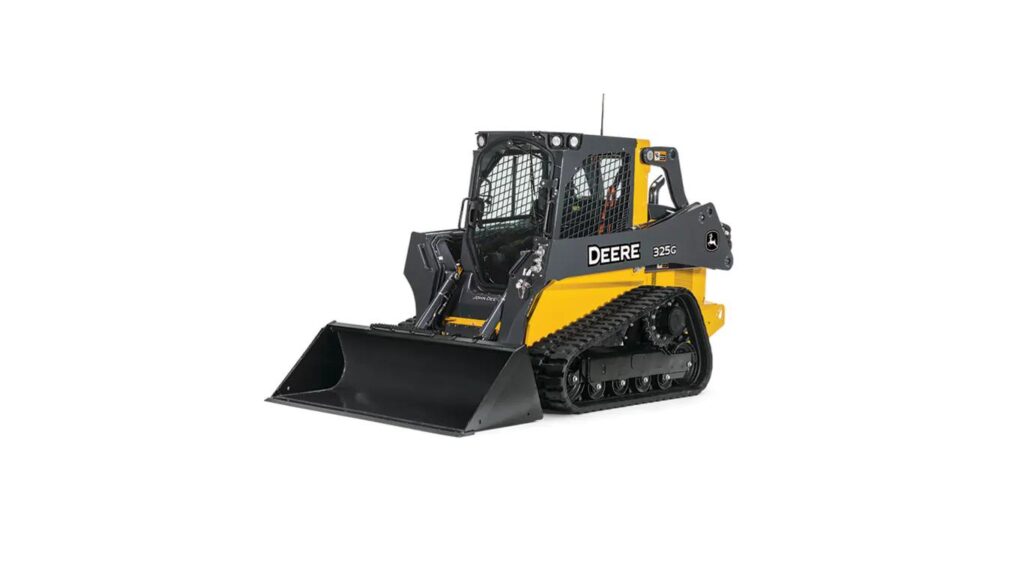

John Deere 325G Compact Track Loader
Compact Construction Equipment
- Rated Operating Capacity: 1176 kg (2,590 lb.)
- Gross Horsepower: 54.8 kW (74 hp)
- Net Horsepower: 52.5 kW (70 net hp)
- Operating Weight: 4313 kg (9,500 lb.)
| DIMENSIONS - Rear Departure Angle, Degrees | 30.5 |
|---|---|
| DRIVELINE - Engine Output - Net, kW (hp) | 52.5 (70) |
| DIMENSIONS - Dump Angle, Degrees | 41 |
| PERFORMANCE - Breakout - Lift Foundry, kN (lbf) | 23.3 (5250) |
| DIMENSIONS - Length - No Bucket, mm (inches) | 2850 (112.3) |
| PERFORMANCE - Breakout - Bucket Foundry, kN (lbf) | 38.9 (8750) |
| DRIVELINE - Track Shoe Width, mm (inches) | 320 (12.6) |
| DRIVELINE - Emission Rating | Tier 4 |
| DRIVELINE - Aspiration | Turbo |
| DIMENSIONS - Dump Height - Maximum Foundry, mm (inches) | 2590 (102.1) |
| PERFORMANCE - Tipping Load - Foundry, kg (lbs) | 3360 (7400) |
| PERFORMANCE - Ground Bearing Pressure - Foundry, kPa (PSI) | 39.3 (5.7) |
| DIMENSIONS - Rollback - Ground Level, Degrees | 34 |
| DIMENSIONS - Width - No Bucket, mm (inches) | 1820 (71.5) |
| DRIVELINE - Engine Model | 4TNV98CT |
| DIMENSIONS - Height - Top Of Cab, mm (inches) | 2060 (81.1) |
| PERFORMANCE - System Pressure, bar (PSI) | 237.87 (3450) |
| CAPACITIES - Fuel Tank, ltr (gallons (US)) | 79 (21) |
| PERFORMANCE - Speed - Maximum Option, kph (mph) | 13.2 (8.2) |
| DRIVELINE - Rated Speed, rpm | 2500 |
| DRIVELINE - Engine Output - Gross, kW (hp) | 54.8 (74) |
| DRIVELINE - Torque, Nm (lbf / ft) | 280 (207) |
| PERFORMANCE - Rated Operating Capacity - Foundry, kg (lbs) | 1176 (2590) |
| DESCRIPTION - Lift Geometry | Vertical |
| PERFORMANCE - Hydraulic Power - Option, kW (hp) | 39.645 (53.1) |
| PERFORMANCE - Speed - Maximum, kph (mph) | 9.3 (5.8) |
| PERFORMANCE - Pump Flow - Option, lt/min (gallons (US) / min) | 101 (27) |
| DIMENSIONS - Ground Clearance, mm (inches) | 240 (9.3) |
| PERFORMANCE - Pump Flow, lt/min (gallons (US) / min) | 70.01 (19) |
| WEIGHTS - Operating Weight - Foundry, kg (lbs) | 4313 (9500) |
| PERFORMANCE - Hydraulic Power, kW (hp) | 27.477 (36.8) |
| DRIVELINE - Engine Manufacturer | Yanmar |
| DIMENSIONS - Length - Foundry Bucket, mm (inches) | 3460 (136.3) |
| DIMENSIONS - Height to Hinge Pin, mm (inches) | 3200 (126.1) |
| DRIVELINE - Displacement, ltr (Inches³) | 3.3 (203) |
Featured List
- OPERATING WEIGHT: 4313 kg (9,500 lb.)
- BUCKET BREAKOUT FORCE: 2724 kg (6,000 lb.)
- LIFT HEIGHT: 3.20 m (126.1 in.) (10 ft. 6 in.)
- NET HORSEPOWER: 52.5 kW (70 hp)
- GROSS HORSEPOWER: 54.8 kW (74 hp)
- RATED OPERATING CAPACITY: 1176 kg (2,590 lb.)
Featured Content
With the universal Quik-Tatch,™ you can go from compact loader bucket, to forks, to whatever, in just seconds. Each loader model delivers plenty of standard hydraulic power to operate augers, hydraulic hammers, roller levels, trenchers, or power rakes, to list just a few.
- Easy Maintenance: Cab foot-well area can be washed out in a matter of minutes. Glove-friendly removable side windows make cleaning easier.
- Optional JDLink™ provides machine data and health alerts to help you decrease costly downtime.
- Industry-leading bucket breakout forces and auxiliary flow
- The 325G’s height to hinge pin is 10 ft. 6 in. to easily load high-sidewall dump trucks, feed mixers, and hoppers.
- Easy-to-operate controls maximize an operator’s skills, for more everyday productivity.
- Spacious, comfortable cab is even more tightly sealed to keep out noise and dust. Available options include a four-season cab, Bluetooth® radio, and heated seats.
- Excellent all-around visibility has been further enhanced with customer-inspired side lighting and rearview camera options.
- Features an EPA Final Tier 4 (FT4)/Stage IV engine that is simple, fully integrated, and fully supported to deliver industry-leading fuel efficiency and uptime.
