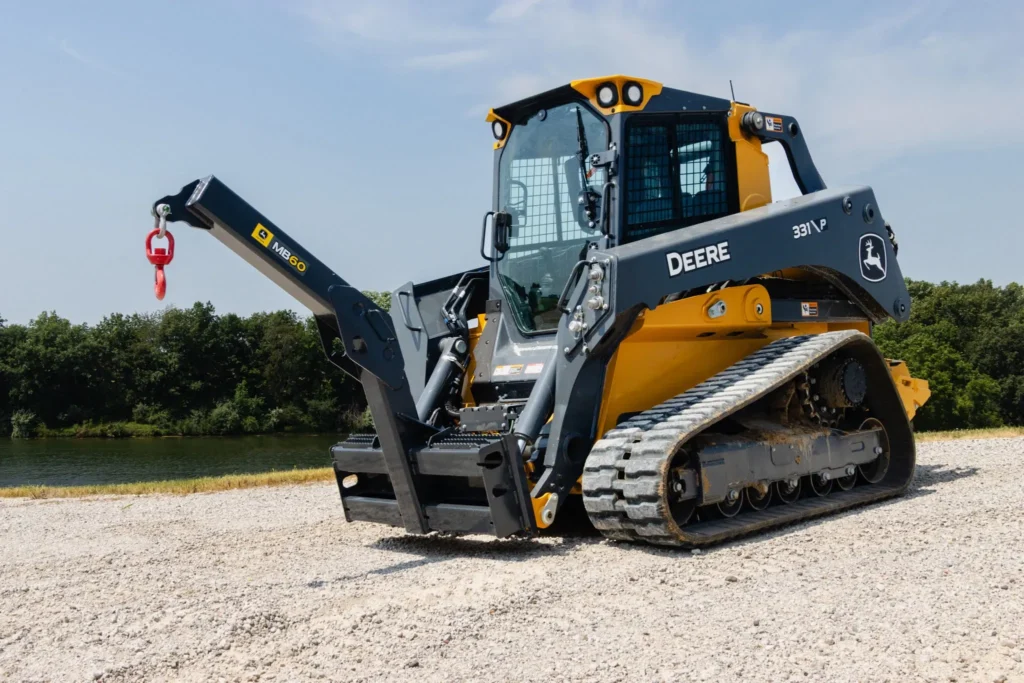

John Deere MB60 Material Boom
Compact Construction Equipment
- 6,000 lb. Rated Lifting Capacity
- Two Hook Points for Flexible Rigging
- Precise Placement and Tight Area Maneuverability
- Serrated Steps for Easier Ingress/Egress
Featured Content
Two rigging points let operators optimize lift configuration for different materials.
Dedicated front-mounted boom enables accurate positioning in confined spaces; serrated steps aid safe ingress/egress.
Handles heavy, irregular loads across jobsites for precise placement.
Select a category to view specifications (or view all).
| Weights And Dimensions - Coupler Interface | Quick-Tach (ISO 24410) or Hook Euro |
|---|---|
| Weights And Dimensions - Weight (Quick Tach Configuration) | 455.0 lb. |
| Weights And Dimensions - Lifting Capacity | 6000 lb. |
| Weights And Dimensions - Lifting Capacity | 2720 kg |
| Weights And Dimensions - Overall Width | 1163.0 mm |
| Weights And Dimensions - Overall Height | 1715.0 mm |
| Weights And Dimensions - Height To Clevis | 64.5 in. |
| Weights And Dimensions - Lift Hole Diameter | 1.0 in. |
| Weights And Dimensions - Overall Height | 67.5 in. |
| Electrical Connection - Electrical Connection | None |
| Weights And Dimensions - Height To Clevis | 1638.0 mm |
| Weights And Dimensions - Overall Width | 45.8 in. |
| Hydraulic Connection - Hydraulic Connection | None |
| Weights And Dimensions - Weight (Quick Tach Configuration) | 207.0 kg |
| Weights And Dimensions - Lift Hole Diameter | 25.0 mm |
| Weights And Dimensions - Overall Length | 36.8 in. |
| Weights And Dimensions - Overall Length | 935.0 mm |
