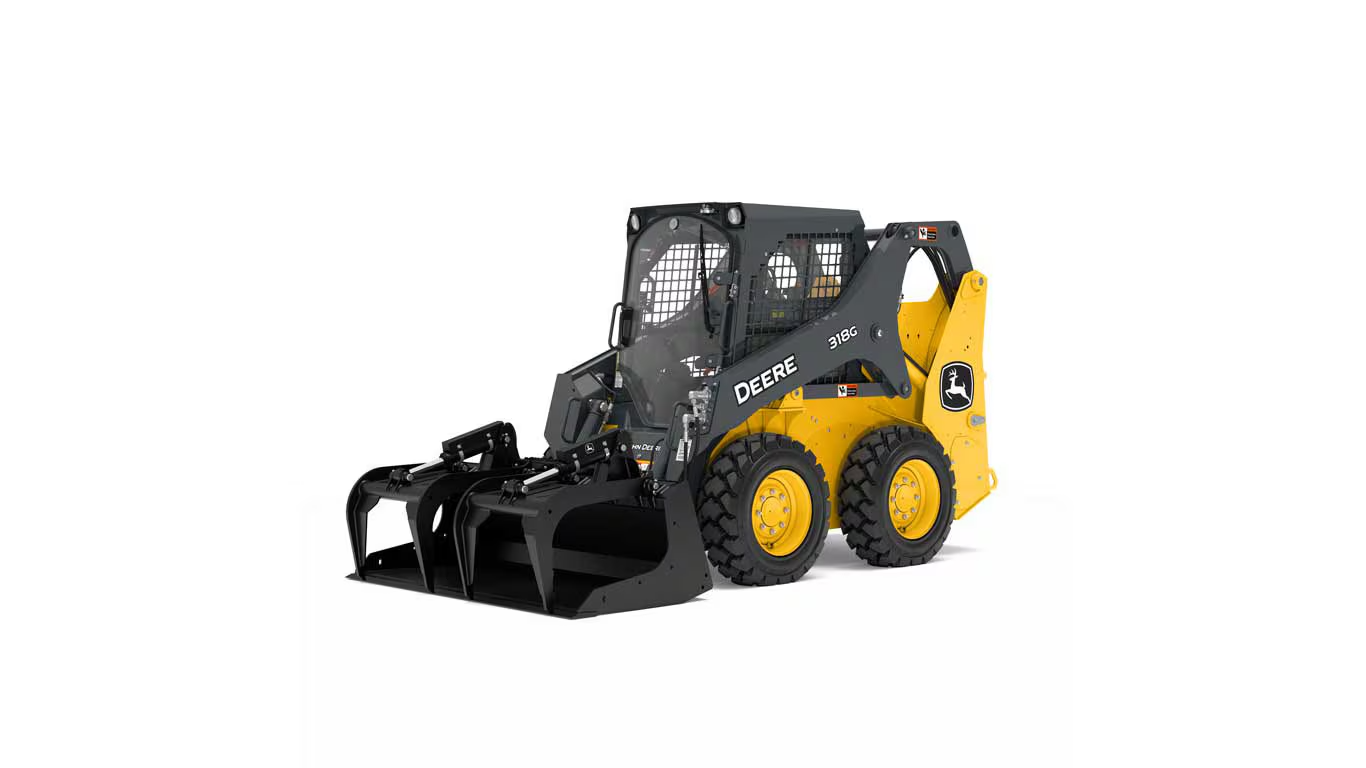

John Deere GS72B Scrap Grapple
Compact Construction Equipment
-
scrap handling
-
recycling center
-
disaster cleanup
-
jobsite cleanup applications
Featured Content
Overview
GS-Series Scrap Grapples are designed for scrap handling, recycling center, disaster cleanup, and jobsite cleanup applications that require grappling power to handle material.
Benefits
-
Each unit includes two independent-action grapples that allow different-sized objects to be picked up in each grapple Greaseable and hardened 35-mm (1.375-in.) pins with increased cylinder specifications result in improved durability
-
An improved hose routing over the previous series grapples eliminates the need for grapple cylinder stops on large frame G-Series Skid Steers
-
Open sides on the scrap grapple models allow easy grappling of material that is wider than the bucket.
-
For scrap applications where containing the material is required, bolt-on side plates are available
-
-
Increased side cutter, side sheet, and back sheet plate thicknesses, combined with larger torque tubes result in heavy-duty bucket construction for the most demanding applications
-
Scrap grapples feature convenient pre-drilled holes on the cutting edges for optional bolt-on, replaceable edge
Overview
Accomplish more with increased capacity and improved design.
Benefits
New rock grapple design
-
Tines are spaced three inches apart and fully supported on each side for maximum bend resistance
-
Weld-in serrated cutting edge easily penetrates difficult ground conditions
-
Solid backplate along the Quik-Tatch™ area protects hydraulic cylinder hoses and the machine from debris and damage
-
Thickened side cutter, side sheet, and backplate combine with large torque tubes for heavy-duty construction that meets the most demanding applications
Increased cylinder size
-
Cylinder size of 63.5-mm (2.5-in.) bore diameter and 35.56-mm (1.4-in.) rod diameter delivers high grapple forces to tackle even the most difficult materials
-
Grapple arms feature integrated mechanical stop to reduce cylinder load when open
Improved grapple capacity
-
619.76-mm (24.4-in.) wide grapple arm and range of grapple stances help grasp broad, cumbersome loads
-
Independent-action grapples enable different-sized objects to be picked up with each grapple
Improved hose routing
-
Durable 90-degree quick-couplers on the hydraulic cylinder hoses eliminate interference with the grapple
-
Standard low-profile cylinder guards simplify hose connections
