Key Features & Specs
- Working widths down to 43 inches
- Improved turning radius on the 5GN Series
- FT4 90 hp engine/76 hp PTO
- Two transmissions available: 12F/12R and 24F/12R
- Open Station Yes
- Cab Yes
- Engine HP 90 hp
- + Expand All
- - Close All

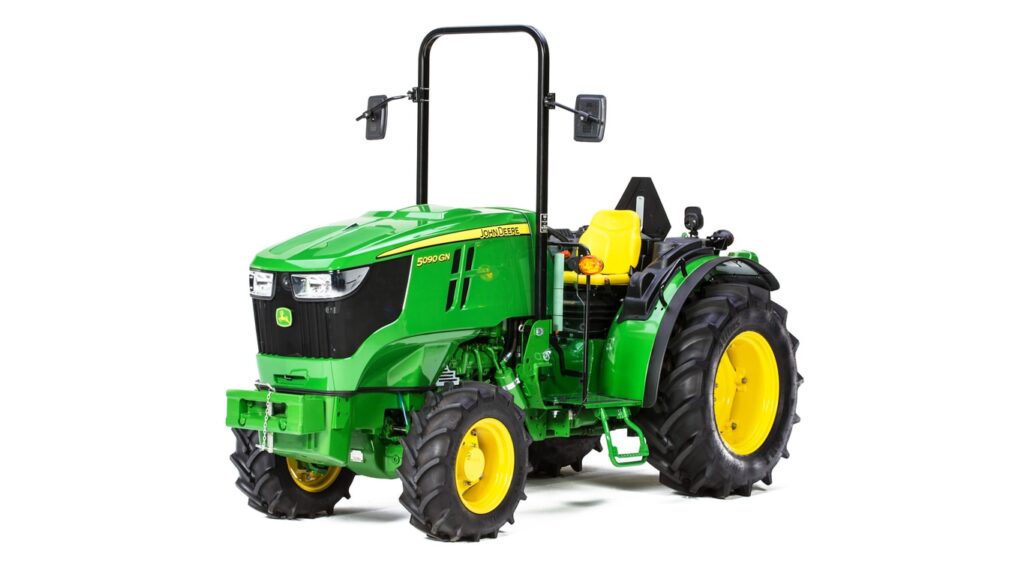

The 5G Series Tractors are heavy-duty utility tractors in two narrow chassis widths. Heavier gross vehicle weight means more down force to keep implements in the ground. Heavier equipment also leads to improved traction and performance in the field. The 5G Series Tractors have the weight to power through tough jobs.
Machine Four-wheel drive (4WD) rollover protective structure (ROPS) 4WD cab 5075GV 2530 kg (5577 lb) 2745 kg (6051 lb) 5090GV 2530 kg (5577 lb) 2745 kg (6051 lb) 5075GN 2660 kg (5864 lb) 2975 kg (6558 lb) 5090GN 2660 kg (5864 lb) 2975 kg (6558 lb) 5100GN 2660 kg (5864 lb) 2975 kg (6558 lb) 5075GL 2670 kg (5886 lb) No cab option
Excellent serviceability reduces operational costs and improves productivity
Regular service and maintenance are essential to the performance, productivity, and longevity of the tractor.
- Easy access to regular service points minimizes service time.
- Tractors are equipped with onboard self-diagnostic capabilities and are fully compatible with the John Deere-exclusive Service ADVISOR™ system.
- Daily service requirements are minimal and simple to accomplish. Most service interval requirements can be performed with a basic understanding of procedures and common tools.
All items in the daily service schedule can be performed without the use of tools:
- Convenient access to engine oil, hydraulic oil, coolant level, and water separator
- Easy access to periodic engine maintenance checks by simply raising the hood
- Single-point latch mechanism and self-contained leash ensure easy hood opening and closure
NOTE: Always refer to the operator’s manual for complete maintenance and service recommendations.
Outstanding hydraulic performance
The John Deere 5G Series provides an outstanding total hydraulic system flow of 126.4 L/min (33.4 gpm) with an optional third hydraulic pump.
This hydraulic system ensures excellent hydraulic performance and capacity:
- Precise steering without diverting oil flow from the selective control valves (SCVs) and rockshaft is ideal when maneuvering and operating an implement at the same time as turning at the headland
- Ensures easy power steering with heavy loads on the front of the tractor
- Supplies plenty of power to run hydraulic motors
- Fast cycle times even during the simultaneous usage of various hydraulic driven implements
55.9 kW (75 hp), 67.1 kW (90 hp), and 74.6 kW (100 hp) at 2300 rpm
5075GV 5090GV 5075GN 5090GN 5100GN 5075GL Steering and transmission 29.9 L/min (7.9 gpm) Second pump - SCV and hitch 66.6 L/min (17.6 gpm) Third pump - rockshaft 29.9 L/min (7.9 gpm) Total hydraulic flow 126.4 L/min (33.4 gpm)
Auxiliary fuel tank (5GN)
The 5GN models have an optional auxiliary fuel tank available, which increases the fuel tank capacity by up to 38 percent on the 5075GN and up to 33 percent on the 5090GN and 5100GN.
The increased capacity allows for more productive time in the field with fewer stops for refueling.
Machine Code Fuel tank capacity Code Auxiliary tank capacity 5075GN Base 86 L (22.7 gal.) 8313 28.4 L (7.5 gal.) 5090GN Base 73 L (19.3 gal.) 8313 28.4 L (7.5 gal.) 5100GN Base 73 L (19.3 gal.) 8313 28.4 L (7.5 gal.)
Tailored to fit: John Deere specialty solutions
The 5G Final Tier 4 (FT4) Specialty Series now brings a narrow, ultra-narrow, and low-profile option to specialty applications.
The 5GV Series is built to operate in vineyards with a minimum working width of 108.8 cm (42.8 in.) from rear tire to rear tire. The 5GV Series cab, with an overall width of 108.1 cm (42.6 in.), is designed to pass between narrow vineyard rows. The 5GN features an extra- wide cab of 127.5 cm (50.2 in.). The 5GL series is manufactured with orchardists in mind. This low-profile tractor has an approximate height of 135.89cm (53.5 in.) and width of 152.4cm (60 in.) (depending on tire configuration), which makes it ideal for operating in orchards that are laden with heavy fruit.
The two-door cab on the 5GN and 5GV models offers the operator yet another convenience of entering and exiting from either side. With a distance of 560 mm (22.1 in.) between the right- and left-hand side consoles and a play of 285 mm (11.2 in.) between seat and steering wheel, the 5G Series provides one of the roomiest cabs in the specialty tractor market.
Overview of minimum working widths
5G Specialty Series basic feature overview:
Feature overview 5GN 5GV 5GL 100 hp (74 kW), 4-cylinder / 3.4 L (0.9 gal.) 5100GN N/A N/A 90 hp (63 kW), 4-cylinder / 3.4 L (0.9 gal.) 5090GN 5090GV N/A 75 hp (55 kW), 4-cylinder / 3.4 L (0.9 gal.) 5075GN 5075GV 5075GL Two-wheel drive (2WD) / four-wheel drive (4WD) Only 4WD Only 4WD Only 4WD Cab / open operator station (OOS) Available Available Only OOS
The 5G Series has also expanded its platform offerings to include a 5GV cab on a 5GN Tractor. This option combines the fit of 5GV with the wider stance of a 5GN, providing excellent stability paired with the narrowest cab offering available in the 5G portfolio.
John Deere value
Performance: tailored to fit – matching narrow widths and low heights to producers’ high value crop applications.
Powerful Final Tier 4 (FT4) engines
The 5G Specialty Series Tractors are equipped with powerful FT4 diesel engines.
All GN, GV, and GL models are equipped with a robust FPT Industrial 4-cylinder, 3.4-L (207.5-cu in.) displacement engine that offers real versatility and performance for all kinds of specialty operations.
Engine overview 5GN 5GV 5GL 74.6 kW (100 hp), 4-cylinder / 3.4 L (207.5 cu in.) 5100GN Not available Not available 67.1 kW (90 hp), 4-cylinder / 3.4 L (207.5 cu in.) 5090GN 5090GV Not available 55.9 kW (75 hp), 4-cylinder / 3.4 L (207.5 cu in.) 5075GN 5075GV 5075GL
Supporting the narrow dimensions of the 5GV Series
The narrow width of the 5GV Series requires a compact engine solution. The compact 3.4-L (207.5-cu in.) engine supports the envelope of the 5GV Series entering super narrow vineyards as well as the turning radius at the end of a row.
Performance - made to measure
The engine ensures high productivity under tough working conditions. With a torque of 401 Nm (295.7 lb-ft) for the 74.6-kW (100-hp) model, the engine ensures the optimal performance for versatile operations.
John Deere value:
Performance: the powerful FT4 engines support the narrow machine envelope of the 5G Specialty Series and offer a high torque at rated rpm, which provides a high performance.
The 5G Series comes standard with a 24 forward/12 reverse (24F/12R) PowrReverser™ transmission. The 24F/12R transmission provides 24 forward speeds and 12 reverse speeds for transport speeds of up to 40 km/h (24.9 mph). The transmission provides convenient Hi-Lo and declutch push-button controls. The Hi-Lo feature benefits operators who frequently transport their tractors from field to field or find themselves in bog-down situations during rear power take-off (PTO) work.
Users can push the rabbit button (high) without having to depress the clutch to get an increase in speed. They can also push the turtle button (low) to get a decrease in speed, similar to downshifting or engine braking without having to grab another gear. The PowrReverser transmission has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor. A neutral start switch requires the PowrReverser lever to be in the neutral position to start the engine.
24F/12R PowrReverser Speed (km/h) 0.5 to 40 km/h (0.3 to 24.9 mph) Creeper range Yes Configuration Four-wheel drive (4WD) Clutch type Multi-disc wet clutch Clutching required to shift No Reverser PowrReverser Hi-Lo Electrohydraulic Mechanical front-wheel drive (MFWD) engagement Electrohydraulic, if MFWD option installed PTO engagement Electrohydraulic Differential lock engagement Electrohydraulic
Versatile rear hitch
The heavy-duty 3-point hitch design on the 5G Series provides a standard maximum lift of 2590 kg (5,710 lb) at the ball ends. An optional additional lift cylinder is available for the 5GN Series, which increases the maximum lift capacity by 510 kg (1,124 lb) to 3100 kg (6,834 lb) at the ball ends.
Hooking up implements is quick and simple with the standard Category 2 3-point hitch on the 5GN. Hooking up implements that require Category 1 or Category 1N is also possible and requires very little time with the 5GV and 5GL.
Code Description Information Availability 8490 Additional lift cylinder Includes additional lift cylinder (maximum lift capacity at ball ends: 3100 kg [6,834 lb]) 5GN 4130 Fixed ball ends 3-point hitch with fixed ball ends for draft links 5GN, 5GV 4131 Adjustable ball ends 3-point hitch with adjustable ball ends for draft links 5GN, 5GV 4132 Adjustable quick couplers 3-point hitch with adjustable quick couplers for draft links 5GN, 5GV, 5GL 4151 Hydraulic lift rod Hydraulically adjust lift arm to tilt or level implement 5GN, 5GV, 5GL 4152 Mechanical lift rod Mechanically adjust lift arm to tilt or level implement 5GN, 5GV, 5GL
John Deere value
Performance: higher lift capacity for a wider variety of implements and strong performance means real versatility.
|Fuel tank||Standard: 73.1 L
19.3 U.S. gal.
