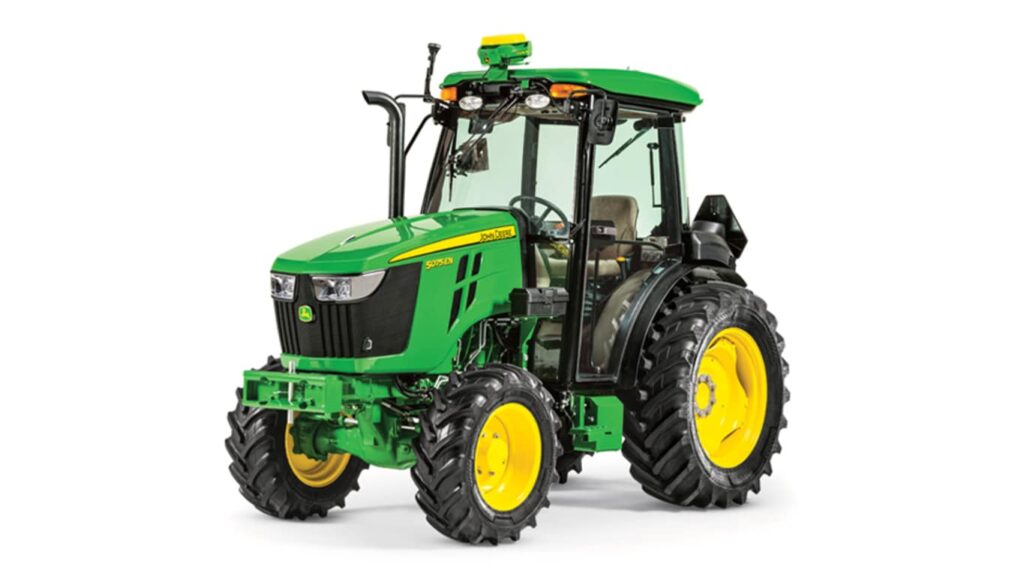

John Deere 5075EN Tractor
Agriculture
- Working widths down to 51 inches
- 75 hp engine/60 hp PTO
- Front hitch option and Mid SVC’s available
- Two PowrReverser™ transmissions available: 12F/12R and 24F/12R
- Creeper option available
- Open Operator’s Station or Cab Option
| Engine specifications - Displacement | 3 cylinders: 2.9 L 179 cu in. |
|---|---|
| Engine specifications - Rated speed | 2100 rpm |
| Transmission - Type | Standard: PowrReverser™ 12F/12R Optional: PowrReverser™ 24F/12R |
| Precision AG - Telematic | JDLink™ Modem |
| Hydraulic system - Number of mid selective control valves (SCVs) | Standard: Zero Optional: Up to Two |
| Tires - Rear | 14.9-24 In. 8PR R1 Bias |
| Rear power take-off (PTO) - Engine rpm (at rated PTO speeds) | 540 at 2100 rpm 540E at 1588 rpm |
| Rear axle - Differential controls | Mechanical (pedal) |
| Engine performance - PTO torque rise | 21 percent |
| Electrical system - Alternator size | OOS: 70 amp Cab: 110 amp |
| Rear axle - Final drive type | Planetary |
| Rear hitch - Maximum lift capacity behind lift points | 1390 kg 3604 lb |
| Additional information - Date collected | 6-Jan-2023 |
| Operator station - Display | Simple automotive-style instrument cluster |
| Rear hitch - Sensing type | Top link |
| Engine specifications - After treatment type | DOC/DPF |
| Dimensions - Approximate shipping weight, Open;Cab | OOS: 2735 kg 6029 lb Cab: 3090 kg 6812 lb |
| Engine specifications - Cylinders liners | Wet sleeved |
| Transmission - Clutch; wet/dry | Wet |
| Capacities - Diesel exhaust fluid (DEF) tank | Not Applicable |
| Rear power take-off (PTO) - PTO actuation | Electrohydraulic |
| Hydraulic system - Type | Open center |
| Key Specs - Hydraulic pump rated output | 68.8 L/min 18.2 gpm |
| Drawbar - Maximum vertical load | Road/field use (short position): 1120 kg 2470 lb Field use (fully extended): 760 kg 1675 lb |
| Precision AG - Guidance | Optional: AutoTrac™ Universal Ready |
| Hydraulic system - Number of rear selective control valves (SCVs) | Standard: Two Optional: Three |
| Operator station - Rollover protective structure, OOS | Rigid - foldable - telescopic Foldable, two-post Platform - flat/straddle Straddle Gearshift location - console/floor Floor, on the side |
| Rear axle - Type | Flange |
| Key Specs - Maximum engine power | 55 kW 75 hp |
| Electrical system - Working lights | Standard: Halogen Optional: LED |
| Key Specs - Rear hitch category (SAE designation) | Category 2N; convertible to 2 & 1 |
| Hydraulic system - Pump rated output | 68.8 L/min 18.2 gpm |
| Operator station - Seat | Standard: Mechanical Optional for Cab: Air Ride |
| Rear hitch - Hitch draft control load sense type | Electrohydraulic |
| Tires - Turning radius without brakes | 4.65 m 15.3 ft |
| Engine specifications - Emission level | Final Tier 4 |
| Key Specs - Rated engine power | At 2100 rpm: 55 kW 75 hp |
| Hydraulic system - Joystick SCV control | Mechanical |
| Tires - Turning radius with brakes | 3.2 m 10.5 ft |
| Engine performance - Rated power | At 2100 rpm: 55 kW 75 hp |
| Electrical system - Type of bulb in headlight (Halogen, Zenon, LED) | Standard: Halogen Optional: LED |
| Electrical system - Type of bulb in beacon (Halogen, Zenon, LED) | Kit: LED |
| Dimensions - Wheelbase | 1950 mm 76.77 in. |
| Miscellaneous - ISOBUS ready | No |
| Rear power take-off (PTO) - Type | Standard: 540/540E |
| Dimensions - Overall length | 3639 mm 143.3 in. |
| Key Specs - Rated PTO power (hp SAE) | At 2100 rpm: OOS 45 kW (60.3 hp) Cab 43 kW (57.6 hp) |
| Front axle - Type | Mechanical Front Wheel Drive (MFWD) |
| Engine performance - Maximum engine power | 55 kW 73.7 hp |
| Operator station - Instructional seat | Not Available |
| Engine performance - Rated PTO power (hp SAE) | At 2100 rpm: OOS 45 kW (60.3 hp) Cab 43 kW (57.6 hp) |
| Miscellaneous - AutoTrac ready | Optional for cab models |
| Engine specifications - Engine type | 3029HPY110 |
| Operator station - dB(A) rating | 82 dBA |
| Transmission - Creeper | Optional |
| Electrical system - Battery options | 12 V |
| Key Specs - Engine description | John Deere PowerTech™ 3029 EWX |
| Transmission - Reverser | Yes |
| Rear axle - Brakes, type and control | Hydraulic wet disc |
| Engine specifications - Description | John Deere PowerTech™ 3029 EWX |
| Rear hitch - Hitch category (SAE designation) | Category 2N; convertible to 2 & 1 |
| Engine specifications - Aspiration | Turbocharged |
| Engine specifications - Engine family | NJDXL02.9339 |
| Rear hitch - Remote control valves available | Standard: Two |
| Miscellaneous - Country of manufacture | Saltillo, Mexico |
| Key Specs - Transmission type | Standard: PowrReverser™ 12F/12R Optional: PowrReverser™ 24F/12R |
| Operator station - Radio | Optional |
| Key Specs - Engine displacement | 3 cylinders: 2.9 L 179 cu in. |
| Engine performance - Power boost | 0 percent |
| Hydraulic system - Available flow at a single rear SCV | 43.4 L/min 11.5 gpm |
| Capacities - Fuel tank | 66 L 17.43 U.S. gal. |
| Engine performance - Engine peak torque | At 1500 rpm: 304 Nm 224 lb-ft |
Featured List
- Optional Transmission: 24F/12R PowrReverser
- Cab: Yes
- Open Station: Yes
- Engine HP: 75 hp
- Standard Transmission: 12F/12R PowrReverser
Featured Content
AutoTrac™ Guidance in a vineyard
Manage your vineyard or orchard better by accessing key machine and job data. Know where your tractor is and basic machine health data with the help of JDLink™ which comes standard on 5EN tractors. Significantly reduce install time of an AutoTrac™ Universal 300 on 5EN cab tractors by adding the AutoTrac Universal Ready option which enables hands free guidance. Map the jobs that are most important to you, like spraying, by adding a Gen 4 Display and StarFire™ Receiver.
- Enable job mapping and entry level machine guidance
- Pinpoint future efficiency gains by reviewing job and machine health information
- Reduce operator fatigue and improve job efficiency when running AutoTrac guidance
- Quick install and removal of the AutoTrac Universal 300 system which makes it mobile between tractors
- Manage employees and tasks by using JDLink and other John Deere Precision Ag technologies that were previously not accessible to the narrow Tractors
Installing StarFire™ Receiver
Equipping tractor with an AutoTrac™ Universal 300
Utilizing Gen 4 display
JDLink™ standard on 5EN tractors
Spraying in a vineyard
Hook a variety of front-, mid-, and rear-mounted implements to the 5EN to get work done. Be more efficient with your time by completing multiple jobs during one pass and utilizing the full tractor capabilities.
- Front and rear attachment locations
- Easily attach mid and front mounted implements to the mid-SCVs
- Save on fuel cost by using 540E PTO with implements not requiring full PTO strength
- Unlock new tractor functions with future loader capabilities
Apple orchard mowing
5075EN mowing
Reduce the cost of operation when purchasing the 5075EN by not having to add Diesel Exhaust Fluid (DEF). This small, nimble tractor is the ideal size for smaller vineyard/orchard applications related to mowing, weed spraying, and pulling harvest wagons or carts.
- No after-treatment system required on 75hp tractor
- Reduce cost of operation by not requiring DEF or DPF
5075EN hauling barrels
Moving to the next job
Get in the field and ready to work with the proven, reliable PowrReverser™ transmission. Find the right working range and gear to complete a variety of tasks such as mowing, spraying, harvesting, and transport. Ideal for applications requiring frequent directional changes, like moving crates, the left-hand reverser allows for quick forward and reverse changes. Increase fuel saving by using 540 economy PTO or switch to standard 540 PTO for more power. Increase transmission functionality and productivity by upgrading from a 12F/12R PowrReverser transmission to a 24F/12R PowrReverser transmission. Work in slow speeds by adding optional creeper which could be useful when planting.
- Easy to use 12F/12R PowrReverser transmission
- Increase working speed ranges by upgrading to 24F/12R PowrReverser transmission
- Unlock fuel savings when doing simple PTO tasks such as mowing by using 540E PTO
- Achieve slow working speeds by adding creeper gear
- Improved acceleration during transport or infield work with foot throttle
- Ensure the tractor is in park by having it in the transmission vs extra lever
Change gears with ergonomic lever
Range lever with creeper gear
5EN mowing in vineyard
5ML spraying in orchard
While working in your orchard or vineyard, getting in and out the rows effortlessly is important. Turning radius is a top priority for high value crops growers and was a top priority when designing our high value crops tractors.
- Efficiency gains when making turns in and out of rows
- Worry less about making tight headland turns
5075EN Cab vineyard mowing
5075EN Open Station tractor
The 5EN is back “EN” action with improved operator comfort features and key product updates. Depending on what jobs you are needing to perform, you can equip your tractor with an open station or cab to fit your specific needs.
- Conveniently located levers that control key tractor and implement functions
- Operate the tractor in comfort year-round no matter the elements by adding a cab
- Keep the operator comfortable during long days with mechanical or air suspension seat options
- Maneuver the ROPS (Roll Over Protective Structure) up and down on tractors with an open operator station using less force than previously models
- When using mid- or front mount-implements with an open operator station tractor you can lock the ROPS in place
Cab righthand console controls
Cab storage and charging ports
5075EN working alongside a 5101EN
OOS controls layout
