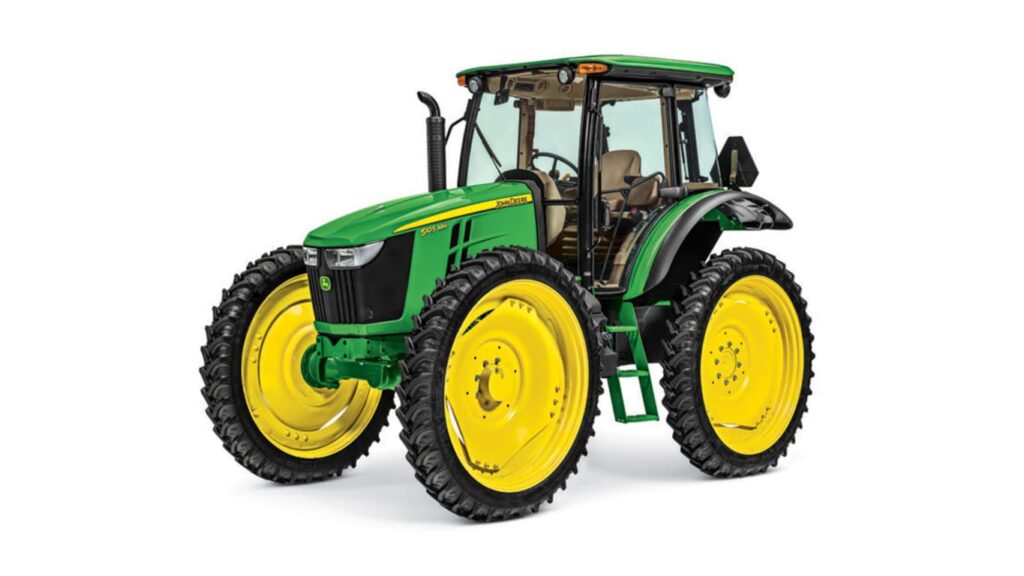

John Deere 5105MH High-Crop Utility Tractor
Agriculture
- Over 23 inches (594 mm) of front axle clearance
- Enjoy all day comfort with open station and premium cab options
- Cooling system handles harsh conditions, offers easy, tool-free cleaning and maximizes uptime
- Low hood design for increased visibility and operational efficiency
- Open Operator’s Station or Cab Option
| Operator station - Instructional seat | Optional |
|---|---|
| Hydraulic system - Number of rear selective control valves (SCVs) | Standard: Two Optional: Three |
| Rear axle - Differential controls | Electrohydraulic |
| Rear hitch - Sensing type | Lower Link |
| Key Specs - Maximum engine power | 80.6 kW 108.0 hp |
| Electrical system - Alternator size | OOS: 90 amp Cab: 120 amp |
| Tires - Turning radius without brakes | MFWD: 4.7 m 15.4 ft |
| Rear axle - Final drive type | Inboard planetary |
| Engine performance - Maximum engine power | 80.6 kW 108.0 hp |
| Tires - Turning radius with brakes | MFWD: 3.9 m 12.8 ft |
| Rear power take-off (PTO) - PTO actuation | Electrohydraulic |
| Engine specifications - Engine family | NJDXL04.5317 |
| Capacities - Fuel tank | Open: 140.8 L 37.2 U.S. gal. Cab: 140.8 L |
| Engine specifications - After treatment type | DOC/SCR |
| Operator station - Rollover protective structure, OOS | Rigid - foldable - telescopic Foldable, 2-post Platform - flat/straddle Flat Gearshift location - console/floor Floor |
| Operator station - Display | Automotive-style light-emitting diode (LED) instrument cluster |
| Hydraulic system - Number of mid selective control valves (SCVs) | Standard: Two Optional: Up to Three |
| Dimensions - Approximate shipping weight, Open;Cab | OOS: 4520 kg 9947 lb Cab:4710 kg 10364 lb |
| Rear hitch - Remote control valves available | Standard: 2 Optional: 3 |
| Drawbar - Maximum vertical load | Road/field use (250-mm extended): 1450 kg 3197 lb Field use (350-mm extended): 1200 kg 2646 lb Field use (400-mm extended): 1200 kg 2646 lb |
| Key Specs - Engine displacement | 4 cylinders: 4.5 L 276 cu in. |
| Tires - Wheel tread range | MFWD: 1340-1904 mm 52.8-75.0 in. |
| Rear hitch - Rear axle differential lock | Electrohydraulic |
| Operator station - Seat | Standard: Mechanical Optional: Air Ride or Premium Air Ride |
| Electrical system - Working lights | Standard: Halogen Optional: LED |
| Engine performance - Power boost | At 1900 rpm: 4 percent |
| Hydraulic system - Pump rated output | 94 L/min 24.7 gpm |
| Rear axle - Brakes, type and control | Hydraulic wet disc |
| Operator station - dB(A) rating | 78 dBA |
| Key Specs - Rear hitch category (SAE designation) | Category 2; convertible to 1 |
| Rear power take-off (PTO) - Type | Independent, 34.9 mm (1.375 in) Standard: 540/540 Economy (6 spline) Optional: 540/540E (6 spline) and 1000 rpm (21 spline) reversible shaft |
| Transmission - Type | PowrReverser™ 16F/16R with creeper |
| Engine performance - Rated power | At 2200 rpm: 77.4 kW 105 hp |
| Key Specs - Rated PTO power (hp SAE) | At 2100 rpm: 66.2 kW 90 hp |
| Tires - Rear | MFWD: 230/95R48 R1W Radial |
| Key Specs - Transmission type | PowrReverser™ 16F/16R with creeper |
| Hydraulic system - Joystick SCV control | Mechanical |
| Dimensions - Overall length | 3996 mm 157.3 in. |
| Engine performance - PTO torque rise | At 1600 rpm: 30 percent |
| Miscellaneous - AutoTrac ready | No |
| Dimensions - Wheelbase | 2350 mm 92.5 in. |
| Transmission - Creeper | PowrReverser™ 16F/16R with creeper |
| Miscellaneous - Country of manufacture | Pune, India |
| Engine specifications - Aspiration | Turbocharged/Air-to-Air Aftercooled |
| Transmission - Reverser | Left hand, electrohydraulic |
| Electrical system - Type of bulb in beacon (Halogen, Zenon, LED) | Optional: LED |
| Engine specifications - Displacement | 4 cylinders: 4.5 L 276 cu in. |
| Electrical system - Battery options | 12 V |
| Engine specifications - Description | John Deere PowerTech™ 4045 EWL |
| Rear hitch - Hitch draft control load sense type | Mechanical or electrohydraulic |
| Capacities - Diesel exhaust fluid (DEF) tank | 12.0 L 3.17 U.S. gal. |
| Key Specs - Engine description | John Deere PowerTech™ 4045 EWL |
| Rear axle - Type | High-Crop Flange Drop Axle |
| Key Specs - Rated engine power | At 2200 rpm: 77.4 kW 105 hp |
| Additional information - Date collected | 6-Jan-2023 |
| Engine performance - Engine peak torque | At 1600 rpm: 437 Nm 322 lb-ft |
| Engine specifications - Engine type | 4045HLV82 |
| Miscellaneous - ISOBUS ready | No |
| Hydraulic system - Type | Open Center |
| Rear hitch - Hitch category (SAE designation) | Category 2; convertible to 1 |
| Engine performance - Rated PTO power (hp SAE) | At 2100 rpm: 66.2 kW 90 hp |
| Rear power take-off (PTO) - Engine rpm (at rated PTO speeds) | 540 at 2100 rpm 540E at 1645 rpm 1000 at 2100 rpm |
| Operator station - Radio | Optional |
| Electrical system - Type of bulb in headlight (Halogen, Zenon, LED) | Standard: Halogen Optional: LED |
| Transmission - Clutch; wet/dry | Wet |
| Front axle - Type | Mechanical Front Wheel Drive (MFWD) |
| Drawbar - Drawbar category | Category 2 |
| Key Specs - Hydraulic pump rated output | 94 L/min 24.7 gpm |
| Engine specifications - Cylinders liners | Wet sleeved |
| Engine specifications - Emission level | Final Tier 4 |
| Engine specifications - Rated speed | 2200 rpm |
| Hydraulic system - Available flow at a single rear SCV | 70 L/min 18.4 gpm |
| Rear hitch - Maximum lift capacity behind lift points | Standard: 2336 kg 5150 lb Optional: 2699 kg 5950 lb |
Featured List
- Engine HP: 103 hp (76.8 kW)
- Rated PTO HP: 85 hp (63 kW)
- Open Station: Yes
- Cab: Optional
- 2WD or MFWD: MFWD
Featured Content
Overview
Ample speeds and ease of operation for demanding applications with the 16F/16R PowrReverser, providing 16 forward speeds and 16 reverse speeds. This transmission comes standard with a dual speed 540/540 Economy power take-off (PTO), and it is ideal for applications requiring frequent directional changes, such as loader work.
Benefits
- Effortlessly switch directions with a small finger motion using the electrohydraulic fingertip directional lever
- Frees the right hand to operate other tractor controls, such as the loader, rear implements, or throttle, as the directional lever allows the operator to steer and shift direction with the left hand
- Ideal for rear blading and any applications that require frequent directional changes in tight spaces
- Clutch-less hydraulic shifting between forward and reverse
- Lower engine vibration, reduced noise, less wear and tear on the engine, reduced fuel consumption, and increased operator comfort from the standard economy PTO (E-PTO)
Additional details
16F/16R transmission includes:
- Hydraulic wet clutches (forward and reverse)
- Maximize durability and outlast the life of any dry clutch
- When tractors are run by multiple operators with a variety of experience levels, a wet clutch is the best way to maintain transmission integrity and performance while decreasing clutch replacement costs
- Platform-mounted shift levers (four ranges, four gears)
- Two platform-mounted levers offer easy and comfortable shifting for a pleasant operator experience
- The gear-shift lever is easy to reach, and the less-used range lever is shorter. Unique knobs make it easy to distinguish between the two
- Left-hand reverser
- The control is located on the left side of the steering column and selects forward, reverse, and neutral positions
- Constant-mesh helical-cut gears
- Provide quieter operation and excellent reliability while the pressure-lubricated top shaft adds to the transmission durability
- Fully enclosed, rigid shift linkages for short throw and crisp shifts enable all operators to clearly know in what range and gear they are operating
- Pressure-lubricated top shaft
- Positive park pawl: provides positive park and eliminates the need for a hand brake
- Neutral start switch
Gear and range shift levers (cab)t
Gear shift lever open operator’s station (OOS)
Range shift lever (OOS)
The forward lever selects one of four speeds, all synchronized shifts for on-the-go shifting with the use of the clutch. The rear lever selects ranges A, B, C, or D. All ranges are fully synchronized. When upshifting, operators can move between ranges without stopping the tractor providing convenience for on-the-go shifting from field to transport.
Left-hand reverser lever
NOTE: A neutral start switch requires the directional lever be in the neutral position to start the engine.
Integrated declutch button on gear shifter
NOTE: The PowrReverser transmission is not available for the 5130M or 5130ML tractors.
The PowrReverser has a built-in engagement override valve for additional safety. This valve requires the clutch pedal to be depressed one time after each engine start before the transmission will begin to operate normally, giving the operator another opportunity to put all focus on the tractor.
See the PTO functional area for more information on E-PTO.
Creeper lever on 5MH only
The creeper gears are accessible by engaging the creeper lever into rabbit or turtle position. This provides 2 additional slow working ranges perfect for bedded crops.
See the PTO functional area for more information on E-PTO.
5M Tractor 3-point hitch
Overview
Heavy-duty 3-point hitch provides lift capacity and adjustability for implement versatility with Category 2 implements or adaptable to Category 1. Precisely raise and lower heavy implements such as planters, sprayers, and field cultivators, using the rockshaft control lever. The operator can also adjust the speed at which an implement is lowered by adjusting the rockshaft rate of drop.
Benefits
- Convenience hooking up implements with telescoping draft links, adjustable sway bars, and interchangeable hitch balls with the choice of either mechanical or electrohydraulic controls.
- Consistency when lowering hitch with depth stop on both mechanical and electrohydraulic hitch controls – each time the position control lever is pushed forward, it stops where the depth stop has been positioned. Useful when preparing a seedbed.
- Compatible with implements needed to perform multiple jobs. Increased lift capacity is available with optional larger cylinders. See Specifications for lift capacity by model.
- Convenience when leveling implements with right lift link being able to adjust without tools – lift links can be adjusted for lateral float to allow implements with gauge wheels or skids to follow the ground contour
Additional details
Mechanical or electrohydraulic hitch control operation
Raise and lower rear implements with precision with either the mechanical or electrohydraulic (EH) hitch control. The operator can also adjust the speed at which an implement is lowered by adjusting the rockshaft rate of drop.
The mechanical hitch control is paired with the tractors equipped with a PowrReverser™ transmission while the EH hitch control is paired with units equipped with a PowrQuad™ PLUS or Powr8™ transmission. Both control types enable the operator to adjust the speed at which an implement can be lowered by adjusting the rockshaft rate of drop. In addition to this feature, the EH hitch control adds repeatable movements by enabling the operator to set both an upper and lower limit.
The adjustable depth stop (found on both control types) provides consistency when lowering the hitch. Each time the position control lever is pushed forward, it stops where the depth stop has been positioned. This feature is a value to anyone who desires a consistent, level ground, like when preparing a seedbed.
The center link can be set in one of three positions to accurately set the implement position and draft sensing. The right lift link is adjustable without tools for added convenience when leveling implements.
Optional larger cylinders:
|
Transmission |
Cylinder diameter |
Lift capacity at 610-mm (24-in) behind lift point |
|
PowrReverser™ transmission models |
Two 65-mm (2.56-in.) cylinders |
See specifications for lift capacity. |
|
PowrReverser models with optional high-capacity hitch |
One 65-mm (2.56-in.) cylinder |
|
|
PowrQuad PLUS or Powr8 transmission models |
Two 75-mm (2.95-in.) cylinders |
|
|
PowrQuad PLUS or Powr8 models with optional high-capacity hitch |
Two 80-mm (3.15-in.) cylinders |
Rear fender hitch controls
5M rear fender hitch controls
Operators do not need to carry a tool to adjust the rear hitch. Operators can also raise and lower the 3-point hitch from outside of the tractor with the conveniently located rear fender hitch controls.
Rear quick hitch
Rear quick hitch
Sideview of quick hitch shown on 5M
An updated three-point quick hitch is offered on the 5M Tractors.
- This updated design is a break from the existing welded quick hitch as the frame is cast.
- The curved design eliminates the potential for contact with the rear fender and extensions.
- The quick hitch is available as a field kit option.
Sway bars
5M Tractor sway bars
Adjustable sway bars and telescoping draft links can be easily adjusted to adapt to a wide variety of implements. The right lift link also adjusts without tools for added convenience when leveling implements.
Power bulge and torque curve
Overview
When the tractor is under load, power bulge and torque rise work together to get through the tough spots without having to downshift.
As rpm drops, the only way to maintain or increase horsepower is to provide additional torque. Whether bailing wet hay or lifting a heavy load, the additional power allows the tractor to continue performing the job without stopping. The rated economy power take-off (EPTO) speed occurs near the peak torque rise providing power when operator need it in PTO applications.
Benefits
- Increased productivity in demanding conditions with more power when operator need it
- More lugging ability for quicker power recovery
- Additional torque provides force to remain horsepower as engine rpm drops below rated speed
Additional Details
Horsepower and torque are mathematically related.
5M 4-Cylinder tractors provide 4% power bulge while 5E 4-Cylinder tractors provide 2% power bulge. Note: There is no power bulge on 3-Cylinder tractors (5E 3-Cylinder or 5075M).
5E 4-Cylinder Power and Torque Curves
5E power curve summary
5E torque curve summary
5M Power and Torque Curves
5M power curve summary
5M torque curve summary
Instrument cluster
Power take-off (PTO) target bars
Overview
Operators can view information in a crisp, vibrant, and useful array on the tractor instrument cluster.
Benefits
- Clear and bright indicators, warning lights, and gauges
- Provides operators with crucial onboard diagnostics through the roll-mode function
- Visibility of engine hours, ground speed, Hi-Lo indicator, forward, neutral, and reverse all at the same time
- Light-out indicator for trailer light, turn light, and hazard light bulbs
- Clearly presented PTO target bars to indicate the correct PTO speeds when operating the PTO
Additional details
There are daytime and nighttime modes which are based on the position of the light switch. The mode adjusts the backlight levels of the display for optimum visibility.
5M Tractor Premium Cab with panorama roof
Overview
Experience ultimate operator experience in comfort and convenience by upgrading to the Premium Cab on 5M tractors. Upgrading to the Premium Cab unlocks a fixed panorama roof ideal for loader work.
Benefits
- Improve upward visibility by 80 percent vs standard cab for easier bale stacking, pallet stacking, and dumping loads into walled trailers with the panorama roof
- Additional storage space with the rear floor mat behind the seat
- Excellent visibility to rear operations with the rearview mirror
- Shield the operator from the sun with an easy-to-use front sunshade
|
Features |
Standard Cab |
Premium Panorama Roof Cab |
|
Deluxe isolated cab with flat floor |
X |
X |
|
Tilt and telescopic steering column |
X |
X |
|
Convenience power outlet |
X |
X |
|
Air conditioning and heater |
X |
X |
|
Speedometer |
X |
X |
|
Beverage Holder |
X |
X |
|
Sun visor for front window |
X |
X |
|
Two-speed front windshield wiper and washer |
X |
X |
|
Two front/two rear roof-mounted worklights |
X |
X |
|
Two front/two rear roof-mounted warning lights |
X |
X |
|
Two fender-mounted taillights |
X |
X |
|
120Amp Alternator |
X |
X |
|
Convenience power outlet |
X |
X |
|
Monitor mounting bosses (two Sets) |
X |
X |
|
Swing-out rear window with two removable rear plugs for monitor |
X |
X |
|
Right-hand console light |
X |
X |
|
Radio preparation (with speakers, wiring) |
X |
X |
|
Rear window grab handle |
X |
X |
|
Bluetooth® ready |
X |
X |
|
Requires option code 3025 (Deluxe cornerpost exhaust). |
X |
X |
|
Fixed panorama roof with shade |
– |
X |
|
Radio (Bluetooth® and Satellite Capable) |
– |
X |
|
Rear window wiper |
Option |
X |
|
Radio antenna |
– |
X |
|
Requires option code 4030 (ElectroHydraulic (EH) rear hitch) |
– |
X |
|
Requires option code 6040 (MFWD) |
– |
X |
Bluetooth is a trademark of Bluetooth SIG, Inc.
