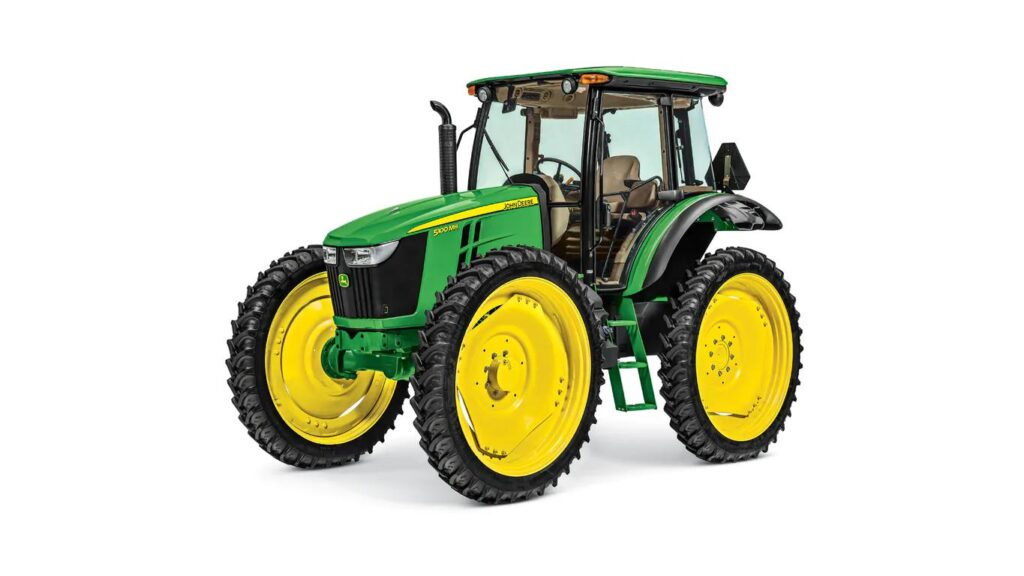

John Deere 5100MH Hi-Crop Utility Tractor
Agriculture
- Over 23 inches (594 mm) of front axle clearance
- Open station and premium cab offer comfort features that reduce fatigue
- Cooling system handles harsh conditions, offers easy, tool-free cleaning and maximizes uptime
- Low hood design for increased visibility and operational efficiency
| Transmission - Reverser | Right Hand, Mechanical |
|---|---|
| Transmission - Clutch; Wet/Dry | Wet |
| Miscellaneous - Country of Manufacture | Augusta, GA |
| Hydraulic system - Type | Open Center |
| Rear axle - Final drive type | Inboard planetary |
| Engine specifications - Cylinders liners | Wet sleeved |
| Engine performance - Rated PTO power (hp SAE) | At 2100 per SAE: 63 kW 85 hp |
| Operator station - dB(A) rating | 80 dBA |
| Rear hitch - Sensing type | Lower Link |
| Rear axle - Brakes, type and control | Hydraulic wet disc |
| Hydraulic system - Pump rated output | Standard: 94 L/min 24.7 gpm |
| Dimensions - Approximate shipping weight, Open;Cab | MFWD: Open: 3630 kg 8000 lb Cab:4040 kg 8900 lb |
| Rear hitch - Maximum lift capacity behind lift points | Standard: 2100 kg 4600 lb Optional: 2550 kg 5600 lb |
| Rear axle - Axle type | Flanged |
| Dimensions - Wheelbase | MFWD: 2301.24 mm 90.6 in. |
| Capacities - Fuel tank | Standard: Open: 114 L 30 U.S. gal. Cab: 140 L 37 U.S. gal. Optional: Open: 144 L 38 U.S. gal. Cab: 174 L 46 U.S. gal. |
| Engine specifications - Description | John Deere PowerTech PWL |
| Engine specifications - Aspiration | Turbocharged/Air-to-Air Aftercooled |
| Rear hitch - Hitch category (SAE designation) | Category 2; convertible to 1 |
| Rear hitch - Remote control valves available | Standard: 0 Optional: 3 |
| Rear axle - Differential controls | Mechanical (pedal) |
| Hydraulic system - Available flow at a single rear SCV | 70 lb-ft 18.4 gpm |
| Transmission - Type | Standard: 16F/16R PowrReverser with creeper |
| Engine performance - Rated power | At 2200 per ISO 97/68/EC: 74 kW 100 hp |
| Hydraulic system - Joystick SCV control | Optional |
| Rear power take-off (PTO) - Type | Standard: Independent 540/540 Economy Optional: 540/540E/1000 |
| Engine specifications - Displacement | 4 cylinders: 4.5 L 276 cu in. |
| Engine specifications - Engine family | FJDXL04.5305 |
| Engine performance - PTO torque rise | At 1600 rpm: 30 percent |
| Transmission - Creeper | 16F/16R PowrReverser |
| Rear hitch - Hitch draft control load sense type | Electrohydraulic |
| Rear power take-off (PTO) - PTO actuation | Electrohydraulic |
| Rear power take-off (PTO) - Engine rpm (at rated PTO speeds) | 540 at 2100 rpm 540E at 1645 rpm |
| Operator station - Rollover protective structure, OOS | Rigid - foldable - telescopic Foldable, 2-post Platform - flat/straddle Flat Gearshift location - console/floor Floor |
| Key Specs - Rated PTO power (hp SAE) | At 2100 per SAE: 63 kW 85 hp |
| Tires - Turning radius without brakes | MFWD: 4.4 m 14.4 ft |
| Key Specs - Engine description | John Deere PowerTech PWL |
| Electrical system - Type of bulb in beacon (Halogen, Zenon, LED) | |
| Key Specs - Hydraulic pump rated output | 94 L/min 24.7 gpm |
| Key Specs - Transmission type | 16F/16R PowrReverser with creeper |
| Electrical system - Type of bulb in headlight (Halogen, Zenon, LED) | |
| Key Specs - Rated engine power | At 2200 per ISO 97/68/EC: 74 kW 100 hp |
| Key Specs - Engine displacement | 4 cylinders: 4.5 L 276 cu in. |
| Tires - Front | MFWD: 230/95R40 R1 |
| Tires - Turning radius with brakes | MFWD: 3.9 m 12.8 ft |
| Weight - Base machine weight | |
| Tires - Rear | MFWD: 230/95R40 R1 |
| Key Specs - Rear hitch category (SAE designation) | Category 2; convertible to 1 |
| Tires - Wheel tread range | MFWD: 1340-1904 mm 52.8-75.0 in. |
Featured List
- Engine HP: 100 (74 kw)
- Rated PTO HP: 85 (63 kw)
- 2WD or MFWD: MFWD
- Cab: Optional
- Open Station: Yes
Featured Content
The exclusive mid-frame design on the 5M Series offers additional strength and durability but also reduces noise and vibration. Because the mid frames are made from hardened cast steel they provide the tractor strength and stability even in the toughest conditions.
The mid frames also support and protect different pieces of essential equipment. The hydraulic pump, located between the mid-frames, is attached to the transmission for short hydraulic lines and simplified fluid flows. An optional mid-mount fuel tank allows the tractor to carry an extra 9 gal. (34L) on cab tractors and an extra 7.8 gal. (29.5L) on OOS tractors. This is especially useful for long days in the field or when a trip to fill up with diesel may not be convenient.
The mid frames are compatible with current loader mounting frames, which is beneficial for those interested in upgrading their tractors and keeping their H-Series Loaders.
5M Final Tier 4 (FT4) engines feature up to a 4 percent power bulge when put under load. The power bulge feature of the electronically controlled engine delivers additional horsepower as engine rpm drops below rated speed. Additionally, a 30 percent torque rise provides the force that maintains horsepower as engine rpm drops below rated speed.
When the tractor is under load, power bulge and torque rise work together to get through the tough spots without having to downshift. Horsepower and torque are mathematically related.
 |
As rpm drops, the only way to maintain or increase horsepower is to provide additional torque. The output horsepower is greater than or equal to rated horsepower as the engine is pulled down to 1750 rpm.
The peak torque rise also occurs near the rated economy power take-off (EPTO) speed.
5M power curve summary
5M torque curve summary
The premium cab is designed to provide the ultimate in comfort and convenience. This cab includes all of the features of the standard cab operator station plus much more. Some of the key features include:
- Deluxe sound package with two 4X6 coaxial speakers and subwoofer
- Factory-installed radio
- Bluetooth® ready
- Satellite ready
- USB port
- Auxiliary cord connection
- Additional heating and cooling vents
- Rear windshield wiper and washer
- Loader view window with sun shade
- Rear floor mat
Key features of the premium cab
The rear floor mat behind the seat provides additional storage space. To shield the operator from the sun, there is an easy to use front sun shade with a scissor-style design. There is an overhead console with speakers and a map light. The Bluetooth microphone is strategically located for ample sound detection. The rearview mirror is positioned for excellent visibility to rear operations. The premium cab comes with a Bosch® deluxe radio, and offers both an auxiliary and a USB port to charge and connect custom electronic devices. The satellite radio-ready feature makes it easy for customers to convert the sound system to any available service. The sound system includes two 4×6 co-ax speakers in the front of the cab and a subwoofer with amp and crossover.
The loader view window or sun roof has a single handle to open and close and once latched, the sun shade moves with the window.
The auxiliary plug-in as well as the USB connection provide a way to play music through an iPod® or MP3 player.
Deluxe sound package and loader window
Factory-installed radio
Rigid front sun shade
Loader window sun shade and vent
Bluetooth microphone
Auxiliary cord connection
Rear floor mat
Bluetooth is a trademark of Bluetooth SIG Incorporated. iPod is a trademark of Apple Inc. Bosch is a trademark of Robert Bosch GmbH.
A Category 2, 3-point hitch on 5M Tractors provides the lift capacity and compatibility to perform in a variety of different applications. With the choice of either mechanical or electrohydraulic hitch controls, hooking up implements is convenient with telescoping draft links, adjustable sway bars, and interchangeable hitch balls. Both mechanical and electrohydraulic hitch controls have a depth stop. This feature provides consistency when lowering the hitch. Each time the position control lever is pushed forward, it stops where the depth stop has been positioned. This is valuable to anyone who desires a consistent, level ground, like when preparing a seedbed.
The 3-point hitch adapts to a wide variety of implements and has plenty of lift capacity to handle heavy implements such as planters, sprayers, and field cultivators. The 65-mm (2.5-in.) external cylinders provide for a hitch lift capacity of 2340 kg (5159 lb) at 610-mm (24 in.) behind the hitch-lift balls throughout the lifting range.
5M 3-point hitch
5115M Tractors come equipped with one 65-mm (2.5-in.) and one 75 mm (2.9-in), averaging to 70 mm (2.7-in) lift cylinders which provide for 2701 kg (5954 lb) of lift capacity at 610-mm (24-in.) behind the hitch-lift balls, throughout the lifting range. Any 5M Series Tractor has the option of selecting these larger lift cylinders through the factory or a field-installed heavy-duty hitch kit.
Adjustable sway bars and telescoping draft links can be easily adjusted to adapt to a wide variety of implements. The right lift link also adjusts without tools for added convenience when leveling implements. Operators do not need to carry a tool to adjust the rear hitch. Operators can also raise and lower the 3-point hitch from outside of the tractor with the conveniently located rear fender hitch controls.
5M sway bars
5M rear fender hitch controls
