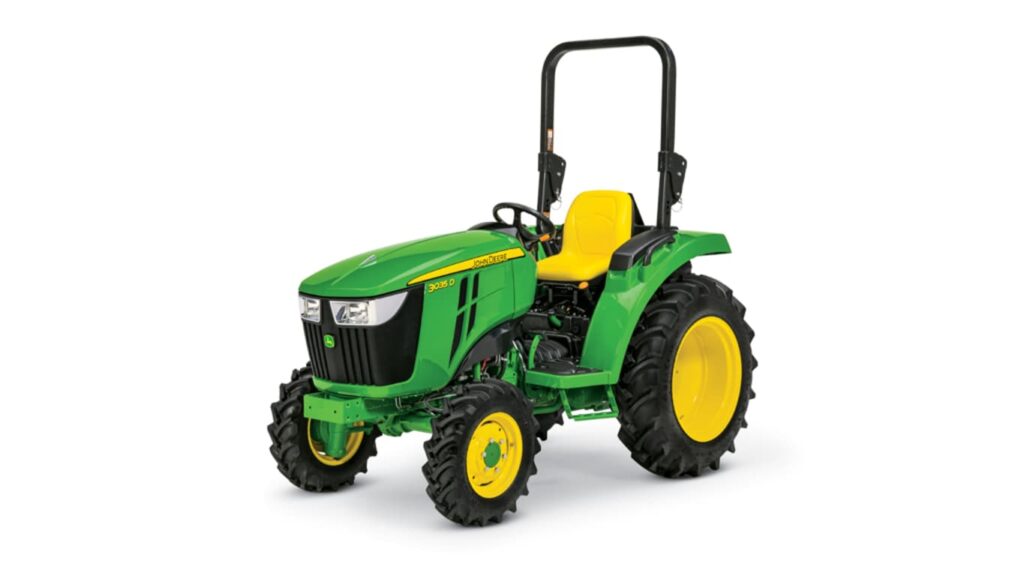

John Deere 3035D Compact Tractor

3 Series

  • Standard 4wd for Maximum Traction
  • Heavy duty drive train with a gear drive transmission 8F/8R
  • On-board diagnostics including Service Advisor
Electrical - Battery size600 CCA
Engine - AspirationNatural
3-point hitch - TypeCategory 1
Electrical - Alternator (12-V)55 amp
Engine - Air cleanerDual element
Engine - Injection pump typeHigh pressure common rail direct injection
Engine - Number of cylindersThree
Engine - Cylinder linersCast-in-block
Engine - LubricationPressurized
Engine - Emissions complianceFinal Tier 4
Fuel system - TypeHigh pressure common rail direct injection
Engine - Compression ratio19.1:1
Engine - Engine model3TNV88C-KJPT
Hydraulics - Draft control sensingPosition control
Miscellaneous - ToolboxYes
Hydraulics - TypeOpen center
Transmission - CreeperNo
Transmission - Final driveSpur Gear
Transmission - Left-hand reverserYes
Key Specs - Cruise controlNo
Key Specs - Hitch typeCategory 1
Miscellaneous - 12-V OutletNo
Hydraulics - Remote control valves availableUp to two (optional)
Transmission - Differential lockYes
Key Specs - Standard transmission; forward/reverse8F/8R synchromesh shuttle shift gear transmission
Miscellaneous - Tilt steering wheelNo
Power take-off (PTO) - ControlMechanical
Transmission - Standard transmission; forward/reverse8F/8R synchromesh shuttle shift gear transmission
Power take-off (PTO) - ClutchTransmission
Transmission - Cruise controlNo
Transmission - SteeringPower steering
Hydraulics - Pump typeSingle gear
Operator station - Gear shift location - console/floorRight-hand side
Power take-off (PTO) - Brake (for mid and rear PTO)Wet disk
Transmission - BrakesWet disk
Final drive - TypeSpur gear
Transmission - Transmission gear rangesFour gears and two ranges
Engine - Rated engine speed2800 rpm
Power take-off (PTO) - StandardAt 2400 rpm: 540 rpm
Engine - Cooling systemLiquid
Operator station - Platform - flat/straddleStraddle
Dimensions - Approximate shipping weight (open-station; cab)OOS: 1275 kg
2811 lb
Cab: Not applicable
3-point hitch - Lift capacity, 24-in. behind link arms944 kg
2081.2 lb
Engine - Power take-off (PTO) power22.7 kW
30.4 hp
Engine - Fuel tank capacity36.7 L
9.7 U.S. gal.
Tires - FrontR1 Bar: 7-14
R3 Turf: 27x8.5-15
R4 Industrial: 25x8.5-14
Key Specs - Engine power (gross)SAE J1995 rated power: 25.5 kW
34.2 hp
34.7 PS at 2800 rpm
Key Specs - Power take-off (PTO) power22.7 kW
30.4 hp
Dimensions - Front axle clearanceMinimum: 331 mm
13 in.
Maximum: 353 mm
13.9 in.
Engine - Engine torque at rated speed87 Nm
64.2 lb-ft
Dimensions - Turning radius with brakes1.63 m
5.3 ft
Key Specs - Steering hydraulics16.8 L/min
4.4 gpm
Key Specs - Implement hydraulics22.4 L/min
5.9 gpm
Dimensions - Wheelbase1574 mm
62 in.
Transmission - Axle capacityFront
880 kg
1940 lb
Rear
1600 kg
3527 lb
Engine - Bore and stroke88 x 90 mm
3.46 x 3.54 in.
Operator station - Rollover protective structureType
Foldable
ASABE S478
Engine - Engine power (gross)SAE J1995 rated power: 25.5 kW
34.2 hp
34.7 PS at 2800 rpm
Hydraulics - Maximum operating pressure172 bar
2495 psi
Key Specs - Approximate shipping weight (open-station; cab)Open operator station (OOS): 1275 kg
2811 lb
Cab: Not applicable
Fluid capacities - Transmission and hydraulic system33 L
34.8 qt
Key Specs - Lift capacity, 24-in. behind link arms944 kg
2081.2 lb
Fluid capacities - Crankcase with filter4.5 L
4.8 qt
Electrical - Starter size1.4 kW
1.9 hp
Key Specs - Wheelbase1574 mm
62 in.
Engine - Cylinders/displacement3 / 1.64 L
3 / 100.2 cu in.
Hydraulics - Pump rated outputSteering
16.8 L/min
4.4 gpm
Implement
22.4 L/min
5.9 gpm
39.2 L/min
10.3 gpm
Tires - RearR1 Bar: 11.2-24
R3 Turf: 41x14-20
R4 Industrial: 15-19.5
Engine - ManufacturerYanmar®
  • Transmission Type: Gear 8F/8R
  • 3PT Hitch: Category 1
  • HP*: 34.7
  • PTO HP: 31
  • 2WD or 4WD: 4WD
  • Cab or Open Station: Open Station

Regular service and maintenance are essential to the performance, productivity, and longevity of the tractor.

  • Easy access to most regular service points minimizes service time.

  • Tractors are equipped with extensive onboard self-diagnostic capabilities and are fully compatible with the John Deere-exclusive Service ADVISOR™ system.

  • Hydraulic oil service interval increased to 1200 hours when using Hy-Gard™ products. Hydraulic oil filter will need to be changed every 400 hours.

  • Fuel tank is located on the rear of the tractor to allow for easy access when fueling.

Fuel tank on rear of the tractor
Fuel tank on rear of the tractor
  • Four quarter turn fasteners allow operators to easily remove the engine side panels to access the engine compartment
Easy access to engine compartment
Easy access to engine compartment
  • Daily service requirements are minimal and simple to accomplish. Most service interval requirements can be performed with a basic understanding of procedures and common tools.

Daily service is quick and easy
Daily service is quick and easy

All items in the daily service schedule can be performed without the use of tools:

  • Engine oil, hydraulic oil, coolant level, and the water separator can be conveniently accessed.

  • The engine can be easily accessed by simply raising the hood for more periodic maintenance checks.

NOTE: Always refer to the operator’s manual for complete maintenance and service recommendations.

iMatch Quick-Hitch (LVB25976)
iMatch Quick-Hitch (LVB25976)

One of the greatest operator concerns involves difficulty in attaching tractor implements. John Deere has addressed this issue with the iMatch Quick-Hitch.

The iMatch Quick-Hitch provides easy hookup and a guaranteed fit for all Category 1 implements that are designed to meet the American Society of Agricultural and Biological Engineers (ASABE) Category 1 Standard S278.6 for quick-attach hitches.

  • All implements require a set of bushings for the attachment to fit and work properly with the iMatch Quick-Hitch. One set of bushings comes with the iMatch Quick-Hitch.

NOTE: The bushing set can be seen in the picture above. These bushings allow the hooks on the iMatch and the pins on the implement to fit together properly. All other implements (box blades, tillers, rear blades, etc.) will require a set of bushings to enlarge the pin to fit with the iMatch hooks. Bushings of different lengths can be found in the parts system or through a bushing supplier (see dimensions below).

  • Upper bushing
    • Inside diameter: 1.93-1.95 cm (0.76-0.77 in.)
    • Outside diameter: 3.15-3.18 cm (1.24-1.25 in.)
  • Lower bushing
    • Inside diameter: 2.24-2.26 cm (0.88 to 0.89 in.)
    • Outside diameter: 3.63-3.66 cm (1.43 to 1.44 in.)
Clean and simple operator's station
Clean and simple operator’s station

An uncluttered design gives operators of all sizes plenty of room to be comfortable. Color-coded controls are located on either side of the operator.

  • Contoured, comfortable seat enhances operator comfort.
    • Seat position adjusts fore and aft
    • Seat flips forward for protection from the elements
  • Flat operator platform provides for easy entry to/exit from the tractor.
  • Folding Roll-Gard™ rollover protective structure (ROPS) and retractable seat belt increase operator safety.

Operator presence system:

  • If the operator leaves the seat when the forward/reverse and range lever are in gear, the engine shuts down.
  • If the operator leaves the seat when the power take-off (PTO) is engaged, the engine shuts down.
Left-side step
Left-side step for easy entry/exit
Left-side step for easy entry/exit
  • The left-side step allows for easy access on and off the tractor.
  • Foot platform has a non-skid surface for sure footing.
Seat
Seat
Seat

The thick, soft padding on this seat provides a smooth and comfortable ride.

  • Seat flips forward for protection from the elements.
  • Adjustable using the fore and aft lever located under the seat, the seat slides on ramped rails to provide comfortable access to all controls.
Instrumentation
Instrument panel
Instrument panel

Easy-to-read instrument panel includes the following:

  • Tachometer
  • Low oil pressure indicator light
  • Battery discharge indicator light
  • PTO engagement indicator light
  • Signal/hazard lamp indicator lights
  • Multifunction liquid crystal display (LCD) display (hours, filter cleaning information, PTO speed, etc.)
  • Filter cleaning status indicator light
Fuel tank and gauge
Rear-mounted fuel tank and gauge
Rear-mounted fuel tank and gauge

All 3D Series Tractors come standard with a fuel gauge that is easy to read from the operator’s station to ensure operators do not run out of fuel. The fuel tank is also located on the rear of the tractor to allow for easy refill.

Safety

Operator presence switch (OPS) in seat:

  • OPS requires the operator to be in the seat to operate the transmission or PTO.
  • ROPS is designed to meet or exceed American Society of Agricultural and Biological Engineers (ASABE) safety standards.
  • Reflective ROPS strips for better tractor visibility.
  • Seat belts are in base equipment on all John Deere compact utility tractors.
  • Key switch interlock prevents bypass starting.
  • Visual PTO warning light on the instrument panel alerts the operator when the PTO is running.
  • Turn signal and flashing warning lights operate according to ASABE standards.
  • Slow-moving vehicle (SMV) sign is provided for road transport.
Park brake
Park brake
Park brake
  • Instrument panel has an indicator light for the park brake.

Two-post Roll-Gard ROPS
Roll-Gard ROPS
Roll-Gard ROPS

3D Series Tractors are equipped with Roll-Gard ROPS. These folding ROPS meet the ASABE standards for compact utility tractors.

NOTE: The use of seat belts is recommended at all times when operating the 3D Series Tractor with the folding ROPS upright.

An optional canopy is available to help protect the operator from the elements.

Optional rear SCVs
Optional rear SCVs

3D Series Tractors can be equipped with a field-installed rear hydraulic remote kit, providing two additional hydraulic spools on the back of the tractor. This kit can be field installed on a tractor with a loader or without a loader.

The functions are completely separate from the loader. These rear remotes can be hooked up to a wide variety of implements and attachments such as follows:

  • Hydraulically angled blade
  • Hydraulically controlled chute/spout on a 3-point hitch-mounted snow blower
  • Hydraulic scarifiers on a box blade
  • Many other hydraulic rear attachments

This versatile kit gives 3D Series Tractor operators the options they desire for putting their tractors into a wide range of tasks.

The first spool is equipped with a float position, giving the operator the ability to contour the landscape and improve the final grade with certain implements.

NOTE: Neither of the spools in this kit are equipped with a detent position; therefore, they should not be hooked up to anything with a motor, as the valve was not designed to be run open. The kit is designed for momentary, on-demand hydraulic flow such as moving a cylinder.

The approximate installation time is 1 hour to 1.5 hours.
