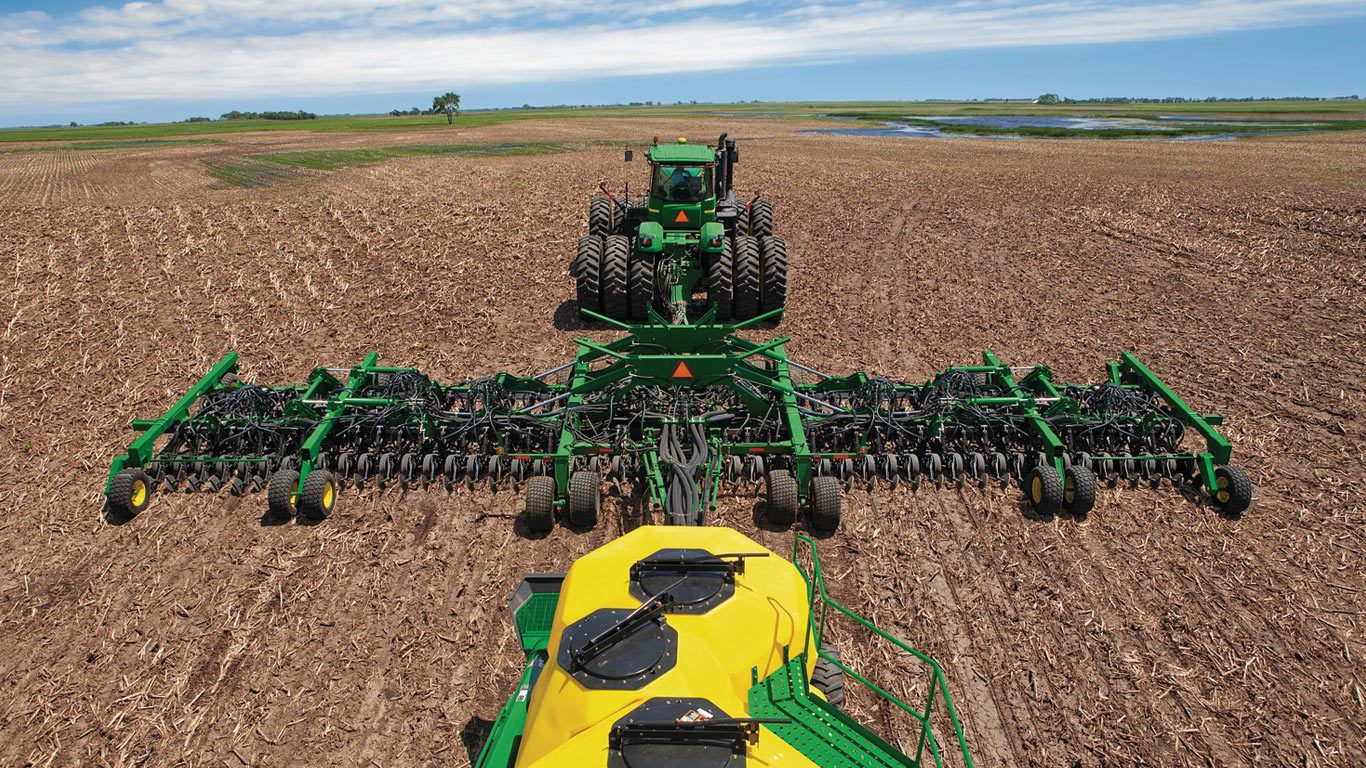

John Deere 1890
  • + Expand All
  • - Close All
  • Confidence in rates from row to row with RelativeFlow™ Blockage sensing

    With the RelativeFlow blockage sensing, operators can see the flow rate of both seed and fertilizer from inside the tractor cab. Sensors on all primary towers and secondary hoses monitor the relative product flow, giving you a better view of the flow rate of both seed and fertilizer from the cart to the opener from inside your tractor cab. This exclusive technology can help you identify any problems before potential blockage occurs.



    RelativeFlow Blockage is available on the following models:

    • P540 - 12.2-m (40-ft)
    • P556 - 17.1-m (56-ft)
    • P576 - 23.2-m (76-ft)
    • N500C - all widths
    • 1890 - 15.2-m (50-ft) and 18.3-m (60-ft)
    • N530F - 9.1-m (30-ft)
    • N540F - 12.2-m (40-ft)
    • N543F - 13.1-m (43-ft)
    • N560F - 18.3-m (60-ft)



    RelativeFlow Blockage is compatible with hydraulic drive carts for model year 2014 and newer 1910, model year 2013 and newer 550 Carts, C650 and C850 Air Cart.



    Below are the GreenStar™ 3 2630 Display screens for the blockage monitoring system. For complete details and information, see the owner’s manual.

    Blockage monitoring screen on GreenStar™ 3 2630
    Blockage monitoring screen on GreenStar™ 3 2630

    The RelativeFlow sensing chart shows the amount of flow through each sensor on the selected tower. Sensitivity for the blockage system can be adjusted if desired, as shown below.

    Blockage monitoring screen on GreenStar 3 2630
    Blockage monitoring screen on GreenStar 3 2630

    Blockage warning sensitivity allows the producer to set and change the sensitivity of the sensors to meet their preferences. Increasing the sensitivity means the system is more likely to show a false blockage, while less sensitivity means the system is more likely to miss a blockage.



    Multiple run-page alarm behavior options are available for selection.

    Blockage monitoring screen on GreenStar 3 2630
    Blockage monitoring screen on GreenStar 3 2630

    Below are the Gen 4 display screens for the blockage monitoring system on the N500C.



    For complete details and information reference, the owner’s manual.

    RelativeFlow Blockage configured run page
    RelativeFlow Blockage configured run page

    The SeedStar™ system run page displays the five major run settings. Clicking on any of the tiles will take an operator to that specific page (shown below).

    Operators can zoom into flow details by meter section when selecting blockage tiles
    Operators can zoom into flow details by meter section when selecting blockage tiles
    Operators can zoom into the row level to access row/sensor information and turn a sensor on/off independently
    Operators can zoom into the row level to access row/sensor information and turn a sensor on/off independently
    Blockage sensitivities and alarm delays are all set up on one easy-to-navigate screen
    Blockage sensitivities and alarm delays are all set up on one easy-to-navigate screen

    Blockage alarm delays can be set up by clicking on the advanced settings button from the blockage set-up screen.

    • A blockage delay is how long a blockage should occur before an alarm is sounded.
    • The blockage alarm reminder is how often the alarm should sound when a blockage occurs.
    • The meter on delay is the time from when the meter is turned on until the blockage sensor should start monitoring for blockage.
    • The meter off delay is the time from when the meter is turned off until the blockage sensor should start monitoring to verify no flow.

    For more detailed information, see the owner’s manual.



    Air tools with Relative Flow Blockage are not compatible with 1910 air carts with ground drive.



  • No-till opener seeding with minimal maintenance from the ProSeries™ Opener
    ProSeries Openers
    ProSeries Openers

    The ProSeries Opener is John Deere’s most advanced opener for your seed and separate fertilizer placement. When it comes to seeding precision, consistent seed depth, and uniform emergence in virtually all field conditions, you can superSEED your expectations with ProSeries.



    Two of the three daily grease points have been removed. The third grease point is now a yearly interval. The narrow seed boot travels behind the shadow of the blade, causing less soil disturbance. When attaching the boot to the shank, the bolt has been replaced with a flag pin. Now the flag pin is the wear point, not the casting, reducing overall maintenance. The seed press wheel is also redesigned; it has a narrow profile, a double-wall bearing, and is made of a flexible material. Lastly, the seed tab is UV resistant and profiled similar to the trench. There is also the added option of the serrated closing wheel.

    #

    ProSeries Openers are in base equipment on all 1890 and N500F Separate Fertilizer Placement (SFP), N500C, 1990 Central Commodity System (CCS™), and 1590 Air Drills.



    The ProSeries Openers:

    • Work not only in no-till conditions, but also in minimum or reduced-till conditions
    • Provide 51 mm (2 in.) of free travel in the opener before spring down pressure takes over
      • Benefit: allows the opener to move over uneven ground conditions and minimize the chance of the gauge wheels bulldozing soil in soft or mellow conditions
      • The opener spring travels a maximum of 203-mm (8-in.) up or 150-mm (6-in.) down before the hydraulics react to uneven seedbeds
  • Integration advantages of Deere tractor, cart, tool and technology
    #

    To win big in small grains, it takes a seeding solution that superseeds your expectations. John Deere delivers with a complete line of everything you need – and the sizes you want – to seed for success. Air-hoe drills. Commodity air carts. No-till air drills. Openers. Fertilizer attachments. Central commodity systems. Box drills. Plus precision ag technology to stretch your productivity to higher levels. But it’s far more than iron and technology. It’s the exceptional agronomic know-how and unsurpassed dealer support in all phases of production to keep you running. With our latest additions to equipment and openers, our seeding solutions deliver the next-generation performance you need to help you reach the full potential of each seed. That’s our commitment to you.

Dimensions

Available ballast 1386 (28+14 x 100) kg
2800 (28+14 x 100) lb
Clearance from rank to rank 133.99 cm
52.75 in.
Transport width 4.37 m
14.33 ft
Road clearance 21.6 cm
8.5 in.
Weight before ballast 7711, 6759 kg
17000, 14900 lb
Transport height 3.63 m
11.92 ft
Overall length 7.49 m
24.58 ft, in.
Frame Cross members
102 x 152 mm
4 x 6 in.
End tubes
51 x 152 mm
2 x 6 in.
Hitch
76 x 152 mm
3 x 6 in.
