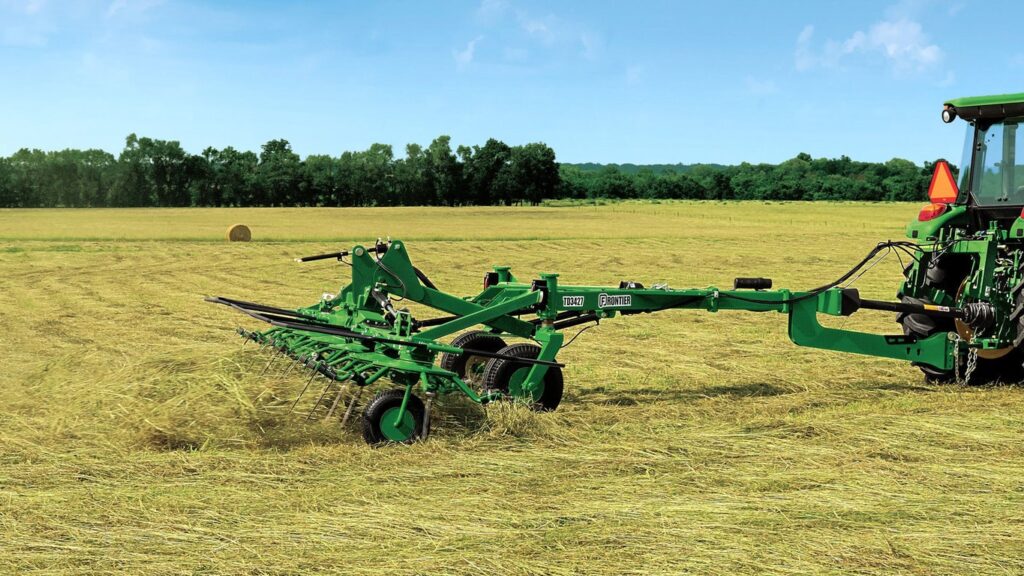

John Deere TD34 Series Hay Tedders
Agriculture
- Finger joint drive system
- Hydraulic tine pitch control
- Hydraulic fold for easy transport
- Hands-free locking transport wheels
| Hitch - Type | Drawbar |
|---|---|
| Tine arms - Size, in. (cm) | 3.5 cm 1.375 in. |
| Lighting and safety - SMV | Standard |
| Dimensions - Transport length | 2.8 m 9.2 ft |
| Dimensions - Transport height | 2.7 m 8.8 ft |
| Tires - Working size | 47x20 cm 18.5x8 in. |
| Tires - Working type | Implement |
| Tine - Angle adjustment | Eccentric washer |
| Dimensions - Transport width | 2.8 m 9.2 ft |
| Warranty - Time period | 1 year |
| Lighting and safety - Safety guards | Standard |
| Rotor - Quantity | Four |
| Tractor requirements - Minimum hp (kw) | 22.4 kW 30 hp |
| Tine - Height adjustment | Hydraulic tilt |
| Tine arms - Type | Round tubular |
| Dimensions - Tedding width | 5.5 m 18.2 ft |
| Weight - Machine | 612 kg 1350 lb |
| PTO - Type | Radial pin overload clutch |
| Transport position - Hydraulic vertical fold with hydraulic tilt | Standard |
| PTO - rpm | 540 rpm |
| Set-up time - Labor hours | 1.5 |
| Lighting and safety - Safety chain | Standard |
| Tractor requirements - Hydraulic valves (SCVs) required | One |
| Tine arms - Quantity per rotor | Seven |
| Tires - Transport type | Implement |
Featured List
- # of Rotors: 4
- PTO HP: 30 hp (22.4 kW)
- Tedding Width: 18 ft. 2 in. (5.5 m)
Featured Content
Over-center folding
The TD3418 features an over-center hydraulic folding design, so when changing from operating to transport position there is no need to leave the tractor seat.
Hands-free locking transport wheels
Hands-free locking transport wheel overall
The TD3427 Tedder is equipped with a cart that the rotors fold onto for field-to-field transport. On the cart are larger transport wheels to provide greater stability when traveling down the road. These wheels come with a hands-free locking mechanism that automatically locks the wheels in a straight, forward position when the rotors are folded in the transport position.
When the transport tires are locked in a straight position, it allows for substantially easier backing up of the machine and provides greater stability when traveling down the road at higher speeds.
Hydraulic tine pitch control on the TD3427
Hydraulic tine pitch control on the TD3418
The tine pitch height can be adjusted hydraulically inside the cab using the handle on the tedder, so the operator never needs to leave the seat once the tine pitch height has been set. This allows for quick customization to mowed hay height in different fields, as well as on-the-go compensation for terrain changes such as terraces.
Finger joint
Folded finger joint
These joints reduce the number of moving parts and wear points to provide a more direct transition of power for longer life and improved performance. When the hinge is folded up, the fingers are still in contact to maintain proper alignment; then, when the fingers fold down, they lock into place.
The finger joints are supported by sealed bearings to reduce wear and vibration. This results in longer machine life, reduced downtime, and a more consistent delivery of torque to the outer rotors.
Transport wheel suspension
The transport wheels on the TD3427 come equipped with a spring suspension system inside the housing which forces the cart to be raised once the weight of the rotors are removed during unfolding. The additional clearance created by this suspension system helps the tedder float over small surface changes.
