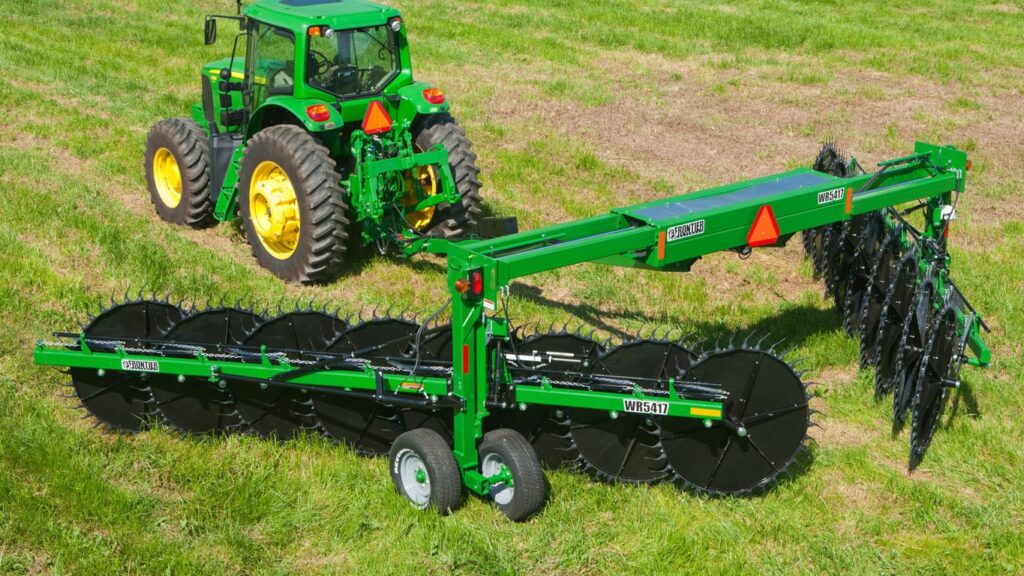

John Deere WR54 Series Heavy-Duty High-Capacity Overhead Frame Rakes
Agriculture
- EasilyAdjustable raking beams
- Free-floating rake wheels
- 29-ft. maximum raking width
- Master control system controls various rake wheel functions from inside cab
Equipment Features
Featured Content

Perfect when operating on rough terrain

The tandem wheels on WR54 Series High-Capacity Wheel Rakes provide added stability and a smooth, level operation across rough field conditions.

Raking widths reach a maximum of 8.8 m (29 ft)

Rake wheel beams adjust independently
The maximum raking width is 8.8 m (29 ft). The rake wheel beams may be angled independently. This allows the operator to do one sided raking if desired.

Overhead frame lock

Rake beam lock
The overhead frame can be locked with chains to secure it for transport and storage.
The rake beams can be locked for easy transport and storage.

Rake wheel lock

The rake wheels can be locked for safe transport and storage.

Rake wheel

Rubber-mounted rake wheel teeth
Rubber-mounted teeth allow the rake beams to be tilted to match crop conditions for better raking performance.
Use with tractors that have an open-center hydraulic system.

Adjustable raking beams

Rake beams quickly adjust to set the rake wheels from 0 to 8 degrees to allow for more or less aggressive raking. The 0 degree setting is for dry crops and up to 8 degrees is used for short, wet, or matted-down crops.
Durable wind boards keep hay from getting caught in the wheels and are standard on the WR54 Series Heavy-Duty, High-Capacity Wheel Rakes.

Windrow width reaches up to 182.9 cm (72 in.)

Electric control box handles all rake functions
The windrow width of the WR54 Series can be adjusted hydraulically to a maximum of 182.9 cm (72 in.).
One hydraulic remote, along with the electrical control box, handles all the functions of the rake.

The master control creates ease for the operator

The master control system on the WR54 Series High-Capacity Wheel Rake allows the operator to control various rake-wheel functions with the flip of a switch.

Dampening spring allows wheels to float

Bi-directional spring option installed
The 152.4-cm (60-in.) rake wheels on the WR54 High-Capacity Wheel Rake float freely, thanks to individual dampening springs which are standard equipment. If more precise adjustment for the dampening and float of rake wheels is required, the optional bi-directional spring can be ordered.
The rake wheels may be lifted independently left or right, or both at the same time.
