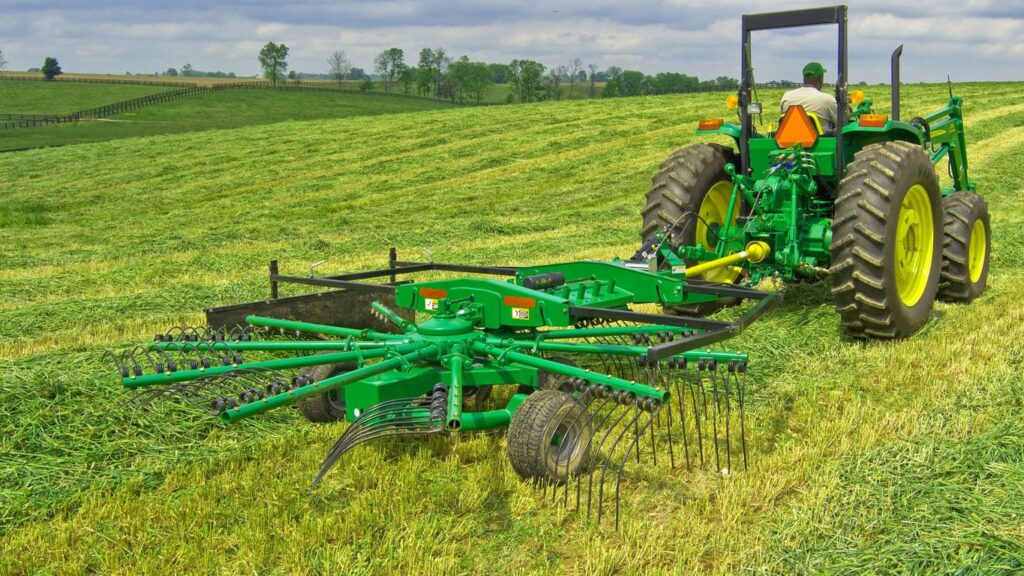

John Deere RR22 Series Rotary Rake

Agriculture

  • Cam-action tine arms
  • Heavy-duty curtain
  • Hydraulic rake adjustments
  • Tandem flotation tires
Hitch - TypeDrawbar
Wheels - TypeFlotation
Tine arms - Size5.1 cm
2 in.
Tractor compatibility - PTO hp requirements29.8 kW
40 hp
Swath screen - TypeHD Vinyl curtain
Set-up time - Labor hours1
Weight - Implement703 kg
1,550 lb
Dimensions - Working width3.96 m
13 ft
Safety and markings - MarkingsReflectors
Tractor compatibility - Number of SCVsOne
Dimensions - Overall working width4.06 m
13.33 ft
Dimensions - Transport width1.52 m
5 ft
Tine arms - RemovableYes
Warranty - Time period1 year for ag and residential use
90 days for commercial use
Safety and markings - Safety tow chainsStandard
Tractor compatibility - Hydraulic pressure requirement1,200 psi
Tine arms - Quantity11
Tine arms - Quantity of double tines per armFour
Dimensions - Raking width3.35 m
11 ft
Wheels - QuantityFour
Shipping information - QuantityOne
Axle - TypeTandem
Dimensions - Overall transport length3.96 m
13 ft
Tractor compatibility - PTO requirement rpm540 rpm
Wheels - Size, diameter46.99 cm
18.5 in.
  • # of Tine Arms: 11
  • PTO HP: 40 hp (29.8 kW)
  • Raking Width: 11 ft. (3.4 m)
Cam-action tine arms for efficient drying time
Cam-action tine arms for efficient drying time
#

The cam-action tine arms on the Frontier RR2211 Rotary Rake gently deposit the material in the swath, saving valuable leaves. Furthermore, the cam action forms a higher, fluffier, faster-drying windrow that saves drying time.

The tine arms are removable to allow for narrow transport widths and more compact storage.

Adjustable to accommodate raking needs
Adjustable to accommodate raking needs
#

The Frontier™ RR2211 Rotary Rake’s heavy-duty vinyl curtain controls the windrow width and can be adjusted in or out to accommodate individual harvesting needs.

When combining multiple windrows, the curtain can either be removed or turned upside down to prevent interfering with the hay.

Flotation tires provide top-quality performance
Flotation tires provide top-quality performance

Four large tandem flotation tires on the Frontier™ RR2211 Rotary Rake provide maximum durability when operating over rough terrain.

Hydraulics create ease for the operator
Hydraulics create ease for the operator
#

Hydraulically adjust the Frontier™ RR2211 Rotary Rake’s height and pitch without leaving the tractor seat.

Both functions are controlled with one simple hydraulic circuit.
