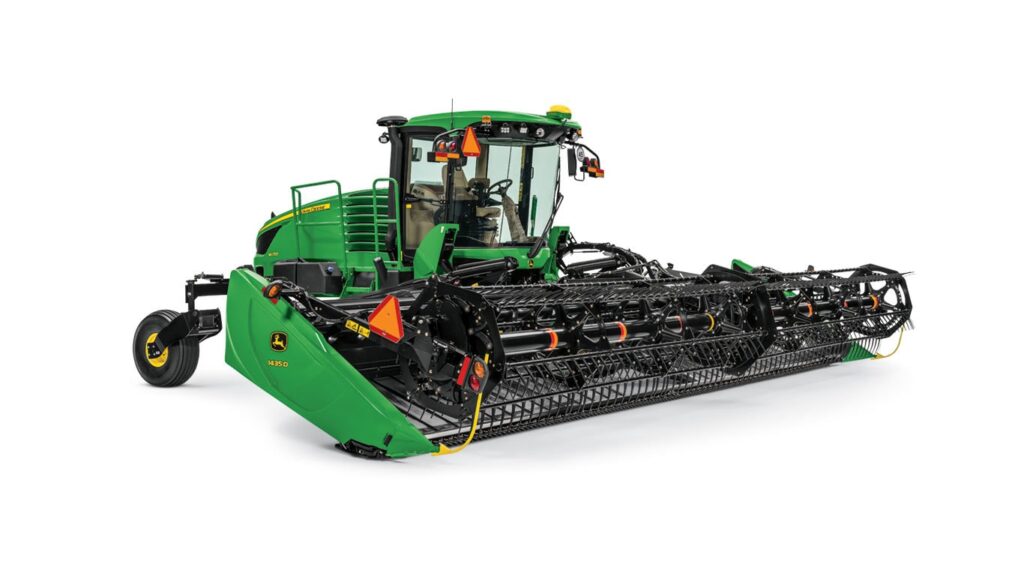

John Deere 1440D

1440D Draper Platforms

John Deere
Windrowers

Find Your Nearest Location

Find Location

Your Preferred Store

Change location Change location

Key Features & Specs

Greater capacity to process crop with 8-inch deeper belts
Uninterrupted crop flow with C-shaped cutterbar
Handle all crop conditions with strong, positive-feeding reel
Excellent visibility to cutterbar and belt

Features
Specifications

+ Expand All
- Close All

Select a category to view specifications (or view all).

Auxiliary top auger

Type

Optional hydraulic drive

Center opening / crop delivery

Center opening width between belts	1,720-1,950 mm 67.1-76.7 in.
Deck shift / double windrow capability (manual / hydraulic / not available)	Manual standard Hydraulic optional

Cutterbar

Type	Dual knife base standard Single knife base optional
Knife speed	Dual: 600-750 cycles/min 1,200-1,500 spm Single: 550-650 cycles/min 1,100-1,300 spm
Cutterbar tilt	Standard hydraulic Optional mechanical (2.5-12.0 degree tilt)
Knife drive	Hydraulic motor to belt to enclosed heavy-duty wobble box
Cut width (length)	10.7 m 35 ft

Dimensions

Transport length, hitch extended	13.9 m 45.6 ft
Transport width on wheel, less dividers	2.5 m 8.1 ft
Platform length	11.1 m 36.3 ft
Overall operating depth	With crop dividers 2.6 m 8.7 ft
Transport width, field position	11.1 m 36.3 ft

Draper and decks

Speed control	Hydraulic from cab
Operating speed	0-225 m/min 0-742 fpm
Belt width	Wide rubber skim-coated 710-ml (24-oz) drapers: 1,259 mm 49.6 in.

Gauge wheels and transportation

Integrated slow speed transport system	Optional includes dual gauge wheels
Gauge wheels	Optional

Header height sensing

Header height sensing off the ground	Return to cut height standard Gauge wheels optional
Header height sensing on the ground	Float springs on traction unit

Key Specs

Transport width on wheel, less dividers	2.5 m 8.1 ft
Reel type	Pick up cam 4 position adjustable release
Platform length	11.1 m 36.3 ft
Cut width (length)	10.7 m 35 ft
Overall operating depth	With crop dividers 2.6 m 8.7 ft
Belt width	Wide rubber skim-coated 710-ml (24-oz) drapers: 1,259 mm 49.6 hp/ft
Transport length, hitch extended	13.9 m 45.6 ft
Transport width, field position	11.1 m 36.3 ft
Cutterbar - Type	Dual knife base standard Single knife base optional
Fingers	Heavy-duty plastic

Reel

Reel fore and aft	Hydraulic
Height control	Hydraulic
Reel type	Pick up cam 4 position adjustable release
Fingers	Heavy-duty plastic
Operating speeds	0-85 rpm
Diameter	1,650 mm 65 in.
Reel lift	Hydraulic
Number of bats	5 bats single span standard 6 bats split span optional, capped ends
Speed control	Hydraulic with header index

Weight

Approximate weight (base platform with reel)

2,134-2,588 kg
4,700-5,700 lb
