John Deere AB18K Series Bale Spear
Agriculture
- Compatible with John Deere H480 Series Loader and is Global Category 2 compatible.
- Cross-bolt design greatly improves quality of the bale spears.
- Designed for easy tine replacement.
Weight - Operational | 422.3 kg 931 lb |
---|---|
Attachment carrier - Current series style | Global Category 2 |
Dimensions - Overall width | 182.4 cm 71.8 in. |
Spears - Primary | Location BottomQuantity FourSize 5.6x134.6 cm 2.2x53 in. |
Dimensions - Overall height | 294.6 cm 116 in. |
Dimensions - Overall length | 154.9 cm 61 in. |
Weight - Shipping | 481.7 kg 1062 lb |
Spears - Stabilizing | Location Middle and topQuantity FourSize 3.2x50 cm 1.25x19.7 in. |
Set-up time - Labor hours | 0.33 |
Bale - Square | Quantity 3 (4x4); 4 (3x4); 4 (3x3)Size Large Square (4 x 4)Weight 2,721.6 kg 6,000 lb Yes |
Warranty - Time period | 1 year |
Featured List
- Loader Series / Carrier: Cat. 2 Global Carrier
- Bale Handling Capacity: 3 Large Square Bales
Featured Content

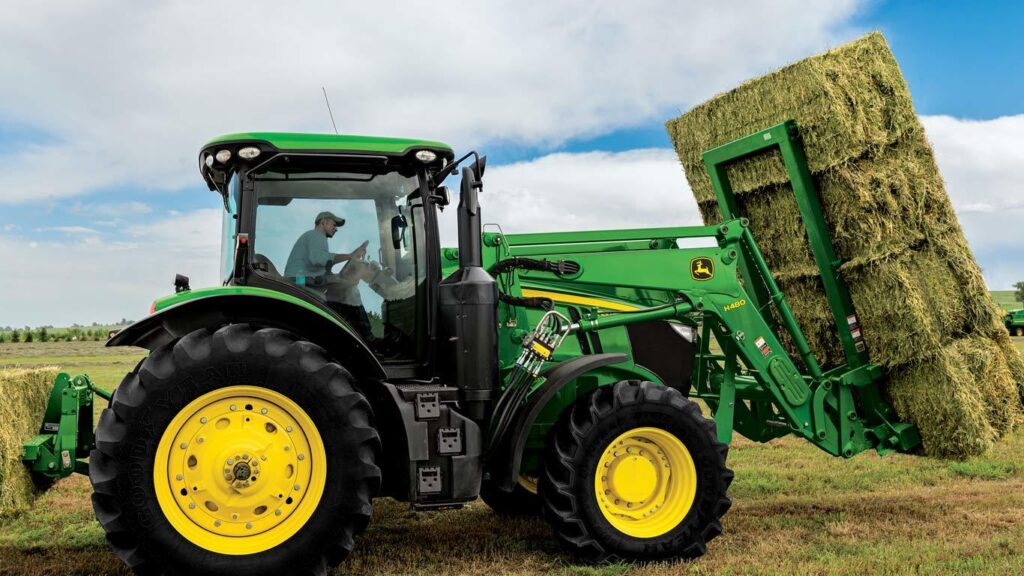

AB14K Bale Spear shown

The ABK Series Bale Spear is designed for easy replacement of tines. The cross-bolt design greatly improves quality of the bale spears.

AB14K Bale Spear

AB15K Bale Spear
The ABK Series Bale Spears are equipped with the global Category 2 attachment carrier system. This system creates ease and accuracy for the operator.

Three-bale capacity

The AB18K can move three 1.2-m by 1.2-m (4-ft by 4-ft) bales, four 0.9-m by 1.2-m (3-ft by 4-ft) bales, or four 0.9-m by 0.9-m (3-ft by 3-ft) bales with ease. A strong frame built from large square tubing gives the AB18K the strength to do so.
