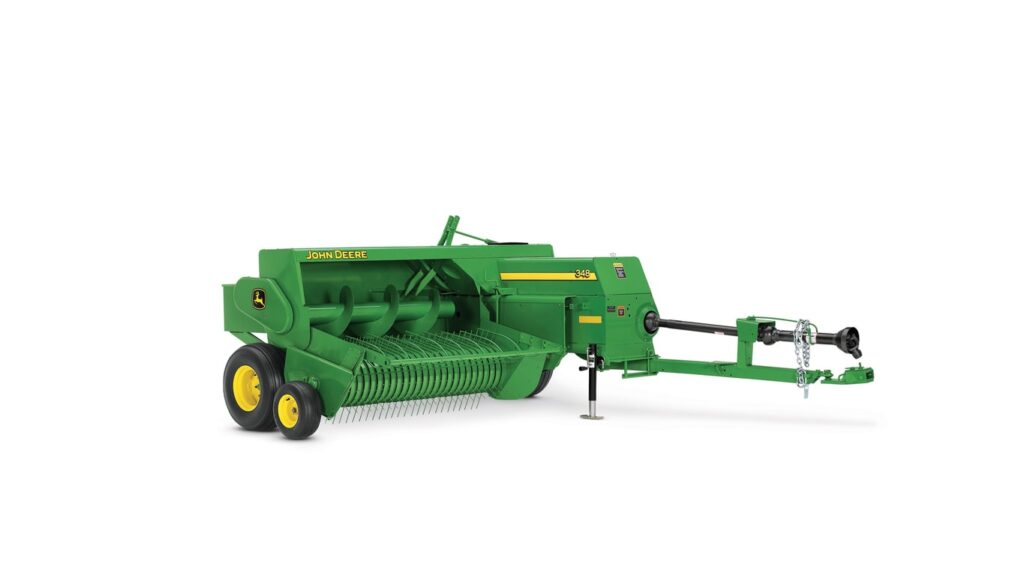

John Deere 348 Small Square Baler
Agriculture
- Adjustable hay compressor
- Hydraulic bale tension available
- Large windrow capacity
- Automatic lockout
| Bale Chute - Wagon hitch | Optional |
|---|---|
| Plunger - Strokes/minute | 93 spm |
| Typing mechanism - Twine capacity | 8 |
| Typing mechanism - Wire ball capacity | 4 |
| Bale Chute - Short chute | Optional |
| Pickup - Pickup diameter | 49.5 cm 19.5 in. |
| Key Specs - Bale size | Height x width 36x46 cm 14x18 in. Length 30.5 to 127 cm 12 to 50 in. |
| Lights - Work | Optional |
| Bale Chute - Side bale drop chute | Optional |
| Tires - LH Standard tire size | 11L-14, 6 ply |
| Drivetrain protection - Knotters | Shear bolt |
| Key Specs - Minimum PTO | 26 kW 35 PTO hp |
| Bale Chute - Long chute | Optional |
| Drive mechanism - Optional driveline | Equal angle 3 joint category 5 |
| Baler dimensions - Weight empty | 1411 kg 3110 lb |
| Pickup - Lift control | Crank (hydraulic optional) |
| Tires - RH Standard tire size | 26x12.0-12, 4 ply |
| Key Specs - Pickup width | 187.9 cm 74 in. |
| Drivetrain protection - Needles | Shear bolt/plunger head stop |
| Auger - Diameter | 41 cm 16 in. |
| Pickup - Tooth bars/teeth | 6 bars, 156 teeth |
| Bale Ejector - Available | Optional |
| Drive mechanism - Plunger | Gear and shaft |
| Density Control System - Adjustable Hydraulic Bale Density | Optional |
| Key Specs - Plunger - Strokes/minute | 93 spm |
| Drive mechanism - Driveline | Equal angle 3 joint category 4 |
| Tractor requirements - Minimum PTO | 26 kW 35 PTO hp |
| Typing mechanism - Twine type | Plastic or sisal |
| Tires - Pickup Gauge Wheels Tires Size | 16.5x6.50-8 |
| Drive mechanism - Pickup | Belt |
| Baler dimensions - Height | 170.2 cm 67 in. |
| Key Specs - Adjustable Hydraulic Bale Density | Optional |
| Drive mechanism - Feeder forks | Gear and shaft |
| Baler dimensions - Length w/ long tongue | 576.5 cm 227 in. |
| Drive mechanism - Knotters | Gear and shaft |
| Tires - Gauge Wheels | 1 optional |
| Bale size - Height x width | 36 x 46 cm 14 x 18 in. |
| Typing mechanism - Central lube system | Optional |
| Density Control System - Adjustable Bale Density | Mechanical crank |
| Bale size - Length | 30.5 to 127 cm 12 to 50 in. |
| Auger - Length | 154.9 cm 61 in. |
| Pickup - Pickup width | 187.9 cm 74 in. |
| Drivetrain protection - Pickup | Belt slip |
| Tractor requirements - PTO speed | 540 rpm |
| Baler dimensions - Width | 274.3 cm 108 in. |
| Typing mechanism - No. of knotters | 2 |
Featured Content
Small square baler pickup with hay compressor
The adjustable hay compressor mounts to and floats with the pickup and helps to maintain the same relationship to the pickup teeth at all operating heights.
The hay compressor also controls hay for continuous positive delivery to the auger.
The hay compressor is adjustable to nine positions to maintain positive control of hay in either large and heavy or light and fluffy windrows.
It can easily be removed with two spring pins for access to the auger or feed opening.
The plunger head runs on three precision roller bearings located in the high-load area:
- Provides quiet operation
- Minimum wear
The compression charge is on the downstroke of the pitman arm to help eliminate slapping of the plunger head.
The pitman is offset to the right (knife side) where the load is heavier to further minimize wear.
A lubrication fitting on the pitman arm provides easy access for lubrication to the wrist pin.
A safety stop is positioned to stop the plunger head at the crank to eliminate possible damage to the plunger head face.
Feeder forks
Hay is uniformly distributed into the bale case, which produces easy-to-handle bales and bales that stack well.
Feeder forks can be adjusted to five positions to match the feeding requirement to the hay conditions.
Forks are spring loaded for protection and are timed independently of knotters.
Hydraulic bale tensioner shown on 348 Baler
The hydraulic bale tension permits easy adjustment of bale density to meet crop variations and desired bale weight:
- Hydraulic cylinders replace springs that would typically control the density of the bale
- Exerts constant and uniform pressure on each bale
- Easy to use
- One knob controls the tension applied to the bale
- By increasing the tension, the bale weight also increases
Pickup and deep-flighted auger
The deep-flighted auger continuously moves hay away from the pickup to the pre-compression chamber:
- Adds to the overall capacity
- Produces higher-quality hay
- Allows minimal crop contact with pickup teeth, which minimizes leaf loss
The free-floating auger raises or lowers to match and maintain control of incoming crop.
Hay turns in the tapered auger housing, which enables the feeder forks to fold each charge as it enters the bale case to produce uniform bales. The crop is pre-compressed for better bale uniformity.
The auger system has few moving parts for less wear and less chance of untimely breakdowns.
Small square baler knotter system
Knotters driven by shaft and gears provide a positive drive for dependable and accurate functioning.
The timing of knotters and needles is easy:
- Remove one bolt and match the gears
- Timing slot enables easy positioning of the plunger
The tucker finger holds the twine over the billhooks during the tying cycle:
- Eliminates twine finger
- Reduces the chance of twine damage
- Notch controls the twine position over the billhook for improved knotter function
- Ball-joint-style pull links ensure accurate adjustment
The twine knife is made of surgical-quality steel and can be easily unbolted for sharpening or replacement.
The adjustable edge on the wiper arm allows an easy, accurate adjustment to the billhook.
The positive meshing of knotter gears is easily maintained with spring pins and washers on the needle lift shaft.
The large-diameter needle-lift shaft increases strength for reliable operation.
The split-design knotter frame enables easy removal, without disassembly of the entire mechanism.
A coil-type tension spring on the twine holder enables easy adjustment and improved performance.
The twine disk timing is easily accomplished without removing the pinion gear.
Making adjustments is easy when changing from multi-twine billhooks to sisal-twine billhooks.
The billhook cam track is a separate hardened part that can be replaced independently from the knotter frame, which reduces repair costs.
Square baler pickup
The pickup teeth and narrow, flanged strippers extend to the flare on both sides of the pickup. This enables full, usable pickup width for feeding wide windrows.
Closely-spaced pickup teeth gather all of the hay in wide, heavy windrows.
|
Baler |
Number of teeth |
|
328 |
104 |
|
338 |
156 |
|
348 |
156 |
Narrow-channel strippers positioned closely together help preserve leaves and short material to add more quality to the bale.
The pickup is 188-cm (74-in.) wide on flare and offset 25.4 cm (10 in.) to the right of the bale case.
- The full width of the pickup can be utilized without the tractor tires operating on the windrow.
The belt drives used to power the pickup are virtually trouble-free and eliminate the need for slip clutches.
