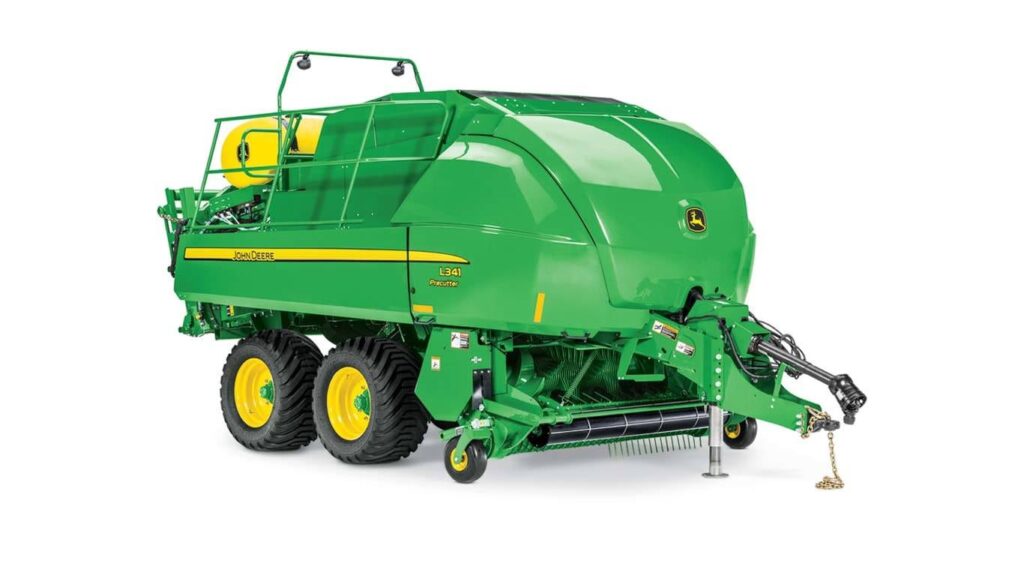

John Deere L341
  • + Expand All
  • - Close All
  • Weighing system

    The John Deere bale weighing system provides bale weights throughout the baling process. With sensors mounted to the pre-compression chamber floor, it provides bale weights on a flake-by-flake basis. Knowing the flake weight helps the operator make more consistent bales. The current bale weight and previous bale weights can be displayed on the monitor.

  • Baler monitor system is International Standard Organization Bus (ISOBUS) compatible
    #

    John Deere large square balers (LSBs) are ISOBUS compatible which enables them to work with any ISOBUS monitor system.

    Baler control can also be incorporated into the CommandCenter™ on R Series Tractors as long as the tractor is ordered ISOBUS ready (GS-ready wiring harness option code 8064 or GS AutoTrac™-ready wiring harness option code 8067on 6R Tractors).

    Current GreenStar™ (GS) displays, including the touchscreen 2630, 1800 as well as the GS 2600, are compatible for customers who already own a John Deere ISOBUS display.

    The display main screen is user selectable allowing for customization so the customer sees what they want where they want. With more information available from the moisture and weighing systems the operator can select what they care most about.

    The new menu is controlled over what softkeys are shown on the main page allowing users to navigate to what they need faster and easier.

    Balers that will be utilized on non-ISO tractors will require a GS display as well as a conversion harness to connect the display and the baler.

    One series LSBs offer a manual pressure control mode, allowing the operator to continue baling in the event of an electrical failure.

    Information and adjustments available on the display:

    • Driving direction arrows are shown across the top of the screen, helping the operator create a more uniform bale.
    • Electronic knotter flags are standard on all John Deere balers. This feature offers convenience to operators by allowing for true look-ahead baling.
    • Feedback on the flywheel brake, precutter functions (if equipped), greasing, lighting, bale chute (if equipped), and bale drop (if equipped) systems.
    • Bale weights and bale moisture are displayed when their respective options are purchased.
    • Control of the drop floor on the precutter rotor option.
    • Electronic tie control from the cab.
    • Preservative applicator monitoring and adjustments.
    • Machine faults are shown in red on the screen allowing the user to quickly detect any issues.
    • Bale count is selectable between the current field, customer, season, or lifetime bale counts.

    PhiBer accumulator integration into the baler display.

    PhiBer is a trademark of PhiBer Manufacturing Inc.

  • MegaWide™ pickup with MegaTough™ pickup teeth provide added durability
    MegaWide pickup
    MegaWide pickup
    MegaWide pickup
    MegaWide pickup

    The pickup is designed and built by John Deere in Ottumwa, Iowa. The John Deere MegaWide large square balers (LSBs) pickups use a low-profile pickup drum with a large-diameter roller baffle to efficiently pick crop up from the field. The performance of the roller baffle compressing the crop against the pickup tines means more crop in the bale and fewer leaves and crop left in the field.

    • 2.2-m (7.2-ft) wide pickup is available on the L331 and L341 Baler
      • Available with standard or premium components
      • Tooth-to-tooth width is 1.92 m (76 in.)
      • Eight staggered tooth bars help prevent overload
      • Standard semi-pneumatic fixed gauge wheels provide smooth ground gauging over uneven terrain and protection to the pickup
    • 2.5-m (8.1-ft) wide pickup is available on the L341 Baler
      • Available only with premium components
      • Tooth-to-tooth width is 2.18 m (86 in.)
      • Eight staggered tooth bars help prevent overload
      • Standard semi-pneumatic pivoting gauge wheels reduce sliding and scuffing of the tires in the field when the baler turns
    • MegaWide pickup makes it easier to produce better-shaped bales and improves crop pickup in wide, windblown, or scattered windrows
    • MegaTough pickup teeth provide greater strength and durability
    • Chain driven for positive feeding
    • Mechanical cutout clutch protection for added durability
    #
    #
    MegaTough pickup teeth
    MegaTough pickup teeth

    Mega and MegaTough pickup teeth are base equipment:

    • Mega pickup teeth, at the ends of the pickup, are heavy-duty for long life and improved crop retrieval
    • MegaTough pickup teeth are designed to withstand the harshest baling conditions and provide long service life

    Both pickup widths use a heavy, C-channel construction for the toothbar assembly. The pickup toothbars are divided into two half sections that mount to a center spider for increased strength and even crop feeding.

    Semi-pneumatic gauge wheels
    Semi-pneumatic gauge wheels

    Semi-pneumatic gauge wheels provide smooth ground gauging over uneven terrain and protection to the pickup.

    • Stiffer rubber sidewalls
    • No air pressure to maintain, which means no flat tires
    • Adjustable to meet pickup tooth-to-stubble height requirements

    Converging wheels are available on the 2.2-m (7.2-ft) pickup to increase the overall feeding width to 2.8 m (9.2 ft):

    • Rubber-mounted steel tines offer better durability
    • Tines are sized to prevent dirt buildup
    Pickup float springs
    Pickup float springs
    Pickup float springs
    Pickup float springs

    The pickup float springs are positioned for excellent flotation.

    • Adjustable to meet varying field conditions
    • Float springs only support the pickup reel
    • Rotor assembly is fixed to the baler frame, eliminating additional weight on the pickup system
  • Double-tie knotter system provides reliable knotting in high density and the most difficult baling conditions
    Double-tie knotter system
    Double-tie knotter system
    Knotter grease block
    Knotter grease block

    L331 and L341 Large Square Balers (LSBs) come standard with double-tie knotters.

    John Deere-designed knotters are designed for performance, reliability, and reduced maintenance requirements. The auto-lube system is integrated into the knotter frames, and two internal grease ports reduce the time spent on pre-baling maintenance.

    Integration of the lube system block into the knotter frame reduces the number of grease lines required for each knotter.

    The integrated grease block results in a reduction in the amount of grease lines required to grease the knotter system and the number of grease line connection points. Fewer feet of grease lines and fewer connection points mean less maintenance and more time baling.



    Knotting system
    Knotting system

    If service to the knotter stack is required, the knotters are positioned using an adjustment screw instead of shims. This saves time by having the ability to make adjustments at any point of assembly.

    Split knotter frame
    Split knotter frame

    The split knotter frame is directly mounted to the intermittent gear so the frame can be removed without servicing the knotter stack.

    Billhook cam
    Billhook cam

    Like the John Deere single-tie knotter, the billhook cam and wiper arm plate are removable and individually serviceable. This allows replacement without replacing large castings or assemblies.

    Instances where competitors must adjust the wiper arm to the billhook with a hammer, the John Deere solution allows the setting to be made with two bolts. This provides a more precise and repeatable setting, which results in more consistent knot wipe-offs.



      L331 L341
    Connection point reduction 8 12
    Lube line reduction (m, ft) 16.8 m
    (55 ft)
    25.3 m
    (83 ft)


    The one series LSBs store twine in single-row twine boxes. The twine is then routed to the sealed gear tensioners. The sealed tensioner gears have been proven to provide more consistent twine tension during knot formation. This increases knotter performance and consistency. Once the correct bale length is achieved, the tie system clutch is activated.

  • Knotter trip system

    The John Deere-designed double-tie knotting system is gear and driveline driven to ensure the needle-to-plunger timing is maintained throughout the life of the baler.

    The needle lift crank and clutch rocker arm are made of hardened cast iron to improve strength and durability of the knotter clutch. The gearbox drives the system around 360 degrees to complete a tie.



    Knotter trip system
    Knotter trip system

    On the L331 and L341 Large Square Balers, the producer can choose between a mechanical trip system or an electrical trip system.

    The electrical trip system offers the following advantages:

    • Bale length adjustment from the cab
    • Tying off the last bale from the cab
    • Reduction in maintenance requirements
    • Improved length accuracy
    • Predictive tie
      • Predictive tie takes into account the flake size throughout the bale and desired length of bale. When a bale is approaching the desired length and the next flake will put it at or over the desired length, predictive tie will trip the tie system. Whereas the mechanical system has to pass the desired length then it will tie on the next flake.
  • Preservative applicator
    Preservative tank
    Preservative tank

    Preservative application allows harvesting hay at slightly higher moisture levels without worrying about spoilage or heat. Using preservative increases the baling window by allowing operators to begin baling earlier in the day and continue baling later into the evening, this greatly decreases the dependency on weather. This application system is capable of preserving hay up to a 27 percent moisture level without compromising hay quality.

    NOTE: Care must be exercised not to exceed the moisture levels recommended by preservative manufacturers in order to avoid spoilage.



    Crop detection sensors
    Crop detection sensors

    The one series LSB offers a John Deere designed preservative application system. The John Deere system is integrated with the John Deere moisture sensor. The high-accuracy moisture sensor enables more accurate application of preservative. Crop detection sensors detect crop to ensure that preservative is only being applied when crop is present.

    Preservative system installation
    Preservative system installation

    Factory installation of the preservative system is available and eliminates any baler modifications that were previously required when performing a dealer installation. The factory installation tests all electrical components of the preservative system before it leaves the factory.

    The preservative applicator includes the following:

    • 567-L (150-U.S. gal.) poly tank 12-V diaphragm-type pump
    • Integration into John Deere electronics
    • Service parts available through the John Deere Dealer Network
  • BalerAssist
    #
    #

    The BalerAssist drivetrain system is an industry-exclusive offering that gives the operator the ability to hydraulically control the drivetrain. The system is able to operate in both the forward direction as well as the reverse direction and at two speeds each direction with a maximum speed of about 4 plunger strokes per minute.



    #
    #

    John Deere value:

    • Reduced time to remove plugs that occur in the pickup or rotor by backing the plug out
    • Reduced time to perform maintenance and time the baler
    • Increased ability to troubleshoot knotters by performing slower tie cycles

    The BalerAssist drivetrain system can be controlled from the display or from a Bluetooth® wireless system remote.

    • Once BalerAssist is enabled from the display, it can be controlled by the Bluetooth remote
    • Bluetooth remote is included when the option is ordered

    From the display, speed adjustments can be made to the following categories:

    • Slow forward
    • Fast forward
    • Slow reverse
    • Fast reverse
    BalerAssist Bluetooth remote
    BalerAssist Bluetooth remote

    The Bluetooth remote has the following functions with icons that match the display:

    • Enable
    • Slow forward
    • Fast forward
    • Slow reverse
    • Fast reverse
    • Service lights can be turned on using the remote

    Bluetooth is a trademark of Bluetooth SIG Incorporated.

  • Moisture sensor
    Moisture sensor
    Moisture sensor

    The John Deere integrated moisture sensor for large square balers provides bale moisture levels throughout the baling process. Mounted forward in the bale chamber, it provides timely information for real-time decisions. This sensor was designed by John Deere specifically for the application, and uses an integrated display for less clutter in the cab. It operates in a complete range of moistures from dry to wet crops.

    This sensor can be used in conjunction with the John Deere preservative system to adjust application rates.

  • Premium MegaWide™ pickup

    The premium MegaWide pickup is available for the L331 and L341 Large Square Balers. The premium pickup offers larger components to increase the durability and reliability of the pickup.

    Changes to the premium MegaWide pickup include:

    • Larger cams and cam bearings
    • Larger spider gears
    Reel cam and cam arms for premium machines
    Reel cam and cam arms for premium machines
    Left-hand spider gears
    Left-hand spider gears
    Right-hand spider gears
    Right-hand spider gears
    #

    The spider gears on the premium pickup have bearings that give the reel increased durability (longer life), as well as offering a more quiet operation of the pickup. The spider gears are also larger in diameter for increased life.

  • Wear parts box
    #

    A wear parts box will be available for the L331 and L341 Large Square Balers (LSBs). The wear parts box includes 18 of the most common wear parts identified by customer support and engineering. Having these parts on hand will help producers keep their balers running during the season. The parts box is an option that can be ordered when configuring the baler.

    NOTE: The wear parts box is for the one series baler. A lot of the parts included in the box are not able to be retrofit to the L330 or L340.

    Parts come packaged in a durable container that can be used in the truck, shop, or field.

    Magnetic parts lists help producers keep track of parts they need.

    Parts included:

    Part Quantity
    Pickup teeth 20
    Pickup strippers 4
    Pickup stripper bolts 4
    Left-hand cam arm 1
    Right-hand cam arm 1
    Cam arm bearing 4
    Cam arm bolt 2
    Bill hooks 6
    Wiper plates 6
    Twine knives 6
    Twine discs 3
    Twine retainer 3
    Twine cleaner 3
    Needle roller kit 6
    Proximity sensor 2
    Bottom knives bolts 6
    Bottom knives center 2
    Bottom knives end 1
  • Bale Mobile app provides more information to enable better decisions
    #

    Similar yield data that has been available for crops like corn and soybeans is now available for hay, thanks to the large square balers and the Bale Mobile app. The One Series Large Square Balers measure moisture and weight for each bale. This app takes that real-time information to a whole new level, whether baling, loading, or in the office managing.

    Baling

    The operator in the tractor can see information as the app documents the baling process. The moisture and weight are tagged to the individual bale. If a bale is too wet, the operator can immediately decide whether to apply preservative or even stop baling. Bale Mobile also has the option to tag bales so they can be easily identified when sorting. After baling in a field, a summary will show the crop, number of bales, and average moisture, even if there is more than one baler running.

    Loading and moving bales

    When loading trucks or moving bales, Bale Mobile uses this same data to help plan more efficiently. It gives users the option to sort by moisture, weight, and if preservative has or has not been applied. It will help keep the wet or weedy bales out of the stack and load trucks for optimal weight.

    Management

    From the office, producers can see where the balers are and how well they are working while managing operations and making sound decisions. A summary will show yield information by field to help decide on irrigation, fertilizer, or replanting before next season. This documentation can even be shared with landlords and trusted advisors.



    From baling to loading and planning, the John Deere Bale Mobile app allows producers to get more information, improve efficiency, and make better decisions.



    Hardware and compatibility requirements:

    • iPad® tablet
    • One Series Large Square Baler
    • Hardware kit
      • Dealer installation for model year 2018
      • Factory installation for model year 2019
    • Tractor with StarFire™ receiver
    • No subscription fee required



    To order the Bale Mobile through the parts system, use bundle number BE32776.



    Note: Bale Mobile is only available on the 1-Series large square balers, and requires the baler to be equipped with the mass flow and moisture sensors



    iPad is a trademark of Apple Inc.

Bale chamber

Number of plunger strokes 45 spm
Density control Four hydraulic cylinders
Plunger stroke 69.5 cm
27 in.
Control ISOBUS - GreenStar™ 2 1800 or GreenStar 3 2630
Bale chamber length 305 cm
120 in.
