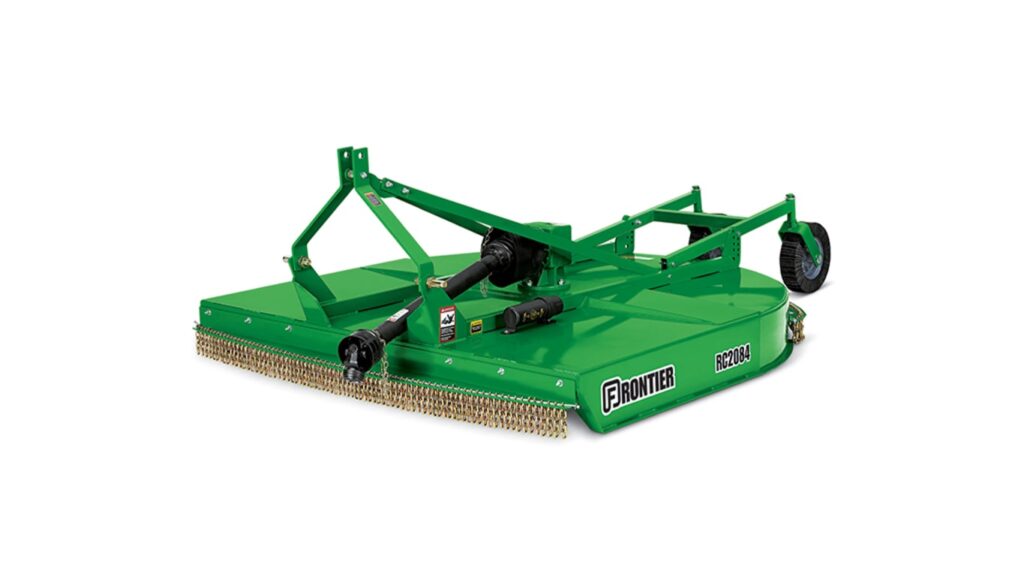

John Deere RC2084 Rotary Cutter
Agriculture
- Easy-to-maneuver
- Adjustable cutting height
- Balanced blade pan
- Puncture-resistant rear tires
Featured List
- Working Width: 84 in. (213.4 cm)
- PTO HP: 45 – 90 hp (33.6 – 67.1 kW)
- Hitch Category: Cat. 2
Featured Content
Chain deflector shown
Rubber deflector shown
The front deck and deflector support are flush with the deck on the RC20 Series Rotary Cutters. This allows water and debris an unrestricted exit off the top of the deck.
These deflectors are available in:
- Rubber or chain on the front
- Metal or chain on the rear
Puncture resistant (laminated shown)
Choose a laminated or solid rubber rear tire for the RC20 Series Rotary Cutter. Both are puncture resistant.
The laminated tire is longer lasting and provides more support when working in sandy or lighter soil conditions.
Provides quick and easy connection
The iMatch hitch system converts a tractor’s 3-point hitch to fixed hooks and attaching points for a super-quick connection (the iMatch hitch is sold separately).
Cutting heights of 3.8 cm to 22.9 cm (1.5 in. to 9 in.)
Adjusting the cutting height is easy. Along with adjusting a tractor’s three-point linkage, simply move the support bar to the desired cutting height.
The RC20 Series Rotary Cutters go as low as 3.8 cm (1.5 in.) or as high as 22.9 cm (9 in.).
Provides easy maneuvering in tight areas
The round-back deck design on the RC20 Series Rotary Cutter enables easy maneuvering into tight corners and around trees, fences, and other hard-to-reach areas.
Low hitching point accommodates various tractors
The lower hitching point on the RC20 Series Rotary Cutter accommodates a reversible front hitch for smaller or older tractors.
Statically balanced to reduce vibration
There is one standard blade pan for all four sizes of the RC20 Series Rotary Cutters. The blade pan is stamped instead of fabricated and is statically balanced to reduce vibration.
The blade bar is thicker for added durability.
Provides extra strength and durability
The RC20 Series Rotary Cutters have a lower lip (Z-profile), which extends from the skid shoes to where the apron opens up. This Z-profile increases the overall durability and strength of the rotary cutter.
| Deck - Type | Single |
|---|---|
| Set-up time - Labor hours | 1 |
| Tractor compatibility - PTO horsepower | 13-33 kW 18-45 hp |
| Warranty - Gearbox | 1 year |
| Safety - Front deflector | Standard |
| Wheels - Type | Solid rubber or laminated |
| Capacity - Cutting chamber depth | 19 cm 7.5 in. |
| Warranty - Time period | 1 year |
| Skirt - Thickness | 11 gauge 3 mm 0.12 |
| Hitch - AutoHitch? compatible | Yes |
| Wheels - Width laminated | 95 mm 3.75 in. |
| Deck - Thickness | 11 gauge 3 mm 0.12 |
| Capacity - Cutting height | 4-23 cm 1.5-9 in. |
| Hitch - iMatch? compatible | Yes |
| Wheels - Diameter rubber | 381 mm 15 in. |
| Capacity - Cutting width | 122 cm 48 in. |
| Deck - Shape | Flat-open round back |
| Driveline - Type | Shear bolt or slip clutch |
| Dimensions - Overall length | 220 cm 87 in. |
| Wheels - Diameter laminated | 381 mm 15 in. |
| Capacity - Cutting diameter | 0-2.5 cm 0-1 in. |
| Wheels - Width rubber | 95 mm 3.75 in. |
| Weight - Operating | 232 kg 512 lb |
| Tractor compatibility - Tractor PTO | 540 rpm |
| Safety - Markings | Standard |
| Hitch - Type | Lift-type |
| Gear case - Horsepower | 34 kW 45 hp |
| Wheels - Quantity | 1 |
| Dimensions - Overall width | 129 cm 51 in. |
| Safety - Rear deflector | Standard |
| Blade holder - Diameter | 567 mm 22.3 in. |
| Blades - Type | Heat treated, suction |
| Tractor compatibility - PTO category | ASAE 3 |
| Blades - Width | 76 mm 3 in. |
| Blades - Thickness | 13 mm 0.5 in. |
| Hitch - Category | Cat. 1, adaptable to Cat. 2 |
| Blade holder - Type | Round pan-type |
| Blades - Tip speed | 66.5) m/s 13,090 fpm |
