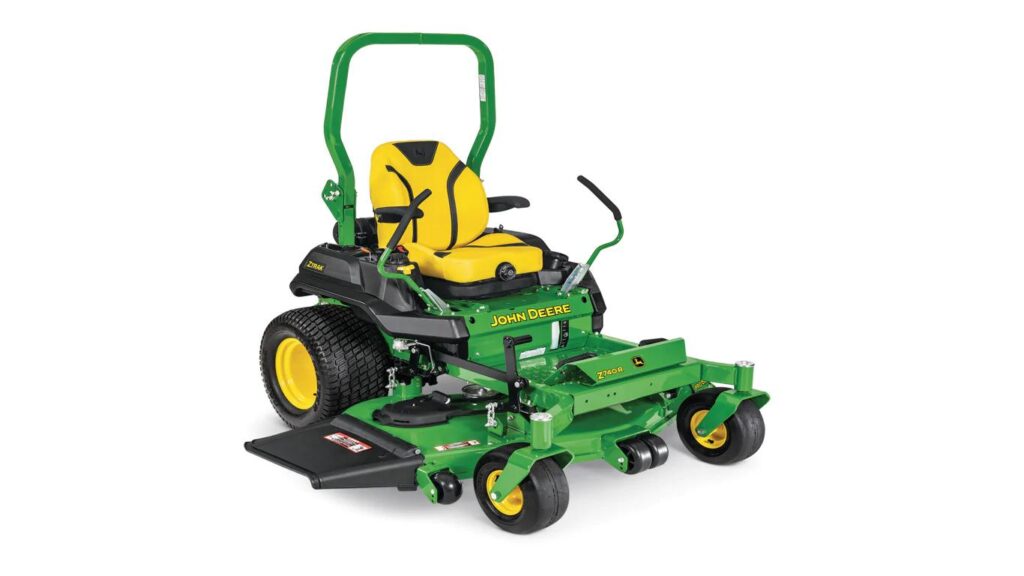

John Deere Z740R ZTrak™ Zero Turn Mower
Lawn & Garden Equipment
- 23.5-hp (17.5 kW)* FX series engine
- 48-, 54-, or 60-in. High-capacity PRO mower deck with welded deck reinforcements
- 24-in. seat with fully adjustable mechanical suspension
- Cut height adjustment dial adjusts mower in ¼-in. increments from 1.5 – 5 inches
| Lift system - Mower cut height | 1.5-5 in. 3.8-12.7 cm |
|---|---|
| Lift system - Cut height increments | 0.25 in. 0.64 cm |
| Chassis - Front caster tires | 13x6.5-6 |
| Drive train - Dual hydros | Hydro-gear ZT3400 with 1-in. (2.54-cm) axles |
| Key Specs - Forward speed | 0-10 mph 0-16.1 km/h |
| Mower deck - Mower deck material | 9 gauge 0.15 in. 3.8 mm |
| Key Specs - Seat back height | High back with adjustable armrests, 24 in. 60.9 cm |
| Chassis - Cup holder | Yes |
| Additional information - Date collected | 30-Aug-2018 |
| Buyer's notes - Note 1 | Flip-up and adjustable foot platform for easy service access |
| Seat - Seat back height | High back with adjustable armrests, 24 in. 60.9 cm |
| Engine - Choke/speed control | Separate control levers |
| Lift system - Preset cut height | Yes |
| Optional attachments - Mulching system | Optional MulchControl attachment |
| Safety - Park brake interlock | Yes |
| Travel speed - Forward speed | 0-10 mph 0-16.1 km/h |
| Seat - Seat suspension | Mechanical; adjustable for weight |
| Chassis - Front caster bearings | Sealed ball bearings |
| Optional attachments - Light kit | LED - fender mounted |
| Dimensions - Width with mower (deflector raised for storage) | 48 HC, 53.2 in. 135.1 cm 54 HC, 59.4 in. 151 cm 60 HC, 64.8 in. 164.5 cm |
| Chassis - Primer/paint | E-coat/powder |
| Chassis - Service interval decal | Yes |
| Dimensions - Overall length | 82 in. 208.4 cm |
| Chassis - Hourmeter | Yes with low oil pressure and low battery voltage indicators |
| Dimensions - Width with mower | 48 HC, 62.3 in. 158.2 cm 54 HC, 68.2 in. 173.2 cm 60 HC, 73.3 in. 186.1 cm |
| Engine - Lubrication | Full pressure with replaceable filter, capacity, 2.2 U.S. qt 2.1 L |
| Travel speed - Control adjustment | 2-height/18 positions |
| Chassis - Frame | Heavy-duty frame tubing |
| Engine - Type | Overhead valve |
| Seat - Fore-aft adjustment | While seated, 4 in. 10.2 cm |
| Key Specs - U.S. warranty | 4 year/1000 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Safety - Operator presence system | Yes |
| PTO - Type | Electric, 125 lb-ft 169 Nm |
| Dimensions - Height | ROPS up - 71.1 in. 182.2 cm ROPS down - 49.7 in. 126.2 cm |
| Key Specs - Drive tires | 24x9.5-12 (48-in. decks) 24X12-12 (54- and 60-in. decks) Optional - 24X12N12 Michelin® Tweel® X Turf Airless Radial (54- and 60-in. decks) |
| Mower deck - Mower drive system | V-belt |
| PTO - Drive | V-belt |
| Dimensions - Weight | With mower and fuel, 48 HC, 995 lb 451 kg With mower and fuel, 54 HC, 1,010 lb 458 kg With mower and fuel, 60 HC, 1,040 lb 472 kg With Tweel option, mower, and fuel, 54 HC, 1046 lb 474 kg With Tweel option, mower, and fuel, 60 HC, 1076 lb 488 kg |
| Optional attachments - Rubber floor mat | Optional |
| Travel speed - Speed and direction control | Twin premium levers |
| Mower deck - Type | High-capacity (HC) PRO side discharge |
| Engine - Cylinders | V-twin |
| Key Specs - Mulching system | Optional MulchControl™ attachment |
| Dimensions - Wheelbase | 49.9 in. 126.7 cm |
| Engine - Fuel tank capacity | 8 U.S. gal. 30.2 L |
| Key Specs - Width of cut | Not available with Tweel option - 48 in. 122 cm 54 in. 137 cm 60 in. 152 cm |
| Engine - Fuel gauge | Fuel level sight line |
| Optional attachments - Material collection system | 48 HC PRO, 54 HC PRO, and 60 HC PRO Power Flow™ rear bagger, 6.5 bu 229.1 L Not compatible with Tweel option |
| Chassis - Drive tires | 24x9.5-12 (48-in. decks) 24X12-12 (54- and 60-in. decks) 24X12N12 Michelin Tweel X Turf Airless Radial (54- and 60-in. decks) |
| Lift system - Type | Spring assisted foot lift |
| Key Specs - Engine power | 23.5 hp 17.5 kW |
| Key Specs - Front caster tires | 13x6.5-6 |
| Chassis - Storage compartment | Yes |
| Mower deck - Width of cut | Not available with Tweel option - 48 in. 122 cm 54 in. 137 cm 60 in. 152 cm |
| Safety - Safety video | Yes |
| Engine - Model number | FX730V |
| Engine - Battery | 12 V 340 CCA |
| Buyer's notes - U.S. warranty | 4 year/1000 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Dimensions - Width without mower | 48.6 in. 123.5 cm With Tweel option - 52.8 in. 134.2 cm |
| Travel speed - Reverse speed | 0-4.5 mph 0-7.2 km/h |
| Engine - Cooling method | Air |
| Engine - Displacement | 44.2 cu in. 726 cc |
| Engine - Power | 23.5 hp 17.5 kW |
| Key Specs - Engine model number | FX730V |
Featured List
- Seat Height: 24-in.
- Seat Suspension: Full mechanical suspension seat
- Fuel Capacity: 8 gal.
- Control Levers: Premium
- Forward Speed: 10 mph
- Cut Height Adjustment: Dial, 1.5-5 in.
- Engine: 23.5 hp*
- Deck: 48-, 54-, 60-in. High-Capacity PRO
Featured Content
4-year bumper-to-bumper warranty*
Exclusive, 4-year, single-source, bumper-to-bumper warranty is included for all John Deere Z700 Series ZTrak mowers. The warranty places John Deere at the forefront of the mowing industry. It is hassle free, with one company handling all the paperwork.
|
Z720E, Z735E |
4-year, 500-hour warranty |
|
Z730M, Z735M |
4-year, 750-hour warranty |
|
Z740R |
4-year, 1000-hour warranty |
Service interval decal
Daily service decal
A convenient service decal gives basic maintenance information. It provides a quick reference for keeping recommended service up to date. It is located underneath the battery cover.
Flip-up foot platform for mower deck access
Operator foot platform
Easy-to-remove foot platform (Z720E shown)
The professional-style steel foot platform is easy to remove without tools:
- Makes cleaning grass off the top of the mower deck easier
- Provides convenient access to the mower deck for service
Engine service
Engine oil check/fill and drain tube (Z720E, Z730M, Z740R)
Engine oil check/fill and drain tube (Z735E, Z735M)
The engines are easy to service, including changing the oil and the oil filter and servicing the air filter:
- The engine oil check/fill tube is located at the top of the engine and easy to see and reach.
- No-tools oil drain is convenient to use. A flexible oil drain tube is included to conveniently drain oil into a pan, thus eliminating oil spills.
Engine air filter panel (Z735E engine shown)
Air filter cover removed (Z735E shown)
Multi-stage canister air filter system (Z740R shown)
Air filter element (Z740R shown)
Engine air filters are at the top of the engine for easy service:
- Z720E, Z735E, Z730M, and Z735M engines have knobs to remove the filer cover.
- The Z740R has a heavy-duty, multi-stage canister air filter system, which uses a round primary and secondary filter that are easily accessed with latches on the end cap.
Grease fittings
Top of the mower deck
Only three grease fittings require service:
-
Three to lubricate the mower-blade spindles, two easily accessed from the spindle covers, and the third by removing the foot platform.
Battery accessibility
Battery cover
340 CCA battery
The battery is protected from debris, dust, and moisture:
- It is easy to access under the panel on the left-hand side of the machine.
- Held in place by an easy-to-remove thumbscrew
- Powerful 340 cold cranking amp (CCA) battery provides dependable starts.
Easy-to-clean flat-top mower deck
Flip-up spindle cover for easy cleanout and maintenance
Serviceability is designed into the mower deck:
- Easy access is provided by the removable operator foot platform.
- Flat-top design minimizes places for debris to collect.
- Spring-loaded, flip-up belt guards make removing debris easy.
- A provision is provided for a standard, 3/8-in. (9.5-mm) ratchet wrench to be used for releasing belt tension when removing the drive belt.
Mower deck serviceability
Floating deck mounting system
Deck-level adjustment
A patent-pending deck-leveling system provides easy adjustment at all four mower mounting points:
- Loosen the nut (B) slightly with a 15-mm wrench.
- Using the open end of a 16-mm wrench on the hex fastener (A), raise or lower the deck as needed so the height of the rear blade tip is 3 to 6 mm (1/8 to 1/4 in.) higher than the front blade tip.
- Tick marks on bracket (C) are provided to aid in observing movement.
- When the deck is at the height needed, tighten the nut (B).
Transmission bypass (tow valves)
Tow-valve control, right (knob pictured in neutral position)
Tow-valve controls are provided for each transmission:
- Controls are located at the rear of the machine and are easy to access.
- Tow valves allow moving the machine in its neutral position when the engine is not running.
- Simply, loosen the knob, push towards the front of the machine, and tighten the knob back. When finished moving the machine, return the rods to the operating position.
Built-in tie-down locations
Built-in front tie-down location, right side
Built-in front tie-down location, left side
Built-in rear tie-down location, right side
Built-in rear tie-down location, left side
Four tie-down locations are provided for convenience and safety when trailering the machine.
Operator digital video disc (DVD)
An operation and safety DVD is provided with each machine. Please consult the operator’s manual for other safety and operating procedures.
*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.
ZTrak™ Z720E Mower shown
ZTrak Z720E Mower shown
An ergonomic design and professional grade components are suitable for a wide variety of operators and conditions:
- Comfortable operator station and convenient controls help optimize operator experience.
- Large operator platform allows a wide range of foot positions.
Adjustable features customize the mowing experience for each operator. One of these features is an adjustable foot platform.
Operator platform designed for adjustability and comfort
Operator station
Three-position foot platform for operator comfort, rearward position
The patent-pending, adjustable, three-position toe board allows the operator to quickly adjust the footrest position for greatest comfort:
- Easily and without tools, each operator can adjust the location of the footrest area to the optimum position.
- Adjustment range of 2 in. (5.1 cm) in 1-in. (2.5-cm) increments is possible.
Adjustable foot platform, forward position
Adjustable foot platform, middle position
Short operators may be most comfortable with the platform in the rear position (as shown above), while tall operators may be more comfortable with the platform in the forward position. Or perhaps, the middle position provides just the right amount of leg room.
Foot pegs (standard on R Series, optional on E and M Series)
Foot platform with foot pegs
Foot peg mounting holes
Patent-pending foot pegs (standard on R Series, optional on E and M Series) provide the operator with different foot placement options.
- Foot pegs can be adjusted into two different positions, horizontal or at an angle, to provide more variability for foot placement. The pegs also act as handles to remove and replace the foot platform.
Dual Hydro-Gear® transmissions
Dual transmissions efficiently power the ZTrak™ mower forward and reverse and give steering capability:
- The unitized hydrostatic drive features a hydraulic pump combined with a commercial-grade, heavy-duty wheel motor into a single unit.
- One pump and one motor transmission to drive each wheel provides several benefits:
- Exceptional cooling in high-load conditions
- Easy-to-check fluid level and refill with hydraulic oil
- Opens up access under the seat
- Transmissions are set low in the vehicle for excellent hillside stability.
- Heavy-duty components stand up to the higher loads from the larger tires and greater weight of Z700 Series ZTrak Mowers.
- Low maintenance, unitized transmissions are sealed and have no hose connections to leak hydraulic fluid.
- Four-bolt hubs provide a reliable and convenient wheel-mounting system.
The hydrostatic drive features two Hydro-Gear ZT-3400® transmissions for superior performance and durability:
- Unitized hydraulic pumps and commercial-grade, heavy-duty wheel motors combined into a single unit
- Speeds up to 10 mph (16.1 km/h)
- Pump displacement: 0.73 cu in. (12 cc) per revolution
- Motor displacement: 0.97 cu in. (16 cc) per revolution
- Durable 1-in. (2.54-cm) axles for heavy loads
- Standard shock valves for added system protection
- Standard charge pump for increased performance
- External oil filter for easier maintenance
Expansion tanks and tow valve controls
Transmission expansion tank and filler cap
Tow-valve control, right
Transmission fluid expansion tanks are provided for each transmission. The yellow filler cap is easy to find and identify.
Tow-valve controls are provided for each transmission:
- Controls are located on the transmissions near the expansion tanks where they are easy to reach and use.
- Tow valves allow moving the machine in its neutral position when the engine is not running.
- Simply pull up on the rods and secure them into the slot. When finished moving the machine, return the rods to the operating position.
Hydro-Gear and ZT-3400 are trademarks of Hydro-Gear Limited Partnership AF Holding Company, a Delaware Corporation and Danfoss Power Solutions (US) Company, a Delaware Corporation
23.5-hp (17.5-kW) engine
Multi-stage canister air filter system
Key engine features include:
- 23.5 hp (17.5 kW) provides plenty of power.
- Large 44.3-cu in. (726-cc) displacement provides excellent torque.
- V-twin, 90-degree cylinder design allows for easy starts, excellent power and performance, and smooth operation.
- Engine model is FX730V.
- Many quality features are included.
- Cast-iron cylinder liners provide a long-wearing surface for longer engine life.
- Overhead V-valves allow the engine to breathe easily for excellent power and fuel economy.
- Hemispherical combustion chambers and overhead V-valve technology help ensure low emissions, high power, and smooth operation.
- Automatic compression release provides easy starting.
Engine debris chopper fan guard
Engine integrated cleanout port
- A rotating metal grass chopper screen helps keep the engine fins clean by filtering out debris and reducing the size of material that gets through so it will pass harmlessly past the engine fins.
- The steel guard provides protection from the rotating fan.
- Integrated cleanout ports allow for checking and cleaning the engine cooling fins
Engine oil check/fill and drain tube end
- Full-pressure lubrication system provides plenty of oil to the engines moving parts to ensure reliable operation and long life:
- No-tools oil drain is convenient to use.
- A flexible drain tube can be placed above a drain pan to eliminate oil spills.
- Replaceable oil filter keeps the oil cleaner for a longer engine life and extends the time between oil changes.
Heavy-duty canister air filter
Air filter element
- Heavy-duty, multi-stage canister air filter system thoroughly cleans the engine intake air.
- Electronic ignition contributes to fast starts.
- Heavy-duty shift-type starter allows for fast starts, even in colder weather.
Rear engine guard
- A rear engine guard protects the engine and provides additional vehicle strength and integrity.
- A flywheel alternator provides plenty of capacity to quickly recharge the battery and power electrical equipment, such as lights or a sprayer.
- 20-amp capacity
- Regulated to keep the battery at a full charge without risk of overcharging
John Deere recommends the use of fuel stabilizer in gasoline. See Fuel-Protect for gasoline engines (8 oz [237 mL]) for more information.
8-gal. (30.3-L) fuel capacity for extended mowing times
Easy-to-see fuel sight gauge
Large fuel-fill opening
The large-capacity fuel tank is easy to fill, and a convenient fuel level gauge is provided:
- Holds 8-gal. (30.3-L) of fuel to reduce time needed for refills
- Easy to see how much fuel is in the tank by viewing the sight gauge when approaching from the front of the machine
- Large, 3.5-in. (8.9-cm) fuel fill diameter for easy filling and minimum chance of spills
- Fuel fill is low for easy filling, within easy reach of any operator
John Deere recommends the use of fuel stabilizer in gasoline. See Fuel-Protect for gasoline engines (8 oz [237 mL]) for more information.
ZTrak™ Z720E Mower shown
ZTrak Z720E Mower shown
Formed and welded steel frame
Solid steel tube front frame
Strong rear frame for support and protection
A strong, welded steel frame provides solid, reliable support for the machine components and operator:
- Heavy-duty 3- x 2-in. (76.2- x 51-mm) frame tubing for durability
- Rear frame provides solid support and protection for the engine
Large, smooth-riding front caster wheels
Large caster wheel
Caster wheel spindle housing
Large front caster wheels provide a smooth ride and level cut:
- A large surface area helps to provide a smooth ride for the operator.
- Pneumatic tires for the smoothest ride (Z720E, Z735E, Z730M, Z735M, Z740R)
- Semi-pneumatic tires for extra reliability and durability (Z740R with Tweel® tire technology)
- Better performance on slopes
- Caster wheels turn easily on two maintenance-free sealed ball bearings for both the spindles and the wheel axles.
- Long, trouble-free life
- Designed to give smooth turns without damage to the turf
Large rear drive wheels for a smooth ride and level cut
23-in. (58.4-cm) diameter rear tire (E and M Series)
24-in. (61-cm) diameter rear tire (Z740R)
Rear tires have high-quality tread and optimum size for superior traction and smooth ride:
- Tire width is optimized for mower deck size.
- 9.5 in. (24 cm) for 48-in. (122-cm) mowers (E, M, R Series)
- 10.5 in. (26.7 cm) for 54-in. (137-cm) and 60-in. (152-cm) mowers (E, M Series)
- 12 in. (30.5 cm) for 54-in. (137-cm) and 60-in. (152-cm) mowers (Z740R)
- Tread pattern is optimized for excellent traction and minimum turf damage.
- Special wheel design gives an enhanced appearance to the machine.
- Optional Michelin® X® Tweel Turf airless radial tire technology on the Z740R provides extra reliability and ride quality.
Heavy-duty step weldment
Step weldment on the mower deck
A heavy-duty, permanent step weldment is located at the left front corner of the mower deck:
- Encourages proper entry to the operator station
- Provides a good gripping surface for the operator’s foot
Michelin, X, and Tweel are trademarks of Compagnie Générale des Etablissements Michelin SCA.
Z740R with flat-free rear tires
NOTE: Michelin X Tweel tires are available only in the 24x12N12 size for Z740R Mowers equipped with a 54-in. (137-cm) or 60-in. (152-cm) Mower Deck.
Michelin is a world leader in tire manufacturing and technology. This airless radial tire solution gives additional advantages.
Advantages of using the Michelin X Tweel Turf tires include:
- More comfortable ride because of less bounce.
- Mowing performance is improved.
- Rutting is reduced because the Michelin X Tweel Turf has more support across the surface for improved flotation and better ground contact.
- Unique energy transfer within the poly-resin spokes reduces the bounce associated with pneumatic tires.
- Excellent curb climbing is possible due to the Michelin X Tweel Turf construction and flexibility.
- More consistent cut quality is achieved because inconsistent tire pressure is eliminated.
- Uptime is improved.
- The exclusive technology eliminates downtime and associated cost due to flat or damaged tires.
- Punctures and sidewall damage no longer result in downtime.
- Cost of operation is reduced.
- Cost of repairs and maintenance is reduced.
- One single unit replaces the current tire, wheel, and valve assembly.
- There is no need for complex tire-mounting equipment.
- No need to spend time checking and optimizing tire pressure.
- The need to purchase and stock plug kits and spare tires is eliminated.
- The tire tread will last up to three times longer than current pneumatic tires because automotive-grade rubber is used for the tread.
Michelin X Tweel Turf tire, side
Michelin X Tweel Turf tire, left rear
Heavy-duty construction provides the ultimate in performance and reliable operation:
- High-strength poly-resin spokes carry the load.
- Four-hole, heavy-duty steel hub easily bolts onto a Z740R equipped with a 54-in. (137-cm) or 60-in. (152-cm) Mower Deck and 24×12-12 tires.
- Michelin X Tweel tires are not available for machines with a 48-in. (122-cm) Mower Deck.
- Deep, open-tread design provides excellent cleaning and traction.
- Zero degree, high-tensile proprietary carcass provides great lateral stiffness while resisting damage from impact and penetration.
Michelin, X, and Tweel are trademarks of Compagnie Générale des Etablissements Michelin SCA.
Operator station
Fully adjustable operator area
The operator station is designed to provide superior operator comfort:
- Adjustable foot platform
- Three positions allow for ample legroom
- Adjustable seat position, armrests, and suspension to suit any operator
- A dial can be adjusted to the operator’s weight
- Adjustable motion-control levers
- Upper and lower positioning combined with forward and rearward tilt offers 18 positions
- Large, padded areas on the control levers provide multiple hand positions
- Upper and lower positioning combined with forward and rearward tilt offers 18 positions
Adjustable operator foot platform
Adjustable foot platform
Foot platform with standard foot pegs
The patent-pending, adjustable three-position toe board allows any operator to quickly adjust the footrest position for greatest comfort.
- Easily and without tools, each operator can adjust the location of the footrest area to the most suitable position.
- Adjustment range of 2 in. (5.1 cm)
- Large foot platform allows a wide range of foot positions.
- Patent-pending foot pegs are standard on the Z740R (optional on E and M Series) to provide the operator more foot placement options.
- They can be adjusted into two different positions, horizontal and at an angle, providing more variability for foot placement during operation.
- The foot pegs also act as handles to remove and replace the foot platform.
Adjustable, mechanical suspension seat with ComfortGlide™ suspension system
Mechanical suspension seat
Padded armrest option installed
A high-back, 24-in. (61-cm) seat with armrests and 3-in. (7.6-cm) fore-aft adjustment as well as ComfortGlide suspension system is standard equipment on the Z740R. Optional padded armrests are available as a field-installed kit.
Seat slide fore/aft adjustment lever and ComfortGlide lockout lever
Spring-loaded seat latch
The mechanical suspension seat is easier to adjust when off the mower, but it can also be adjusted while the operator is seated. Fore/aft seat adjustment lever is alongside the seat within easy reach and can be used by the operator while seated.
The seat is securely held down for operator comfort and safety but is easy to raise when necessary:
- A spring-loaded latch locks seat down when it is lowered.
- The seat is easy to release and raise to access several service points.
Seat suspension adjustment knob
There is an adjustment knob at the front of the seat which can be dialed-in to suit operator preference and for the most comfortable ride. It is recommended to align the arrow on the dial with the operator’s weight for the optimal ride.
Additional information about the seat is available at: Adjustable, mechanical suspension seat with ComfortGlide suspension system for a smooth ride
Adjustable steering levers
Z740R mowing
Steering levers shown in neutral/operating position
Adjustable steering levers are shaped for operator comfort and ease of controlling vehicle speed and direction:
- The premium steering levers on M and R Series machines are painted green and have different bends for more hand positions.
Steering lever adjustments, low position
Steering lever adjustments, high position
- The levers offer 18 different positions for height and position to accommodate operator preference for hand placement and leg clearance.
Cup holder and storage compartment
Deluxe cup holder with provision for cup handle
Protected-storage compartment shown with battery cover removed
Operator convenience is provided with easy-to-reach and easy-to-use deluxe cup holder and storage areas:
- Cup holder includes room for a cup with a large handle.
- Covered storage compartment under the battery access panel provides protection for smaller items.
Clean, open operator station
Standard folding ROPS
The spacious operator station has been designed for comfort, visibility, and ease of use:
- Getting on and off is easy with the flat operator platform.
- Convenient-to-use controls are located close to the operator.
- Operator controls are color coded and designed for easy identification and operation.
The ROPS and seat belt work in conjunction to provide a protective zone around the operator:
- It reduces the operator’s risk of being crushed under the vehicle should it overturn.
- In most situations, the ROPS limits the overturn to little more than 90 degrees.
- When used with a seatbelt, the ROPS is very effective in preventing deaths and serious injuries.
- Use of the seat belt is recommended when operating with ROPS in the upright position.
ROPS folded to mid position
ROPS folded to down position (hitch is base equipment on M and R Series and optional field installed kit on E Series)
Foldable ROPS and retractable seat belt are standard equipment:
- Position adjustment pins provide a good grip and make changing the angle of the ROPS easier.
- Easy-fold ROPS includes a built-in isolator.
- The ROPS can be pinned halfway down to accommodate machines equipped with a material collection system.
- Door height of most garages will accommodate the machine with ROPS in the fully raised position.
- Easy-fold ROPS improves the ability to store the ZTrak in structures with a lower door opening.
| ROPS position | Z720E and Z735E machine height |
Z730M and Z735M machine height |
Z740R machine height |
| Full height | 71.7 in. (182.2 cm) | 71.7 in. (182.2 cm) | 72.1 in. (183.2 cm) |
| Down position | 47.4 in. (120.3 cm) | 49.7 in. (126.2 cm) | 51 in. (129.5 cm) |
Control panel
Control panel, Z740R includes warning lights
Digital display
The operator control panel is conveniently located and easy to use.
The following controls are found on the right-hand console:
- Digital display
- Hour meter
- Warning light for low oil pressure
- Warning light for alternator/battery charge malfunction
- Ignition switch
- Power take-off (PTO) control
- Engine speed control
- Engine choke control
- Mower cut-height dial
- Mower transport position lock
- Space for an optional light kit switch
Adjustable steering levers
Motion-control levers in operating position (optional light kit shown)
Motion-control levers in park position
Motion control levers are shaped and located for operator comfort and ease of control.
Premium control levers on the Z730M, Z735M, and Z740R have a unique shape and size for more comfortable operation.
18-position control lever adjustment, low
18-position control lever adjustment, high
The motion-control levers can be adjusted to two different height settings and nine different fore-aft settings:
- Combined height and fore/aft adjustments provide 18 positions
- Increased operator comfort with more leg room and more hand positions
- Adjustable for most precise control of the machine
Tracking adjustment
Convenient tracking adjustment locations
Tracking adjustment bolt
On-board tracking adjustment can be made by the operator from the operator seat.
- A 13-mm socket wrench is required.
Parking brake integrated with motion-control levers for extra convenience
Parking brake in disengaged/neutral position
A patent-pending automatic parking brake system is designed into the steering control levers:
- The mechanical parking brake is operated by the steering control levers.
- The parking brake is engaged when the steering control levers are moved outward, and it is disengaged when the steering control levers are moved inward to the operating position.
- An audible click lets the operator know the brake has fully engaged or disengaged.
The internal parking brake rotor and puck are continually lubricated and cooled for dependable operation and long life.
Mower deck lift/cut-height adjustment
Mower deck lift pedal
Mower lift-assist spring
Mower deck cutting height adjusts from 1.5 in. (3.8 cm) to 5 in. (12.7 cm) in 0.25-in. (0.64-cm) increments for excellent cut quality and performance:
- The foot-lift pedal is used to raise the mower deck for setting cut height or locking in the raised or transport position.
- A lift-assist spring is provided to optimize the effort required to raise the mower deck.
Mower deck cut-height adjustment dial
Mower deck transport lock
- To adjust cut height, simply push down on the foot-lift pedal, adjust the dial, and release the foot-lift pedal to lower the deck to the chosen height.
- Use the foot-lift pedal to lock the deck in transport mode. Simply depress the pedal all the way and the deck will lock into transport mode.
- To unlock and lower the deck, push down on the foot-lift pedal, pull up on the transport unlock lever and release the foot-lift pedal to lower the deck to the chosen height.
Safety interlock system
Interlock switch is located under the seat
Seat raised to show operator presence switch
Safety interlocks help prevent operating in an unsafe way:
- The parking brake must be engaged for the engine to crank.
- Parking brake is set when motion-control levers are in the outward position.
- The operator presence system requires the operator to be in the seat to operate the PTO.
- The key switch interlock prevents bypass starting.
- If the operator leaves the seat when the PTO is engaged, controls are in the operating position, or the parking brake is not set, the engine will shut down.
- The seat interlock switch disengages the mower when the operator leaves the seat.
- The engine will stall if the operator leaves the seat without the motion-control levers in the outward position and the parking brake set.
Z720E with 54-in. (137-cm) HC PRO Mower Deck
Z735M with 60-in. (152-cm) HC PRO Mower Deck
Each Z700 Series ZTrak™ Mower is equipped with either a 48-in. (122-cm), 54-in. (137-cm), or 60-in. (152-cm) HC PRO Mower Deck.
Mower/vehicle compatibility
| High-capacity (HC) mower deck | ZTrak model | |||||
| Z720E | Z735E | Z730M | Z735M | Z740R | Z740R with Tweel® tire technology | |
| 48-in. (122-cm) High-capacity PRO | X | X | X | |||
| 54-in. (137-cm) High-capacity PRO | X | X | X | X | X* | |
| 60-in. (152-cm) High-capacity PRO | X | X | X | X | X | X* |
*Not compatible with material collection system (MCS)
Deep deck design
Deep, flat-top deck
Deep-deck mower design
The mower deck has a deep-deck design:
- Constructed from heavy, 9-gauge, 0.15-in. (3.8-mm) steel.
- Minimizes the number of welds required
- Has a smooth underside for reduced material buildup
- Deep-deck design delivers excellent airflow, so large volumes of material can be processed quickly and efficiently.
- A wider and higher discharge opening provides even clipping dispersal for an excellent finished appearance in all conditions.
- A durable, plastic deflector spreads grass clippings evenly across the lawn, is hinged, and can be raised to minimize the storage space required.
- 1-in. (25.4-mm) cold-forged spindles are heat-treated for strength and are supported by ball bearings.
- Standard front rollers and two double-captured wheels provide a more even mowing job and reduce the chance of scalping.
- Adjustable for different mowing heights
- The front edge is raised above the blade plane to allow for even cutting of tall grass.
- Blade overlap is greater than many conventional decks for a clean cut.
- The mower can side-discharge, mulch, or collect material, except a Z740R equipped with Tweel tires is not compatible with a material collection system.
Mower level adjustment
- Deck leveling and rake angle adjustment is provided at all four mower mounting points.
Step weldment
Operator step welded on mower deck
A permanent step weldment is located at the left front corner of the mower deck:
- Encourages proper entry to the operator station
- Provides a good gripping surface for the operator’s foot
Reinforced leading edge
Reinforced leading edge of mower deck
Trim side of mower reinforcement/wear bar
Steel reinforcing bars are welded to the front edge and trim side of the mower deck:
- Strengthens the deck to reduce chance of damage from obstructions
- Increased material thickness for longer life of the deck
Superior durability is designed in
Deep mower deck spindle pocket
Flip-up spindle cover
The deck has deep, strong spindle pockets to keep the blades aligned, even after years of tough operation:
- Ribs formed in the deck shell add strength where it is needed.
- The aluminum spindle housing has 8-in. (20-cm) base for extra strength.
Flip-up spindle covers make cleaning the spindle area convenient.
Wheels and rollers
Right mower anti-scalp wheel and center rollers
Left mower anti-scalp wheel
Dual-captured front and side anti-scalp wheels:
- Give a more even mowing job and reduce the chance of scalping
- Adjustable for different mowing heights
Optional MulchControl™ attachment
The MulchControl attachment makes mulching more practical for many mowing situations because it not only does an excellent job of mulching, but it also allows the mower to be easily converted for times when it is more desirable to side discharge or collect the lawn material.
Advantages of mulching grass clippings include:
- A beautiful looking lawn
- Grass clippings not blown onto the operator, driveways, or flower beds
- Less fertilizer use
- Elimination of the effort needed to dispose of clippings
How MulchControl works
Illustration of MulchControl baffle open
Illustration of MulchControl baffle closed
MulchControl is an innovative, simple design that is easy to use and maintain:
- The MulchControl attachment includes baffles to control the flow of material under the deck.
- The left mower blade area is completely enclosed and optimized for mulching and will mulch even when the mower is in the side-discharge mode.
- Baffles around the center and right blades are optimized for mulching when the discharge baffle is closed.
- The attachment also includes mulching blades.
Optional 6.5-bu (229-L) ZTrak Z700 Series MCS
6.5-bu (230-L) hopper and included weights (chute, blower and attachment bar sold separately)
6.5-bu (230-L) rear hopper, chute, attachment bar, and blower
The 6.5-bu (230-L) rear bagger efficiently collects material from a 48-, 54-, or 60-in. (122-, 137-, or 152-cm) Mower Deck:
- Hopper, attachment bar/bumper, Power Flow™ blower, and chute components are ordered separately to make a complete MCS.
- A weight bracket and four 18-lb (8.2-kg) weights are included for installation on the front of the vehicle to help counterbalance the weight of the hopper. For proper ballast with complete MCS:
- Four weights are required on a ZTrak Z700 Series equipped with a 48-in. (122-cm) Mower Deck.
- Three weights are required on a ZTrak Z700 Series equipped with a 54-in. (137-cm) Mower Deck.
- Two weights are required on a ZTrak Z700 Series equipped with a 60-in. (152-cm) Mower Deck.
MulchControl handle is used to control baffle
MulchControl baffle closed
MulchControl handle in closed position
The MulchControl handle is located on top of the mower deck and used to open and close the discharge baffle:
- The operator is required to get off the machine in order to engage or disengage mulch mode.
- MulchControl is well suited to the following mowing situations:
- Operators who usually mulch, but side-discharge when grass gets too long
- Operators who usually side discharge, but would like to be able to close the chute to control clippings
- Operators who always mulch a main lawn, but often side discharge secondary lawns
- Operators who bag clippings, but want to go farther before emptying bags
MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side-discharge or bagging when needed.
MulchControl limitations
While in the side-discharge mode, MulchControl will still mulch about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
- When cutting strong southern grasses, such as Zoysia and Bermuda
- When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
- When optimum bagging and lawn clean-up is desired
Compatibility
MulchControl is a field-installed attachment and compatible with the 48-in. (122-cm), 54-in. (137-cm), and 60-in. (152-cm) HC PRO Mower Decks available for the Z700 Series ZTrak Mowers.
Removing bag from 6.5-bu (230-L) hopper
Removing bag from 6.5-bu (230-L) hopper
The hopper design provides efficient bagging performance, clean operation, and easy-to-empty bags:
- Two durable bags give a generous, 6.5-bu (230-L) capacity.
- The bags lift out for easy emptying.
- An efficient chute provides a smooth flow of material to reduce the chance of plugging.
- The chute and Power Flow blower must be ordered separately.
- Standard mower blades are used for bagging.
- The air exhaust duct directs air from the hopper back and toward the ground for clean operation.
- Convenient latch makes opening and closing the hopper easy.
NOTE: Appropriate hopper, Power Flow blower, chute, and attachment bar are required and ordered separately.
Specifications
|
Capacity |
6.5 bu (230 L) |
|
Material: |
|
|
Hopper top |
High impact polypropylene |
|
Chute |
Polyethylene |
|
Blower housing |
Nylon |
|
Fan |
Ultra-high molecular weight (UHMW) polyethylene |
|
Bags |
Polyester |
|
Filling |
Directly into bags for emptying on ground or in trailer or into plastic liners |
|
Fan diameter |
13 in. (33 cm) |
|
Fan width |
2.75 in. (7 cm) |
|
Number of fan blades |
Four |
NOTE: MulchControl attachments and MCS components are not included in base equipment for a Z700 Series ZTrak machine and must be ordered separately.
Tweel is a trademark of Compagnie Générale des Etablissements Michelin SCA.
Fore-aft adjustment and ComfortGlide lockout lever
Z740R seat shown with padded armrest attachment
A high-back, 24-in. (61-cm) seat with armrests and 3-in. (7.6-cm) fore-aft adjustment as well as ComfortGlide suspension system is standard equipment on the Z740R. An optional padded armrest kit is available as a field-installed attachment.
Seat suspension adjustment dial
Seat slide fore/aft adjustment lever
The mechanical suspension seat can be adjusted for operator weight and ride preference while the operator is seated.
A fore/aft seat adjustment lever is alongside the seat within easy reach and can be used by the operator while seated. The seat adjusts 3 in. (7.6 cm) fore and aft.
Spring-loaded seat latch
The seat is securely held down but is easy to raise when necessary:
- A spring-loaded latch locks seat down when it is lowered.
