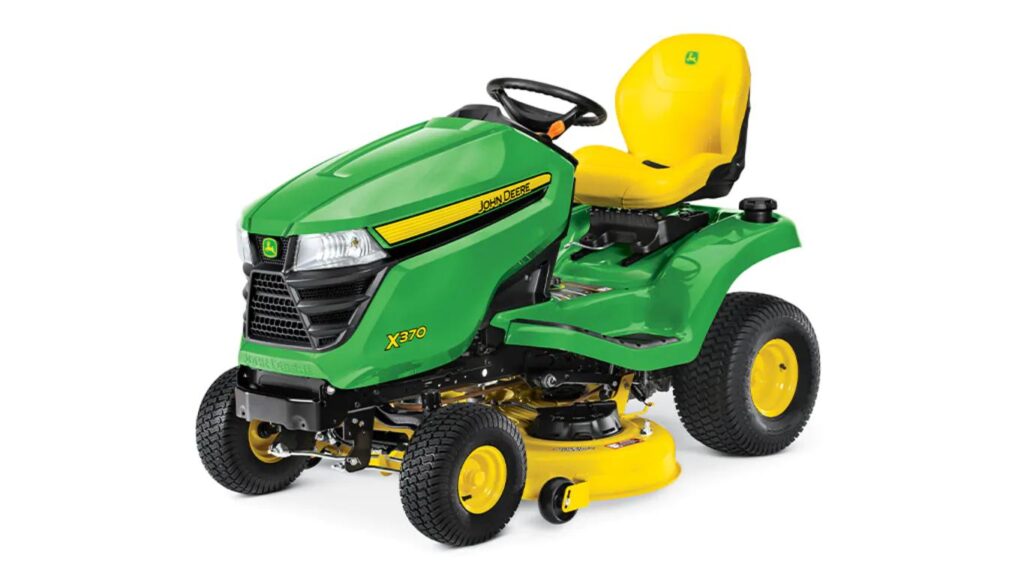

John Deere X370 Lawn Tractor with 42-inch Deck
Lawn & Garden Equipment
- Powered by 21.5-hp (16.0-kW)* iTorque™ Power System
- 42-in. Accel Deep™ mower deck
- Easy mulching with optional MulchControl™ Kit (one-touch or from deck versions)
- Automotive-style power steering
- 18-in. Cut and Sewn Seat
- 4 year/300 hour bumper-to-bumper warranty
| Engine - Type | Overhead valve, full-pressure lube, oil filter |
|---|---|
| Engine - Cylinders | V-twin, cast-iron liners |
| Engine - Governor | Mechanical |
| Engine - Choke/speed control | Separate levers, automatic choke return |
| Engine - Cooling method | Air |
| Fuel system - Type | Gasoline |
| Fuel system - Fuel delivery | Pulse pump, carburetor |
| Fuel system - Fuel gauge | Gauge on dash |
| Fuel system - Fuel tank location | Rear |
| Electrical system - Engine starter | Bendix |
| Electrical system - Hourmeter | Yes |
| Electrical system - Headlights | Two standard, incandescent, 27 W |
| Electrical system - Taillights or reflector | No |
| Electrical system - Backup lights | No |
| Electrical system - Rear work lights | No |
| Electrical system - 12-V outlet | Optional |
| Transaxle - Type | K57 hydrostatic integrated with transaxle |
| Transaxle - Cruise control | Yes, button on dash |
| Transaxle - Oil cooler | Fins and fan on transaxle |
| Transaxle - Oil filter | Internal, replaceable |
| Transaxle - Differential lock | No |
| Transaxle - Brakes | Internal wet disc |
| Chassis - Frame | Welded heavy-duty |
| Chassis - Primer/paint | E-coat/powder |
| Chassis - Weight bracket | Standard rear, optional front |
| Chassis - Receiver hitch | No |
| Chassis - Front axle | Cast iron front axle, front wheel ball bearings |
| Chassis - Spindle bushings | Metal, replaceable |
| Chassis - Front tires | 15x6-6 |
| Chassis - Rear tires | 20x10-8 |
| Chassis - Fender deck material | Stamped steel |
| Chassis - Floor mats | Sure-grip rubber |
| Chassis - Service interval decal | Yes |
| Chassis - Fender handles/grips | No |
| Chassis - Cup holder | Yes |
| Chassis - Equipment mounting | Yes, heavy duty |
| Steering - Type | Power, hydraulic |
| Steering - Tilt steering wheel | No |
| Seat - Seat suspension | Tilt, two coil springs, three-position no-tools adjustment for operator weight |
| Lift system - Type | Hydraulic |
| Lift system - Hydraulic outlets | No |
| Lift system - Preset cut height | Yes |
| Mower deck - Type | Side discharge |
| Mower deck - Construction | Stamped steel deck shell |
| Mower deck - Mower wash port | Yes |
| Mower deck - Mower drive system | Electric power take-off (PTO) clutch, in-line belt |
| Mower deck - Mower wheels | Two |
| Mower deck - Mower wheel adjustment | Four-position, tool required |
| Mower deck - Mower level adjustment | Exact Adjust ports and onboard deck-leveling gauge |
| Mower attachability - Type | Slide under tractor |
| Mower attachability - Front draft arms | Attached with spring pins at two points |
| Mower attachability - Rear draft arms | Two pins and spring clips |
| Mower attachability - Mower wheels rotate | No |
| Mower attachability - Drive system | Single belt |
| Safety - Meets ANSI standard | Yes |
| Safety - Meets OPEI standard | Yes |
| Safety - Backup protection | Reverse Implement Option (RIO) |
| Safety - Safety video | Yes |
| Optional equipment - Mowers | 42A (standard) |
| Optional equipment - Front bumper | Styled bumper option |
| Optional equipment - Brush guard | Yes |
| Optional equipment - Weather protection | Weather enclosure |
| Optional equipment - Sun canopy | Yes |
| Optional equipment - Bucket holder | Yes, double bucket |
| Optional equipment - Grass striping | Lawn striping kit |
| Optional equipment - Tow-behind tools | 16 |
| Dimensions - Overall length | 72 in. 182.9 cm |
| Electrical system - Battery | 12 V 340 CCA |
| Steering - Turning radius | 22 in. 55.9 cm |
| Key Specs - Lift system type | Hydraulic |
| Transaxle - Control | Twin Touch™ pedals |
| Seat - Fore-aft adjustment | While seated, slide rail, 15-position, 6.6 in. 17 cm |
| Optional equipment - Front blade | 44 in. 111.8 cm |
| Key Specs - Engine power | 21.5 hp 16 kW |
| Additional information - Date collected | 27-Jul-2020 |
| Optional equipment - Tractor shovel | 40 in. 101.6 cm |
| Optional equipment - Mulching system | Yes, MulchControl™ |
| Mower deck - Cutting width | Accel Deep™ mower deck, 42 in. 107 cm |
| Optional equipment - Spreader | Tow-behind, 125 lb 57.7 kg Tow-behind, 175 lb 79.4 kg Mounted, 125 lb |
| Seat - Type | Cut-and-sewn high-back |
| Key Specs - Cutting width | Accel Deep™ mower deck, 42 in. 107 cm |
| Engine - Air cleaner | Dry, replaceable |
| Optional equipment - Sprayer | Tow-behind, 15 U.S. gal. 56.8 L Tow-behind, 25 U.S. gal. 94.6 L Mounted, 25 U.S. gal. |
| Transaxle - Reverse speed | 0-3.5 mph 0-5.6 km/h |
| Key Specs - Engine manufacturer/model | FR651V |
| Dimensions - Wheelbase | 49.4 in. 125.5 cm |
| Chassis - Hood material | Fully enclosed, molded-in color material reduces sound, will not rust or dent |
| Key Specs - Oil change | No-tools oil drain with replaceable filter |
| Fuel system - Fuel tank capacity | 3.3 U.S. gal. 12.5 L |
| Seat - Seat back height | 18 in. 46 cm |
| Steering - Uncut circle radius | 30 in. 76 cm |
| Fuel system - Fuel fill opening | On left fender, 3 in. 7.6 cm |
| Dimensions - Width with mower | 50.5 in. 128 cm |
| Optional equipment - Front thatcher | 38, 46, 54 in. 96.5, 116.8, 137.2 cm |
| Electrical system - Charging system | Flywheel alternator, regulated, 12 amp |
| Optional equipment - Rear bagger | 2-bag, 7 bu 247 L |
| Key Specs - Rear tires | 20x10-8 |
| Mower deck - Mower deck material | 12 gauge 0.105 in. 2.7 mm |
| Lift system - Cut height increments | 0.25 in. 0.64 cm |
| Dimensions - Width without mower | 38 in. 96.5 cm |
| Chassis - Storage | Yes, under seat and covered toolbox |
| Steering - Four-wheel steer | Not available on this model |
| Engine - Manufacturer/model | FR651V |
| Key Specs - U.S. warranty | 4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Dimensions - Width with mower (deflector raised for storage) | 50.5 in. 128 cm |
| Buyer's notes - Warranty | 4 year/300 hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Transaxle - Forward speed | 0-5.8 mph 0-9.3 km/h |
| Optional equipment - Snow blower | Two-stage, 44 in. 111.8 cm |
| Buyer's notes - Notes | Fully enclosed, molded-in color material reduces sound, will not rust or dent Power steering for exceptional maneuverability and comfort One-piece hood for easy service access, molded-in color hood material reduces sound and will not rust or dent Durable E-coat primer and powder-paint finish |
| Dimensions - Height | 49 in. 124 cm |
| Key Specs - Transaxle control | Twin Touch™ pedals |
| Dimensions - Weight | Mower, no fuel: 570 lb 259 kg |
| Engine - Displacement | 44.3 cu in. 726 cc |
| Engine - Power | 21.5 hp 16 kW |
| Engine - Oil change | No-tools oil drain with replaceable filter |
| Seat - Armrests | Optional |
| Lift system - Mower cut height | 13 positions, 1-4 in. 2.5-10.2 cm |
| Steering - Steering wheel | Large, 14 in. 35.6 cm |
| Key Specs - Transaxle type | K57 hydrostatic integrated with transaxle |
| Additional information - Manufacturing location | Horicon, Wisconsin, USA |
Featured List
- Steering: Power 2-wheel
- Deck: 42-in Accel Deep™ Mower Deck
- Engine: 21.5 hp* iTorque
- MulchControl™ Kit Options: Standard or one-touch MulchControl™
Featured Content
21.5-hp (16.0-kW) V-twin engine
The tractor is powered by a John Deere iTorque power system, a combination of engine features and an exclusive hood design that provides superior lugging ability, even cooling, and durability.
Key engine features include:
-
- 21.5 hp (16.0 kW)
-
- Large 44.3 cu in. (726-cc) displacement
-
- V-twin air-cooled design that provides smooth, quiet power
-
- Quality features include:
-
- Cast-iron cylinder liners
-
- Overhead valves
-
- Full-pressure lubrication
-
- Replaceable oil filter
-
- Dual-stage air cleaner
-
- Quality features include:
-
- V-twin design:
-
- Excellent power and performance
-
- Easy starts
-
- Smooth operation
-
- V-twin design:
Flywheel alternator
A flywheel alternator provides plenty of capacity to quickly recharge the battery and power electrical equipment, such as lights or a sprayer:
-
- 12-amp charging capacity
-
- Regulated to keep the battery at full charge without risk of overcharging
Fuel tank has large, 3.3-U.S. gal. (12.5-L) capacity
Fuel tank
Electronic fuel gauge
Large fuel tank and convenient fuel gauge minimize the number of stops for fuel and chance of running out of fuel:
-
- Fuel tank has a large, 3.3-U.S. gal. (12.5-L) capacity for more hours of operation between refills.
-
- Large, 3-in. (7.6-cm) diameter fuel tank filler opening makes adding fuel easy.
-
- Located on the left fender
-
- Helps eliminate spillage
-
- Large, 3-in. (7.6-cm) diameter fuel tank filler opening makes adding fuel easy.
-
- Electronic fuel gauge on the dash display allows the operator to easily monitor the amount of fuel in the tank.
Kanzaki® K46 transaxle (X330, X350, X354) Kansaki K57 transaxle (X370)
Kanzaki K58 transaxle (X380, X384, X390, X394)
The Tuff Torq® hydrostatic transaxle encloses the hydrostatic pump and motor rotator groups in the same housing with the differential and axle housings. This design is very efficient and reduces the number of sealing surfaces to minimize the potential for leakage.
Combined with the foot controls, the hydrostatic transmission functions similarly to that of an automatic transmission in an automobile, so the term automatic is often used to describe it:
-
- Use of the latest valve designs has significantly reduced the sound level.
-
- Large pump and motor rotating groups ensure long life and efficient operation.
Freewheeling valve
Freewheeling valve
A freewheeling valve control is conveniently located near the tractor rear hitch plate for good visibility and easy operation.
Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Manufacturing Company.
Convenient operator station
Separate throttle and choke controls
The contoured dash has clean, attractive styling and ergonomic controls for easy use:
-
- Controls are color coded for easy identification by the operator.
-
- Controls are logically placed and easy to reach.
-
- The power take-off (PTO) switch allows the operator to get fingers underneath it, like a T-handle, to pull up for easy activation.
-
- The reverse implement option (RIO) switch is a yellow button.
-
- The hydraulic-lift control and the park brake latch are pivot levers for low effort.
-
- Cruise control activation is handled by an automotive-style button.
-
- Separate engine speed and choke controls make starting and warming up the engine easier in cold weather.
-
-
- The choke lever is spring loaded to eliminate the chance the tractor will be unintentionally operated with the choke partially closed.
-
Functional design of the throttle and choke controls provides good appearance and a comfortable feel.
Easy-to-use key switch and controls
Tilt steering lever (X390 and X394 only)
-
- The hydraulic-lift control and the park brake latch are pivot levers for low effort.
-
- Cruise control activation is handled by an automotive-style button.
-
- Separate engine speed and choke controls make starting and warming up the engine easier in cold weather.
-
- The choke lever is spring loaded to eliminate the chance the tractor will be unintentionally operated with the choke partially closed.
-
- Separate engine speed and choke controls make starting and warming up the engine easier in cold weather.
-
- Functional design of the throttle and choke controls provides good appearance and a comfortable feel.
-
- Power steering takes the work out of turns.
-
- Tilt steering wheel adjusts for operator comfort (X390, X394).
Display panel
Display panel illustration with descriptions
Display panel
Instrument display has the look and feel of a modern automobile. A power-up sequence cycles lights and gauges to indicate they are working:
-
- Display features dark-cockpit design to minimize operator distractions.
-
- Display is back lit for night visibility.
-
- Night visibility is especially useful with snow blower use.
-
- Display is back lit for night visibility.
-
- Hour meter makes it easy to tell when oil changes and other maintenance should be performed.
-
- Electronic fuel gauge provides real-time fuel level information.
-
- A tachometer graphically displays engine speed.
-
- Target-zone graphics inform the operator of the engine speed range to use for best cut quality.
-
- A tachometer graphically displays engine speed.
-
- An indicator tells the operator when the PTO is operating.
-
- Bright caution and stop lights capture the operator’s attention when important information is on the instrument cluster.
-
- Damage can be prevented and repair costs reduced by addressing problems early.
-
- Bright caution and stop lights capture the operator’s attention when important information is on the instrument cluster.
-
- Operators are advised of what the problem is if they attempt to operate the mower with unsatisfied PTO, seat, or park brake interlocks.
-
- The indicators are also useful to identify the reasons the PTO or engine may have shut off when an interlock is unsatisfied.
-
- Operators are advised of what the problem is if they attempt to operate the mower with unsatisfied PTO, seat, or park brake interlocks.
-
- Operators are advised if battery voltage is low, normal, or excessive.
-
- The service indicator light illuminates to indicate a diagnostic error code is stored.
-
- Onboard diagnostics provides trouble codes for use by trained technicians.
-
- For example, a technician will be able to test switch functionality and circuit continuity without tools.
-
- Onboard diagnostics provides trouble codes for use by trained technicians.
-
- The service indicator light illuminates to indicate a diagnostic error code is stored.
Twin Touch™ foot control
Twin Touch foot control
Cruise control
Twin Touch foot pedals control the speed and direction of travel:
-
- Automotive-type accelerator control ensures easy operation.
-
- Operator can change direction without lifting foot off the platform.
-
- Large pedal surface gives superior operator comfort.
Cruise control
Cruise control is standard equipment:
-
- To engage, push the cruise-control button and hold until the foot is removed from the forward pedal.
-
- For emergency stop, the cruise control can be released by pushing on the brake pedal or the forward pedal.
Mower deck height adjustment
Mower cut-height adjusting knob
A rotary dial knob makes adjusting the mower cut height quick and easy:
-
- Provides mower cut heights in 0.25-in. (6.4-cm) increments from 1 in. (2.5 cm) to 4 in. (10.2 cm)
-
- Returns the mower deck to the same preset height each time it is lowered
Storage tray under tractor seat
Exact Adjust tool used to level mower deck
Storage for the onboard deck-leveling gauge and the Exact Adjust tool is provided in the storage tray under the tractor’s seat.
-
- Exact Adjust ports allow for easy and accurate leveling of the mower deck for optimum mowing performance.
Deck-leveling gauge placed under deck
Deck-leveling gauge is placed at the appropriate location under the left rear, right rear, and front of the mower deck as the cut height is adjusted using the Exact Adjust tool and front draft arm adjusting nuts.
Parking brake control
Parking brake
Depressing the brake pedal applies internal wet-disk brakes (increased durability and longer life) for safe stopping.
A parking brake control is conveniently located for easy access; it holds the brake pedal securely in locked position.
Electric PTO clutch is easy and convenient to use
Electric PTO switch
The heavy-duty electric PTO clutch is operated with a convenient dash-mounted switch.
Heavy-duty PTO clutch
PTO clutch
The PTO clutch is designed to operate through many on/off cycles.
RIO
Reverse implement switch
Mower engagement power take-off (PTO) switch
Using RIO
CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:
-
- Carefully check the area around the machine.
-
- Disengage the mower before backing up.
NOTE: Operating the mower while backing up is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.
-
- Stop forward travel. Allow attachment to run.
-
- Look down and behind the machine to be sure that there are no bystanders.
-
- Push and hold in the reverse implement switch while depressing the reverse pedal slightly.
NOTE: If the attachment stops while positioning the machine, return mower engagement (PTO) switch to off position. Repeat this procedure from the beginning.
- Push and hold in the reverse implement switch while depressing the reverse pedal slightly.
-
- Release the reverse implement switch and reposition the machine as the machine begins to move rearward.
-
- Resume forward travel. The attachment should continue operating.
-
- Repeat procedure to position the machine again.
MowerPlus app screen
MowerPlus app maintenance screen
Keep a John Deere riding lawn mower running its best and know how it mows with the John Deere MowerPlus app. Simply scan the lawn tractor’s barcode to get custom information. The app helps determine the best time to mow, communicates expert pre-mow tips, offers maintenance reminders, and provides walk-through guides.
Look for the MowerPlus app on the mobile device’s app store.
The app supports residential lawn equipment such as 100 Series, S240, X300, X500, X700, Z200 through Z600, and many similarly sized older products. It does not presently support tractor models numbered 1000 and larger, such as 1025R.
NOTE: Some product image variation may exist.
Also available is the John Deere MowerPlus smart connector (sold separately).
Smart connector
The John Deere MowerPlus smart connector wirelessly links a Select Series™ X300 or X500 Tractor to the MowerPlus app on a mobile device. The smart connector transmits engine usage to the app, making it easy to track maintenance intervals. It also transmits the fuel level to the app—when thinking ahead about Saturday morning mowing, the operator can make sure the tractor is fueled and ready to go.
Attractive styling
Hood air-intake louvers
Smooth, rounded contours present a modern, styled appearance:
-
- Hood styling incorporates efficient full-length air-intake louvers on each side, rather than on the top.
-
- Cooler engine operation
-
- Lower operator station sound levels
-
- Hood styling incorporates efficient full-length air-intake louvers on each side, rather than on the top.
-
- Hot air is vented out the front grille, away from the operator.
-
- The fully enclosed hood is made of molded-in-color material.
-
- Reduces sound
-
- Will not rust or dent
-
- The fully enclosed hood is made of molded-in-color material.
-
- Distinctive grille and large, one-piece fender deck complete the styling package.
Two high-quality headlights give excellent visibility
Optimum lighting pattern
Headlights are standard equipment on all models:
-
- Two 27-W bulbs provide excellent lighting for good visibility during evening operation.
-
- A headlight position on the ignition switch makes it easy to operate the headlights.
-
- The headlights are designed to provide an optimum lighting pattern for mowing and snow removal.
Lever-action MulchControl lever
Electric one-touch MulchControl switch
Lever-action or electric one-touch MulchControl attachment is available for Accel Deep™ 42-in. (107-cm) (42A), 48-in. (122-cm) (48A), and 54-in. (137-cm) (54A) Mower Decks used on ZTrak™ Mowers, S240 Tractors, and X300 and X500 Select Series™ Tractors.
MulchControl advantages and benefits
MulchControl enhances versatility and productivity. A mower deck equipped with MulchControl not only does an excellent job of mowing and mulching, but it can also be quickly converted from side discharging to mulching or vice versa:
-
- In mulch mode, it controls clippings dispersion in unwanted areas (driveways, landscape beds, near buildings, windows, parking lots, etc.).
-
- Reduces cleanup time needed to dispose of clippings.
-
- Reduces the amount of material entering a material collection system because, even in the side discharge mode, MulchControl will mulch about one third of the material due to the additional baffles under the mower deck and the unique design of the mulching blades.
Electric one-touch MulchControl has the additional advantage of being controlled from the tractor seat by a switch on the dash to operate an electric actuator that moves the baffle to close off the discharge area of the mower deck.
Electric one-touch MulchControl switch
Electric one-touch MulchControl actuator
-
- Operators can convert between modes without interrupting the mowing process, making it practical to change between modes as conditions require.
-
-
- When approaching clean areas like driveways or flowerbeds where clippings would be undesirable
-
-
-
- When a breeze might blow clippings back onto the operator
-
-
-
- For side discharge mowing only the areas of the property where grass is too thick for mulching
-
-
-
- With 48A and 54A Mower Decks, for collecting only the areas of the property where grass is too tall or thick for mulching
-
-
-
-
- With 48A and 54A Mower Decks, the MulchControl baffle can be opened or closed with the Power Flow™ blower installed. The Power Flow blower will run without material when the baffle is closed.
-
-
-
-
-
- Models equipped with a 42A Mower Deck require a MulchControl baffle be removed to install the bagger chute; see 42A Mower Deck versatility explanation for more information.
-
-
-
- Changing from one mode to the other takes only a few seconds.
How MulchControl works
A mower equipped with a MulchControl attachment delivers unprecedented levels of productivity and versatility. The operator can quickly change between side discharging and mulching. A heavy-duty baffle opens and closes to convert the mower from side discharge mode to mulch mode or vice versa.
MulchControl baffle open (similar mower deck shown)
MulchControl baffle closed (similar mower deck shown)
MulchControl is an innovative, simple design that is easy to use and maintain:
-
- The MulchControl attachment includes baffles to control the flow of material under the deck.
-
- When the MulchControl baffle is open, most of the material flows freely out the discharge deflector or into a material collection system.
-
- When the MulchControl baffle is closed, material stays within the deck and gets chopped into mulch and deposited in the turf.
MulchControl is well-suited to the following mowing situations:
-
- For operators who usually mulch, but side discharge when grass gets too long
-
- For operators who usually side discharge, but would like to be able to close the chute to control clippings in some areas
-
- For operators who always mulch a main lawn, but often side discharge secondary lawns
-
- For operators who collect clippings, but want to go farther before emptying the material collection system
MulchControl puts the operator in control of the clippings. The operator can have all the benefits of mulching with the ability to easily change to side discharging when desired.
Advantages of MulchControl include:
-
- Performance is improved.
-
- Mulching is beneficial because it returns the clippings to the ground as fertilizer, which promotes lawn growth.
-
- Clippings are much smaller, which allows them to fall into the grass and be removed from view.
-
- Unsightly grass clippings are not blown onto driveways or into flower beds.
-
- Fertilizer use is reduced and provides associated environmental benefits.
-
- Performance is improved.
-
- Uptime is increased.
-
- Operators can convert quickly between modes, making it possible to change between mulching and side discharging as conditions require.
-
- Mulching heavy, thick material can significantly reduce mower productivity. The ability to switch from mulch to side discharge mode ensures productivity, especially in grass too tall or thick to mulch effectively.
-
- Uptime is increased.
-
- Cost of operation is reduced.
-
- Controlling clipping dispersion reduces cleanup time.
-
- Cost of operation is reduced.
Electric one-touch MulchControl attachments
| Attachment number | Description | Applications |
| BUC10164 | 42A electric one-touch MulchControl | X300 Series Tractors* |
| BUC10165 | 48A electric one-touch MulchControl | X300 and X500 Series Tractors* |
| BUC10166 | 54A electric one-touch MulchControl | X300 and X500 Series Tractors* |
*NOTE: Model year 2016-2017 X300 and X500 Series Tractors (X300 serial number 10,001-50,000 and X500 serial number 110,001-130,000) require replacing the tractor wiring harness and dash panel to use an electric MulchControl attachment.
MulchControl limitations
While in the side discharge mode, MulchControl will still mulch about one third of the material. Therefore, the side discharge mode is essentially a partial mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
-
- When cutting strong southern grasses, such as Zoysia and Bermuda
-
- When cutting in wet, high growth conditions, such as those found in the Pacific Northwest United States
-
- When optimum bagging and lawn cleanup is desired
-
- 42A Mower Deck requires a MulchControl baffle be removed to install the bagger chute
MulchControl compatibility
Each MulchControl attachment includes everything needed: baffles and mulch blades for all attachments, and the actuator, wiring, and switches for the electric one-touch attachments.
Lever-action MulchControl attachments
| Attachment number | Description | Applications |
| BM24794 | 42A MulchControl (lever action) | X300 Series Tractors, Z300 Series ZTrak Mowers |
| BM24993 | 48A MulchControl (lever action) | S240 Lawn Tractor, X300 and X500 Series Tractors, Z300 and Z500 Series ZTrak Mowers |
| BM24994 | 54A MulchControl (lever action) | X300 and X500 Series Tractors, Z300 and Z500 Series ZTrak Mowers |
Power steering cylinder
Tilt steering lever (X390 and X394 only)
Hydraulic power steering is standard equipment:
-
- Provides effortless, automotive-like control
-
- Reduces operator fatigue and increases productivity
-
- Enables a tight turning radius for great maneuverability
-
- Adjustable-tilt steering wheel for optimum operator comfort (X390 and X394 Tractor)
Hydraulic lift system is easy to operate
Hydraulic lift
The hydraulic lift control lever is positioned on the dash near the steering wheel for quick, easy, and precise fingertip control of equipment. Implement float, which allows an implement to follow the ground contour, is built into the lift linkage.
44-in. (112-cm) Front Blade
Snow blower, weather enclosure, and chains on an X300 Series Tractor
An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.
Equipment available for snow removal includes:
-
- 44-in. (112-cm) Snow Blower
-
- 44-in. (112-cm) Front Blade
-
- 48-in. (122-cm) Front Blade (X394 Tractor only)
-
- Tire chains or TerraGrip traction belts
-
- Weather enclosure (available for all X300 Series, except the X350R)
-
- Weights
An exclusive 4-year or 300-hour (whichever comes first), single-source, bumper-to-bumper warranty* is standard for all John Deere X300 Series Tractors.
-
- The warranty is hassle free, with one company handling all of the paperwork.
-
- Premium features of X300 Series Tractors allow for this longer warranty period, with more coverage than comparable tractors.
*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.
X354 with Accel Deep 42A Mower
Accel Deep 42A Mower
The 42-in. (107-cm) Accel Deep Mower Deck provides the performance advantages of a two-spindle mower in a wide 42-in. (107-cm) size:
-
- Resilient four-point mounting system suspends mower from tractor for a smooth and level cut
-
- Wide mower wheels easily adjusted just above ground level to help prevent scalping
-
- 0.25-in. (6.4-mm) cut-height increments allow mower to be set at the desired cut height
-
- Onboard deck-leveling system makes keeping mower properly adjusted easy
-
- Compatible with optional MulchControl™ mulching system
-
- Compatible with efficient 7-bu (247-L) two-bag cut-and-throw material collection system
-
- For use on X330, X350, X354, and X370 Tractors
The 42-in. (107-cm) Accel Deep mower deck is a stamped-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds:
-
- 4.97-in. (12.6-cm) depth throughout the entire deck shell for optimum mowing, mulching, and bagging performance
-
- Optional lever-action or electric one-touch MulchControl attachment for superior mulching performance and versatility
-
- 4.97-in. (12.6-cm) depth throughout the entire deck shell for optimum mowing, mulching, and bagging performance
-
- Stamped-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance
-
- Mower deck suspended from the vehicle for a smooth and level cut
-
- Adjustable mower wheels, positioned just above ground level, for reduced scalping
-
- Mower deck suspended from the vehicle for a smooth and level cut
Excellent cut quality
42A Mower
42A Mower
Deep mower-deck stamping gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:
-
- Reducing the amount of re-cutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
-
- Helps maintain excellent cut quality at faster mowing speeds
-
- Reducing the amount of re-cutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
-
- Clean flow of material out of discharge area prevents cut material from interfering with cutting the incoming grass, making it possible for the blades to cut incoming material cleanly.
-
- Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal re-cutting, and an even distribution of clippings.
Productivity – gets the job done fast
Side-discharge chute on Accel Deep 42A Mower Deck
Deep mower-deck stamping gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of re-cutting so more power is available to process incoming grass:
-
- Greatly improves mowers capacity to maintain excellent mowing performance in difficult mowing conditions and at higher speeds
Large discharge opening is both high and wide to handle more material:
-
- Gives a smooth, even discharge of clippings at all mowing speeds
-
- Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass and when bagging
-
- Cut-and-throw chute has a large, optimized inlet which aids in collecting material by using airflow from the large deck opening
Cleanliness – for the mower and the operator
Accel Deep 42A Mower Deck
Accel Deep 42A Mower Deck
The flat-top shape of the deck stamping is optimal for keeping itself and the operator clean:
-
- There are few places to catch and hold material on top and underneath the deck.
-
- Top of deck stays cleaner, reducing time and effort needed for cleaning and service
-
- Underside of deck is self-cleaning to maintain optimum performance without buildup of material to interfere with the flow of air and clippings
-
- Less need to clean and remove buildup of material from underside deck
-
- There are few places to catch and hold material on top and underneath the deck.
-
- The depth of the Accel Deep mower deck minimizes the amount of material that escapes from the front of the deck
-
- Limited amount of material to drift onto the operator and mower deck
-
- Even flow of material discharged out the chute, less re-cutting results in larger pieces that are less likely to end up on the operator
-
- Mulching prevents the discharge of material completely and a MulchControl attachment makes mulching a practical solution for most mowing situations.
-
- The depth of the Accel Deep mower deck minimizes the amount of material that escapes from the front of the deck
Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:
-
- The flat-top design reduces places for material to build up and makes material that does collect easy to remove.
Lever action MulchControl handle
Electric one-touch MulchControl switch
-
- With the lever-action MulchControl attachment, the MulchControl handle on top of the mower deck is used to engage or disengage mulch mode.
-
- The operator is required to get off the tractor in order to engage or disengage mulch mode with the lever-action system.
-
- With the lever-action MulchControl attachment, the MulchControl handle on top of the mower deck is used to engage or disengage mulch mode.
-
- With an electric one-touch MulchControl attachment, an electric switch on the tractor dash is used to engage or disengage mulch mode.
-
- Changing from mulching to side discharging or vice versa takes only a few seconds.
MulchControl is well-suited to the following mowing situations:
-
- Usually mulch, but side discharge when grass gets too long
-
- Usually side-discharge, but would like to be able to close the chute to control clippings
-
- Always mulch a main lawn, but often side discharge secondary lawns
-
- Bag clippings, but want to go farther before emptying bags
Mower wash port
Mower wash port with hose connector
A wash port is provided to make cleaning the underside of the mower deck easy.
-
- Hose connector is included with the mower deck.
Superior durability is designed in
Hinged spindle pocket cover on the 42A Mower
Mower wheels are double captured for durability
The 42A mower deck has strong spindle pockets, to keep the blades aligned, even after years of tough service:
-
- Ribs in the deck shell add strength where it is needed.
-
- The 42A has a 16 percent heavier overall weight than the Edge™ Xtra 42-in. (107-cm) mower deck.
Mower wheels are double captured:
-
- Provides greater strength and durability for longer, trouble-free life.
-
- Single-bolt adjustment makes setting wheels to the correct height for the cutting height quick and easy.
Low-tension belt-drive design reduces the side load on the engines lower bearing and mower deck bearings for longer life.
Rolled outer edge of the deck provides extra strength and protection.
Dual-stage E-coat and powder-paint coatings provide extra protection from rust.
Versatility – easy to change between side discharge, mulch, and bagging modes
Rear MulchControl baffle (A) that must be removed for bagging
Rear MulchControl baffle removed to allow for chute installation
The 42A Mower Deck is designed for excellent versatility:
-
- The mower’s cut-and-throw design allows bagging with just the addition of the bagger chute, once the special bagging blades have been installed.
-
- The 42A cut-and-throw chute is easy to install and securely held in place at the front and rear to provide a tight seal between the mower deck and the chute.
-
- The rear latch is adjustable to allow for the optimum setting for easy use and a tight seal.
-
- The 42A cut-and-throw chute is easy to install and securely held in place at the front and rear to provide a tight seal between the mower deck and the chute.
-
- The bagging blades can be used for side discharging also.
-
- The mower’s cut-and-throw design allows bagging with just the addition of the bagger chute, once the special bagging blades have been installed.
-
- With an optional lever action or electric one-touch MulchControl attachment installed (along with the special mulching blades), changing from side-discharging to mulching or vice versa is done with the simple flip of a lever or touch of a switch.
-
- The rear bagger can be used with the MulchControl blades installed.
-
- The front baffle, either the one included with the rear bagger chute or the one included with MulchControl (B), can remain in place for side discharging.
-
- For ultimate side-discharge performance this baffle can be removed.
-
- The front baffle, either the one included with the rear bagger chute or the one included with MulchControl (B), can remain in place for side discharging.
-
- An optional MulchControl attachment includes a rear MulchControl baffle (A), held in place by two carriage bolts, at the rear edge of the discharge opening. This baffle:
-
- Must be removed for installation of the rear bagger chute, a 13-mm (0.51-in.) wrench is required (the bagger chute cannot be installed without removing this baffle)
-
- Can remain removed for side discharging material
-
- Must be re-installed for mulching
-
- An optional MulchControl attachment includes a rear MulchControl baffle (A), held in place by two carriage bolts, at the rear edge of the discharge opening. This baffle:
MulchControl lever action or electric one-touch options
A MulchControl attachment for the 42A Mower Deck makes mulching more practical for many mowing situations because it not only does an excellent job of mulching but it also allows the mower to be easily converted for times when it is more desirable to side discharge the lawn material. Advantages of mulching grass clippings include:
-
- A beautiful looking lawn
-
- Grass clippings not blown onto the operator, driveways, or flower beds
-
- Less fertilizer use
-
- Elimination of the effort needed to dispose of clippings
How MulchControl works
MulchControl baffle open
MulchControl baffle closed
MulchControl is an innovative, simple design that is easy to use and maintain:
-
- The MulchControl attachment includes baffles to control the flow of material under the deck.
-
- When the MulchControl baffle is open, most of the material passes through the discharge opening.
-
- When the MulchControl baffle is closed, the material stays within the deck and gets chopped into mulch and deposited in the turf.
-
- The MulchControl attachment includes baffles to control the flow of material under the deck.
MulchControl limitations
While in the side-discharge mode, MulchControl will still mulch about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
-
- When cutting strong southern grasses, such as Zoysia and Bermuda
-
- When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
-
- When optimum bagging and lawn clean-up is desired
-
- 42A Mower Deck requires a MulchControl baffle be removed to install the bagger chute; see explanation in the Versatility section for more information
7-bu (247-L) rear bagger
Optional rear bagger
Lower chute installed
An optional 7-bu (247-L) cut-and-throw rear bagger material collection system (MCS) is available for use with the 42-in. (107-cm) Accel Deep Mower. It provides an efficient means of collecting grass clippings and leaves.
The hopper design provides modern styling, great bagging performance, cleaner operation, and easy-to-empty bags:
-
- 7-bu (247-L) capacity
-
- Easy-to-attach lower chute (ordered separately)
-
- Air exhaust duct
-
- Convenient spring-latch
-
- Airflow fill indicator
-
- Quik-Tatch mounting
-
- Sealed hopper top
-
- Loose-knit bags available
Mower blades
Mower blades shipped with the rear bagger chute
High-lift bagging blades are included with the bagger chute. They provide optimum performance when bagging in difficult conditions, such as when the grass is moist, dense, or long:
-
- High-lift bagging blades also work well when side discharging material.
Mulching blades are included with the MulchControl attachment. They can be used for mulching, side discharging, and bagging in most conditions.
Mower blade use chart
| Mode(s) of operation | Mower blade |
| Side discharging mode only | M170639 side-discharge blade (shipped with mower) |
| Bagging mode only | GX25668 bagging blade (shipped with BG20754 rear bagger chute) |
| Mulching mode only | M170642 mulching blade (shipped with BM24794 lever-action and BUC10164 electric one-touch MulchControl) |
| Side discharge and mulching | M170642 mulching blade (shipped with BM24794 lever-action and BUC10164 electric one-touch MulchControl) |
| Side discharge and bagging | GX25668 bagging blade (shipped with BG20754 rear bagger chute) |
| Side discharge, mulching, and bagging | M170642 mulching blade (shipped with BM24794 lever-action and BUC10164 electric one-touch MulchControl) |
Operator station
Operator station
The operator station is designed for operator comfort and ease of using controls:
-
- A large, 14-in. (36-cm) diameter steering wheel is comfortable to use and minimizes steering effort.
-
- Full-length foot mats provide comfort for the operator and protect the footrest area.
Comfortable seat
Comfortable cut-and-sewn seat
Comfortable cut-and-sewn seat with optional armrests
An 18-in. (46-cm), high-back cut-and-sewn seat delivers a comfortable, smooth ride and excellent support for the operator:
-
- A smoother, more comfortable ride results from the use of more foam than in a form-in-place seat and more side-bolstering to stabilize the operator on uneven terrain.
-
- Improved visual appeal is provided by the thicker cushion, additional bolstering in the seat and back, and an embroidered John Deere logo that makes this upscale seat look as good as it feels.
-
- Long-term pliability and less chance of cracking are advantages of the cut-and-sewn process, which does not require heating during the manufacturing process and gives a more uniform vinyl thickness.
-
- Additional operator support and comfort is available with optional BM23761 armrests.
-
- Reduced cost of repair, should the seat cover be damaged, is available with a replaceable seat cover available from Parts.
-
- Seat travel of 6.6 in. (17 cm) with 15 positions allows the operator to be seated comfortably and easily operate the controls. Seat can be easily adjusted fore and aft by the operator while sitting on the seat.
Adjustable seat suspension
Seat suspension with springs in rear position
Seat suspension with springs in forward position
The seat suspension is adjustable, without tools, for the weight of the operator:
-
- Springs are adjustable fore and aft to any of three positions.
-
- No tools required
-
- Allows fine-tuning of the suspension for the operator’s weight
-
- Back position for more support for heavier operators
-
- Springs are adjustable fore and aft to any of three positions.
-
- Tool tray is designed into the seat base.
-
-
- Can be used to store gloves, small tools, etc.
-
-
-
- Provides storage location for Exact Adjust tool and deck-leveling gauge
-
Cup holder and toolbox
Cup holder and covered toolbox on fender
Covered toolbox with open cover
A cup holder and toolbox are located on the fender for operator convenience:
-
- The cup holder holds a variety of container sizes.
-
- Toolbox provides convenient storage.
-
- Toolbox cover snaps closed to provide protection for loose tools, cell phones, etc.
-
- Toolbox provides convenient storage.
-
- Cup holder and toolbox are constructed of durable acrylonitrile butadiene styrene (ABS) plastic.
Removable plug for optional 12-V outlet
Location for optional 12-V outlet
A removable plug on the console, in front of the operator, provides a convenient location for the optional 12-V outlet and makes installation easy.
-
- Convenient for plugging in cell phone charger and other electric devices
-
- Can be used to operate electric rear equipment, such as a sprayer or spreader
-
- Convenient for plugging in cell phone charger and other electric devices
12-V fast connector
Fast connector location
A mid-vehicle, 12-V fast connector, located under the tractor’s fuse box, is included as standard equipment to reduce initial installation time for some attachments that operate on 12-V power from the tractor:
-
- The four-cavity connector includes battery, ground, and key switch terminals and is turned on and off with the ignition switch.
Welded, heavy-duty frame
The frame is made of heavy formed and welded steel, reinforced in critical areas for even greater strength:
-
- The frame is formed from 12-gauge, 0.105-in. (2.66-mm) thick material for long life.
-
- Standard front bumper and hitch plate are formed from 9-gauge, 0.15-in. (3.8-mm) steel and complete the frame assembly.
-
- Rear hitch plate can support two 42-lb (19-kg) Quik-Tatch weights.
-
- Weight bracket is built into the frame of two-wheel-steer models.
-
- Four-wheel-steer models require the optional weight bracket.
-
- Rear hitch plate can support two 42-lb (19-kg) Quik-Tatch weights.
Front axle and wheel spindles are heavy-duty
Cast-iron front axle
Front axle is made of nodular cast iron:
-
- Cast-iron front axle is strong and shock resistant.
-
- Cast iron will not yield under heavy loads or impact.
A replaceable bushing is used at axle mounting:
-
- The bushing provides excellent wear resistance.
-
- Grease fittings at each spindle are easy to service.
Front steering spindles
Steering spindle
Front steering spindle diameter is 0.75 in. (19 mm) for strength and long life:
-
- Have strength to handle heavy implements
-
- Provide long life at bearing surfaces
-
- Use sealed precision bearings in front wheels
Rear equipment-mounting system is heavy-duty and easy to use
Rear equipment mounting system
A heavy-duty equipment mounting system is used:
-
- Includes strong frame mounts with a combination of mounting holes in the tractor hitch plate that accept pins or shoulder bolts to support heavy rear-mounted equipment.
-
- Easily attach optional equipment to the tractor
-
- Can bear the load of heavy rear-mounted equipment, such as material collection systems
One-piece hood is easy to open
Service interval decal located under hood
The one-piece hood opens easily to permit checking and servicing the engine:
-
- Important service points are located within easy reach.
-
- A service-interval decal is provided inside the tractor hood for convenience when servicing the tractor.
-
- The high-quality engine used in the X300 Series does not require an 8-hour oil and filter change because improvements in the manufacturing process and quality of parts, components, and oils have eliminated the need for the short interval oil change requirement.
-
- A service-interval decal is provided inside the tractor hood for convenience when servicing the tractor.
Easy-to-service engine fuel and oil filters
The engine fuel and oil filters, the oil check/fill tube, and the oil drain tube are exposed for serviceability when the hood is opened.
Exact Adjust ports and onboard deck-leveling tools make precise deck adjustments easy
Deck-leveling gauge and hex adjusting tool stored under tractor seat
Exact Adjust access holes
A mower deck must be level side-to-side and properly adjusted front-to-rear to give the best cutting performance. A removable onboard deck-leveling gauge and a hex-key tool are provided to make adjustment easy. They are securely stored under the tractor seat.
Exact Adjust leveling ports are provided on each side of the operator platform above the mower-level adjusting bolts. With the hex-shaped tool, they provide convenient access to allow quick and easy adjustment of the mower for the best-cut quality of cut.
The Exact Adjust feature is standard on all Select Series™ X300 and X500 Tractors:
-
- There is no need to reach under the fender deck while making the mower-level adjustment.
-
- Onboard deck-leveling gauge, Exact Adjust ports, and the hex tool work together.
-
- Level the mower deck side to side
-
- Set the correct amount of rake (front-to-back deck orientation)
-
- Calibrate the cutting height to the cut-height adjusting knob setting
-
- Onboard deck-leveling gauge, Exact Adjust ports, and the hex tool work together.
-
- Exact Adjust simplifies leveling the mower deck if equipped with a Power Flow™ blower.
-
- To give the best cut, mower level should be adjusted if alternately mowing with and without blower installed. The Exact Adjust feature makes this easy.
-
- Exact Adjust simplifies leveling the mower deck if equipped with a Power Flow™ blower.
Deck-leveling tool placed under deck
Using included ball-hex tool to level mower deck
Consult the operator’s manual for the correct adjusting procedures for each tractor model. Basic adjusting steps to properly level the mower deck include:
-
- Park the tractor on a level surface.
-
- Inflate tires to the correct pressure.
-
- Consult the label for the cutting-height knob that is located on the console of the machine. This label shows deck-leveling position and location of deck-leveling adjustment points.
Cut height adjusting knob
-
- Set mower cutting-height knob to the correct deck-leveling position.
-
- Adjust mower wheels as necessary so they do not contact the ground surface.
-
- Remove the onboard deck-leveling gauge that is located under the seat.
-
- Using the Exact Adjust ports and tool, adjust mower deck side-to-side level so the deck-leveling gauge just slips under the left and right lower deck rim at the designated adjustment points. The location of adjustment points will vary slightly between decks.
-
- Left- and right-rear adjustment points are under the deck rim near the rear mower wheels, if equipped.
-
- Using the Exact Adjust ports and tool, adjust mower deck side-to-side level so the deck-leveling gauge just slips under the left and right lower deck rim at the designated adjustment points. The location of adjustment points will vary slightly between decks.
-
- Adjust mower deck front-to-back level, if necessary.
-
- Loosen rear nuts equally on each side of front lift rod.
-
- Turn front nut equally on each side clockwise to raise front of mower or counterclockwise to lower it until gauge just slips under the front adjustment point.
-
- Tighten rear nuts after adjustment is complete.
-
- Adjust mower deck front-to-back level, if necessary.
-
- Return the gauge to its storage position.
NOTE: The adjusting tool supplied with the tractor is an 8-mm ball-hex key, part number M162737. The rounded end allows for some misalignment with the bolt as the deck is adjusted.
