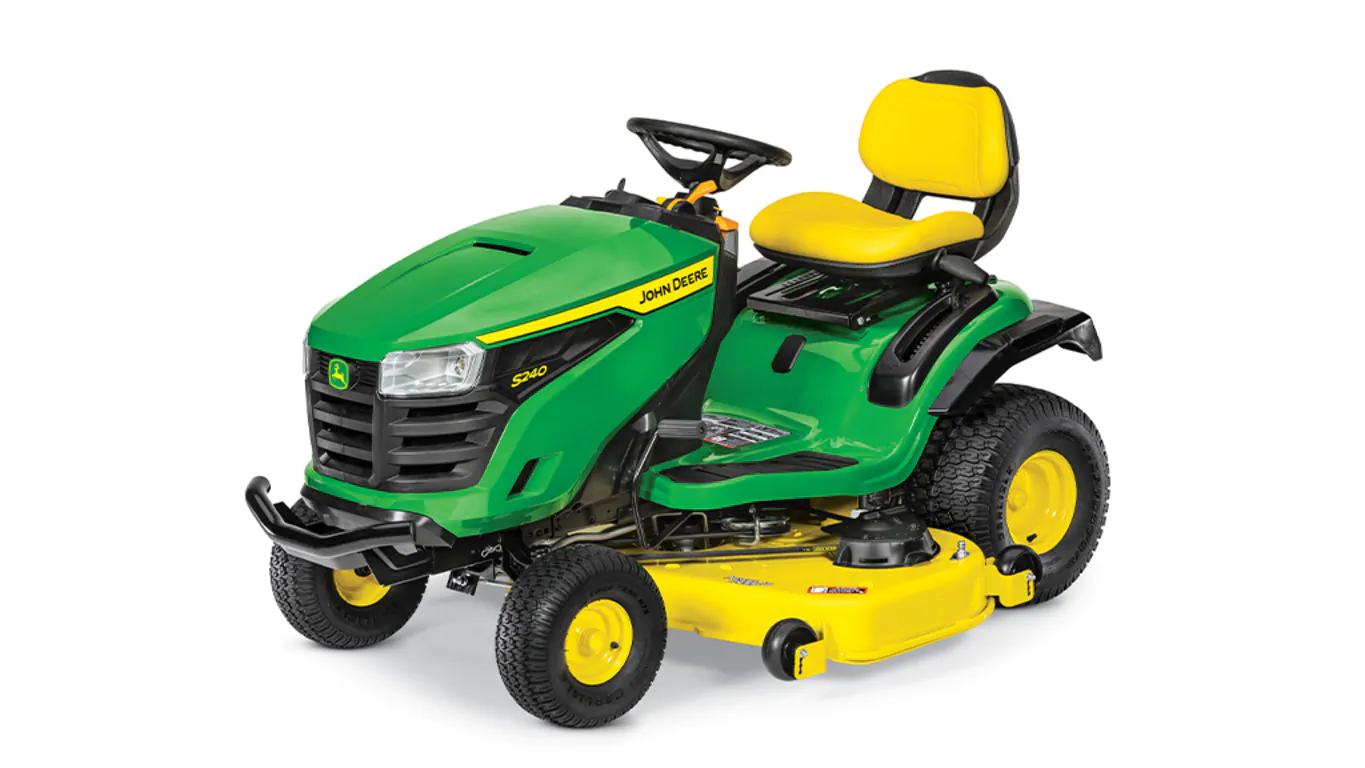

John Deere S240 Lawn Tractor with 42-in, 48-in Deck
200 Series
- 21.5 HP* powerful V-Twin Engine
- 48-in. (122-cm) Accel Deep™ Deck with optional MulchControl™ kit
- Cool and comfortable 15-in (38-cm) open back seat
- Side-by-side forward and reverse pedals
- K46 heavy-duty hydrostatic transmission
- Easy to read fuel gauge with low light visibility
- 3-year/200-hour bumper-to-bumper warranty
| Engine - Power | 21.5 hp 16 kW |
|---|---|
| Key Specs - Rear tires | 20x10-8 |
| Optional equipment - Weather protection | Weather enclosure |
| Safety - Backup protection | Reverse Implement Option (RIO) |
| Engine - Cooling method | Air |
| Engine - Displacement | 36.8 cu in. 603 cc |
| Chassis - Receiver hitch | No |
| Optional equipment - Powered material collection | Power Flow™ system |
| Key Specs - Engine power | 21.5 hp 16 kW |
| Engine - Choke/speed control | Separate levers, automatic choke return |
| Seat - Type | Open-back design with grasp |
| Electrical system - 12-V outlet | No |
| Optional equipment - Sprayer | Tow-behind only, 15 U.S. gal. 56.8 L Tow-behind only, 25 U.S. gal. 94.6 L |
| Mower attachability - Drive system | Single V-belt |
| Steering - Turning radius | 18 in. 45.7 cm |
| Engine - Type | Overhead valve, full-pressure lube, oil filter |
| Transaxle - Forward speed | 0-5.5 mph 0-8.9 km/h |
| Additional information - Date collected | 15-Oct-2020 |
| Fuel system - Fuel delivery | Pulse pump and carburetor |
| Optional equipment - Front bumper | Included |
| Optional equipment - Mulching system | Yes, MulchControl™ |
| Electrical system - Battery | 12 V 300 CCA |
| Additional information - Manufacturing location | Greeneville, Tennessee, USA |
| Fuel system - Fuel gauge | Mechanical, viewable from seat |
| Seat - Armrests | No |
| Optional equipment - Front blade | 46 in. 116.8 cm |
| Engine - Manufacturer/model | FR651V |
| Mower deck - Mower level adjustment | Easy-level deck |
| Mower deck - Type | Side discharge |
| Engine - Cylinders | V-twin, cast-iron liners |
| Chassis - Primer/paint | E-coat/powder |
| Mower deck - Construction | Stamped steel deck shell |
| Chassis - Fender handles/grips | Handgrips |
| Dimensions - Width with mower (deflector raised for storage) | 54 in. 137 cm |
| Optional equipment - Tow-behind tools | 16 |
| Fuel system - Fuel fill opening | Center, 1.75 in. 4.45 cm |
| Mower attachability - Front draft arms | One spring clip |
| Key Specs - Oil change | No-tools oil drain with replaceable filter |
| Optional equipment - Snow blower | Two-stage, 44 in. 111.8 cm |
| Optional equipment - Bucket holder | Yes, single bucket |
| Key Specs - Transaxle control | Side-by-side pedals |
| Electrical system - Backup lights | No |
| Steering - Type | Sector and pinion with single drag link and tie rod |
| Dimensions - Wheelbase | 48.9 in. 124.2 cm |
| Fuel system - Fuel tank location | Rear |
| Mower attachability - Type | Slide under tractor |
| Transaxle - Differential lock | No |
| Seat - Fore-aft adjustment | While seated, 5.5 in. 14 cm |
| Seat - Seat back height | 15 in. 38.1 cm |
| Mower deck - Mower wash port | Yes, with hose end |
| Mower deck - Mower drive system | Electric power take-off (PTO) clutch |
| Mower deck - Mower wheel adjustment | One bolt |
| Chassis - Frame | Full-length welded steel |
| Key Specs - Lift system type | Spring-assisted hand-grip lever |
| Electrical system - Charging system | Flywheel alternator, regulated, 12 amp |
| Mower attachability - Mower wheels rotate | No |
| Key Specs - Cutting width | Accel Deep™ mower deck, 48 in. 122 cm |
| Transaxle - Oil cooler | Fins and fan on transaxle |
| Safety - Meets ANSI standard | Yes |
| Dimensions - Overall length | 75.1 in. 191 cm |
| Lift system - Mower cut height | 13 positions, 1-4 in. 2.5-10.2 cm |
| Fuel system - Type | Gasoline |
| Transaxle - Type | K46 heavy-duty hydrostatic, two-wheel drive |
| Lift system - Preset cut height | No |
| Key Specs - U.S. warranty | 3-year/200-hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Engine - Oil change | No tools |
| Chassis - Rear tires | 20x10-8 |
| Chassis - Hood material | Molded-in color material reduces sound, will not rust or dent |
| Mower attachability - Rear draft arms | Two spring clips |
| Chassis - Weight bracket | Optional rear |
| Optional equipment - Rear bagger | 2-bag, 6.5 bu 229 L |
| Safety - Safety video | Yes |
| Transaxle - Control | Side-by-side pedals |
| Buyer's notes - Warranty | 3-year/200-hour bumper-to-bumper* (*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.) |
| Lift system - Type | Spring-assisted hand-grip lever |
| Chassis - Front tires | 15x6-6 |
| Mower deck - Cutting width | Accel Deep mower deck, 48 in. 122 cm |
| Chassis - Front axle | Cast iron front axle, front wheel sealed ball bearings |
| Chassis - Equipment mounting | CargO Mount™ system |
| Transaxle - Reverse speed | 0-3.2 mph 0-5.2 km/h |
| Chassis - Fender deck material | Stamped steel |
| Chassis - Service interval decal | Yes |
| Mower deck - Mower wheels | Four |
| Electrical system - Rear work lights | No |
| Chassis - Floor mats | Yes, with debris removing channels |
| Buyer's notes - Notes | Molded-in color material reduces sound, will not rust or dent Durable primer and powder paint finish Large, 14-in. (36-cm) steering wheel for more comfortable operation |
| Safety - Meets OPEI standard | Yes |
| Chassis - Storage | Storage tray with cover |
| Steering - Steering wheel | Deluxe, diameter - 14 in. 35.6 cm |
| Steering - Uncut circle radius | With 48A: 18.5 in. 47 cm |
| Electrical system - Taillights or reflector | Reflectors |
| Steering - Tilt steering wheel | No |
| Transaxle - Brakes | Internal wet disk |
| Lift system - Hydraulic outlets | No |
| Dimensions - Height | 45 in. 114 cm |
| Electrical system - Engine starter | Bendix type |
| Key Specs - Engine manufacturer/model | FR651V |
| Engine - Air cleaner | Dry, replaceable with foam precleaner |
| Engine - Governor | Mechanical |
| Electrical system - Headlights | Two standard, incandescent |
| Chassis - Cup holder | Yes |
| Lift system - Cut height increments | 0.25 in. 0.64 cm |
| Dimensions - Weight | 522 lb 237 kg |
| Chassis - Spindle bushings | No |
| Fuel system - Fuel tank capacity | 2.4 U.S. gal. 9.1 L |
| Optional equipment - Spreader | Tow-behind only, 125 lb 57.7 kg Tow-behind only, 175 lb 79.4 kg |
| Mower deck - Mower deck material | Steel, 10 gauge 0.135 in. 3.4 mm |
| Transaxle - Oil filter | Internal, not replaceable |
| Seat - Seat suspension | Tilt, two rubber isolators |
| Steering - Four-wheel steer | Not available on this model |
| Key Specs - Transaxle type | K46 heavy-duty hydrostatic, two-wheel drive |
| Electrical system - Hourmeter | Yes |
| Transaxle - Cruise control | Standard |
| Dimensions - Width with mower | 63 in. 160 cm |
| Optional equipment - Sun canopy | Sun canopy |
Featured List
- Deck: 48-in. Accel Deep™
- Transmission: Heavy Duty, Two Pedal Hydrostatic
- Warranty: 3 year/200 hour<sup>1</sup>
- Engine: 21.5 hp*
- Drive System: 2-wheel drive
Featured Content
Two-pedal speed and direction controls
Forward speed control pedal in use
A Kanzaki® Tuff Torq® hydrostatic transmission gives an infinite choice of speeds and makes changing the direction of travel easy.
Side-by-side foot pedals control the speed and direction of travel:
-
- Automotive-type accelerator controls ensure easy operation.
-
- The operator can change direction without lifting foot off the platform.
-
- A large pedal surface gives superior operator comfort.
Hydrostatic transmission
Appropriate transmissions are used in each tractor model, depending on rear tire size and tractor performance requirements, to ensure excellent performance and reliability:
-
-
Tuff Torq TLT200 – S220
-
-
-
Tuff Torq K46 – S240
-
Kanzaki and Tuff Torq are trademarks of Kanzaki Kokyukoki Manufacturing Company.
An exclusive 3-year or 200-hour (whichever comes first), single-source, bumper-to-bumper warranty* is standard for all John Deere 200 Series Tractors.
-
- The warranty is hassle free, with one company handling all of the paperwork.
-
- Premium features of 200 Series Tractors allow for this longer warranty period, with more coverage than comparable tractors.
*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.
Conveniently located controls
Dash instruments and controls
Instruments and controls
Three-spoke steering wheel for greater operator comfort and control:
-
- Deluxe, 14-in. (35.6-cm) diameter steering wheel gives greater comfort and control compared to smaller diameter steering wheels used on many lawn tractors.
The contoured dash has clean, attractive styling:
-
- Controls are color coded and labeled for easy identification by the operator.
-
- Controls are logically placed and easy to reach.
-
- Easy-to-read fuel gauge is conveniently located on dash.
-
- The hour meter makes it easy to tell when oil changes and other maintenance should be performed.
-
- The ignition switch is on the dash for starting ease.
-
- Functional design of the controls provides good appearance and a comfortable feel.
Engine speed lever and spring-loaded choke lever
Power take-off (PTO) switch
The engine speed lever and choke control lever are separate controls:
-
- The engine speed lever is easy to use.
-
- The choke lever is spring loaded so the operator cannot accidentally operate the tractor with the choke on.
The mower deck is engaged with an easy-to-use electric PTO switch:
-
- The electric switch requires only a short movement.
-
- With an electric PTO clutch, the mower drive belt stays under tension at all times for improved reliability compared to manual PTO engagement systems.
Easy-read fuel gauge shows fuel level on the dashboard
Easy-read fuel gauge
Convenient fuel-filler opening
The easy-read fuel gauge shows how much fuel is in the tank and can be seen on the dashboard:
-
- Easy to check fuel level
-
- Convenient location
-
- Visible in cloudy or dusk conditions (is not backlit)
-
- Will not slosh from bumps
-
- The MowerPlus smartphone app can read and remember the fuel level (optional MowerPlus™ deluxe smart connector required)
-
- The hour meter is also visible on the fuel gauge display
Side-by-side transmission control pedals
Two-pedal speed/direction controls
Side-by-side foot pedals
Side-by-side foot pedals control the speed and direction of travel:
-
- Automotive-type accelerator controls ensure easy operation.
-
- Operator can change direction without lifting foot off the platform.
-
- Large pedal surface gives superior operator comfort.
Cruise control
Cruise control lever
Cruise control is standard equipment:
-
- To engage, lift up on the cruise lever and hold until the foot is removed from the forward pedal.
-
- The cruise control can be released by pushing on the brake pedal or the forward pedal.
Parking brake control
Brake/parking brake pedal
Parking brake lever
The parking brake control is conveniently located for easy access. It holds the brake pedal securely in the locked position.
Mower deck height adjustment and handgrip
Mower deck height adjustment lever
A spring-assisted, ergonomically designed lift lever simplifies adjusting the mower cut height:
-
- Increments of 1/4 in. (0.64 cm) allow fine-tuning the cut height.
-
- Cut height is adjustable from 1 to 4 in. (2.5 to 10.2 cm).
-
- The lift handle is shaped for easy use and is out of the way of entering or exiting operators.
Reverse implement option (RIO)
RIO switch
Using RIO
CAUTION: Children or bystanders may be injured by rotating blades. Before traveling forward or rearward:
-
- Carefully check the area around the machine.
-
- Disengage the mower before backing up.
NOTE: Backing up while the mower is engaged is strongly discouraged. RIO should be used only when operating another attachment or when the operator deems it necessary to reposition the machine with the mower engaged.
-
- Stop forward travel.
-
- Look behind the machine to be sure there are no bystanders.
-
- Push and hold in the RIO switch while depressing the reverse pedal slightly.
NOTE: If the mower or other attachment stops while repositioning the machine, return the attachment engagement switch to the off position. Start engine and engage mower. Begin again with step 2.
-
- Release the RIO switch and reposition the machine as the machine begins to move rearward.
-
- Resume forward travel. The mower or other attachment should continue operating.
-
- Repeat procedure to position the machine again.
MowerPlus app screen
MowerPlus app maintenance screen
Keep a John Deere lawn tractor running its best and know how it mows with the John Deere MowerPlus app. Simply scan the lawn tractor’s barcode to get custom information. The app helps determine the best time to mow, communicates expert pre-mow tips, offers maintenance reminders, and provides walk-through guides.
Look for the MowerPlus app on the iOS® or Android™ system app stores.
The app supports residential lawn equipment such as 100 Series, 200 Series, X300, X500, X700, Z200 through Z600, and many similarly sized older products. It does not presently support tractor models numbered 1000 and larger, such as 1025R.
NOTE: Some product image variation may exist.
MowerPlus connectors also available (sold separately)
MowerPlus hour meter connector
MowerPlus deluxe smart connector, with a phone
The John Deere MowerPlus connectors wirelessly link a lawn tractor to the MowerPlus app on a mobile device.
| Deluxe smart connector | Hour meter connector | |
| Compatible with lawn tractors | S120, S130, S160, S170, and S180 Model year 2021 and later S240 (SN 880,001- ) |
S100, S110, S140, S220 |
| Communicates engine usage to track maintenance intervals | X | X |
| Communicates fuel level and battery health | X | |
| Compatible with MowerPlus app for iOS® operating system | X | X |
| Compatible with MowerPlus app for Android™ operating system | X |
iOS is a trademark of Cisco Technology, Inc. used under license by Apple Inc. Android is a trademark of Google LLC.
Snow blower, weather enclosure, weights, and chains on a 100 Series Tractor
Front blade, weather enclosure, and chains on a 100 Series Tractor
An advantage of lawn tractors is their ability to use equipment for snow removal. Lawn tractor owners can add a John Deere snow blower or front blade to make quick work of moving snow whenever the need arises. Weather enclosure and tire-chain attachments add comfort and performance.
Equipment available for snow removal includes:
-
- 44-in. (112-cm) Snow Blower
-
- 46-in. (117-cm) Front Blade
-
- Tire chains or TerraGrip traction belts
-
- Weather enclosure
-
- Weights
21.5-hp (16-kW) engine
Engine oil and fuel filters
The S240 Tractor has a large 44.3-cu in. (726-cc) displacement engine with premium features that provide superior performance and reliability:
-
- Large cleanout ports, integrated into the engine shroud, are located over the cylinder heads to allow for easy inspection and removal of any debris that may have collected there.
-
- Premium engine oil and air filtering systems and cooling design provide increased reliability and engine life.
The 21.5-hp (16-kW) V-twin engine provides plenty of power and torque to handle tough mulching, mowing, and bagging conditions:
-
- V-twin cylinder design for greater torque, lower vibration, and improved sound quality
-
- Electronic ignition for fast starts
-
- Cast-iron cylinder liners for longer engine life
-
- Overhead valves for excellent power and fuel economy
-
- Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life and extending the time between oil changes
-
- Also more effective when operating the tractor on an incline
-
- Full-pressure lubrication and oil filter for cleaner oil, prolonging engine life and extending the time between oil changes
-
- In-line fuel filter for reliable operation
Engine speed lever and spring-loaded choke lever
Engine hood in open position
The engine speed lever and choke control lever are separate controls:
-
- The engine speed lever is easy to use – there is no need to worry about pushing too far and engaging the choke as on single throttle/choke lever systems.
-
- The choke lever is spring loaded so the operator cannot accidentally operate the tractor with the choke on.
Engine hood opens wide for easy access to service points:
-
- It is easy to inspect and clean the engine area.
-
- Important service points are exposed.
-
- Cleanout ports designed into the engine shroud make cleaning the engine cooling fins easy.
-
- The high-quality engine used in the S240 does not require an 8-hour oil and filter change because improvements in the manufacturing process and quality of parts, components, and oils have eliminated the need for the short interval oil change requirement.
Fuel tank
Convenient fuel-filler opening
-
- Capacity is 2.4 U.S. gal. (9.08 L).
-
- Fuel-filler opening is conveniently located under the seat.
-
- Filling the tank without spilling is easy.
-
- The tethered fuel tank cap is more convenient.
-
- The sealed fuel cap helps keep vapors inside the tank.
-
- Fuel-filler opening is conveniently located under the seat.
S240 with 42-in. (107-cm) Accel Deep™ Mower Deck
48-in. (122-cm) MulchControl handle
An advantage of having an Accel Deep mower deck is compatibility with the optional MulchControl attachment, which makes mulching more practical.
Advantages of mulching grass clippings include:
-
- Creates a beautiful looking lawn
-
- Smaller grass clippings fall into the lawn canopy rather than lie on top
-
- Reduces the need for fertilizer
-
- Grass clippings are not blown onto the operator, driveways, or flower beds
-
- No need to dispose of bags of clippings
After it is installed and configured, the MulchControl attachment also has a handy feature where simple flips of a lever can:
-
- Change between side-discharge and mulching modes
-
- Change between bagging and mulching modes
How MulchControl works
42-in. (107-in.) MulchControl baffle closed
48-in. (122-cm) MulchControl baffle open
NOTE: Optional front center rollers are shown in 48-in. (122-cm) mower deck photos.
MulchControl is an innovative, simple design that is easy to use and maintain. The MulchControl attachment includes baffles that control the flow of clippings material under the deck:
-
- The baffles contain the clippings in a smaller space so the mower blades chop them multiple times. The baffles’ dimensions are designed to accommodate the mulching and discharge modes.
-
- When the baffle gate is closed, the material stays under the deck and gets chopped into mulch that falls into the turf.
-
- When the baffle gate is open, clippings material is passed out the side discharge opening.
48-in. (122-cm) MulchControl baffle closed
48-in. (122-cm) MulchControl handle
The MulchControl handle is on top of the mower deck and is used to open and close the discharge baffle.
MulchControl is well-suited to the following mowing situations:
-
- For operators who usually mulch, but side discharge when the grass gets too long
-
- For operators who usually side-discharge, but would like to be able to close the chute to control clippings
-
- For operators who always mulch a main lawn, but often side discharge secondary lawns
-
- For operators who bag clippings, but want to go farther before emptying bags (mulching in parts of the property)
MulchControl puts the operator in control of the clippings.
MulchControl limitations
While in the side-discharge mode, MulchControl still mulches about one third of the material. Therefore, the side-discharge mode is essentially a partial-mulch mode. This can be an advantage when side discharging or bagging, as it helps to reduce the amount of material being discharged. Other times this could work as a disadvantage:
-
- When cutting strong southern grasses, such as Zoysia and Bermuda
-
- When cutting in wet, high-growth conditions, such as those found in the Pacific Northwest United States
-
- When optimum bagging and lawn cleanup is desired
![Rear baffle (A) must be removed for bagging (only on 42-in. [107-cm] MulchControl)](https://salesmanual.deere.com/sales/salesmanual/images/NA/lawn_equipment/features_attachment/7bushelmcs/42a_16_bag_chute_mulch_baffle_arrows_275s.jpg)
Rear baffle (A) must be removed for bagging (only on 42-in. [107-cm] MulchControl)
The 42-in. (107-cm) MulchControl attachment includes a rear baffle (A), held in place by two carriage bolts and 13-mm nuts, at the rear edge of the discharge opening. This baffle:
-
- Is required for the full mulching mode
-
- Can remain in place or removed for side-discharging material
-
- Must be removed for installation of the bagger chute
MulchControl compatibility
There is an appropriate MulchControl attachment available for each Accel Deep mower deck type.
Mulching blades are included with each MulchControl attachment. They can be used for mulching, side discharging, and bagging in most conditions.
One-piece hood is easy to open
Service interval decal located under hood
The one-piece hood opens easily to permit checking and servicing the engine:
-
- Important service points are located within easy reach.
-
- A service interval decal is provided inside the tractor hood for convenience when servicing the tractor.
-
- The high-quality engines used in the 200 Series Tractor do not require an 8-hour oil and filter change because improvements in the manufacturing process and quality of parts, components, and oils have eliminated the need for the short interval oil change requirement.
-
- A service interval decal is provided inside the tractor hood for convenience when servicing the tractor.
Easy-to-service engine fuel and oil filters
Easy access to fuel-fill opening
The engine fuel and oil filters, the oil check/fill tube, and the oil drain tube are exposed for serviceability when the hood is opened.
The seat tilts up and out of the way to make adding fuel easy.
The 200 Series Tractor are covered by a 3-year/200-hour bumper-to-bumper warranty*:
-
- Premium features of the 200 Series Tractors allow for this longer warranty period, with more coverage than other tractors of comparable size.
*Term limited to years or hours used, whichever comes first, and varies by model. See the LIMITED WARRANTY FOR NEW JOHN DEERE TURF AND UTILITY EQUIPMENT at JohnDeere.com or JohnDeere.ca/TUWarranty for details.
Hood will not dent or rust and includes quality headlights
One-piece hood opens for service access
Quality headlights for good visibility
-
- Molded-in color material reduces sound and does not rust or dent.
-
- Same quality hood material as on larger John Deere tractors provides good resilience and UV resistance for an extended time.
-
- Openings on the side let in plenty of cooling air while keeping the sound level low.
-
- Two headlights provide good lighting for nighttime operation.
200 Series Tractor
Solid, one-piece frame
The solid one-piece frame is constructed of 12-gauge, 0.105-in. (2.7-mm) steel:
-
- Full-length robotically welded frame design has high-strength steel rails for added strength and long life.
-
- One-piece steel fender deck is bolted to the frame.
Turf Trac tire tread
The S240 comes with premium Turf Trac tires for superior traction and appearance: A more rounded profile reduces lawn scuffing and steering effort.
Cast-iron front axle does not bend
Front axle and wheel spindle
The front axle is constructed of solid cast iron that will not bend:
-
- Automotive-like steering system with sector-and-pinion steering gears and single drag link and tie rod provides a very strong, low-effort, and tight-turning system.
-
- Grease fittings allow regular lubrication to help maintain easy steering and minimize wear.
-
- Large, 0.75-in. (19-mm) diameter wheel spindles provide excellent durability.
Front bumper protects the tractor
Front bumper
Front bumper
The front bumper provides additional front-end protection and attractive, bold style.
CargO Mount™ system makes installation of rear bagger and other attachments easy
Rear CargO Mount points
Front CargO Mount points are at the top of the dashboard
Rear bagger is mounted with CargO Mount points
Rear bagger is mounted with CargO Mount points
The CargO Mount system is a combination of front and rear mounting points that provide convenient and easy installation of the rear bagger and other attachments.
Large, comfortable footrests
S240 Tractor
Comfortable operator station
The operator station is designed for operator comfort and easy operation:
-
- Controls are positioned where they are easy to reach and use to control the tractor.
-
- The steering wheel is positioned and angled to give the operator plenty of room and steering comfort.
-
- The seat is positioned to provide the most comfortable operator position.
-
- The wide footrest makes it easier to step over the mower deck while entering or exiting the seat.
-
- Debris-removing channels help keep the footrest area clean and dry.
Comfortable seat
Comfortable seat
Preferred seat adjustment lever
Operator comfort is enhanced with a 15-in. (38-cm) high-back, two-piece seat with an open back:
-
- The open-back seat design keeps the operator cooler
-
- Especially helpful when operating the tractor for extended periods of time
-
- Easily adjusted forward or rearward while in the seat
-
- Seat travel of 5.5 in. (14 cm) and 10 different positions
-
- The green plastic seat adjustment lever is easy to locate and use.
-
- Slide pads on the bottom of the seat allow the seat to slide more easily for convenient adjustment.
Rubber isolators under the seat give a smoother ride
The seat can be tilted forward for protection from the elements and to provide easy access to the fuel tank:
-
- Rubber isolators under the seat smooth out the ride for greater operator comfort.
Convenient storage
Cup holder and storage compartment with cover
The beverage holder and storage compartment, located on the right fender, add value and operator convenience.
Handgrip and reflector on fender flare
Fender flares cover the tires more completely and add style to the tractor. Handgrips give extra comfort for the operator, especially when operating on hillsides. Reflectors make the tractor more visible.
S240 with Accel Deep Mower
Left front corner of mower deck
The 48-in. (122-cm) Accel Deep Mower Deck is a 10-gauge (0.1345-in., 3.42-cm) stamped-steel, deep, flat-top design that delivers excellent cut quality, productivity, cleanliness, durability, and versatility. Optimal performance and dispersion of clippings is provided, even at faster mowing speeds:
-
- 4.83-in. (12.3-cm) depth throughout the entire deck shell allows for optimum mowing, mulching, and bagging performance.
-
- Optional MulchControl™ attachment provides superior mulching performance and versatility.
-
- 4.83-in. (12.3-cm) depth throughout the entire deck shell allows for optimum mowing, mulching, and bagging performance.
-
- Stamped-steel design eliminates sharp edges and corners where material can build up and diminish mowing performance.
-
- Mower deck is suspended from the vehicle for a smooth and level cut.
-
- Adjustable mower wheels positioned just above ground level help reduce scalping.
-
- Mower deck is suspended from the vehicle for a smooth and level cut.
-
- 0.25-in. (6.4-mm) cut-height increments allow mower to be set at the desired cut height
-
- Compatible with efficient 6.5-bu (229-L) two-bag material collection system
Excellent cut quality
Top view of mower deck
Underside of mower deck
NOTE: Optional front center rollers shown in above mower deck photos.
Deep mower-deck stamping gives excellent cut quality. It allows the cut and suspended material room to exit the deck without getting recut:
-
- Reducing the amount of re-cutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
-
- Helps maintain excellent cut quality at faster mowing speeds
-
- Reducing the amount of re-cutting enables more power to be used to cut incoming grass, which greatly improves mower capacity.
-
- Clean flow of material out of the discharge area prevents cut material from interfering with cutting the incoming grass, making it possible for the blades to cut incoming material cleanly.
-
- Even in mulching mode, cut evenness is improved compared to other designs because the additional depth allows for continuous circulation, optimal re-cutting, and an even distribution of clippings.
Productivity – getting the job done fast
Left side of Accel Deep mower deck
Right side of Accel Deep mower deck
Deep mower-deck stamping gives high productivity, which gets the job done fast. It allows the cut and suspended material room to exit the deck quickly, reducing the amount of re-cutting so more power is available to process incoming grass:
-
- Greatly improves mowers capacity to maintain excellent mowing performance in difficult mowing conditions and at higher speeds
Large discharge opening is both high and wide to handle more material:
-
- Gives a smooth, even discharge of clippings at all mowing speeds
-
- Reduces the chance of plugging, especially important when operating in wet, thick, or dense grass and when bagging
Cleanliness – for the mower and the operator
Right front view of mower deck
Left front view of mower deck
The flat-top shape of the deck stamping is optimal for keeping the deck and the operator clean:
-
- There are few places to catch and hold material on top and underneath the deck.
-
- Top of deck stays cleaner, reducing time and effort needed for cleaning and service
-
- Underside of deck is self-cleaning to maintain optimum performance without build-up of material to interfere with the flow of air and clippings
-
- Less need to clean and remove buildup of material from underside deck
-
- There are few places to catch and hold material on top and underneath the deck.
-
- The depth of the Accel Deep mower deck minimizes the amount of material that escapes from the front of the deck.
-
- Limited amount of material drifts onto the operator and mower deck
-
- Even for material discharged out of the chute, less re-cutting results in larger pieces that are less likely to end up on the operator
-
- Mulching prevents the discharge of material completely, and the MulchControl attachment makes mulching a practical solution for most mowing situations.
-
- The depth of the Accel Deep mower deck minimizes the amount of material that escapes from the front of the deck.
Cleaning a mower deck, both top and bottom, is one of the most frequent maintenance activities:
-
- The flat-top design reduces places for material to build up and makes material that does collect easy to remove.
Mower wash port
Mower wash port with hose connector
A wash port is provided to make cleaning the underside of the mower deck easy.
-
- A hose connector is included with the mower deck.
Superior durability is designed in
Spindle pocket with flip-up cover
Easy-to-adjust mower wheel and mower side reinforcement
The 48A Mower Deck has strong spindle pockets, to keep the blades aligned, even after years of tough service:
-
- Ribs in the deck shell add strength where it is needed.
Mower wheels are heavy duty:
-
- Provides greater strength and durability for longer, trouble-free life.
-
- Setting wheels to the correct height for the cutting height is quick and easy.
Low-tension belt-drive design reduces the side load on engine lower bearings and mower deck bearings for longer life.
The mower deck features a 5/8-in. (16-mm) diameter solid-steel rod side bumper that provides extra strength and protection.
Dual-stage E-coat and powder-paint coatings provide extra protection from rust.
Optional Power Flow™ bagger
Optional bagger
Optional Power Flow blower
An optional 6.5-bu (229-L) rear bagger material collection system (MCS) is available. It provides efficient bagging performance and has easy-to-empty bags:
-
- The Power Flow blower and chute are easy to install. The Power Flow blower swings out for easy cleanout and cleanup.
-
- The hopper design provides modern styling, great bagging performance, cleaner operation, and easy-to-empty bags:
-
- 6.5-bu (229-L) capacity
-
- Easy-to-attach Power Flow blower
-
- Easy-to-attach chute
-
- The hopper design provides modern styling, great bagging performance, cleaner operation, and easy-to-empty bags:
| Mode(s) of operation | Mower blade |
| Side discharging mode only | Side-discharge blade (shipped with mower) |
| Mulching mode only | Mulching blade (shipped with MulchControl attachment) |
| Side discharge and mulching | Mulching blade (shipped with MulchControl attachment) |
| Bagging | Either side-discharge or mulching blade |
